Dolphin C5 Pool Cleaner | Operating Instructions 1
Contents
1. INTRODUCTION ................................................................................. 2
2. SPECIFICATIONS ................................................................................ 2
3. WARNINGS AND CAUTIONS............................................................ 2
3.1. Warnings .................................................................................... 2
3.2. Cautions ..................................................................................... 2
4. POOL CLEANER PARTS...................................................................... 3
5. USING THE POOL CLEANER............................................................. 4
5.1. Set up ......................................................................................... 4
5.2. Putting the Pool Cleaner into the pool ................................... 5
5.3. Removing the Pool Cleaner from the pool ............................. 5
5.4. Maintenance .............................................................................. 6
5.5. Off-season storage.................................................................... 7
6. REMOTE CONTROL UNIT ................................................................ 8
CADDY ASSEMBLY ................................................................................. 25
Dolphin C5 Robotic Pool Cleaner
Operating Instructions
EN
Dolphin C5 Pool Cleaner | Operating Instructions
2
Dolphin C5 Pool Cleaner
Operating Instructions
1. INTRODUCTION
Thank you for purchasing a Maytronics Robotic Pool Cleaner.
We are sure that your Maytronics Robotic Pool Cleaner will provide you with reliable, convenient and
cost effective pool cleaning. Its reliable filtration in all pool conditions and all-surface climbing brush
enhance maximum pool hygiene.
The Robotic Pool Cleaners by Maytronics deliver advanced cleaning technology, long lasting
performance and easy maintenance.
2. SPECIFICATIONS
Motor protection: IP 68
Minimum depth: 2.6ft / 0.80m
Maximum depth: 16.4ft / 5m
3. WARNINGS AND CAUTIONS
3.1. Warnings
• Use the originally supplied power supply only
• Ensure the electrical outlet is protected by a ground fault interrupter (GFI) or an earth
leakage interrupter (ELI)
• Keep the power supply out of standing water
• Position the power supply at least 10ft / 3m away from the edge of the pool
• Do not enter the pool while the pool cleaner is working
• Unplug the power supply before servicing
3.2. Cautions
When not in use store the Pool Cleaner on the caddy in a shaded area.
Use the Pool Cleaner in the following water conditions only:
Chlorine Max 4 ppm
pH 7.0 - 7.8
Temperature 43-93°F / 6-34°C
NaCl Maximum = 5000 ppm
CAUTION
Dolphin C5 Pool Cleaner | Operating Instructions 3
caddy
Power Supply
Unit
Dolphin C5
Combined Brush
All surface climbing
brush ideal for most
pool surfaces
Wonder Brush
For smooth ceramics
(optional)
Remote Control Unit
Bottom lid and filter Bag
Filter bag options:
Fine - factory default
Ultra fine - Optional

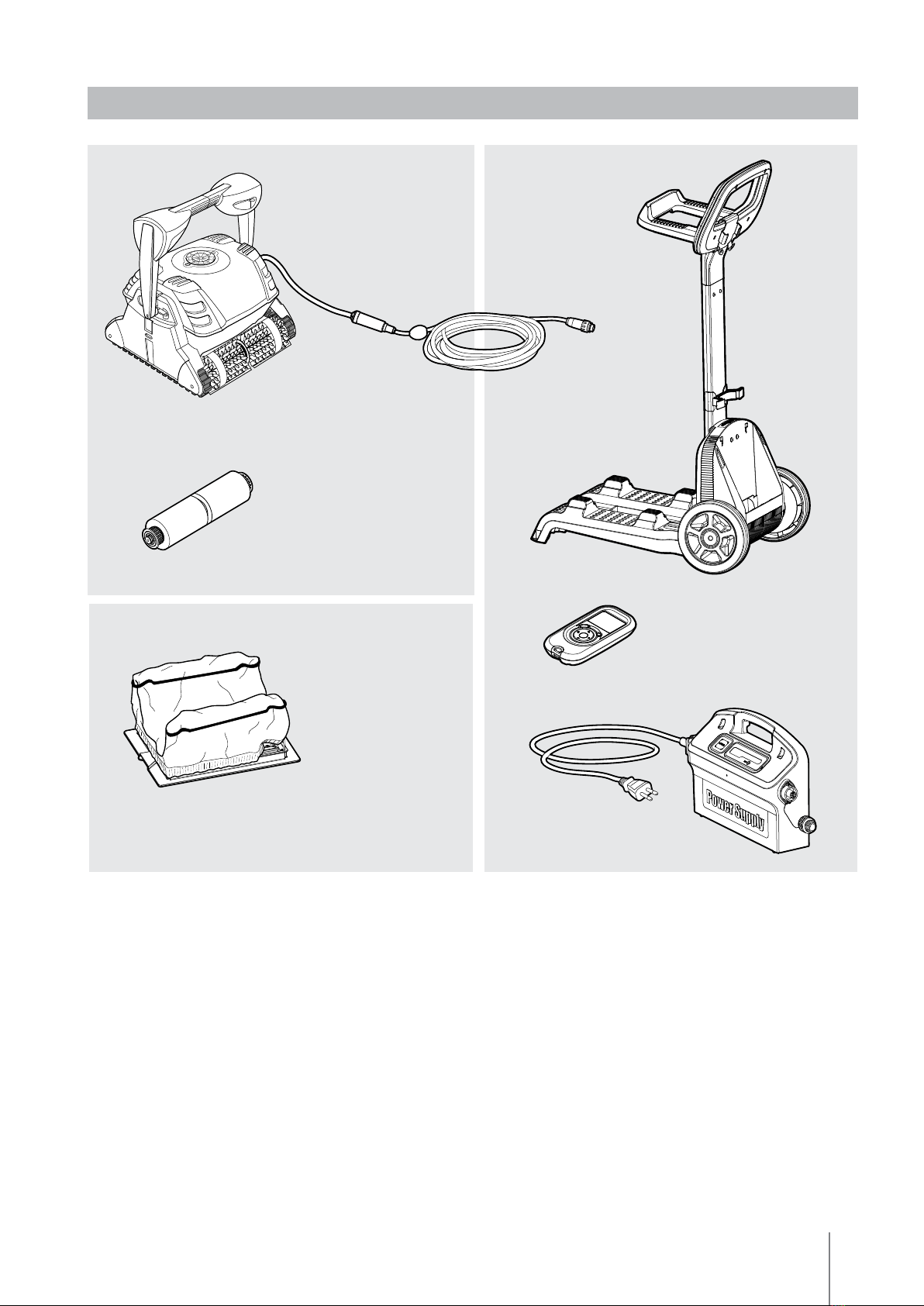

4. POOL CLEANER PARTS
Dolphin C5 Pool Cleaner | Operating Instructions
4
Change diagonal handle position
for water line sideway movement.
To adjust the handle angle:
A. Press the latch down and hold
it in position.
B. Move the handle to the desired
position and release the latch
to hold the handle in place.
Attach the floating cable to the
power supply by inserting it with the
notch on the connector (1) lined up
with the groove in the socket on the
power supply and turning clockwise (2).
5. USING THE POOL CLEANER
5.1. Set Up
1,2: Normal advance
More efficient cleaning
action on water-line.
3,4: Fast advance
Fast speed – for faster
but less efficient cleaning
action on water-line.
GFI/ELI
10ft/3m
104°F Max
40°C Max
Unwind the cable and stretch it out
completely so that it has no kinks.
Remove the plastic coverings before use.
Before using the Pool Cleaner for the first time perform the following steps.
Dolphin C5 Pool Cleaner | Operating Instructions 5
Turn the power supply ON.
ON

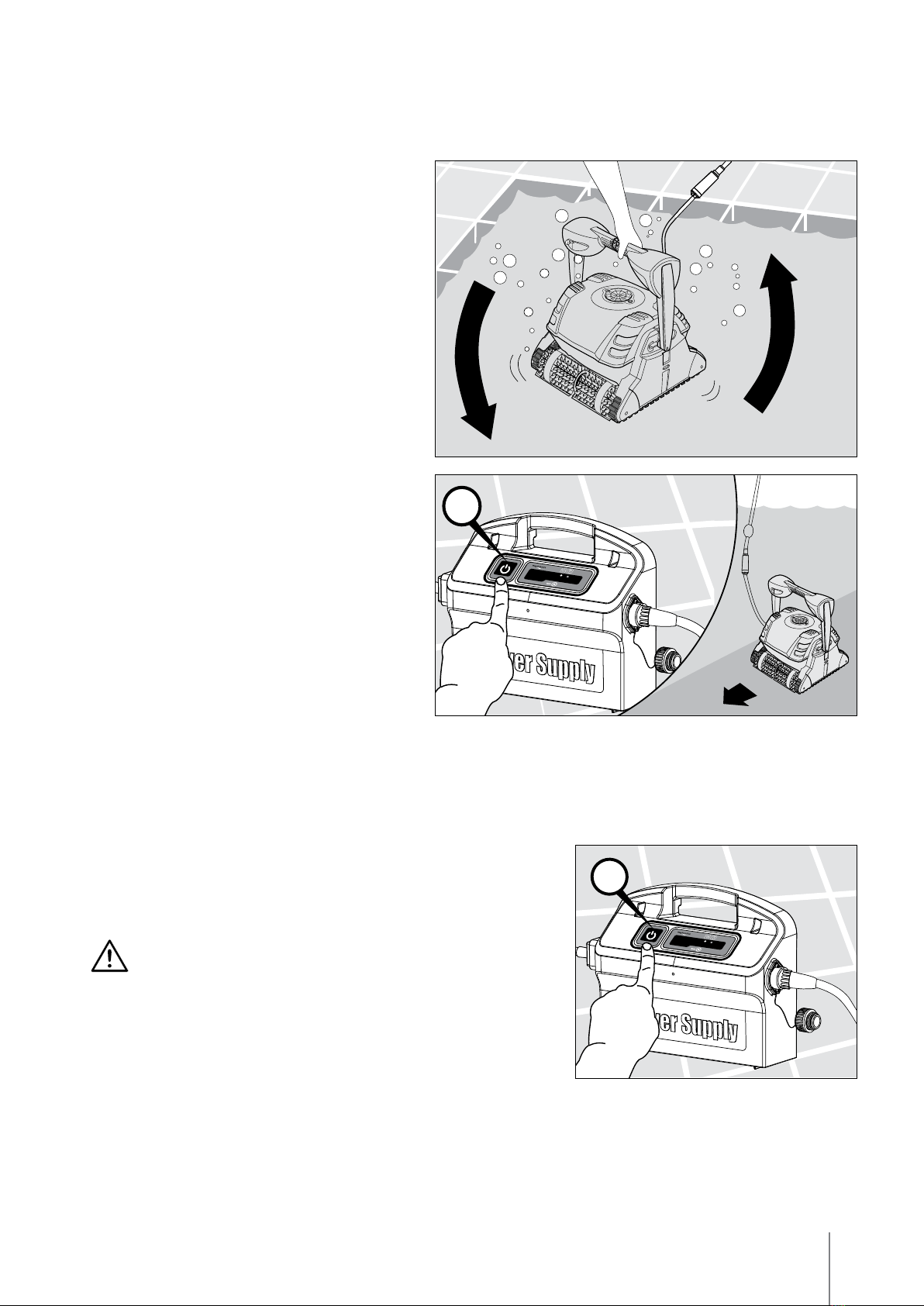

5.2. Putting the Pool Cleaner into the pool
5.3. Removing the Pool Cleaner from the pool
CAUTION
Turn OFF and unplug the power supply.
Shake the robot from side to side or turn
it upside down to release trapped air.
Let it sink to the pool floor.
If the foam climbing rings on the brushes are dry soak them in water until soft.
The robot will perform automatic shut-off at the end of the cleaning cycle.
OFF
Dolphin C5 Pool Cleaner | Operating Instructions
6
Using the floating cable, bring the Pool Cleaner to the pool’s edge.
Clean the filter bag with a hose.
Periodically clean the brushes with a hose.
It is recommended to periodically wash
the filter bag in a washing machine.
Use gentle cycle program.
5.4. Maintenance
CAUTION
DO NOT PULL THE POOL CLEANER FROM THE POOL USING THE CABLE.
B
C
Dolphin C5 Pool Cleaner | Operating Instructions 7
If you notice debris
trapped in the
impeller, open
the impeller and
remove the debris.
If the pool cleaner will not be in use for an extended
period, perform the following storage steps:
• Make sure that no water is left in the pool cleaner
• Thoroughly clean the filter bag and insert in place
• Roll up the cable so that it has no kinks and place
on the caddy
• Store the pool cleaner upright on the caddy in
a protected area out of direct sun/rain/frost at a
temperature of between 41˚-113˚F / 5˚-45˚C
5.5. Off-season storage
Cleaning the impeller
Unplug the power supply.
To remove the
kinks, stretch
the cable out
completely and let
it sit for at least a
day in the sun.
Cable
Dolphin C5 Pool Cleaner | Operating Instructions
8
6. REMOTE CONTROL UNIT
Maytronics Cycle Selector Remote Control
The Remote Control Unit offers two operation modes - Automatic mode and Manual direction mode.
In Automatic cleaning mode, the fast or regular cleaning cycle can be selected.
In Manual direction mode, the pool cleaner direction can be controlled manually.
The Control Panel of the Remote Control Unit
Manually controlling the
direction of the Pool Cleaner
1. Press the ON/OFF button once - The Remote Control Unit will
start-up in Manual direction control mode.
2. To manualy control the direction of the pool cleaner, utilise the
Direction control arrows.
Exiting Manual Direction Control Mode and set the
Automatic Mode
To exit the Manual direction control mode press the Manual/
Automatic Selection button ONCE only.
The Digital screen will light up and the two (regular/fast) icons
will show up.
To choose regular or fast cleaning cycle use the right or left arrows.
When you reach the required function press the Set/OK button.
Note: After 2 minutes, if no button is pressed the Remote Control Unit will shut-down and the Pool cleaner
will continue to work as started.
OK
Radio reception meter -
If no black lines show you should move
closer to the power supply unit
Set/OK button
Direction control arrows
Battery level meter -
When the icon flashes, change the batteries
Fast cleaning cycle
Manual control indicator
Manual/Automatic mode
select button ON/OFF button
Regular cleaning cycle
Direction
control
arrows
OK
ON/OFF
button
OK
Manual/
Automatic
mode select
button
Arrows
