Maytronics Dolphin Bio Suction Manual de usuario

www.maytronics.com

Dolphin Bio Suction

Bio_cover_English_8151191.indd 4 1/12/12 5:03 PM

8151191

User Manual Instructions

Dolphin Bio Suction

Bio_cover_English_8151191.indd 1 1/12/12 5:03 PM

Bio_cover_English_8151191.indd 3 1/12/12 5:03 PM

Contents

1. INTRODUCTION..................................................................... 2

2. SPECIFICATIONS .................................................................... 2

3. WARNINGS AND CAUTIONS................................................. 2

3.1. Warnings.......................................................................... 2

3.2. Cautions .......................................................................... 2

4. POOL CLEANER PARTS.......................................................... 3

5. USING THE POOL CLEANER.................................................. 4

5.1. Caddy assembly .............................................................. 4

5.2. Caddy and power supply positioning ............................. 4

5.3. Connecting the power supply ......................................... 5

5.4. Putting the robot pool cleaner into the pool .................. 5

5.5. Removing the robot from the pool

5.6. Cleaning the ﬁlter cartridges........................................... 7

5.7. Dismantling and cleaning the impeller............................ 9

5.8. Storage instructions......................................................... 9

6. USING THE EXTERNAL SUCTION PIPE.................................. 9

7. USING THE REMOTE CONTROL............................................ 12

7.1. The Control Panel ........................................................... 12

7.2. Setting the Automatic Mode........................................... 13

7.3. Manual direction control mode....................................... 14

8. DIGITAL SWITCH-MODE POWER SUPPLY ............................. 15

8.1. Setting The Weekly Timer ............................................... 15

8.2. Full ﬁlter bag indicator .................................................... 15

9. TROUBLESHOOTING ............................................................. 16

10. CADDY ASSEMBLY INSTRUCTIONS....................................... 17

Dolphin Bio Suction

User Instruction Manual

Bio_English_8151191.indd 1 1/12/12 6:26 PM

................................. 6

2Dolphin Bio Suction |User Instructions Manual

1. INTRODUCTION

1. The Dolphin Bio suction pool cleaner expertly cleans biological and nature swimming pools.

As a result, it has been designed to handle large amounts of algae and dirt.

2. The robot can be operated in two modes:

Operation without external suction (regular mode - the robot collects dirt in built-in ﬁltration

cartridges .

Operation with an external suction source: It is recommended to consult your dealer before

connecting the robot to an external pump.

Intended for pools with large amounts of algae and dirt. Dirt collected by the robot is transferred

through a pipe connected to an external pump and a ﬁlter. The pipe can be connected to virtually

any standard pool pump.

• In this mode, the external pump must be turned on throughout the robot’s operation.

3. The robot has a weekly timer option which allows the cleaning schedule to be set for the coming

week.

4. The default work cycle time is 3 hours.

5. Using the remote control, the work cycle time can be changed to 2 or 4 hours, according to the

pool’s speciﬁc cleaning requirements.

2. SPECIFICATIONS

Motor protection: IP 68

Minimum pool depth: 0.80m (2.6ft)

Maximum pool depth: 5m (16.4ft)

Water temperature: 6-34°C (43-93°F)

3. WARNINGS AND CAUTIONS

3.1.

CAUTION

Warnings

• Use only the original power supply provided with the robot.

• Ensure the electrical outlet is protected by a ground fault interrupter (GFI) or an earth

leakage interrupter (ELI).

• Keep the power supply out of standing water.

• Position the power supply at least 3m (10ft) away from the edge of the pool.

• Do not enter the pool while the robot is working.

• Unplug the power supply before servicing or cleaning the robot.

• Do not attempt to use the robot to clean a pool that has stones on the ﬂoor. This voids the

warranty.

• Maytronics is not responsible for any damage to the external pump.

• Maytronics is not responsible for damage done to pool vegetation.

3.2.

CAUTION

Cautions

• When not in use, store the robot on its Caddy in a shaded area.

• Extreme cold and frost can damage the robot. In the winter, always store the robot in a

protected place.

• Use the robot in water whose temperature is between 6-34°C (43-93°F) only.

Bio_English_8151191.indd 2 1/12/12 6:26 PM

)

Bio_cover_English_8151191.indd 3 1/12/12 5:03 PM

18 Dolphin Bio Suction |User Instructions Manual

8mm (5/16”)

5 6

7 8

* For

Remote Control

models

9 10

Bio_English_8151191.indd 18Bio_English_8151191.indd 18 1/12/12 6:27 PM1/12/12 6:27 PM

Dolphin Bio Suction |User Instructions Manual 3

4. POOL CLEANER PARTS

Dolphin Bio

Suction

Caddy

Weekly timer

Power Supply

Internal suction

adaptor

Swivel to pipe

connector

Suction inlet

plug

Cable to pipe

clip connector

Remote Control Unit

Pipe (optional)*

* The pipe for the external pump is a standard pipe and can be purchased from your Dolphin dealer.

Coarse net ﬁlter

Cartridge with

Spring net ﬁlters

Ultra-ﬁne ﬁlter

Filteration

X4 X4

X10

Bio_English_8151191.indd 3 1/12/12 6:26 PM

4Dolphin Bio Suction |User Instructions Manual

5. USING THE POOL CLEANER

5.1. Caddy assembly

Instructions for assembling the Caddy - see page 1 .

5.2. Caddy and power supply positioning

Position the power supply so that it is in the

approximate middle of the long side of the pool

at a distance of 3m (10ft) from the edge of the

pool.

Unwind the ﬂoating cable and stretch it out completely so that it has no kinks.

Adjusting the handle angle

The handle angle can be adjusted to determine the speed at which the robot advances along the

water-line.

To adjust the handle angle:

A. Press the latch down and hold it in position.

B. Move the handle to the desired position and release the latch to hold the handle in place.

10ft/3m

Bio_English_8151191.indd 4 1/12/12 6:27 PM

Dolphin Bio Suction |User Instructions Manual 17

1 2

3a 3b

* For Liberty models

4a 4b 4c

10. CADDY ASSEMBLY INSTRUCTIONS

Bio_English_8151191.indd 17 1/12/12 6:27 PM

16 Dolphin Bio Suction |User Instructions Manual

9. TROUBLESHOOTING

Problem Solution

Cable twisting or cable coils up. 1. Check for an obstruction in the pool.

2. Remove excess cable from the pool.

3. Clean the ﬁlters cartridges.

4. Straighten cable and lay it in the sun periodically.

The robot is moving in circles or

does not reach all areas of the pool.

1. Check for foreign objects in moving parts.

2. Make sure ﬁlters cartridges are clean and well-mounted and that

the ﬁlter covers are closed.

3. Make sure that there is enough cable laid out to cover the whole

pool.

The robot is not moving sideways on

walls.

Adjust the diagonal angle of the handle.

The robot does not climb walls. 1. Clean the ﬁlter cartridge.

2. If this is the beginning of the season, use a coarse net ﬁlter to

remove large debris.

3. Check if brushes are worn and replace them if necessary.

4. Make sure the impeller area is clean.

5. Check that the remote control is set for climbing.

The robot is disengaging from wall

at water-line.

If the robot climbs too high, consult your Dolphin distributor.

Remote control unit is not working. Check if the batteries need to be replaced.

Motor is not working. 1. Check if the impeller is blocked.

2. Check if the drive system is blocked.

3. Check power source.

If power is in order, please contact your Dolphin distributor.

Pipe is twisting. The pipe might be too long. Use only the minimum length of pipe

necessary for the robot to reach all corners of the pool.

The robot does not climb walls with

external pump.

Increase the external pump’s suction.

Additional troubleshooting is available on our website:

www.maytronics.com

Bio_English_8151191. ndd 16 1/12/12 6:27 PM

Dolphin Bio Suction |User Instructions Manual 5

5.3. Connecting the power supply

Attach the ﬂoating cable to the

power supply.

Insert it by lining up the connector

notch (1) with the groove in the

socket and turning clockwise (2).

Plug in the power supply and leave it turned off.

5.4. Putting the robot pool cleaner into the pool

Place the robot pool cleaner in the pool and

release it.

Bio_English_8151191.indd 5 1/12/12 6:27 PM

6Dolphin Bio Suction |User Instructions Manual

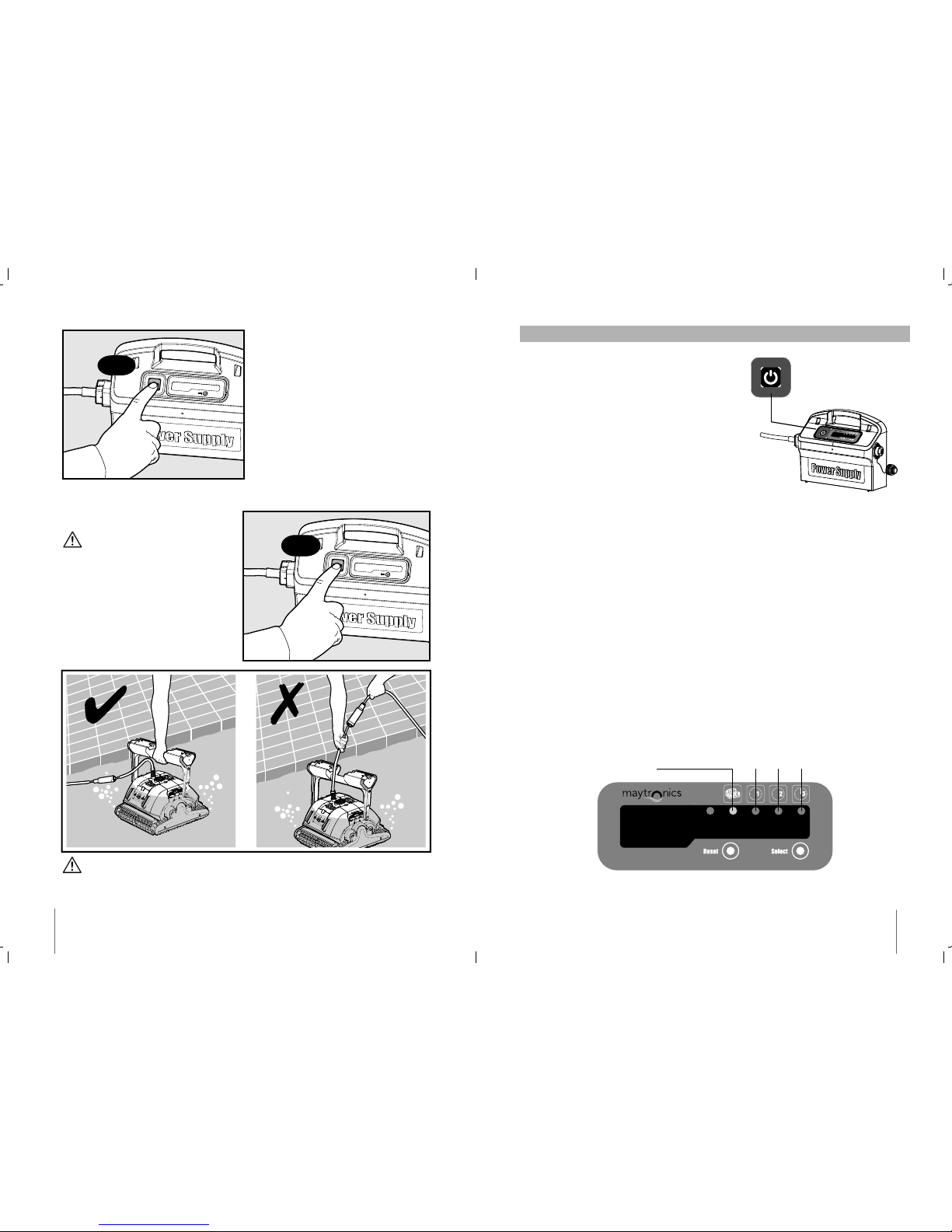

Switch the power supply on. The robot will now

begin working for a complete cleaning cycle. At

the end of the cycle, it will automatically switch

itself off.

5.5. Removing the robot from the pool

1. Turn off and unplug the power supply.

2. Using the ﬂoating cable, pull the robot to

the edge of the pool. Grab the handle and

remove the robot from the water.

CAUTION

DO NOT PULL THE ROBOT OUT OF THE POOL USING THE CABLE.

OFF

CAUTION

Bio_English_8151191.indd 6 1/12/12 6:27 PM

Dolphin Bio Suction |User Instructions Manual 15

8. DIGITAL SWITCH-MODE POWER SUPPLY

Digital switch-mode power supply with Weekly Timer and Full Filter Bag Indicator

• INPUT - 100-250 AC VOLTS

• 50-60 Hertz

• 180 Watt

• Output 30 VDC

• IP 54

8.1. Setting The Weekly Timer

The power supply has a weekly timer control. It allows

you to set an automatic cleaning schedule for the

week ahead.

When the power supply is switched on, the 3 LEDs

will blink for 5 seconds. At this time, by pressing the

SELECT button you can choose a pool cleaning schedule for the coming week.

Important: The robot will always begin to work upon set-up.

LED 1 – The robot will automatically work every day for a full cycle – 7 times a week.

LED 2 – The robot will automatically work every other day for a full cycle – 3 times a week.

LED 3 – The robot will automatically work every 3 days – 2 times a week.

If you do not press any of the buttons within the ﬁrst 5 seconds after the power supply has been

switched on, the robot will work for one cycle only.

While the robot is working in weekly timer mode, the LED will blink constantly between cycles.

At the end of the week the power supply automatically switches off. You must then reschedule the

robot for the next week.

8.2. Full ﬁlter bag indicator

The power supply is equipped with a ﬁlter bag status indicator.

The red LED indicates two ﬁlter conditions.

• When blinking – The ﬁlter is partially blocked.

• When lighted – The ﬁlter is blocked and must be emptied and cleaned.

If the LED does not turn off after the ﬁlter had been emptied and cleaned, press the RESET button

while the robot is working.

LED 1 LED 2Full ﬁlter bag indicator LED 3

On/Off switch

Bio_English_8151191.indd 15 1/12/12 6:27 PM

14 Dolphin Bio Suction |User Instructions Manual

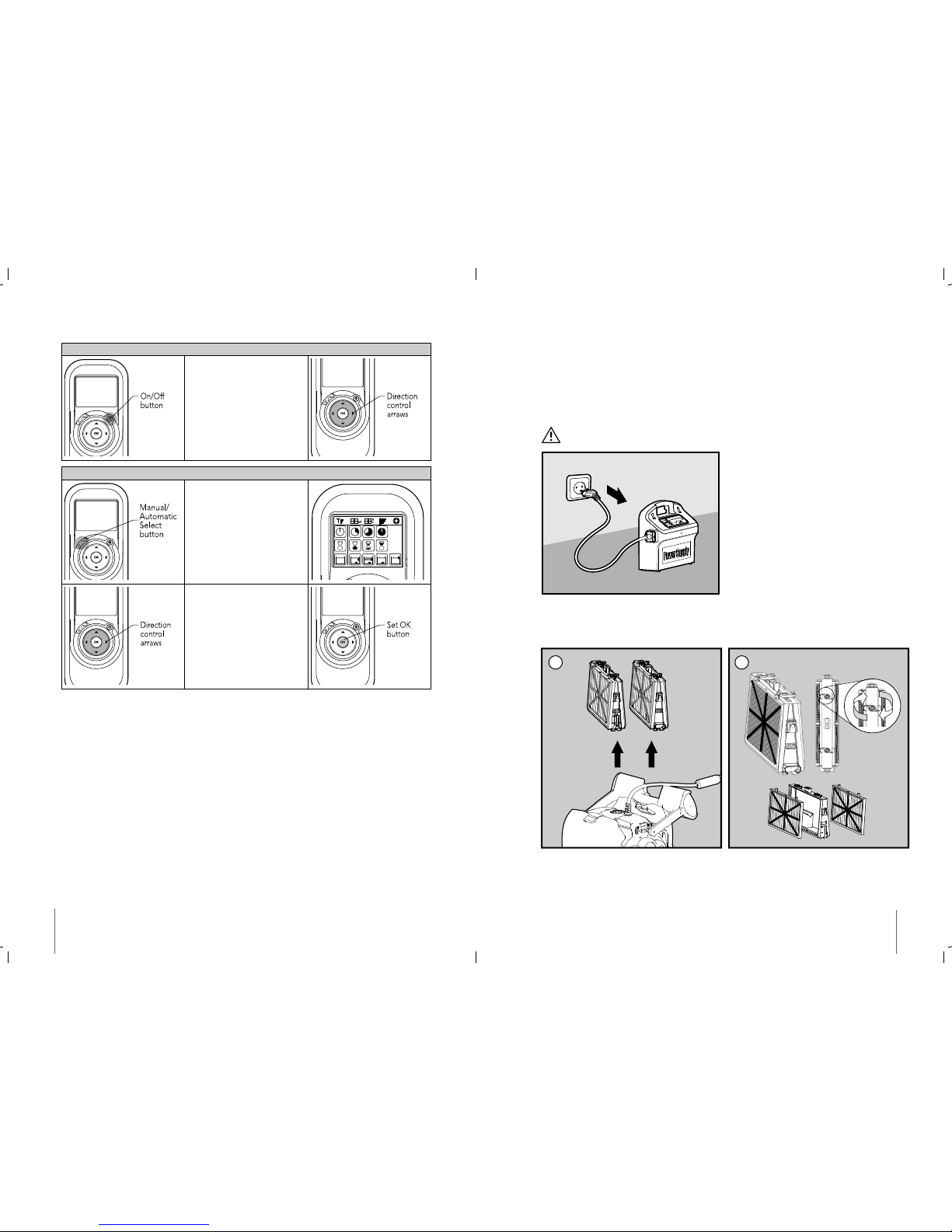

7.3. Manual direction control mode

Manual Direction Control Mode

1. Press the On/off button once.

The remote control will start in

manual direction control mode.

2. Use the direction control

arrows (see right) to control the

movement of the robot around

the pool.

Exiting Manual Direction Control Mode

1. To exit the manual direction

control mode, press the Manual/

automatic select button once

only.

2. The digital screen will light up

and three rows of function icons

will be displayed in default

mode.

3. To change the parameters press

the up or down arrows.

To select the parameter settings

use the right or left arrows.

4. When you reach the required

function press the Set/OK

button.

Bio_English_8151191.indd 14 1/12/12 6:27 PM

Dolphin Bio Suction |User Instructions Manual 7

3. Place the robot on the edge of the pool and let the water drain out.

4. Clean the ﬁlter cartridges.

5. Rinse all brushes with clean water after each cleaning cycle.

6. Place the robot on its Caddy in a shady area.

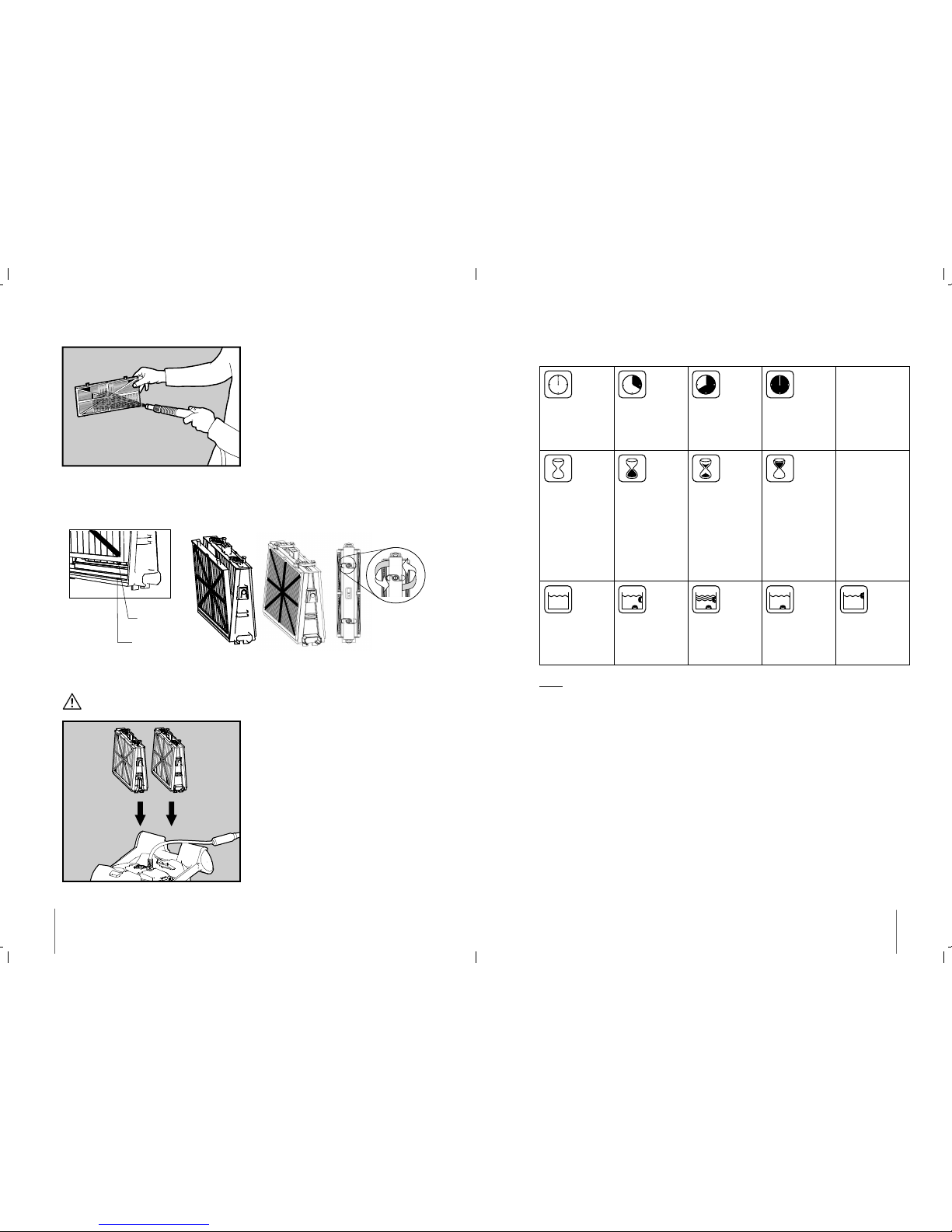

5.6. Cleaning the ﬁlter cartridges

CAUTION

Note: Do not let the ﬁlter cartridges dry out before cleaning.

• Unplug the power supply before any servicing activity, including cleaning the ﬁlter cartridges.

1. Open the ﬁlter covers and remove the cartridges from both sides of the robot.

2. Open the clips and remove the ﬁlters.

1 2

Bio_English_8151191.indd 7 1/12/12 6:27 PM

8Dolphin Bio Suction |User Instructions Manual

3. Clean the ﬁlters with a hose.

4. Reassemble the ﬁlter elements:

Insert the locating tabs at the bottom of the ﬁlter element into their grooves on the base frame then

close the “S” clip.

Reinstall the base frames with ﬁlters according to the diagram.

CAUTION

DO NOT FORCE THE FILTERS INTO PLACE.

Locating tab

Locating tab groove

Octagonal

end

ﬁtting

Grooved

end

ﬁtting

Bio_English_8151191.indd 8 1/12/12 6:27 PM

Dolphin Bio Suction |User Instructions Manual 13

7.2. Setting the Automatic Mode

Press the manual/automatic select button and then choose the desired parameters according to the

following table:

Cleaning cycle

indicator

This determines

the length of the

cleaning cycle.

Fast

2-hour cycle

Efﬁcient

3-hour cycle for

everyday use.

(default setting)

Heavy duty

4-hour cycle

Delay time

indicator

This determines

when the pool

cleaner starts to

work. Delaying

allows the dirt

to settle to the

bottom of the

pool.

Immediate start

(default setting)

One-hour delay Two-hour delay

Cleaning action

indicator

Standard

Floor and wall

cleaning

(default setting)

More thorough

cleaning

Repeatedly cleans

the ﬂoor

Floor only

Cleans only the

ﬂoor and the area

where the ﬂoor and

walls meet

Increased wall

cleaning

More thoroughly

cleans the walls

Note:

• If no button is pressed after two minutes, the remote control automatically turns off.

The robot will continue to work according to the last settings chosen.

• The last settings chosen are automatically saved. The next time the robot works, it will clean

according to the last set up made on the remote control.

Bio_English_8151191.indd 13 1/12/12 6:27 PM

Tabla de contenidos

Otros manuales de Aspiradora de piscina de Maytronics

Maytronics

Maytronics Dolphin Classic 13 Manual de usuario

Maytronics

Maytronics Dolphin WAVE 200 XL Manual de usuario

Maytronics

Maytronics 8180090 Manual de usuario

Maytronics

Maytronics Dolphin SX30 Manual de usuario

Maytronics

Maytronics Dolphin WAVE 100 Manual de usuario

Maytronics

Maytronics Supreme M4 Manual de usuario

Maytronics

Maytronics Dolphin Wave 75 Manual de usuario

Maytronics

Maytronics Dolphin CLASSIC 11 Manual de usuario

Maytronics

Maytronics Dolphin Wave Manual de usuario

Maytronics

Maytronics Dolphin Mass 14 Manual de usuario

Maytronics

Maytronics Dolphin Supreme M5 Manual de usuario

Maytronics

Maytronics Dolphin Classic 12+ Manual de usuario

Maytronics

Maytronics Hybrid Manual de usuario

Maytronics

Maytronics Dolphin Triton Ps Manual de usuario

Maytronics

Maytronics Dolphin Wave Manual de usuario

Maytronics

Maytronics Dolphin Mass 13 Manual de usuario

Maytronics

Maytronics MBC5-UNI Manual de usuario

Maytronics

Maytronics Dolphin Explorer E30 Manual de usuario

Maytronics

Maytronics Dolphin Nautilus CC Manual de usuario

Maytronics

Maytronics Dolphin WAVE 300 XL Manual de usuario

Maytronics

Maytronics CLASSIC 8D-UNI Manual de usuario

Maytronics

Maytronics Classic 4-UNI Manual de usuario

Maytronics

Maytronics Dolphin Skagerrak20 Manual de usuario

Maytronics

Maytronics Dolphin COMM. 12 Manual de usuario

Manuales populares de Aspiradora de piscina de otras marcas

POOLGOODS

POOLGOODS PoolGobbler Pro Manual de usuario

AREBOS

AREBOS AR-HE-BSR Hoja de información del producto

iRobot

iRobot Verro 600 Manual de usuario

Kokido

Kokido SKOOBA K535CBX/18/EU Manual de usuario

Dolphin

Dolphin 2x2 Gyro Manual de usuario

SmartPool

SmartPool Robo-Kleen PLUS Manual de usuario

Brilix

Brilix BARACUDA Manual de usuario

Aiper

Aiper Orca 1200 Pro Manual de usuario

Hayward

Hayward Navigator Pro Manual de usuario

Polaris

Polaris Vac-Sweep 380 Manual de usuario

Pentair

Pentair Prowler 710 Manual de usuario

BWT

BWT D500 Manual de usuario

Kokido

Kokido xtrovac 70 Manual de usuario

Pentair

Pentair RACER Manual de usuario

Pentair

Pentair REBEL 2 Manual de usuario

Zodiac

Zodiac VX55 4WD Manual de usuario

SmartPool

SmartPool Robo Kleen Plus Manual de usuario

Steinbach

Steinbach Twin Manual de usuario
