INSTRUCTION MANUAL

NPN TRANSISTOR OUTPUT MODULE, 16 points

(DeviceNet) MODEL

R7D-DC16A

BEFORE USE ....

Thank you for choosing M-System. Before use, please check

contents of the package you received as outlined below.

If you have any problems or questions with the product,

please contact M-System’s Sales Ofﬁce or representatives.

■PACKAGE INCLUDES:

Discrete output module.......................................................(1)

■MODEL NO.

Conﬁrm Model No. marking on the product to be exactly

what you ordered.

■INSTRUCTION MANUAL

This manual describes necessary points of caution when

you use this product, including installation, connection and

basic maintenance procedures.

■EDS FILE

EDS ﬁles are downloadable at M-System’s web site: https://

www.m-system.co.jp

POINTS OF CAUTION

■CONFORMITY WITH EU DIRECTIVES

• The equipment must be mounted inside the instrument

panel of a metal enclosure.

• The actual installation environments such as panel con-

ﬁgurations, connected devices, connected wires, may af-

fect the protection level of this unit when it is integrated

in a panel system. The user may have to review the CE

requirements in regard to the whole system and employ

additional protective measures to ensure the CE conform-

ity.

■GENERAL PRECAUTIONS

• Before you remove the unit or mount it, turn off the power

supply and output signal for safety.

• Before you remove the terminal block or mount it, make

sure to turn off the power supply and output signal for

safety.

• DO NOT set the switches on the module while the power

is supplied. The switches are used only for maintenance

without the power.

■ENVIRONMENT

• Indoor use.

• When heavy dust or metal particles are present in the

air, install the unit inside proper housing with sufﬁcient

ventilation.

• Do not install the unit where it is subjected to continuous

vibration. Do not subject the unit to physical impact.

• Environmental temperature must be within -10 to +55°C

(14 to 131°F) with relative humidity within 30 to 90% RH

in order to ensure adequate life span and operation.

■WIRING

• Do not install cables close to noise sources (relay drive

cable, high frequency line, etc.).

• Do not bind these cables together with those in which

noises are present. Do not install them in the same duct.

• Be sure to close the terminal cover for safety.

■AND ....

• The unit is designed to function as soon as power is sup-

plied, however, a warm up for 10 minutes is required for

satisfying complete performance described in the data

sheet.

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

R7D-DC16A

EM-7802-G Rev.5 P. 2 / 10

COMPONENT IDENTIFICATION

MS X10 X1

NODE ADD. B.RATE

CNFG.

12345678

0123456789ABCDEF

10 11 12 13

2341

15 16 17 18

7896

23415

(A) Status Indicator LED

(B) Node Address Setting Rotary SW

(D) Operating Mode Setting DIP SW (SW1)

(E) PC Configurator Jack

(F) Discrete Output Status Indicator LED

(G) DeviceNet, Power Supply Terminals

(H) Output Terminals

(A)

(G) (H)

(B) (C) (D) (E) (F)

■STATUS INDICATOR LED

ID S TAT E TO INDICATE

MS Green Operating in a normal condition

Blinking Green Standby (needs commissioning)

Red Critical failure

Blinking Red Minor failure

OFF No power supplied

NS Green Link on-line and connections in the

established state

Blinking Green Link on-line but no connections in

the established state

Red Critical link failure

Blinking Red Minor link failure

OFF No power supplied

■DISCRETE OUTPUT STATUS INDICATOR LED

LED red indicators show the signal status.

ON : LED ON

OFF : LED OFF

■NODE ADDRESS

Node Address is selected between 1 and 63 in decimal. The

left switch determines the tenth place digit, while the right

switch does the ones place digit of the address.

Node Address Setting (x1)

Factory setting : 00

Node Address Setting (x10)

■BAUD RATE

Baud Rate is selected with the rotary switch.

Baud Rate Setting

0 : 125 kbps (factory setting)

1 : 250 kbps

2 : 500 kbps

3 thr. 9 : Auto-tracking

The R7D communicates in the baud rate setting detected at

the startup with the switch set to the positions 0 (125 kbps),

1 (250 kbps) or 2 (500 kbps).

For the settings 3 through 9, it analyzes the PLC’ s network

to determine the baud rate on the network.

■OPERATING MODE

(*) Factory setting

• Extension: SW1-1, 1-2

SW1-1 SW1-2 EXTENSION

OFF OFF No extension (*)

ON OFF Discrete input, 8 or 16 points

OFF ON Discrete output, 8 or 16 points

• Output at the Loss of Communication: SW1-4

SW1-4 OUTPUT AT THE LOSS OF COMMUNICATION

OFF Reset the output (turned off)

ON Hold the output (*)

(maintains the last data received normally)

Note: Be sure to set unused SW1-3 and 1-5 through 1-8 to

OFF.

■DeviceNet TERMINAL ASSIGNMENT

23415

NO. ID FUNCTION, NOTES

1 V+ Network power supply +

2 CAN_H Network data High

3 Drain Shield

4 CAN_L Network data Low

5 V– Network power supply –

■OUTPUT TERMINAL ASSIGNMENT

+24V

NO.

ID FUNCTION

NO.

ID FUNCTION

1 0V 0V (common) 10 +24V 24V DC

2 Y0 Output 0 11 Y1 Output 1

3 Y2 Output 2 12 Y3 Output 3

4 Y4 Output 4 13 Y5 Output 5

5 Y6 Output 6 14 Y7 Output 7

6 Y8 Output 8 15 Y9 Output 9

7YA Output 10 16 YB Output 11

8 YC Output 12 17 YD Output 13

9 YE Output 14 18 YF Output 15

■EXTENSION MODULE

Combinations with all extension modules are selectable.

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

R7D-DC16A

EM-7802-G Rev.5 P. 3 / 10

PC CONFIGURATOR

The following parameter items can be set with using PC Conﬁgurator Software (model: R7CON).

Refer to the users manual for the R7CON for detailed operation of the software program.

■INTERFACE SETTING

PARAMETER SETTING RANGE DEFAULT SETTING

Communication Timeout 0.0 – 3276.7 (sec.) 1.0 (sec.)

Status Data ON: Disable

OFF: Enable

Serial ID English one-byte characters within 8 characters

■EXTENSION MODULE SETTING

PARAMETER SETTING RANGE DEFAULT SETTING

Output Hold/Clear Output Hold

Output Clear

Output Hold

TERMINAL CONNECTIONS

Connect the unit as in the diagram below.

■EXTERNAL DIMENSIONS unit: mm (inch)

10 11 12 13

2341

15 16 17 18

789

23415

30 (1.18) [5 (.20)]

3 (.12)

5.5 (.22)

DIN RAIL

35mm wide

54 (2.13)

17 (.66)

50 (1.97) 18.5 (.73)

115 (4.53)

18–M3 SCREW

TERMINALS

for OUTPUT

6 (.24)

TERMINAL BLOCK for

DeviceNet, POWER

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

R7D-DC16A

EM-7802-G Rev.5 P. 4 / 10

■CONNECTION DIAGRAM

9YE

8YC

7YA

6Y8

5Y6

4Y4

3Y2

+24V

■ Output Connection Example

+24V

–

CAN_L

V–

Drain

CAN_H

V+

EXTENSION CONNECTOR

DATA ALLOCATION

‘Begin’ address is determined by the R7D’s node address and the master setting.

Status

Begin +0 Begin +0

Output Data

• Example. R7D-DC16x + R7D-EC16x, with Status

R7D-DC16x

R7D-EC16x

Input Data

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

R7D-DC16A

EM-7802-G Rev.5 P. 5 / 10

I/O DATA DESCRIPTIONS

Input 0 (Output 0)

Input 1 (Output 1)

Input 2 (Output 2) 8 points

Input 15 (Output 15)

Input 3 (Output 3)

: : 16 points

Input 7 (Output 7)

Input 8 (Output 8)

: :

0 : OFF

1 : ON

■ DISCRETE I/O

■STATUS

Bit 0 to 7: Discrete output module shows ‘0’ at the same address.

Bit 8 to 10: Shows the power supply status.

Remains “0”

Unused

Remains “0”

Network power supply

Basic module external power supply

Unused

Extension module external power supply

Power supply

0 : Normal 1 : Error

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

R7D-DC16A

EM-7802-G Rev.5 P. 6 / 10

TRANSMISSION DATA DESCRIPTIONS

■BASIC MODULE

Transmitted data (word) depends upon the modules types.

MODEL OUTPUT DATA*1INPUT DATA*2

(R7D to Master) (Master to R7D)

R7D-DC16x 0 1

■EXTENSION MODULE

Transmitted data (word) for the extension module is added.

MODEL OUTPUT DATA*1INPUT DATA*2

(R7D to Master) (Master to R7D)

R7D-EAx 1 0

R7D-ECx 0 1

■STATUS

Status signal can be included in the transmission data

when the setting is enabled using the PC Conﬁgurator soft-

ware (model: R7CON). For details, refer to “STATUS in I/O

DATA DESCRIPTIONS”.

S TAT U S OUTPUT DATA*1INPUT DATA*2

(R7D to Master) (Master to R7D)

Enabled 1 0

Disabled 0 0

*1. Output Data means those sent to the master.

*2. Input Data means those received from the master.

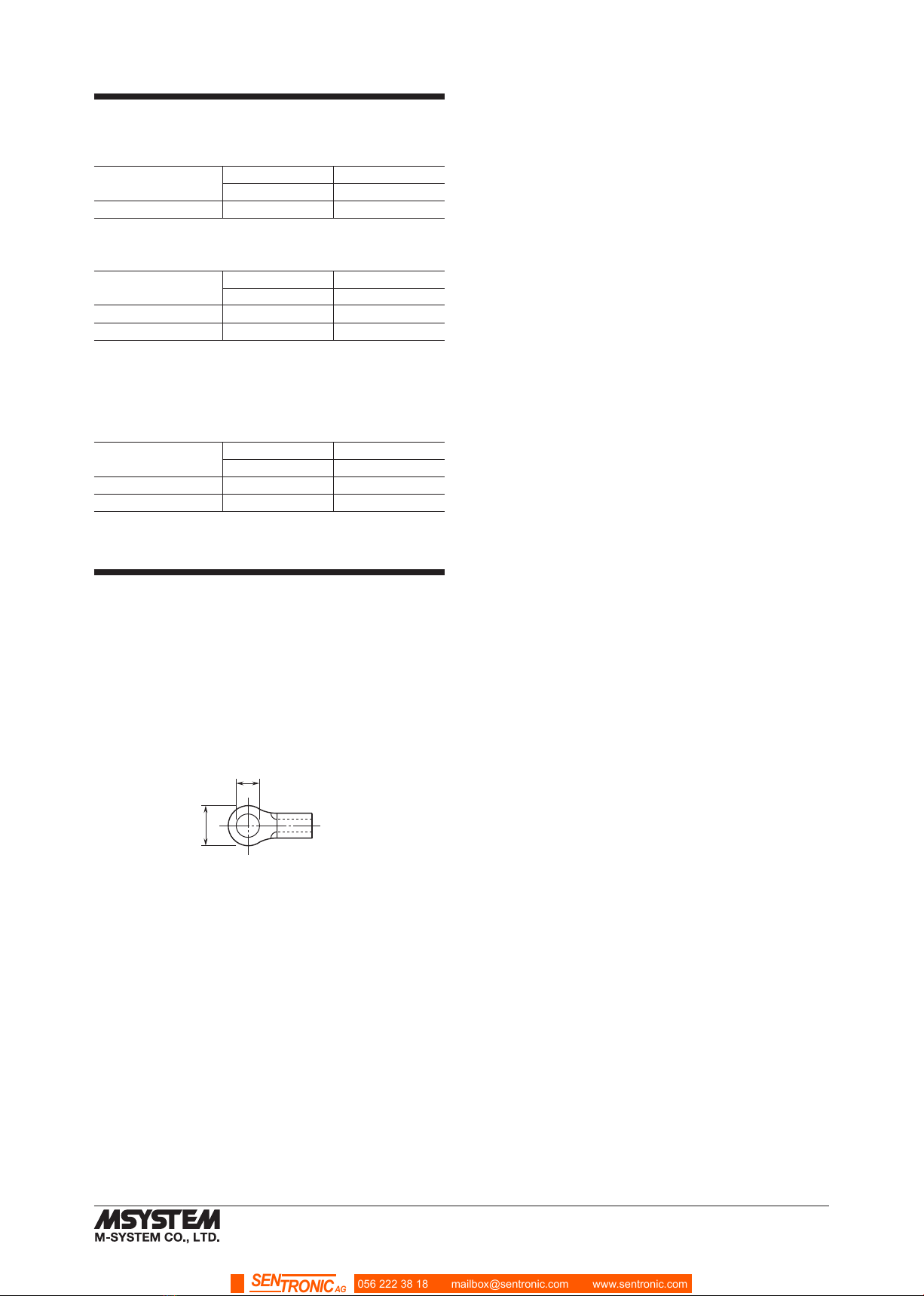

WIRING INSTRUCTIONS

■SCREW TERMINAL (Output)

Torque: 0.5 N·m

• SOLDERLESS TERMINAL

Refer to the drawing below for recommended ring tongue

terminal size. Spade tongue type is also applicable.

Applicable wire size: 0.25 to 1.65 mm2(AWG 22 to 16)

Recommended manufacturer: Japan Solderless Terminal

MFG. Co., Ltd, Nichifu Co., Ltd

6 (.24) max

3.3 (.13) max

mm (inch)

■EURO TYPE CONNECTOR TERMINAL (DeviceNet)

Applicable wire size: 0.2 – 2.5 mm2

Stripped length: 7 mm

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

R7D-DC16A

EM-7802-G Rev.5 P. 7 / 10

CONFORMITY WITH CE MARKING

■CE MARKING

CE marking requires to integrate safety regulations existed in each country in EU territory and to secure smooth distribution

of products of which safety is guaranteed. It is mandatory by law that products distributed and sold in EU territory to have

CE mark which shows that the product conforms with the requirements of EU Directive. Each EU Directive describes the

scope of apparatuses to which that EU Directive is applied. M-System’s R7D must conform with EMC Directive.

Each Directive states only basic requirements. In order to mark the CE on an assembled machinery equipment, its manufac-

turer needs to check the overall conformity with Directives applicable to it.

■WARNINGS AND CAUTIONS WHEN INSTALLING THE R7D

The R7D needs to be installed in a control panel. This is effective not only to ensure general safety but also to contain noise

emissions by the R7D inside the control panel. We conduct a series of testing to see that the product conforms to EMC Direc-

tive while it is installed in the control panel.

Warning and cautions when installing R7D are stated below.

• Use control panels with an internal panel plate, both made of metal, when installing the R7D.

• Make sure to adequately ground the control panel and the internal panel plate with a thick cable to maintain low imped-

ance at high frequency.

• Use shielded cables for the signals taken out of the control panel.

• Choose a thick and short cable to ground the FG terminal of the R7D module to the internal panel plate of the control panel.

Note: If electromagnetic radiation disturbance increases by grounding the FG terminal, remove the grounding.

• When painting the internal plate of the control panel, apply masking to expose metal surface to secure conductivity at the

sections where the following parts are attached:

- Bolts attaching the internal panel to the control panel

- Ground for the FG of the R7D module

- Earth clamp on the shielded cable

• Noise emissions inside the control panel might leak through its openings. Design them as small as possible. Recommended

diameter is 10 cm or less.

Supplement:

Additional measures may be taken depending upon actual installation sites. These points of cautions are illustrated in the

next page.

• Prevent noise leakage by wrapping cables using shield covers, shield tubes and ﬂexible conduits etc. if noise leaks through

the cable outlet.

• Use an electromagnetic shield gasket and block up the gap between the control panel cabinet and its cover, if noise leaks

through it.

• Connecting the internal panel plate and the cover of the control panel to the main cabinet using an earth strap may be

effective to strengthen the grounding.

• Electromagnetically shielded control panel cabinet is effective for shielding.

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

R7D-DC16A

EM-7802-G Rev.5 P. 8 / 10

Use (e.g.) a shield cover

when noise leaks through

the opening.

To external apparatus

Keep the opening

for cabling as small as

possible.

Install an electromagnetically

shielded gasket when

noise leaks through

the opening. Shielding is strengthened

by using an electro-

magnetically shielded

control panel.

By connecting the

internal panel plate

and the panel cover with

an earth strap, grounding

may be strengthened and

EMC may be improved.

Ground the control panel

at low impedance using

(e.g.) braided wires.

Keep the opening for

ventilation as small as

posible.

Attach an electro-

magnetically shielded

filter when noise leaks

through the opening.

Install the R7D Series inside

a control panel.

Attachment part of earth

clamp should be fixed with

screw in conduction with the

internal panel plate.

• Points of cautions applicable when installing the R7D Series

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

R7D-DC16A

EM-7802-G Rev.5 P. 9 / 10

■WARNINGS AND CAUTIONS WHEN LAYING CABLES

Signal cables connected to the R7D contain high-frequency components. Since these cables has the same effect as an anten-

na, they emit these high-frequency components to the external space as noise or overlaps noise from the external space on

themselves.

Cables with shielding should be used for the signal line due to the above reason.

EMC conformance test is conducted in the condition that shielded cables and earth clamps are used with the R7D.

Warning and cautions when laying cables are stated below. These points of cautions are illustrated in the next page.

• Use shielded cables for those signal cables installed out of the control panel and for thermocouple and RTD extension wires.

• All the network cables connected to R7D should be shielded.

• Use exclusively designed network cables for the DeviceNet.

• Expose the shield at a part of the cable cover, clip it with an earth clamp, and ground it to the internal panel of the control

panel. A drain wire connected to the panel in a pig-tail form cannot maintain low impedance against high-frequency noise,

thus grounding (noise shielding) in this form will not be effective.

Supplement:

Additional measures may be taken depending upon actual installation sites. These points of cautions are illustrated in the

next page.

• Keep cables as short as possible. It prevents noise emissions from the cables and noise overlapping to the cables.

• Attach a ferrite core to reduce noise impact to the signal cables susceptible to the noise. Ferrite core can be attached close

to the cable outlet of the control panel or close to the I/O terminal or connector, whichever is more effective. Also, the impact

might be reduced by winding the cable around the ferrite core for extra turns or attaching multiple ferrite cores.

• Keep cables which are easily affected by noise away from those which can be a noise source.

Motor Drive

Cable

Power Supply

Cable

DC Signal Cable

Network Cable

Analog Signal

Cable

Often being a noise source Often subject to noise interference.

In the following are examples of effective ways to lay cables separately:

• Keeping physical distance (farther than 20 cm from motor drive cables, farther than 10 cm for other groups).

• Dividing off by a grounded metal plate

• Grouping into separate grounded metal pipes or cable shields.

Wires on each side of a ﬁlter should not be too close to each other. Noise could ride onto the other side of cable.

Extra attention needs to be paid at the following parts.

• Noise ﬁlter that is enclosed in power cables.

• Ferrite core that is attached to signal cables.

• Noise limiting circuit (surge quenching circuit, transient absorber circuit, etc.) that is enclosed in signal cables.

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

R7D-DC16A

EM-7802-G Rev.5 P. 10 / 10

Noise

Filter

Motor

Drive CableMaintain distance between

cables and noise sources.

Grounding in pig tail form

is not effective.

• Points of cautions applicable when wiring the R7D Series

To external apparatus

Keep the cable as

short as possible.

To external apparatus

Shielded

Cable

Earth

Clamp

Remove a part of the shielded

cable cover and ground it

to the internal panel

plate using an earth

clamp.

Keep the wires away from

each other at both ends of

the filter.

056 222 38 18 mailbox@sentronic.com www.sentronic.com

SENTRONIC AG

Tabla de contenidos

Otros manuales de Sistema de E/S de M-system

M-system

M-system R7 Series Manual de usuario

M-system

M-system R5 Series Manual de usuario

M-system

M-system R3-BSW Manual de usuario

M-system

M-system R30US4 Manual de usuario

M-system

M-system R7F4HEIP-DAC16B Manual de usuario

M-system

M-system MDR-8 Manual de usuario

M-system

M-system R7C-DC8C Manual de usuario

M-system

M-system R7HL-PA4E Manual de usuario

M-system

M-system Devicenet R7F4DD-DA16A-H Manual de usuario

M-system

M-system R7D-SV4 Manual de usuario

M-system

M-system Devicenet R7F4DD-DAC16C-H Manual de usuario

M-system

M-system R7 Series Manual de usuario

M-system

M-system R30YN16C Manual de usuario

M-system

M-system M6 Series Manual de usuario

M-system

M-system R7L-DAC16 Manual de usuario

M-system

M-system R7L-TS4 Manual de usuario

M-system

M-system R7 Series Manual de usuario

M-system

M-system R3-SV4A Manual de usuario

M-system

M-system R30YN16A Manual de usuario

M-system

M-system R3-CZ4 Manual de usuario

M-system

M-system R7 Series Manual de usuario

M-system

M-system R7F4HEIP-DAC16C Manual de usuario

M-system

M-system R3-SV4 Manual de usuario

M-system

M-system R3-SS4 Manual de usuario

Manuales populares de Sistema de E/S de otras marcas

WAGO

WAGO 750-344 Manual de usuario

Teknim

Teknim TWM-1887 Manual de instrucciones

Intelligent Appliance

Intelligent Appliance IA-2662-E Manual de usuario

BERGHOF

BERGHOF ECC DIO 16/16 Manual de instrucciones

Advantech

Advantech PCM-27J3AU Manual de instalación y operación

Festo

Festo CP-E08-M12-CL Manual de usuario

Measurement Computing

Measurement Computing PCI-DAS64/M1/16 Manual de usuario

Hitachi

Hitachi HX-RIO3 Series Manual de usuario

NUUO

NUUO SCB-A08 Manual de usuario

jablotron

jablotron JB-110N Manual de usuario

Omron

Omron SYSMAC C200H Manual de usuario

DOLD

DOLD SAFEMASTER M Manual de usuario

ABB

ABB OPT-MF-001 Manual de usuario

Omron

Omron SYSMAC C2000H Manual de usuario

Helmholz

Helmholz TB20 Manual de usuario

ICP DAS USA

ICP DAS USA tM-AD2 Manual de usuario

Automationdirect.com

Automationdirect.com DL305 Manual de usuario

WAGO

WAGO I/O-SYSTEM 750 Manual de usuario
