M-system M6 Series Manual de usuario

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-7905 Rev.5 P. 1 / 3

INSTRUCTION MANUAL

INPUT LOOP POWERED ISOLATOR MODEL M6NSN

BEFORE USE ....

Thank you for choosing M-System. Before use, please check

contents of the package you received as outlined below.

If you have any problems or questions with the product,

please contact M-System’s Sales Ofﬁce or representatives.

■PACKAGE INCLUDES:

Signal conditioner ...............................................................(1)

■MODEL NO.

Conﬁrm Model No. marking on the product to be exactly

what you ordered.

■INSTRUCTION MANUAL

This manual describes necessary points of caution when

you use this product, including installation, connection and

basic maintenance procedures.

POINTS OF CAUTION

■CONFORMITY WITH EU DIRECTIVES OR UL

•The equipment must be mounted inside a panel.

•The actual installation environments such as panel con-

ﬁgurations, connected devices, connected wires, may af-

fect the protection level of this unit when it is integrated

in a panel system. The user may have to review the CE

requirements in regard to the whole system and employ

additional protective measures to ensure the CE conform-

ity.

•Install lightning surge protectors for those wires connect-

ed to remote locations.

■GENERAL PRECAUTIONS

•Before you remove the unit or mount it, turn off the input

signal for safety.

■ENVIRONMENT

•Indoor use.

•When heavy dust or metal particles are present in the

air, install the unit inside proper housing with sufﬁcient

ventilation.

•Do not install the unit where it is subjected to continuous

vibration. Do not subject the unit to physical impact.

•Environmental temperature must be within -20 to +55°C

(-4 to +131°F) with relative humidity within 30 to 90%

RH in order to ensure adequate life span and operation.

■WIRING

•Do not install cables close to noise sources (relay drive

cable, high frequency line, etc.).

•Do not bind these cables together with those in which

noises are present. Do not install them in the same duct.

■AND ....

•The unit is designed to function as soon as the input sig-

nal is supplied, however, a warm up for 10 minutes is re-

quired for satisfying complete performance described in

the data sheet.

COMPONENT IDENTIFICATION

Body

Front Cover

DIN Rail Adaptor

Specifications

■FRONT VIEW (with the cover open)

Channel 2

Span Adj.

Channel 1

Span Adj.

M6NSN

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-7905 Rev.5 P. 2 / 3

NSTALLATION

Set the unit so that its DIN rail adapter is at the bottom. When the unit is installed to an Installation Base (model M6NBS),

refer to its instruction manual.

■MOUNTING THE UNIT ON A DIN RAIL

A)Hang the upper hook at the rear side of unit on the DIN

rail.

B)Push in the lower in keeping pressing the unit to the DIN

rail.

ADIN Rail

■REMOVING THE UNIT

A)Pull down the DIN rail adaptor using a minus screwdriv-

er.

B)Pull out the lower part of the unit.

C)Remove the upper part from the DIN rail.

DIN Rail Adaptor

TERMINAL CONNECTIONS

Connect the unit as in the diagram below or refer to the connection diagram on the side of the unit.

■EXTERNAL DIMENSIONS unit: mm (inch)

102 (4.02)

7.5 (.30)

DIN RAIL HOOK

102 (4.02)

[1 (.04)]

8–M3

SCREW TERMINAL

WIRE INSERTION ANGLE

: approx. 35°

SCREWDRIVER

INSERTION ANGLE

: approx. 55°

SCREWDRIVER

INSERTION ANGLE

: approx. 40°

DIN RAIL

35mm wide

5678

1234

• When mounting, no extra space is needed between units.*Screwdriver stem diameter: 6 mm (.24”) or less

M6NSN

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-7905 Rev.5 P. 3 / 3

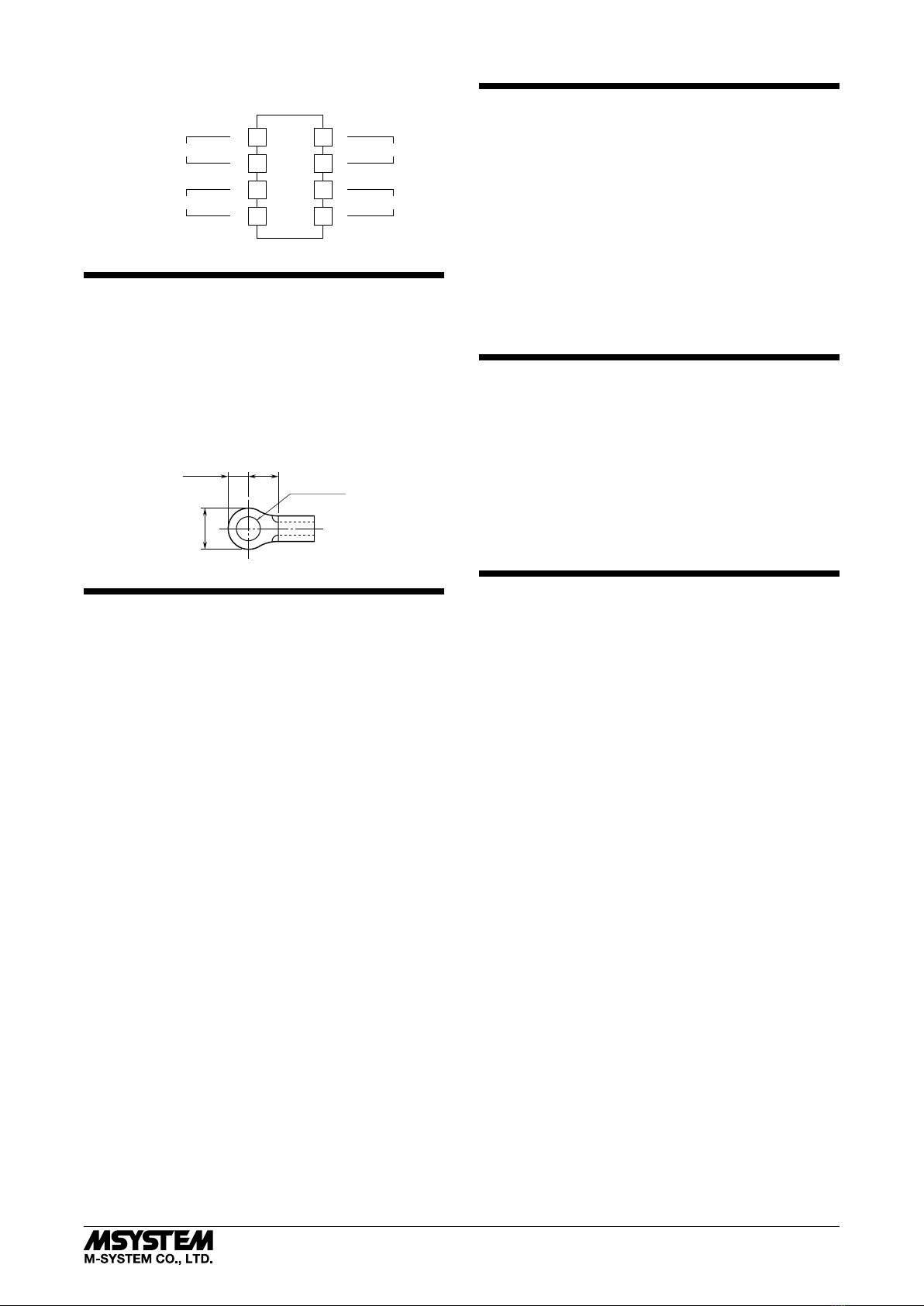

■CONNECTION DIAGRAM

–

OUTPUT

–

INPUT

–

OUTPUT

–

INPUT

Channel 1

Channel 2

WIRING INSTRUCTIONS

■SCREW TERMINAL

Torque: 0.5 N·m

■SOLDERLESS TERMINAL unit: mm (inch)

Refer to the drawing below for recommended ring tongue

terminal size. Spade tongue type is also applicable.

Solderless terminals with insulation sleeve do not ﬁt.

Applicable wire size: 0.2 – 2.5 mm2

3.2 (.13) dia.

4 min.

(.16)

5.8 max.

(.23)

5.5 max.

(.22)

CHECKING

1) Terminal wiring: Check that all cables are correctly con-

nected according to the connection diagram.

2) Input: Check current with an ammeter. Be sure that the

connected transmitter allows the unit’s load value [250 Ω

+ output load resistance].

3) Output: Check that output load is within the permissible

limit of 600 Ω.

ADJUSTMENT PROCEDURE

This unit is calibrated at the factory to meet the ordered

speciﬁcations, therefore you usually do not need any cali-

bration.

For matching the signal to a receiving instrument or in case

of regular calibration, adjust the output as explained in the

following.

■HOW TO CALIBRATE THE OUTPUT SIGNAL

Use a signal source and measuring instruments of sufﬁcient

accuracy level. Turn the input signal on and warm up for

more than 10 minutes.

1) SPAN: Apply 100% input and adjust output to 100%.

MAINTENANCE

Regular calibration procedure is explained below:

■CALIBRATION

Warm up the unit for at least 10 minutes. Apply 25%, 50%,

75% and 100% input signal. Check that the output signal

for the respective input signal remains within accuracy de-

scribed in the data sheet. When the output is out of toler-

ance, recalibrate the unit according to the “ADJUSTMENT

PROCEDURE” explained earlier.

LIGHTNING SURGE PROTECTION

M-System offers a series of lightning surge protector for

protection against induced lightning surges. Please contact

M-System to choose appropriate models.
