Wireless Access Point

Chapter 1: Introduction

The Instant WirelessTM Wireless Access Point

Don’t be bound by cabling restrictions any longer! The Instant Wireless™

WirelessAccess Point from Linksys delivers the freedom to configure your net-

work your way. Utilization of “state-of-the-art” wireless technology gives you

the ability to set up workstations in ways you never thought possible; no cables

to install means less expense and less hassle.

The Instant Wireless™ Wireless Access Point’s high-powered antenna offers a

range of operation of up to 328 feet indoors, providing seamless roaming

throughout your wireless LAN infrastructure; an advanced user authentication

feature ensures a high level of network security. The Instant Wireless™

Wireless Access Point is easy to install (just plug it in and you’re ready to go!)

and easy to use. With Internet browser-based diagnostics and statistic tools,

you’re always in control.

When all these features come together in one compact, lightweight, and power-

efficient unit, you have the ultimate in flexible networking--the Linksys Instant

Wireless™ Wireless Access Point.

Features

• Interoperable with other 802.11a wireless equipment

• Up to 72Mbps turbo mode (only when used with the Linksys WPC54A)

• Up to 64 wireless users (nodes)

• Operation in the uncrowded 5 GHz band

• Enhanced security using up to 152-bit WEP encryption

• MAC address filtering and WEP ensure DSSS security

• Quick and easy setup using your own web browser

• Easy-to-Use Web-Based management

• Free technical support— 24 hours a day, 7 days a week, toll-free U.S. calls

• 1-Year limited warranty

Table of Contents

Chapter 1: Introduction 1

The Instant WirelessTM Wireless Access Point 1

Features 1

Package Contents 2

System Requirements 2

Chapter 2: PlanningYour Wireless Network 3

Network Topology 3

Roaming 3

Chapter 3: Getting to Know the Wireless Access Point 4

The Wireless Access Point’s Ports 4

The Wireless Access Point’s LEDs 5

Chapter 4: Connecting theWirelessAccess Point 6

Chapter 5: Configuring the WirelessAccess Point 7

The Setup Tab 7

The Status Tab 11

The Filter Tab 12

The Advanced Tab 13

The Help Tab 14

AppendixA: Troubleshooting 16

Frequently Asked Questions 16

Appendix B: Setting Up the TCP/IP Protocol 21

Setting Up TCP/IP in Windows 21

TCP/IP Setup for Windows 98 and Millennium 22

TCP/IP Setup for Windows NT 4.0 22

TCP/IP Setup for Windows 2000 23

TCP/IP Setup for Windows XP 23

Appendix C: Glossary 24

Appendix D: Specifications 32

Environmental 32

Appendix E:Warranty Information 33

Appendix F: Contact Information 34

Instant WirelessTM Series

Wireless Access Point

Chapter 2: Planning Your

Wireless Network

A wireless LAN is a group of computers, each equipped with one Instant

Wireless™ Series adapter. Computers in a wireless LAN must be configured

to share the same radio channel.

The Instant Wireless™ Series adapters provide access to a wired LAN for wire-

less workstations. An integrated wireless and wired LAN is called an

Infrastructure configuration. A group of Instant Wireless™ Series adapter

users and an Instant Wireless™ WirelessAccess Point compose a Basic Service

Set (BSS). Each Instant Wireless™ Series adapter PC in a BSS can talk to any

computer in a wired LAN infrastructure via the Instant Wireless™ Wireless

Access Point.

An infrastructure configuration extends the accessibility of an Instant

Wireless™ Series adapter PC to a wired LAN, and doubles the effective wire-

less transmission range for two Instant Wireless™ Series adapter PCs. Since

the Wireless Access Point is able to forward data within its BSS, the effective

transmission range in an infrastructure LAN is doubled.

Infrastructure mode also supports roaming capabilities for mobile users. More

than one BSS can be configured as an Extended Service Set (ESS). This con-

tinuous network allows users to roam freely within an ESS. All PCs equipped

with an Instant Wireless™ Series adapter within one ESS must be configured

with the same ESS ID and use the same radio channel.

Before enabling an ESS with roaming capability, choosing a feasible radio

channel and optimum Wireless Access Point position is recommended. Proper

Wireless Access Point positioning combined with a clear radio signal will

greatly enhance performance.

Instant WirelessTM Series

Package Contents

• One Wireless Access Point (IEEE 802.11a)

• One Power Adapter

• One User Guide

• Registration Card (not shown)

• One Pentium Class, 200MHz or Faster, PC equipped with Windows 98,

Millennium, NT version 4.0, 2000, or XP, 64 MB RAM, and an Ethernet

Adapter with Network Cable for Initial Setup

• One 802.11a-compliant Wireless Adapter

Roaming

Figure 1-1

Network Topology

Minimum Requirements

Wireless Access Point

Instant WirelessTM Series

Chapter 3: Getting to Know the

Wireless Access Point

The Access Point’s ports, where a network cable is connected, are located on

the Access Point’s rear panel, as shown in Figure 3-1.

LAN This LAN (Local Area Network) port connects to

Ethernet network devices, such as a hub, switch, or

router.

DC 5V The Power port is where you will connect the power

adapter.

Reset (Button) Briefly pressing the Reset Button, for approximately ten

seconds, will refresh the Access Point’s connections,

potentially clearing any jammed links.

The Wireless Access Point’s Ports

Figure 3-1

The Access Point’s LEDs, where information about the unit’s current status is

displayed, are located on the Access Point’s front panel, as shown in Figure 3-

Power Green. The Power LED lights up when the Access Point is

powered on.

ACT Green. If the LED is flickering, the Access Point is actively

sending or receiving data to or from one of the devices on the

network.

LINK Green. The LINK LED serves two purposes. If the LED is

continuously lit up, theAccess Point is successfully connect-

ed to a device through the LAN port. If the LED is flicker-

ing, it is an indication of any network activity.

The Wireless Access Point’s LEDs

Figure 3-2

Important: Resetting the Access Point will erase all of your settings

(WEP Encryption, Wireless and LAN settings, etc.) and replace

them with the factory defaults. Do not reset the Access Point if you

want to retain these settings.

Instant WirelessTM Series

Chapter 5: Configuring the

Wireless Access Point

The Access Point has been designed to be functional right out of the box, with

its default settings. However, if you’d like to change these settings, the Access

Point can be configured through your web browser with the Web-Based Utility.

This chapter explains how to configure the Access Point in this manner.

Open your web browser and enter the Access Point’s IP Address,

192.168.1.252, into the address field. Press the Enter key and the following

screen, shown in Figure

5-1, will appear. Leave

the User Name field

blank. The first time

you open the Web-

Based Utility, use the

default password:

admin. You can set a

new password from the

Setup tab shown in

Figure 5-2. Press the

OK button to continue

or Cancel to quit.

The first tab that appears, shown in Figure 5-2, is the Setup tab.This allows you

to change the Access Point’s general settings. Change these settings as

described here and click the Apply button to apply your changes or Cancel to

cancel your changes. If you require online help, click the Help button.

• Firmware Version. This displays the current version of the Access Point’s

firmware. Firmware should only be upgraded if you experience problems

with the Access Point and can be upgraded from the Help tab.

Figure 5-1

The Setup Tab

Important: Before configuring the Access Point, be sure to set

up the TCP/IP protocol on your wireless PCs. If this has not

already been done, please refer to Appendix B: Setting Up the

TCP/IP Protocol.

Chapter 4: Connecting the

Wireless Access Point

1. Locate an optimum location for the Access Point. The best place for the

Access Point is usually at the center of your wireless network, with line of

sight to all of your mobile stations.

2. Fix the direction of the antenna. Try to place it in a position which can

best cover your wireless network. Normally, the higher you place the anten-

na, the better the performance will be. The antenna’s position enhances the

receiving sensitivity.

3. Connect a standard Ethernet network cable to theAccess Point. Then,

connect the other end of the Ethernet cable to a switch or hub. The Access

Point will then be connected to your 10/100 Network.

4. Connect the AC Power Adapter to the Access Point’s Power Socket.

Only use the power adapter supplied with theAccess Point. Use of a differ-

ent adapter may result in product damage.

Now that the hardware installation is complete, proceed to Chapter 5:

Configuring the Wireless Access Point for directions on how to setup the

Access Point.

Instant WirelessTM Series

Note: In order for all other wireless devices to communicate with

the Access Point, those devices must be operating in the

Infrastructure Mode. If any wireless devices are configured in

the Ad Hoc Mode, they will not be recognized by theAccess Point.

• Wireless:

• Turbo Mode. Click this button to increase the speed of your wireless trans-

missions (it will change from Off to On), keeping in mind that the Access

Point’s range diminishes in Turbo Mode.

• SSID. The SSID is the unique name shared among all points in a wireless

network. The SSID must be identical for all points in the wireless network.

It is case sensitive and must not exceed 32 alphanumeric characters, which

may be any keyboard character. Make sure this setting is the same for all

points in your wireless network.

• Channel. Select the appropriate channel from the list provided to corre-

spond with your network settings. All points in your wireless network must

use the same channel in order to function correctly.

• WEP. The WEP Encryption method is Disabled by default. To enable

WEP, click the WEP Key Setting button.

Changing the sign-on password for the Access Point is as easy as typing the

password into the AP Password field. Then, type it again into the second field

to confirm.

Click the Apply button to apply your changes or Cancel to cancel your

changes. If you require online help, click the Help button.

SETTING WEP ENCRYPTION:

Setting WEP Encryption through

the Web-based Browser Utility is

done by clicking the WEP Key

Setting button on the Setup

Screen as shown in Figure 5-2.

A screen will pop up, asking you

to confirm the WEP change to

mandatory, as shown in Figure 5-3. Click the OK button to enable WEP

Encryption or Cancel to return to the Setup Screen.

Instant WirelessTM Series

Figure 5-3

Important: Always remember that each point in your wireless net-

work MUST use the same WEP Encryption method and encryption

key or your wireless network will not function properly.

Important: Always remember that, when theAccess Point works in

Turbo Mode, each point in your wireless network MUST use Turbo

Mode as well or your wireless network will not function properly.

• Access Point Name. You may assign any name to the Access Point.

Unique, memorable names are helpful, especially if you are employing

multiple access points on the same network. Verify this is the name you

wish to use and click the Apply button to set it.

• LAN:

• IP Address. This IP address must be unique to your network. We suggest

you use the default IP address of 192.168.1.252. As this is a private IP

address, there is no need to purchase a separate IP address from your serv-

ice provider.Verify the address and click the Apply button to save changes.

• Subnet Mask. The Access Point’s Subnet Mask (or IP Mask) must be the

same as your Ethernet network. Verify this is correct and click the Apply

button to set it.

• Gateway. If a Gateway IP address is required, enter that here.

Wireless Access Point

Figure 5-2

Wireless Network Access Point

The “Status” tab, shown in Figure 5-5, will display the Access Point’s current

MAC address and state as well as the state and MAC Address of each wireless

point on your

network associ-

ated with it.

For more informa-

tion on any device

listed, simply click

the MAC Address

of that device and

another screen,

shown in Figure 5-

6, will appear, dis-

playing details on

that device.

Figure 5-5

The Status Tab

This will open the WEP Key Setting screen, Figure 5-4. From this screen, you

can select the type of WEP encryption to use.

From the pull-down menu at the top of the screen, select 64-bit, 128-bit, or 152-

bit encryption. Then, select the key you wish you use for encrypting your data,

Key 1-4. In the field beside the key you’ve chosen, type the key in Hexadecimal

characters, which, on your keyboard, are the letters “A” through “F” and the

numbers “0” through “9”. Each type of encryption requires a key of a certain

length:

64-bit encryption requires a 10 character key.

128-bit encryption requires a 26 character key.

152-bit encryption requires a 32 character key.

Click the Apply button to apply your changes or Cancel to cancel your

changes. If you require online help, click the Help button. Clicking the Apply

or Cancel button will return you to the Setup tab. Click either button again on

this tab, depending on your choice.

Wireless Access Point

Figure 5-4

Figure 5-6

Before making any changes to the Advanced tab, shown in Figure 5-9, please

check your wireless settings on other systems, as these changes will alter the

effectiveness of the Access Point. In most cases, these settings do not need to

be changed.

• Beacon Interval. This value between 20 and 1000, indicates the frequen-

cy interval of the beacon. A beacon is a packet broadcast by the Access

Point to keep the network synchronized. A beacon includes the wireless

LAN service area, the AP address, the Broadcast destination addresses, a

time stamp, Delivery Traffic Indicator Maps, and the Traffic Indicator

Message (TIM).

• RTS Threshold. This value should remain at its default setting of 2,346.

Setting this parameter to a small value causes packets to be sent more often,

consuming more of the available bandwidth and reducing throughput. A

higher value, however, sends more packets less often. Should you encounter

inconsistent data flow, only minor modifications are recommended.

Wireless Access Point

The Advanced Tab

Figure 5-9

Instant Wireless™ Series

The “Filter” tab, shown in Figure 5-7, allows you to block or allow certain com-

puters, by their MAC Address, from communicating with the Access Point.

To enable filtering of computers by their MAC Addresses, select Enable from

the drop-down menu. Next, click the Add button. This will bring up another

screen, as shown in Figure 5-8, where you will specify the MAC Address you

will allow or deny over your wireless network.

In MAC Address field at the top of this screen, type the MAC Address(es) you

wish to filter. Then,

click the Type drop-

down menu to select if

you will allow access to

other MAC Addresses

or if you will deny the

MAC Addresses.

To add this to your fil-

tered MAC Addresses,

click the Add to List

button. Click the

Cancel button to return

to the previous screen

without saving changes.

For more information

on this tab, you can

click the Help button.

When you’ve complet-

ed making any changes

on this tab, click the

Apply button to save

those changes or

Cancel to exit the Web-

based Utility without

saving changes. For

more information on

this tab, you can click

the Help button.

The Filter Tab

Figure 5-7

Figure 5-8

Wireless Network Access Point

The following resources require an Internet connection in order to access them.

Click the Linksys Website link to connect to the Linksys homepage for

Knowledgebase help files and information about other Linksys products.

For an Online Manual in PDF format, click that text link. The manual will appear

in Adobe pdf format. If you do not have the Adobe PDF Reader installed on your

computer, click the AdobeWebsite link to download this software.

Firmware can be upgraded from this tab as well. Do not upgrade your firmware

unless you are experiencing problems with the Access Point. To begin the upgrade

process, click the Linksys Website link to download the upgraded firmware’s “.bin”

file from the website.Then, return to this tab and click the Firmware Upgrade link.

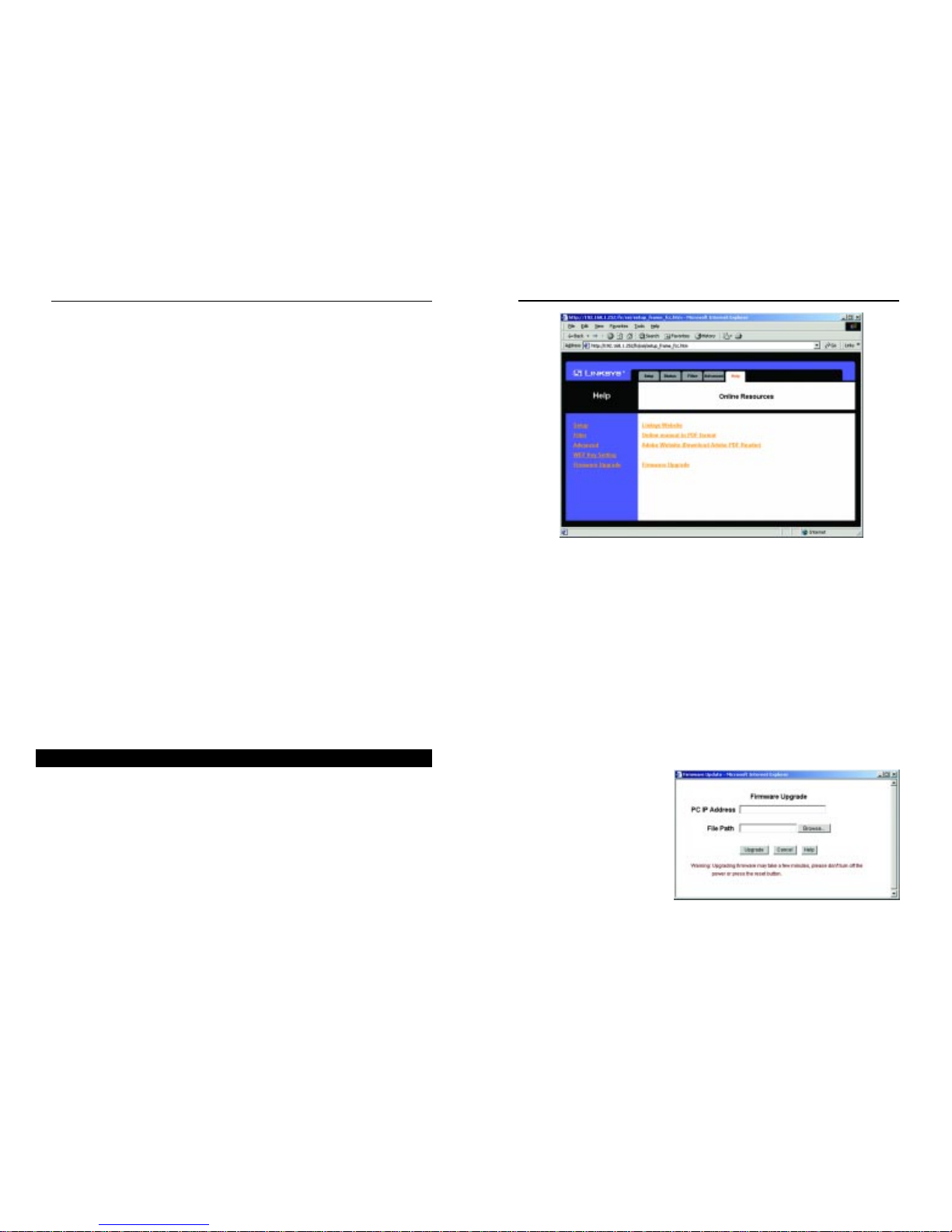

Upon clicking the Upgrade Firmware link, a new screen, shown in Figure 5-11, will

appear requesting the IP

Address of the PC upon which

the new firmware was down-

loaded and the location of that

firmware “.bin” file. If you do

not know the location, click the

Browse button to locate the file.

Then, click the Upgrade button

to upgrade the firmware,

Cancel to stop the process, or

Help for more information

about upgrading firmware.

1514

Figure 5-10

• Fragmentation Length. This specifies the maximum size a data packet

will be before splitting and creating a new packet and should remain at its

default setting of 2,346. A smaller setting means smaller packets, which

will create more packets for each transmission. If you have decreased this

value and experience high packet error rates, you can increase it again, but

it will likely decrease overall network performance. Only minor modifica-

tions of this value are recommended.

• Data Beacon Rate. This value between 1 and 16384, indicates the inter-

val of the Delivery Traffic Indication Message. A Data Beacon Rate field is

a countdown field informing clients of the next window for listening to

broadcast and multicast messages. When the Access Point has buffered

broadcast or multicast messages for associated clients, it sends the next

message with a rate value. Access Point Clients hear the beacons and awak-

en to receive the broadcast and multicast messages.

• Transmission Rate. The basic transfer rates should be set depending on

the speed of your wireless network. Select the most appropriate rate for

your network or select Best, which will automatically select the optimal

transmission rate.

• Transmission Power. This option allows you to set the power at which the

Access Point transmits. This will allow you to prevent transmission outside

your network radius and possible lapses in network security. Selecting a

value other than FULL may limit the coverage area and data rates of your

wireless PCs.

When you’ve completed making any changes on this tab, click the Apply but-

ton to save those changes or Cancel to exit the Web-based Utility without sav-

ing changes. For more information on this tab, you can click the Help button.

For help on the various tabs in this Web-based Utility, along with upgrading the

Access Point’s firmware and viewing this User Guide, click the “Help” tab,

shown in Figure 5-10.

The help files for the various tabs in this Web-based Utility are listed by tab

name on the left hand side of the screen.

Instant WirelessTM Series

The Help Tab

Figure 5-11

Otros manuales para WAP54A - Instant Wireless - Access Point

Tabla de contenidos

Otros manuales de Punto de acceso inalámbrico de Linksys

Linksys

Linksys EtherFast Instant Broadband BEFW11S4 Guía

Linksys

Linksys WAP54G - Wireless-G Access Point Manual de usuario

Linksys

Linksys WAP54GX Manual de operación

Linksys

Linksys SPA400 Guía de configuración rápida

Linksys

Linksys WAP11 - Instant Wireless Network Access... Manual de usuario

Linksys

Linksys EtherFast Instant Broadband BEFW11S4 Manual de usuario

Linksys

Linksys WAP54G - Wireless-G Access Point Manual de usuario

Linksys

Linksys WAP4400N Manual de operación

Linksys

Linksys WPG54G Instrucciones de funcionamiento originales

Linksys

Linksys WAP54G - Wireless-G Access Point Instrucciones de funcionamiento originales

Linksys

Linksys WAP11 v.2.6 Manual de usuario

Linksys

Linksys WAP4400N Manual de usuario

Linksys

Linksys WAP54G - Wireless-G Access Point Manual de usuario

Linksys

Linksys LAPN300 Manual de usuario

Linksys

Linksys WAP54G - Wireless-G Access Point Manual de usuario

Linksys

Linksys WAP54G - Wireless-G Access Point Instrucciones de funcionamiento originales

Linksys

Linksys WAP11 - Instant Wireless Network Access... Manual de usuario

Linksys

Linksys LAPN300 Manual de usuario

Linksys

Linksys WAP11 - Instant Wireless Network Access... Manual de usuario

Linksys

Linksys WAP54A - Instant Wireless - Access Point Manual de usuario

Linksys

Linksys EtherFast Instant Broadband BEFW11S4 Instrucciones de funcionamiento originales

Linksys

Linksys EtherFast Instant Broadband BEFW11S4 Manual de usuario

Linksys

Linksys WAP51AB - Instant Wireless - Access Point Instrucciones de funcionamiento originales

Linksys

Linksys LAPAC1200C Manual de usuario

Manuales populares de Punto de acceso inalámbrico de otras marcas

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manual de usuario

Ubiquiti

Ubiquiti NanoStation NSM2 Manual de usuario

Cisco

Cisco Aironet 1550 Series Manual de usuario

Aruba

Aruba IAP-335 Manual de usuario

Advantek Networks

Advantek Networks AWN-AP-54MR Manual de usuario

IP-COM

IP-COM AP355 Manual de usuario

Buffalo

Buffalo AirStation WLA-L11G Manual de usuario

EnGenius

EnGenius EnStationACv2 Manual de usuario

D-Link

D-Link DAP-3662 Manual de usuario

xG Technology

xG Technology xMax CN1300 Manual de usuario

Widelink

Widelink ezWave WAP-1100 Series Manual de usuario

Edimax

Edimax CAP1200 Manual de usuario

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manual de usuario

Aruba

Aruba AP-203R Manual de usuario

LuXout Shades

LuXout Shades LUXSHADE MOTION Manual de usuario

CreatComm

CreatComm TB5F Manual de usuario

SineDigital

SineDigital MW-1500AP(H) Manual de usuario

TP-Link

TP-Link AP9650 V1 Manual de usuario
