Linksys SD2008 Manual de operación

Model No.

Product Data

SD2008

Eight 10/100/1000Mbps,

half/full duplex, switched

ports

Linksys reliability and

limited lifetime

warranty

Forwards and filters

packets at non-

blocking, full wire

speed

All ports have auto

speed negotiation

and auto MDI/MID-X

crossover detection

The 8-Port 10/100/1000 Gigabit Switch provides non-

blocking, wire speed-switching for your 10, 100, and 1000

megabit network clients. Drop this switch in place of your

current workgroup hub or switch, and you can upgrade

your high-requirement workstations to full Gigabit speeds as

necessary, while continuing to service other clients at their

current speeds. Or build your network from the ground up,

with appropriate link speeds for each user’s requirements.

Either way, it’s perfect for graphics, multimedia, and other

applications that have to move large files across the

network quickly.

With the 8-Port 10/100/1000 Gigabit Switch, you can

connect your existing 10/100 Ethernet network to a Gigabit

server backbone without any additional equipment. All

ports have automatic MDI/MDI-X crossover detection, so

you don’t have to worry about the cable type. Each port

independently and automatically negotiates for best

speed and whether to run in half- or full-duplex mode.

Address learning and aging is supported, as well as 802.3x

flow control with head-of-line blocking prevention to keep

your high-speed clients from bogging down in lower-speed

traffic. Fast store-and-forward switching prevents damaged

packets from being passed on into the network.

World famous Linksys reliability and the limited lifetime

warranty give you peace of mind and the new ultra-

compact case design is sure to fit into your workgroup

environment. Let the Linksys 8-Port 10/100/1000 Gigabit

Switch kick your network into high gear.

8-Port 10/100/1000 Gigabit Switch

Wire-speed switching and Linksys

reliability in a 8-port Gigabit switch

Product Data

Model No.

Features

• 8 RJ-45, 10/100/1000Mbps,

auto-sensing half/full duplex

switched ports

• All ports support auto MDI/

MDI-X cable detection

• Fully compliant with IEEE

802.3, 802.3u, 802.3x,

802.3ab

• Non head-of-line blocking

architecture

• Full-duplex IEEE 802.3x flow

control and half-duplex back-

pressure with intelligent port-

based congestion detection

and broadcast rate control

Linksys

A Division of Cisco Systems, Inc.

18582 Teller Avenue

Irvine, CA 92612 USA

E-mail: [email protected]

[email protected]

Web: http://www.linksys.com

Linksys products are available in more than 50

countries, supported by 12 Linksys Regional Offices

throughout the world. For a complete list of local

Linksys Sales and Technical Support contacts, visit

our Worldwide Web Site at www.linksys.com.

SD2008

8-Port 10/100/1000 Gigabit Switch

Specifications

Model SD2008

Standards IEEE 802.3, 802.3u, 802.3x, 802.3ab

Ports 8 RJ-45 10/100/1000Mbps ports

Cabling Type CAT 5e

LEDs System, 1 through 8

Security Features Security Slot

Environmental

Dimensions 130 mm x 30 mm x 127 mm

(W x H x D) (5.12" x 1.18" x 5.00")

Unit Weight 14.99 oz. (0.425 kg)

Power Input DC 12 V/1.5 A

Certifications FCC Class B, CE

Operating Temp. 0ºC to 50ºC (32ºF to 122ºF)

Storage Temp. -40ºC to 70ºC (-40ºF to 158ºF)

Operating Humidity 20% to 95%, Non-Condensing

Storage Humidity 5% to 90%, Non-Condensing

Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2003

SD2008-DS-30729NC JL

Package Contents

• One 8-Port 10/100/1000 Gigabit Switch

• One AC Power Adapter

• One Registration Card

• One User Guide

Otros manuales para SD2008

Tabla de contenidos

Otros manuales de Cambiar de Linksys

Linksys

Linksys SR2016 - Cisco - 10/100/1000 Gigabit Switch Manual de operación

Linksys

Linksys SRW208 Manual de usuario

Linksys

Linksys SR224R - 10/100 Switch - Chassis Manual de operación

Linksys

Linksys SR216 Manual de operación

Linksys

Linksys EZXS55W - EtherFast 10/100 Workgroup Switch Instrucciones de funcionamiento originales

Linksys

Linksys ProConnect SVIEW08 v2 Manual de usuario

Linksys

Linksys ProConnect PS2KVM2 Manual de usuario

Linksys

Linksys SRW224G4 Manual de operación

Linksys

Linksys SE3008 Manual de usuario

Linksys

Linksys SLM2005 Manual de usuario

Linksys

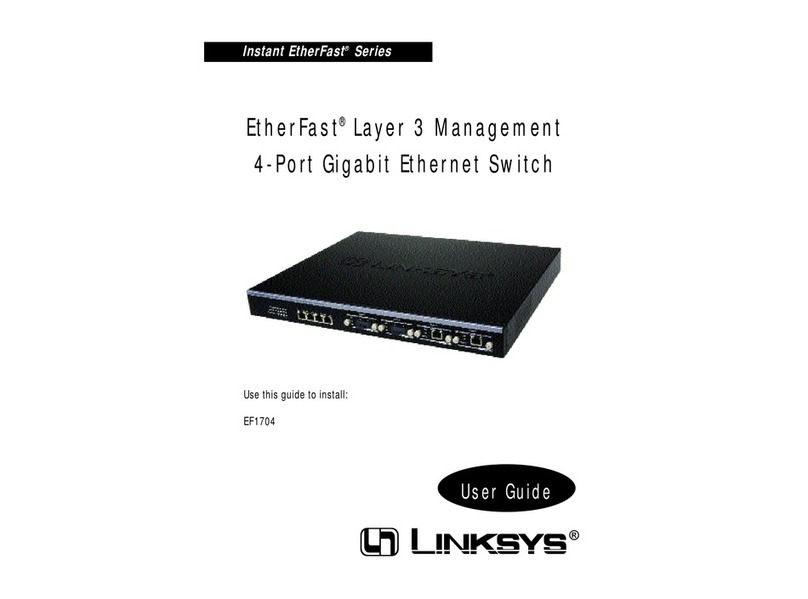

Linksys Etherfast EF1704 Manual de usuario
