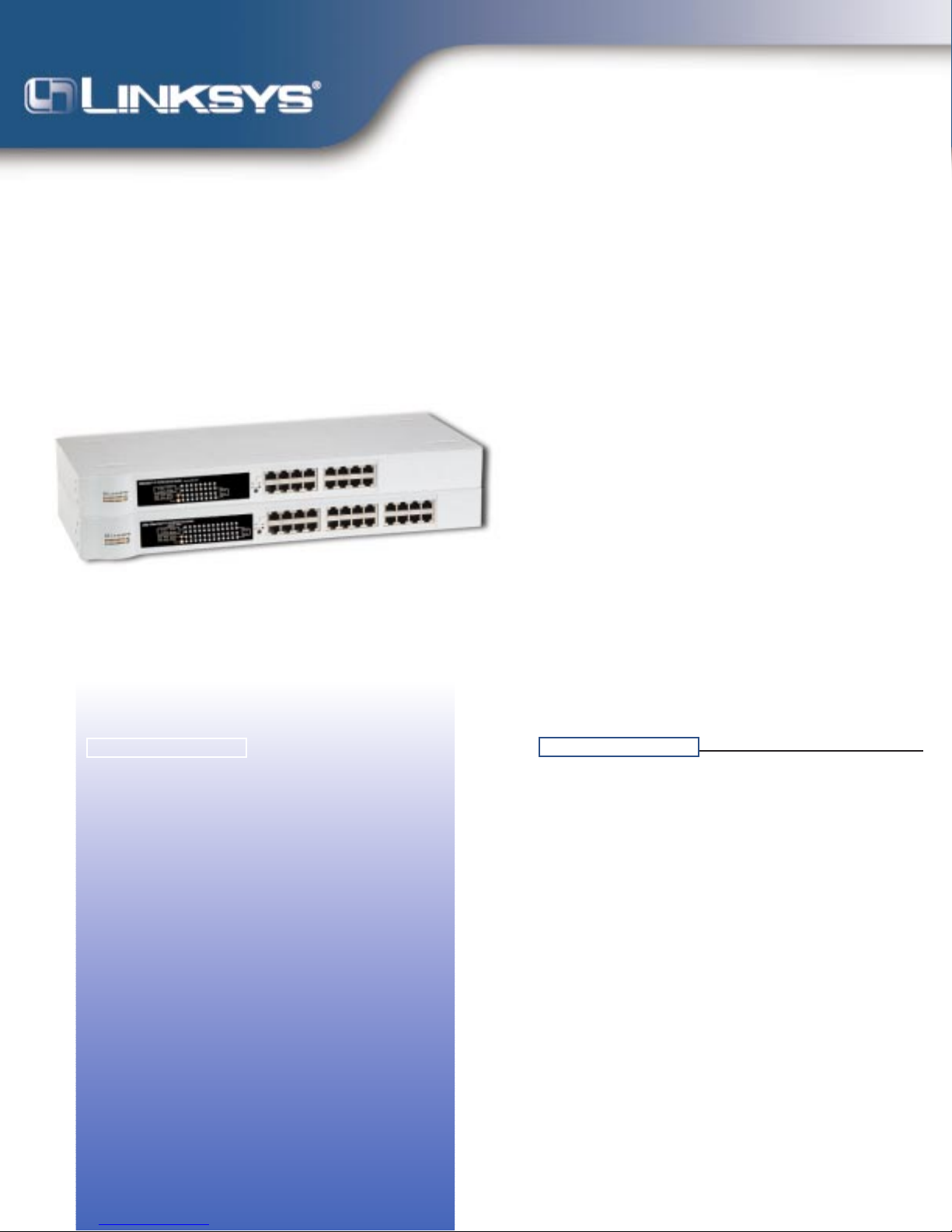

Linksys EF2S16 Manual de usuario

Instant EtherFastIITM

10/100 Switches

ith its advanced switching technology, the

new Instant EtherFast IITM 10/100 Switches

boost your network performance with much

more than just full duplex data transfer and dedicated

bandwidth. Its non-blocking, maximum wire speed

ensures optimal internal processing, while data flow

control filters out faulty packets and address learning

and aging prevents data transfer errors. Plus your

growing network can link to switches up to 2000

meters (6560 feet) away in full duplex mode, simply by

plugging a fiber module into your Switch’s expansion

port!

No matter how intensive your network demands, the

Instant EtherFast IITM Switches’ advanced chipset sup-

ports your needs with an affordable and efficient net-

working solution you can count on. Rack mountable

and equipped with an uplink button and fiber module

port, the Instant EtherFast IITM Switches will enhance

and expand your network productivity in countless

ways.

•16 and 24-Port 10/100 Full Duplex,Autosensing Ports

•Run Blazing Speeds of up to 200Mbps at Full Duplex

•Perfect for Running 10BaseT, 100BaseTX and

100BaseFX Hardware Together Seamlessly

•Optional 100BaseFX Fiber Optic Module Sends Data Up

to 2000 Meters (6560 feet) Away in Full Duplex Mode

•Data Flow Control Filters Out Faulty Data Packets

•Address Learning and Aging Prioritizes Packet Delivery

•CAM-based MAC Table Support Prevents Data Transfer

Errors

•Internal Bandwidth of 2.7Gbps

•Advanced Store-and-Forward Data Packet Switching

•Works with Virtually All Major Network Operating

Systems

•Optional Rack Mounting for Convenient Storage

•VLSI Components Support Hardware Reliability

•FreeTechnical Support—24 Hours a Day,7 Days aWeek

for North America Only

•5-Year Limited Warranty

Instant EtherFast IITM 10/100 16-Port Switch (EF2S16 v2)

Instant EtherFast IITM 10/100 24-Port Switch (EF2S24 v2)

Fiber Modules:

EtherFast IITM Switch 100BaseFX SC Module (EF2SSC)

EtherFast IITM Switch 100BaseFX ST Module (EF2SST)

Advanced Switching Technology Arrives with

Data Flow Control and Fiber Expandability

Features

Benefits

• 10/100 Autosensing Ports Run 10BaseT &

100BaseTX Hardware Together Seamlessly

• Run Blazing Speeds of 200Mbps in Full Duplex

Mode

• Optional 100BaseFX Fiber Module Gives You

Maximum Expandability

• Address Learning and Aging Prioritizes Packet

Delivery

• Data Flow Control Filters Out Packet Errors

• Free Technical Support—24 Hours a Day, 7

Days a Week for North America Only

• 5-Year Limited Warranty

DDaattaaFFlloowwCCoonnttrrooll&&

FFiibbeerrEExxppaannddaabbiilliittyy

DS-EF2S16 v2_24-01218A KL

Specifications

Model Numbers EF2S16 v2, EF2S24 v2

Standards IEEE 802.3 and IEEE 802.3u

Protocol CSMA/CD

Ports 16 or 24 10/100 RJ-45 Ports

Button MDI/MDIX

Expansion Slot One Expansion Slot for a 100BaseFX Fiber

Module (Independent Port)

Speed Per Port 10 or 100 (Half Duplex)

(Mbps) 20 or 200 (Full Duplex)

MAC Addresses 8k (EF2S16 v2), 4k (EF2S24 v2)

Max Frame Size 1522 Bytes

Buffer Memory 512kb (EF2S16 v2), 768kb (EF2S24 v2)

Cabling Type UTP Category 5 or Better

LEDs Power, FX,

FDX/Col (per Port),

Link/Act (per Port)

Environmental

Dimensions 17.3” x 7.3” x 1.7”

Unit Weight 4.6 lbs. (EF2S16)

4.8 lbs. (EF2S24)

Power Input 100-260V AC, 50-60Hz

Power Consumption 25 watts

Certifications FCC Class A,

CE Mark Commercial

Operating Temp. 0ºC to 40ºC (32ºF to 104ºF)

Storage Temp. -20ºC to 70ºC (-4ºF to 158ºF)

Operating Humidity 10% to 85%, Non-Condensing

Storage Humidity 5% to 90%, Non-Condensing

Package Contents

Optional

• EtherFast IITM Switch

100BaseFX SC Module

(Model Number: EF2SSC)

• EtherFast IITM Switch

100BaseFX ST Module

(Model Number: EF2SST)

Instant EtherFast IITM 10/100 Switches

• One 10/100 16 or 24-Port Switch

• Mounting Brackets & Bracket Screws

• One Power Cord

• User Guide and Registration Card

(Model No.: EF2S16 v2, EF2S24 v2)

Linksys

17401 Armstrong Ave.

Irvine, CA 92614 USA

Information (800) 546-5797

Technical Support (800) 326-7114

(949) 261-1288

Fax (949) 261-8868

World Wide Web http://www.linksys.com

Email [email protected]

[email protected]

China

Tech Support (10) 6432 1920

Sales (10) 6432 1923

Fax (10) 6437 6891

Japan

Telephone (03) 5259-5139

Fax (03) 5259-5117

Philippines

Telephone (632) 638 5580

Fax (632) 635 6772

Singapore

Telephone 552-8998

Fax 552-1024

Thailand

Telephone 717-0770

Fax 717-0738

United Kingdom

Tech Support 0870 7393939

Sales 01245 352403

Fax 0870 7393938
