Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Lytespan®Track Lighting System 8292WECY

Page 1 of 2 PowerArc™Canopy Double Ended Metal Halide Wall Washer

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

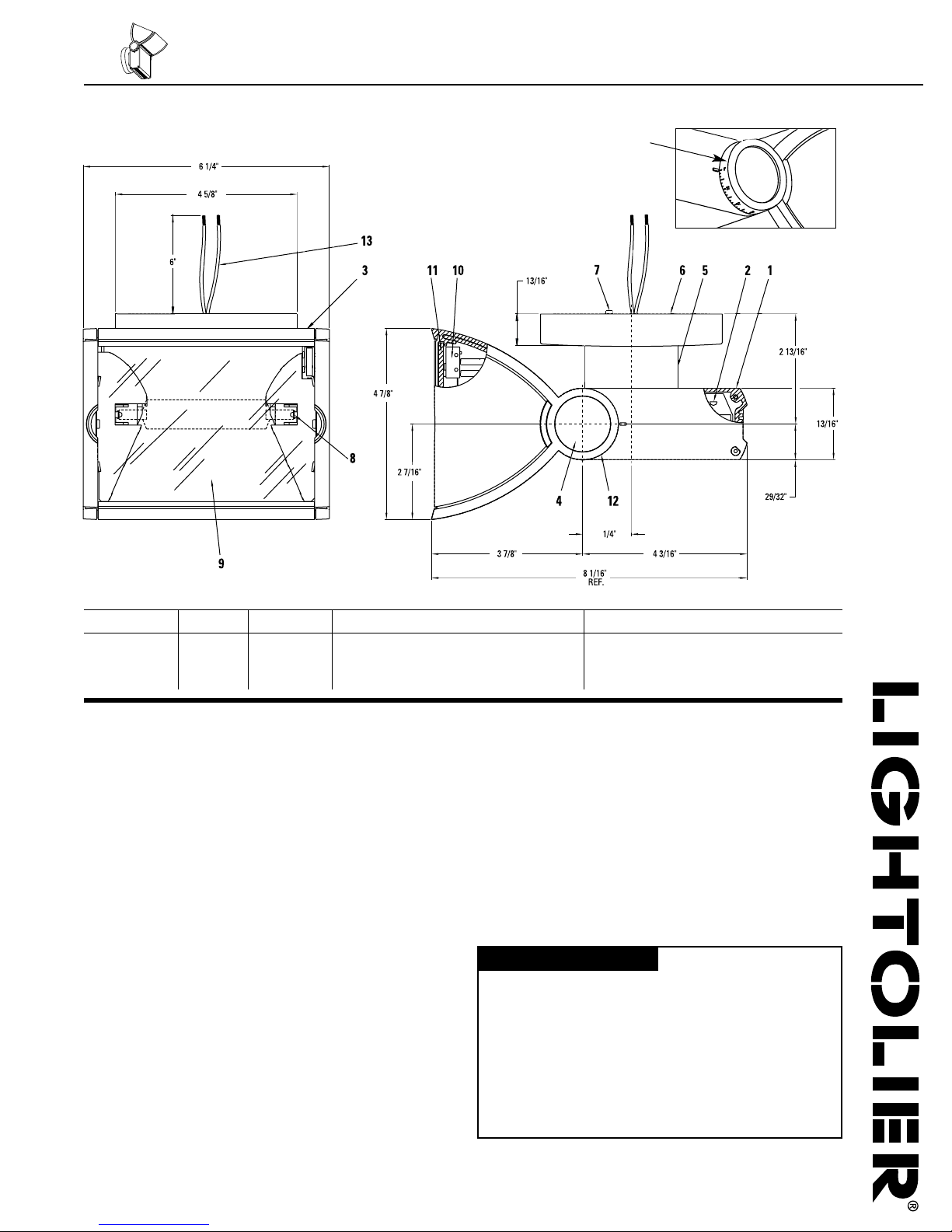

Features

1. Ballast Housing: 0.09”extruded aluminum housing with die cast endcaps.

2. Ballast: High power factor electronic metal halide ballast.

3. Reflector Housing: .095”thick extruded aluminum body with die cast end

caps.

4. Vertical Pivot: 0 - 90°vertical adjustment.

5. Mounting Arm: 0.07”extruded aluminum housing.

6. Canopy: 0.06”aluminum canopy.

7. Cross Bar: 0.74”galvanized steel with positive rotation stop provides 350°

rotation and positive lock every 45°. Mounting to J-box provides simple

hands-free wiring.

8. Sockets: 5 Kv pulse rated sockets with nickel plated contacts; leads

enclosed in silicone coated fiberglass sleeving.

9. Wall Washer Reflector: Asymmetrical aluminum reflector with internal

kick reflector provides even illumination on surface.

10. Safety Interlock Switch: Disconnects power when safety lens is removed.

11. Safety Lens: Tempered 1/8”UV filtering glass. Meets or exceeds safety

requirements for metal halide lamps.

12. Indicator Guide: Aiming indicator assures consistent and precise multiple

unit alignment.

13. Supply Leads: 18ga.,SF-1.

Electrical

8292WEWHCY 8292WEWHCY2

Electronic Ballast Electronic Ballast

Input Voltage: 120V, 60Hz Input Voltage: 277V, 60Hz

Power Factor: >95% Power Factor: >95%

Input Power: 78W Input Power: 79W

Input Current: .67 amp Input Current: .29 amp

Harmonic Distortion: <10% Harmonic Distortion: <10%

Do not use on a dimming circuit.

Options and Accessories

Accepts PowerArc Accessory Holder (8293AC), Vertical Blade Louver (8293LV),

Spread Lens (8293BE) UV Filter (8293UV), and Visor (8293VS).

NOTE: 8293UV or 8293BE must be combined with 8293AC.

Finish

All painted finishes are baked enamel.

Labels

UL, cUL (Suitable for Damp Locations)

Ordering Information

Catalog No. Voltage Finishings Mountings Lamps

8292WEWHCY 120 Matte White This fixture is intended for ceiling mounting and 70W CDM or CMH T-6

8292WEWHCY2 277 Matte White surface wall mounting 5’or greater from floor. It is Double Ended Metal Halide (M-98)

suitable for use in either dry or damp locations.

1’89 78 51 26 11 4

2’82 72 52 32 17 8

3’56 51 40 28 17 10

4’41 38 32 24 16 10

5’31 29 25 21 15 10

6’23 22 20 16 13 9

7’18 17 15 13 10 8

8’14 13 12 10 9 7

9’10 10 9 8 7 6

106 102 106

116 109 116

92 90 92

77 76 77

66 65 66

53 53 53

44 44 44

37 37 37

30 30 30

94 71 94

97 83 97

74 70 74

62 61 62

53 53 53

43 42 43

36 35 36

31 30 31

24 24 25

89 49 89

88 62 88

64 56 64

53 50 53

45 45 45

36 36 36

30 30 30

26 26 26

21 21 21

Fixture 4 Feet From Ceiling or Wall Single Unit Multiple Units

4’5’6’

4’

Distance From Ceiling or Wall

50˚

Footcandles are average and rounded off and data for multiple units are based

on a minimum of five units.

0’1’2’3’4’5’

Beam Center

1’176 137 73 31 13 7

2’113 95 62 33 14 5

3’72 64 48 29 15 7

4’49 46 37 25 15 8

5’34 32 26 20 13 8

6’24 23 19 15 11 7

7’16 15 13 11 8 6

8’11 18 9 8 6 5

9’877654

200 156 200

141 127 141

103 101 103

83 83 83

62 61 62

50 50 50

37 36 37

27 27 27

21 21 21

186 66 186

116 65 116

78 58 78

60 55 60

42 40 43

35 34 36

26 25 26

19 18 19

15 15 15

Footcandles on Ceiling or Wall

Fixture 3 Feet From Ceiling or Wall Single Unit Multiple Units

4’6’

3’

Distance From Ceiling or Wall

50˚

0’1’2’3’4’5’

Beam Center

192 102 192

123 93 123

86 78 86

68 68 68

50 49 50

41 40 41

30 29 30

22 22 22

17 17 17

5’

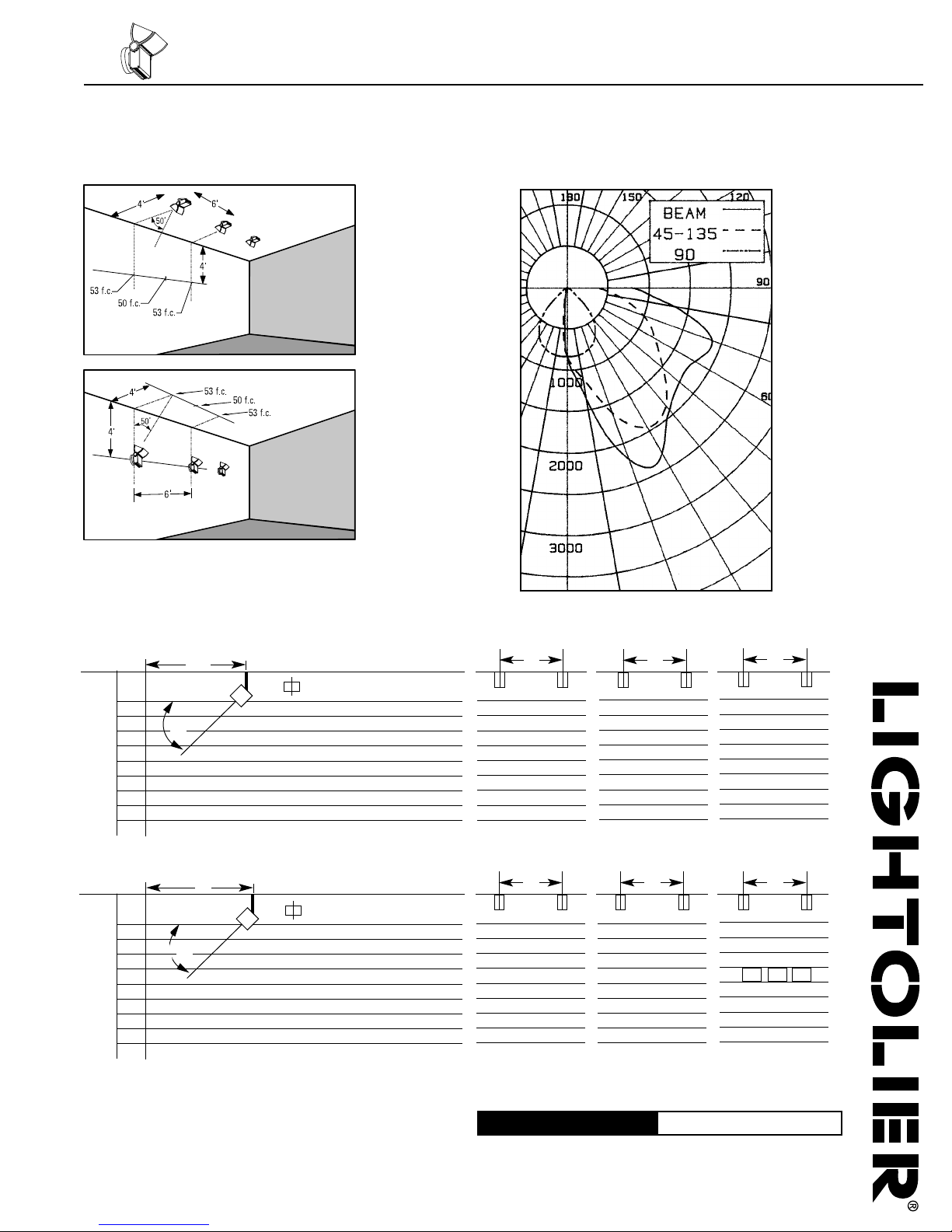

Example: With fixtures located 4’from ceiling or wall and multiple units

spaced 6’on center and aimed 50˚from vertical, the illumination on wall 4’

from ceiling or wall will be 53 f.c. beneath units and 50 f.c. between units.

Lighting Data

Footcandles on ceiling or wall:

Lamp Information:

70W CDM or CMH T6

Double Ended Metal Halide.

Initial Lumens: 6200 to 7000

CRI: 85

Rated Avg. life: 12,000 hrs

Lytespan®Track Lighting System 8292WECY

Page 2 of 2 PowerArc™Canopy Double Ended Metal Halide Wall Washer

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 •(508) 679-8131 •Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.
