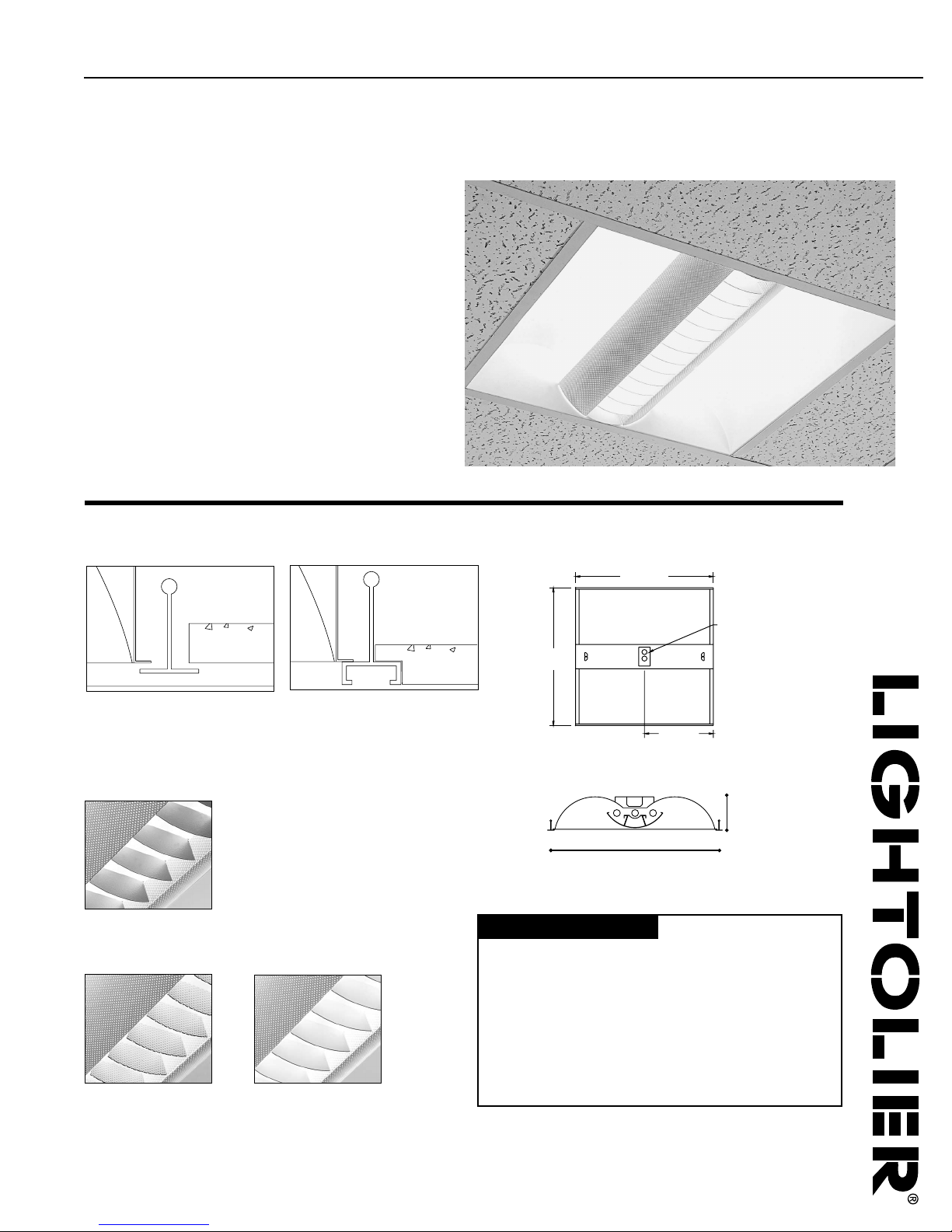

Lightolier QVS2GPFLV317 Manual de usuario

Mounting Methods / Features Dimensions

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Volts/Ballast:

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

A0902 Folio L10-40

Features

• Efficiency 55.4%.

• Flat blade louver with lens overlay and perforated curved side blades.

• Seamless welded form: curved top and side reflectors are formed

together without any gaps or visual barriers.

• No visible welding, screws, latches, springs, hooks, rivets or plastic

supports.

• 95% reflective Alter soft white paint finish.

• 5-1/2” deep, one-piece body for easy installation.

• Choice of white microperforated blade, white solid blade or grey

solid blade.

• Easy access to ballast through lamp compartment.

• Fits standard T-grid, exposed slot T-grid ceilings and drywall ceilings.

• Fully recessed luminaire and lamp compartment.

• Optional hold-down clips.

• Luminaire can be row mounted.

ALTER LOUVER QVS2GPFLV317

Page 1 of 2 2’ X 2’ RECESSED DIRECT/INDIRECT FLUORESCENT, 3 LAMP, T8, 5 1/2” DEEP

MICROPERFORATED MESH WHITE LAMP SHIELD/WHITE, MESH LOUVER

Ceiling compatibility

Suite to standard T-grid ceilings Suite to standard exposed slot

T-grid ceilings

11-7/8"

(302mm)

(605mm)

23-13/16"

ACCESS

PLATE (2)

7/8" K.O.'S

23-13/16"

(605mm)

23-13/16"(605mm)

(140mm)

5-1/2"

Microperforated mesh

white lamp shields

grey solid louver

Microperforated mesh

white lamp shields

white mesh louver

Microperforated mesh

white lamp shields

white solid louver

Specifications

MATERIALS: One piece chassis constructed from die formed 20 gauge cold

rolled steel. Reflectors - 95% reflectance baked white acrylic matte paint

finish. Soft white acrylic film on inside of lamp shield conceals lamp image.

FINISH: Chassis exterior - phosphate undercoating, baked white acrylic matte

high reflectance paint finish. Louver - flat blade louver with soft white acrylic

overlay.

ELECTRICAL: Rapid start HPF, thermally protected class “P”ballast. If K.Os are

within 3”of ballast use wire suitable for at least 90C.

LABELS: Listed by

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 •Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 •(508) 679-8131 •Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

A0902 Folio L10-40

Job Information Type:

ALTER LOUVER QVS2GPFLV317

Page 2 of 2 2’X 2’RECESSED DIRECT/INDIRECT FLUORESCENT, 3 LAMP, T8, 5 1/2”DEEP

MICROPERFORATED MESH WHITE LAMP SHIELD/WHITE, MESH LOUVER

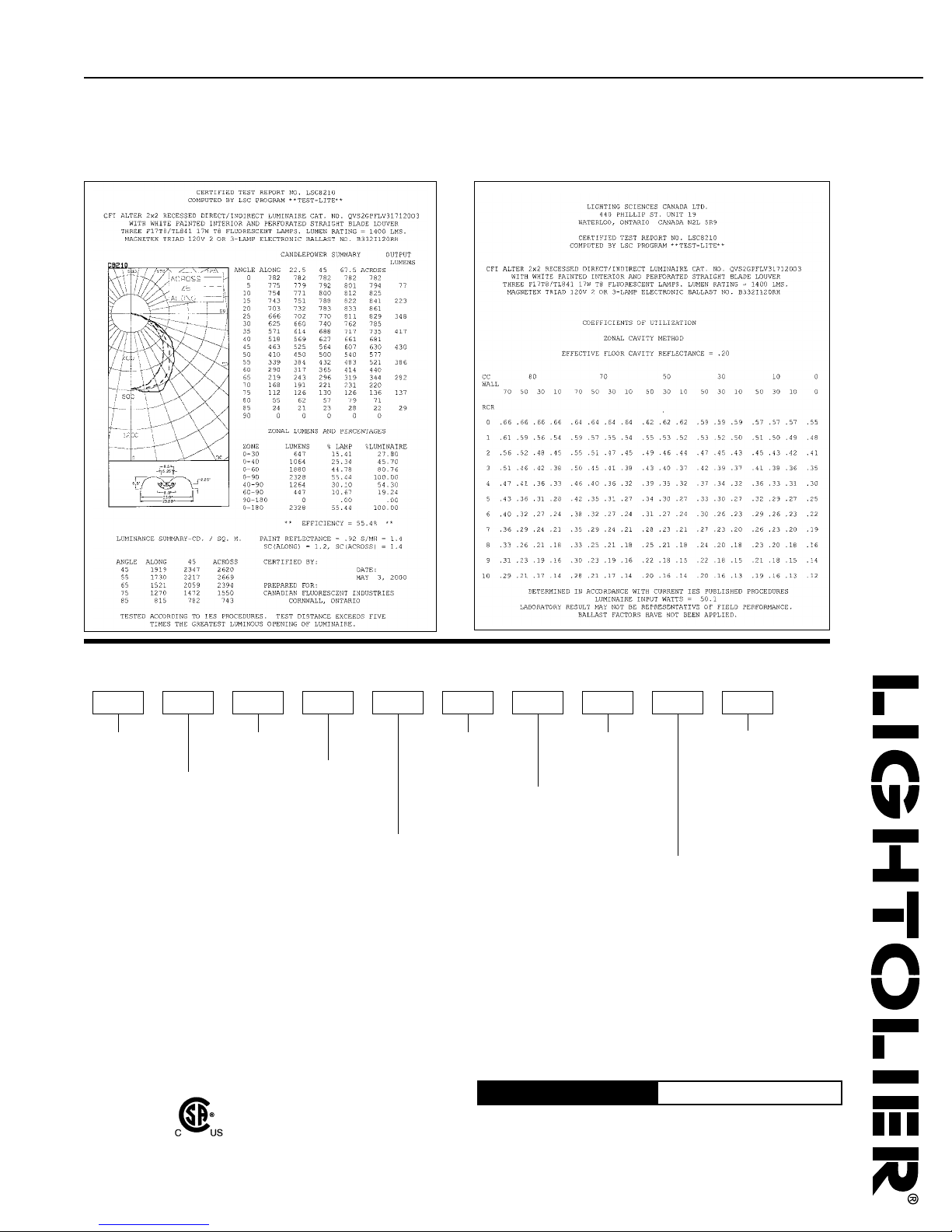

Photometry

Ordering Information Explanation of Catalog Number Example: QVS2GPFLV317120O3

FAMILY

QVS: Quality Visual

Louver

LUMINAIRE

WIDTH:

24”

CEILING TYPE:

G= Grid

LAMP SHIELD:

PF = Microperforated mesh

LAMP

QUANTITY

LAMP

17 = 17W (T8 nominal 24’)

VOLTAGE:

120V

277V

347V

BALLAST:

OC = Magnetic T8

SO = 1 or 2 LPB electronic T8 IS

SR = 1 or 2 LPB electronic T8 RS

O3 = 3 LPB electronic T8 IS

R3 = 3 LPB electronic T8 RS

PS = PowerSpec HDF Dimming Electronic T8

OPTIONS:

F= Internal Fusing (consult

factory)

N= Emergency lighting

System (for U.S.)

O= Emergency Lighting

System (for Canada)

R= Radio Interference Filter

QVS 2 G PF 317

SHIELD DETAILING

LG = Grey solid flat blade louver

LV = White perforated flat blade louver

LW = White solid flat blade louver

LPB : Number of lamps per ballast
