Calculite®ProSpec®Linear Downlight PB1H3039

Page 1 of 2 1 Light PAR30 MH Series B

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Features

1. Aperture Frame: Provides clean support for lamp holders and overlapping

flange or trimless installation. Extruded aluminum. Rigidly welded together

on all corners.

2. Media Cartridge: Allows convenient loading and removal of up to one

accessory. Easily installed and removed for lamping with a simple twisting

motion. Constructed of die-formed aluminum.

3. Ad ustable Ring: Allows 360° horizontal and 40° (on width) and 45° (on

diagonal) vertical adjustment.

4. Tortiontite Spring: For easy installation of aperture frame.

5. Housing: Die-formed 22 ga. steel. Finish: Black

6. Mounting Brackets: Adjustable vertically from outside of housing.

7. Thermal Protector: Meets NEC and UL requirement.

8. Lampholder: Porcelain medium based; nickel plated screw shell. 5KV pulse

rated, prewired with #18 SF-1 leads to Ballast Housing.

9. Ballast Housing: Die-formed 18 ga. steel.

10. Junction Box: 14 ga. steel, 4” x 3 1/2” x 2” box. Allows inspection from

below.

11. Lamp and Accessory Support: .032" steel, flared for easy entry of Media

Cartridge.

12. Lens Retaining Ring: .093" spring steel rod. Holds accessories in place.

Electrical

Electronic Ballast: High Power Factor. Input watts: 44, line current: .37 amps.

Accessible from below.

UL listed for through branch circuit wiring with maximum of (8) no. 12 AWG,

90°C.

Ceiling Cutout: 7 3/16" L x 7 3/16" W

Ordering Information: PAR30 MH Series B

Cat. No. Lamp Ceiling Trim Aperture Finish

PB1H3039BL (1) 39W PAR30 MH Overlap Black with White Flange

PB1H3039WL (1) 39W PAR30 MH Overlap White with White Flange

PB1H3039BTL (1) 39W PAR30 MH Trimless Black

PB1H3039WTL (1) 39W PAR30 MH Trimless White

Finish

All painted finishes are powder coated baked enamel.

Options and Accessories

Accessories: 3 3/4" dia. series, filters, lenses, screens and louvers (1) max.

Label

UL/cul (Suitable for Damp Location), I.B.E.W.

PB1H3039BTL (Trimless) Black

PB1H3039WTL (Trimless) White

15 1/8"

1 3/4"

13"

83/4"

Depth

12 3/8" L X 10" W

6" L X 6" W Opening

123

Flanged Trimless

Top View

16"

PB1H3039BL (Flanged) Black/White

PB1H3039WL (Flanged) White

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

39W PAR30

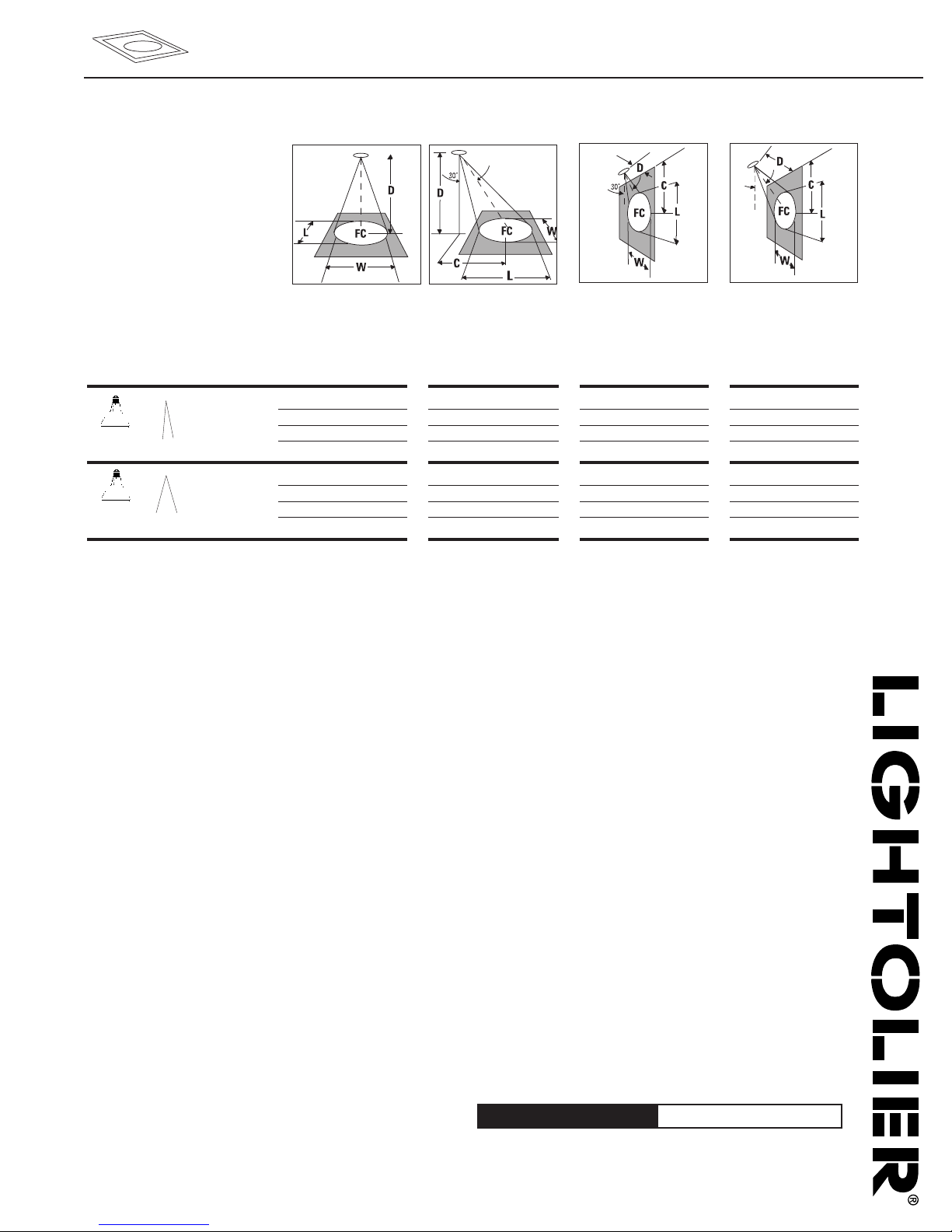

(FC) is initial footcandles at center of beam.

Beam length (L) and beam width (W) are to

where the candlepower is reduced to 50%

of center beam candlepower.

CBCP is center beam candlepower.

Performance data shown is based on bare

lamp photometrics of MasterColor lamps by

Philips Lighting. Contact lamp manufacturers

for availability and performance.

Accent Lighting Performance Data

00° Aiming Angle 30° Aiming Angle 30° Aiming Angle 40° Aiming Angle

15’ 187 2.6’ 2.6’

20’ 105 3.5’ 3.5’

25’ 67 4.4’ 4.4’

30’ 47 5.2’ 5.2’

7’ 133 3.8’ 3.8’

10’ 65 5.4’ 5.4’

13’ 38 7.0’ 7.0’

16’ 25 8.6’ 8.6’

10’ 5.8’ 273 2.3’ 2.0’

15’ 8.7’ 121 3.5’ 3.0’

20’ 11.5’ 68 4.7’ 4.0’

25’ 14.4’ 44 5.8’ 5.1’

6’ 3.5’ 117 4.4’ 3.7’

9’ 5.2’ 52 6.6’ 5.6’

12’ 6.9’ 29 8.8’ 7.4’

15’ 8.7’ 19 11.0’ 9.9’

5’ 8.7’ 210 3.6’ 1.7’

8’ 13.9’ 82 5.7’ 2.8’

11’ 19.1’ 43 7.9’ 3.8’

14’ 24.2’ 27 10.0’ 4.9’

2’ 3.5’ 203 5.5’ 2.1’

3’ 5.2’ 90 8.2’ 3.2’

4’ 6.9’ 51 10.9’ 4.3’

5’ 8.7’ 33 13.7’ 5.4’

8’ 9.5’ 174 3.4’ 2.2’

12’ 14.3’ 77 5.1’ 3.3’

16’ 19.1’ 44 6.9’ 4.4’

20’ 23.8’ 28 8.6’ 5.5’

4’ 4.6’ 108 5.8’ 3.2’

6’ 7.2’ 48 8.7’ 6.0’

8’ 9.5’ 27 11.6’ 6.7’

10’ 11.9’ 17 14.4’ 8.3’

D FC LW DCFC LW D CFC LW D CFC LW

Beam Spread Rated

50% Max CP CBCP Life-Hrs

9000

42000

6500

39W PAR30

10°

30°

39W

Lamp

40°

Calculite®ProSpec®Linear Downlight PB1H3039

Page 2 of 2 1 Light PAR30 MH Series B
