Lightolier KD SERIES HO Manual de usuario

KD Industrial HO/VO Solid Top Fluorescent KD SERIES HO/VO

Page 1 of 2 4-1/8” Wide x 48” or 96” Lengths, Solid Top, 2 Lamp T8 or T12 HO or VHO

Features

• Reﬂectors are embossed for rigidity.

• Reﬂector sides are turned up for rigidity and safe handling.

• Solid top reﬂector, standard.

• 10% aperture reﬂector, optional.

• Reﬂectors easily installed with quarter turn fasteners. No tools

required.

• 4-1/8” wide heavy duty channel of code gauge die-formed steel.

• Combination end cap/coupler requires no tools for installation.

• Suitable for individual or row mounting.

• Fully enclosed wiring.

• Multiple knockouts for convenient installation.

• Optional hangers, wire guards and aligners.

• Optional heavy duty coupling.

Dimensions

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Volts/Ballast:

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and ﬁnish.

48” (1219mm) 6” (152mm)

4-5/8”(117mm)

1-1/8”

(29mm)

4-1/8”

(105mm)

4” (102mm)

6-3/8” (162mm)2” Dia.K.O. with

7/8”Dia.K.O. 7/8”Dia.K.O. (4)

4’ CHANNEL

96” (2438mm)

24”

(610mm)

7/8”Dia.K.O. (8)

2” Dia.K.O. with

7/8”Dia.K.O.

6-3/8” (162mm)

4-1/8”

(105mm)

4” (102mm) 6” (152mm)

4-5/8” (117mm)

1-1/8”

(29mm)

8’ CHANNEL

S Hook

K.O. (8)

S Hook

K.O. (8)

3-1/16”

(78mm)

5-1/2"

(140mm)

10-1/2” (267mm)

2-3/4"

(70mm)

7/8” Dia.K.O. (4)

SIDE VIEW

7/8”(22mm)

1/2”

Dia.K.O. (2)

5-7/8”(149mm)

KD Industrial HO/VO Solid Top Fluorescent KD SERIES HO/VO

Page 2 of 2 4-1/8” Wide x 48” or 96” Lengths, Solid Top, 2 Lamp T8 or T12 HO or VHO

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and ﬁnish.

Job Information Type:

Photometry Model No. KD8S296HO120LE

Report No: G14118

Catalog No:

KD8S296HO120LE

Lamp Type; 2F96T12HO

Lumens Per Lamp: 13500

Total Efﬁciency: 85.9%

CIE Type: Direct

Spacing Criteria: 1.5

Shielding Angle: 180

Ordering Information

Explanation of Catalog Number. Example: KD8S296HO120LEGLR

Options & Accessories

Fusing: Internal fast-blow fusing. Sufﬁx: GLR.

Internal slow-blow fusing. Sufﬁx: GMF.

Radio Interference Filter: 120 or 277 volt, 50 or 60 Hz. One per ﬁxture.

Sufﬁx: R. One per ballast. Sufﬁx: B.

Fluorescent Emergency Lighting System: Factory-installed emergency

power battery pack with charger and inverter. Sufﬁx: EM.

Stem and Canopy Sets: Suspends ﬁxture 6”, 12”, 18” or 24” from surface.

Order Catalog Number: ASC6 CSP (6”), ASC12 CSP (12”), ASC18 CSP (18”),

ASC24 CSP (24”).

Canopy Spacer: Suspends ﬁxture 1-1/2” from surface.

Order Catalog Number: AC1 CSP

4’Wire Guard: Catalog Number: AWG4W CSP

Reﬂector Row Aligners: Two aligners are included with all 96” ﬁxtures. For

continuous row installations, specify two additional bulk-packed aligners per

reﬂector joint . Catalog Number: KNA

Slide Grip Hangers: Catalog Number: NAHD CSP

Chain Hanging Kit: Includes two 5’ heavy duty link chains with sturdy “V”

hooks for ﬁxture suspension. AH5 CSP

Heavy Duty Coupler: NHDC-W CSP

Speciﬁcations

Materials: Chassis parts are die-formed heavy gauge cold rolled steel.

Speciﬁcations (continued)

Reﬂector: Heavy duty die-formed with deep lateral embossments and return

edges for additional stability and uniformity and two quick release quarter turn

fasteners for attachment to housing.

Finish: Chassis—baked white enamel. Phosphate undercoating. Reﬂector—

baked white enamel, high reﬂectance.

Finish: Chassis exterior—phosphate undercoating, baked white polyester

enamel.

Electrical: Thermally protected class “P” ballast C.B.M. approved, non PCB. If

K.O. is within 3" of ballast, use wire suitable for at least 90°.

Labels: I.B.E.W./UL and C-UL.

FIXTURE

LENGTH:

4=48"

8=96"

NUMBER OF

LAMPS IN

WIDTH:

(By Others)

2 Lamp Only

LAMP WATTS:

48HO=60wT12,

800 mA (4' Length)

86HO=86wT8,

380 mA (8'Length)2

96HO=110wT12,

800 mA (8' Length)

48VO=110wT12,

1500 mA (4' Length)

96VO=215wT12,

1500 mA (8' Length)

VOLTAGE:

120 or 277 BALLAST TYPE:

1-2 Lamp Mag. T12 LE

1-2 Lamp Standard Electro Magnetic P

(HO/VO Only). <20THD<10THD

1-2 Lamp Elec. T8 SO* HI*

*Instant Start Standard

REFLECTOR:

S=Solid Top

A=10% Uplight

STANDARD

INDUSTRIAL

HO/VO:

4-1/8" Wide Channel

OPTIONS:

Add appropriate

sufﬁx to catalog

no. ie: (GLR)

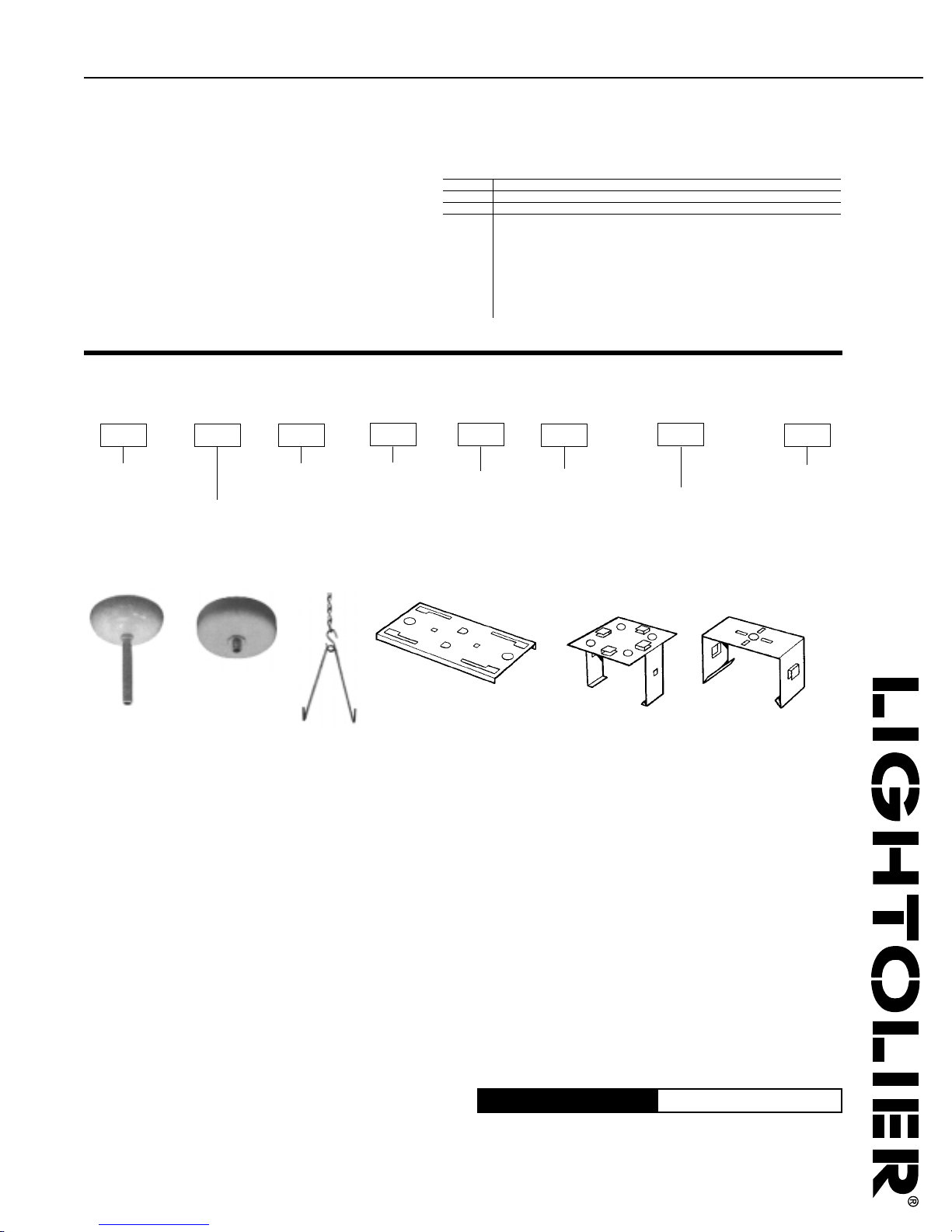

KD 2

STEM AND

CANOPY SET

ASC6 CSP (6”)

CANOPY

SPACER

AC1 CSP CHAIN

HANGING

KIT

AH5 CSP

HEAVY DUTY

COUPLING

NHDC-W CSP

TWIST TEE

NAH3D

CSP

SLIDING

HANGER

KIT

NAHD

CSP

coefﬁcients of utilization- zonal cavity method

RF 20 50 30

RC 80 80 30

RW 70 50 30 50 30 10 50 30 10

1928783 807774 767471

2827568 696460 666158

3756557 605449 575248

4685749 534641 504540

5625042 474035 453934

6574537 423530 403430

7534133 383126 363026

8493729 352823 332723

9463426 322521 312521

10 43 31 24 29 23 19 28 23 19

room cavity method

LER = FI - 104 IW - 203 BF - 0.91

Comparative yearly lighting energy cost per 1000 lumens = $2.30
