Lightolier Calculite 7052QD Manual de usuario

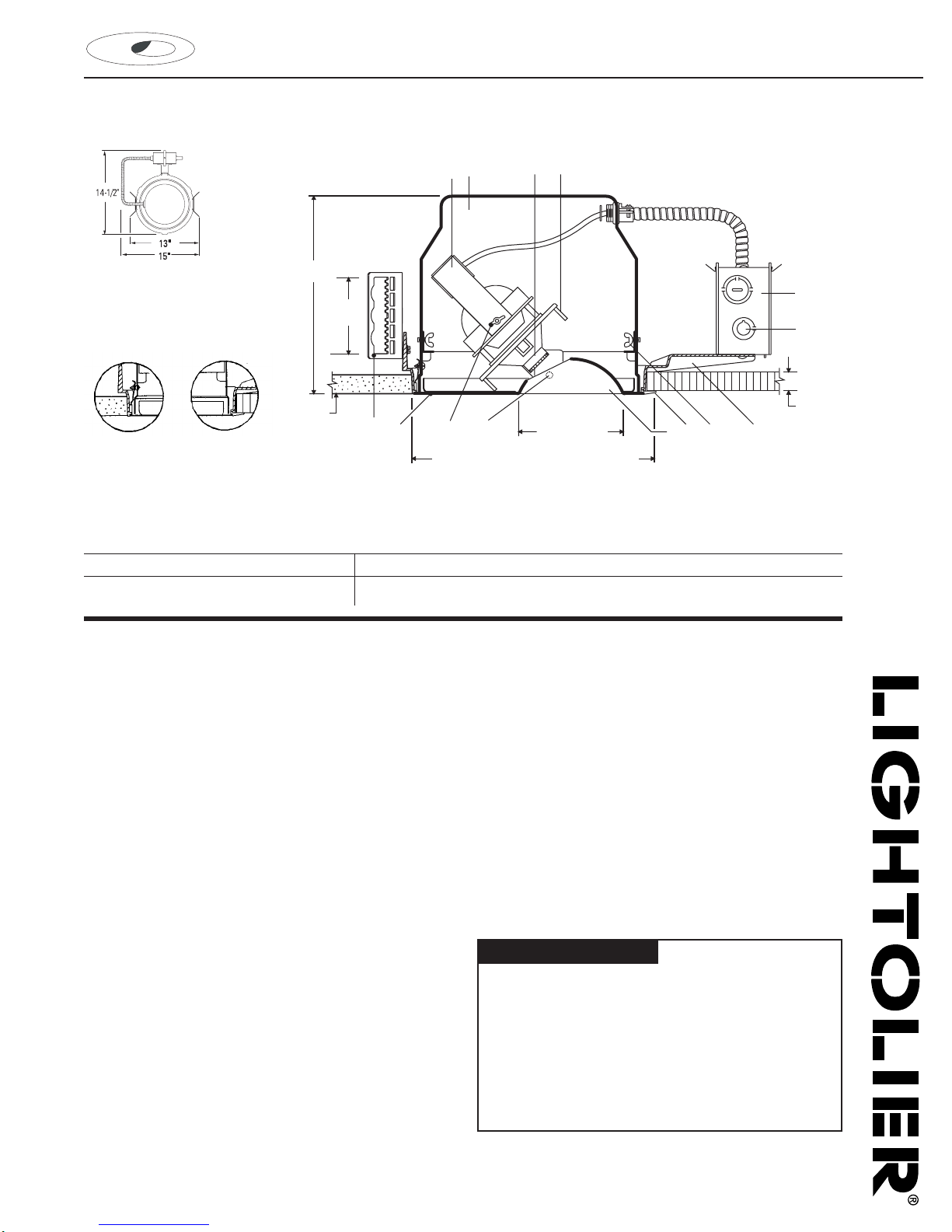

Calculite®Incandescent Adjustable Accent 7052QD

Page 1 of 2 4 1/4” Aperture T4 Clear T. H. Framing Projector

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Features

1. Housing: Spun 16 ga. aluminum separates from frame for inspection

through aperture.

2. Lampholder: Die-formed steel yoke with mini-can socket, 18 SF1 leads to

J-box.

3. Mounting Brackets: Adjust vertically from inside of fixture. Durable 16 ga.

steel construction. Use with standard 3/4" or 1 1/2" lathing channels, or 1/2"

(11/16" O.D.) EMT pipe (by others) or Lightolier accessory mounting bars.

4. Face Plate: Die-formed steel 20 ga. with integral cone, matte white baked

enamel.

5. Aperture Cone: Designed to minimize glare and reduce brightness at ceiling

plane.

6. Molded Trim Ring: Provides minimum width white flange in dry or plaster

ceiling.

7. Horizontal Locking Device: Provides locking of horizontal rotation. Optical

assembly rotates up to 358°.

8. Mounting Frame: Die-cast aluminum, suitable for dry or plaster ceilings.

9. Locking Device: Allows removal of optical system for relamping without

disturbing shutter position.

10.Vertical Locking Device: Locks optical assembly which may be adjusted

from 0° to 45°.

11.Focusing Lens: System provides hard or softened edge image projection.

12.Shutters: Four spring shutters with porcelain hand knobs allow for adjust-

ment by cut-off of edge of light beam. Internal clips hold 2" square or round

templates (included).

13.Junction Box: 14 ga. steel, 4" x 3" x 2" box allows inspection from below.

14.Thermal Protector: Meets NEC and UL requirements. Insulation must be

kept 3" away from fixture sides and wiring compartments and must not be

placed above fixture in a manner which will entrap heat.

Accessories and Options

18" Mounting Bars 1950 (set of 2)

27" Mounting Bars 1951 (set of 2)

T-Bar Anchor Clips 1956 (set of 4, for 1950 & 1951 bars)

Wood Joist Mtg. Bars 7994 (set of 2)

Step Down Transformer 7997 (277V primary 1.1 amp/120V secondary,

300W capacity)

Electrical

UL Listed for maximum of 8 No. 12, 75°C through branch circuit supply conduc-

tors, or 60°C supply conductors for end of run.

Labels

UL Listed for damp locations, I.B.E.W.

Ceiling Cutout: 9 1/4” (235 mm) Dia.

Catalog Number Lamp

7052QD Matte White Finish T-4 100W

Clear Tungsten Halogen, Mini-Can Base, 120V

7 7/8"

4 1/8: Dia

Aperture

9 15/16"

Overlap

34 56 7 8910

11 12

9 3/16"

Flush

1" min.-

1 7/8" max.

(Ceiling Runner)

3/4" max.

Ceiling

Thickness

Flush Trim White Trim Ring

Top View

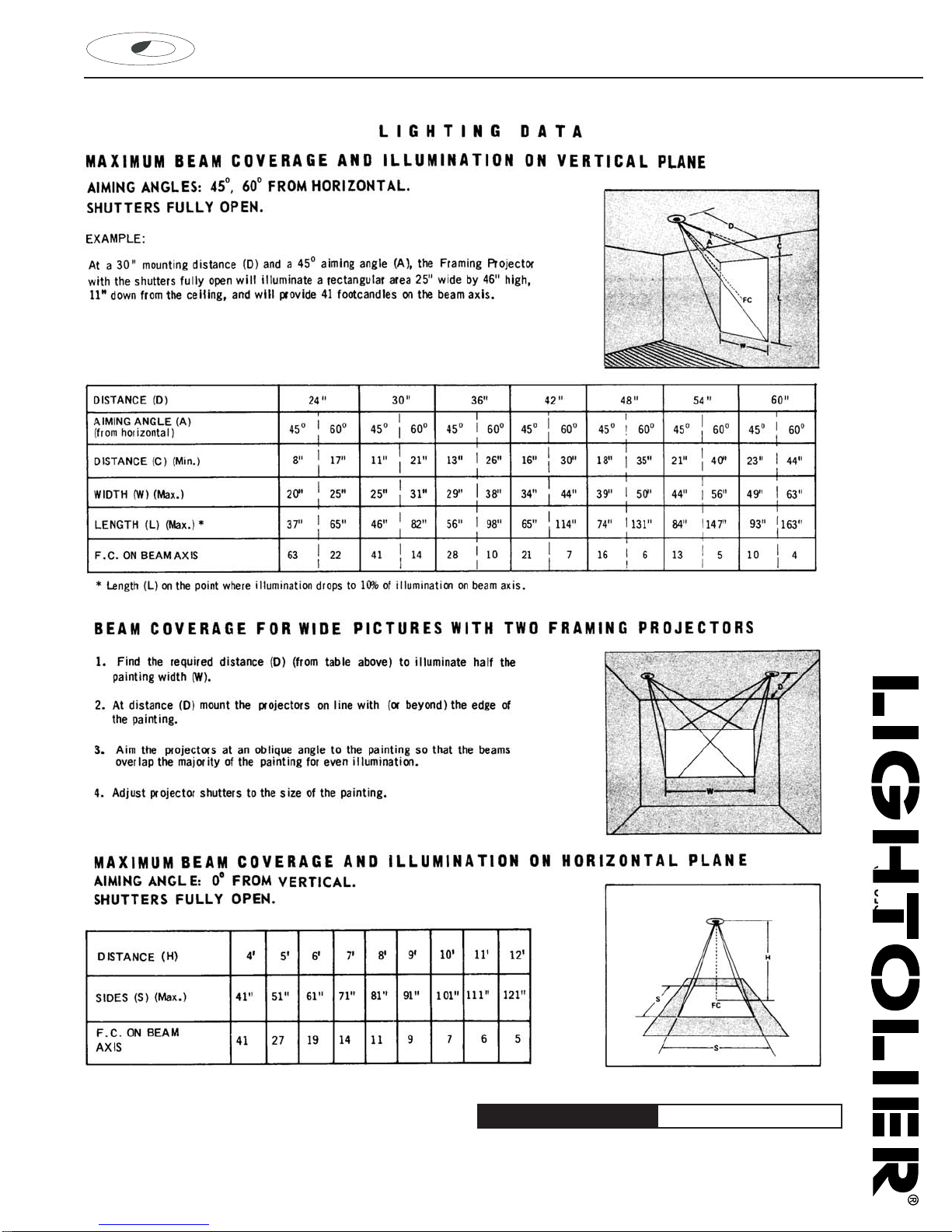

Calculite®Incandescent Adjustable Accent 7052QD

Page 2 of 2 4 1/4” Aperture T4 Clear T. H. Framing Projector

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:
