READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE INSTRUCTION SHEET NO.

lis fixture is intended for installation in accordance with the National Electrical Code and local regulations.

)assure full compliance with local codes and regulations, check with your local electrical inspector before

stallation. Toprevent electrical shock, turnoff electricity at fuse box before proceeding. IS:9162

Retain these instructions for maintenance reference. 0395 Page 1of 1

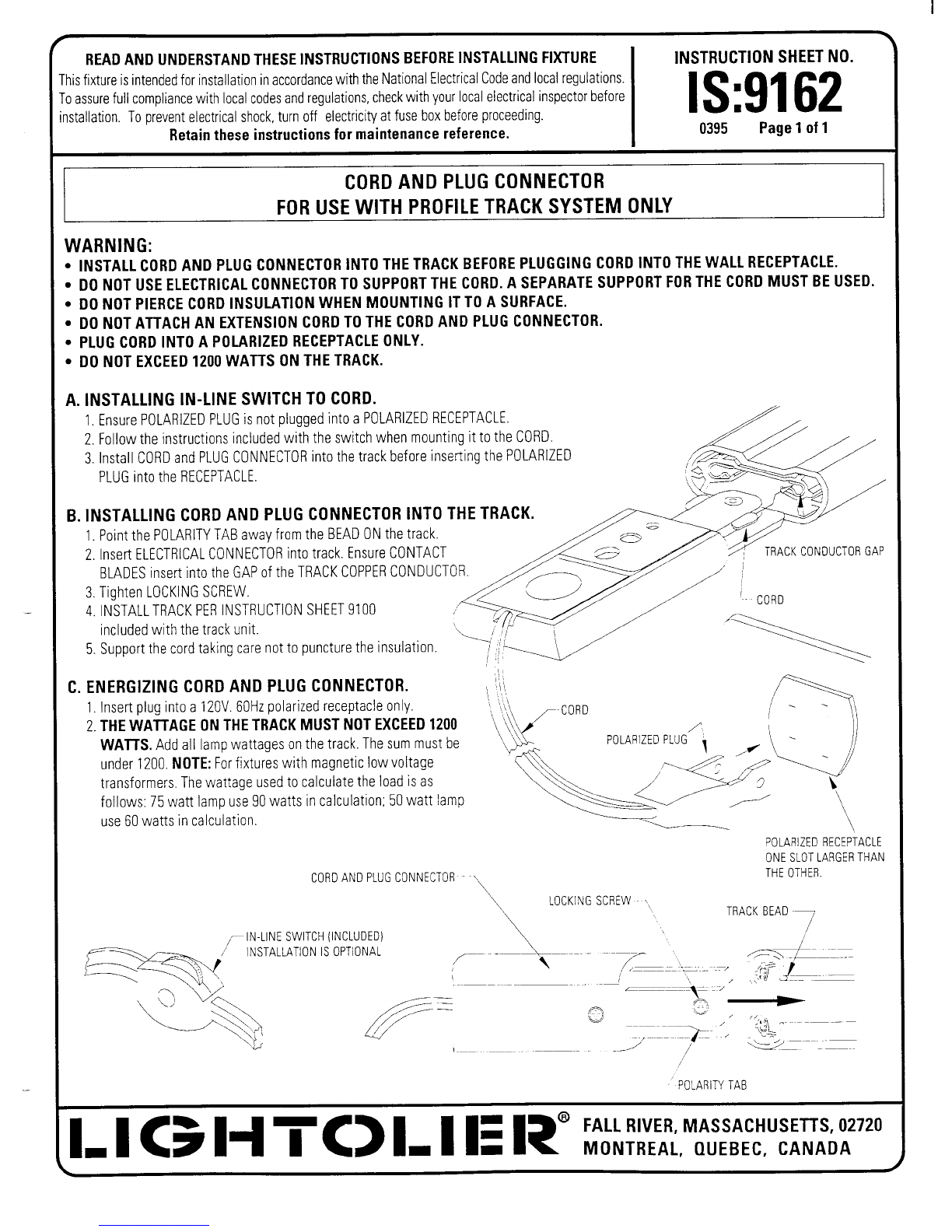

CORD AND PLUG CONNECTOR

FOR USE WITH PROFILE TRACK SYSTEM ONLY

WARNING:

~INSTALL CORD AND PLUG CONNECTOR INTO THE TRACK BEFORE PLUGGING CORD INTO THE WALL RECEPTACLE.

~DO NOT USE ELECTRICAL CONNECTOR TO SUPPORT THE CORD. ASEPARATE SUPPORT FOR THE CORD MUST BE USED.

~DO NOT PIERCE CORD INSULATION WHEN MOUNTING IT TO ASURFACE.

oDO NOT ATTACH AN EXTENSION CORD TO THE CORD AND PLUG CONNECTOR.

~PLUG CORD INTO APOLARIZED RECEPTACLE ONLY.

oDO NOT EXCEED 1200 WATTS ON THE TRACK.

A. INSTALLING IN-LINE SWITCH TO CORD.

1.Ensure POLARIZED PLUG is not plugged into aPOLARIZED RECEPTACLE.

2. Follow the instructions included with the switch when mounting it to the CORD.

3. Install CORD and PLUG CONNECTOR into the track before inserting the POLARIZED

PLUG into the RECEPTACLE, ,&

B. INSTALLING CORD AND PLUG CONNECTOR INTO THE TRACK.

1. Point the POLARITY TAB away from the BEAD ON the track.

2, Insert ELECTRICAL CONNECTOR into track. Ensure CONTACT .== ~%

BLADES insert into the GAP of the TRACK COPPER CONDUCTOR.

3. Tighten LOCKING SCREW.

4, INSTAIJ.TRACK PER INSTRUCTION SHEET 9100

included with the track unit.

5. Support the cord taking care not to puncture the insulation. ~/

C. ENERGIZING CORD AND PLUG CONNECTOR. l,,1’\‘

1. Insert plug into a120V. 60Hz polarized receptacle only. ,’,!

/.. \

2. THE WATTAGE ON THE TRACK MUST NOT EXCEED 1200

,’,{~~ coRD

WAllS. Add all lamp wattages on the track. The sum must be

under 1200. NOTE: For fixtures with magnetic Iowvoltage

transformers. The wattage used to calculate the load is as

follows: 75 watt lamp use 90 watts in calculation; 50 watt lamp

use 60 watts in calculation.

.<>;,

POLARIZEDRECEPTACLE

ONE SLOT LARGER THAN

CORD ANO PLUG CONNECTOR

1 . . ... .

THE OTHER.

LOCKING SCREW ~~ TRACK BEAD -

,---ILINENESWITCH (INCLUOED) /

‘-~

/’ INSTALLATIONISOPTIONAL ,f–- .-

- ..._r_ ___ =4=

, .——— —— —.-—..=. $~ .{-—. ~

Lj *P,, _

/—==. . I 2

p’

\—>ql .L2

‘u

\-—— ——

._J___ _>_ .: ‘~:JL.. _____

/’ +22: -—T.-

POLARITYTAB

@FALL RIVER MASSACHUSETTS, 02720

l-l C>1+~C>l-11= 1? MONTREAL QUEBEC, CANADA
