Lightolier Lytecaster 1170M1 Manual de usuario

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

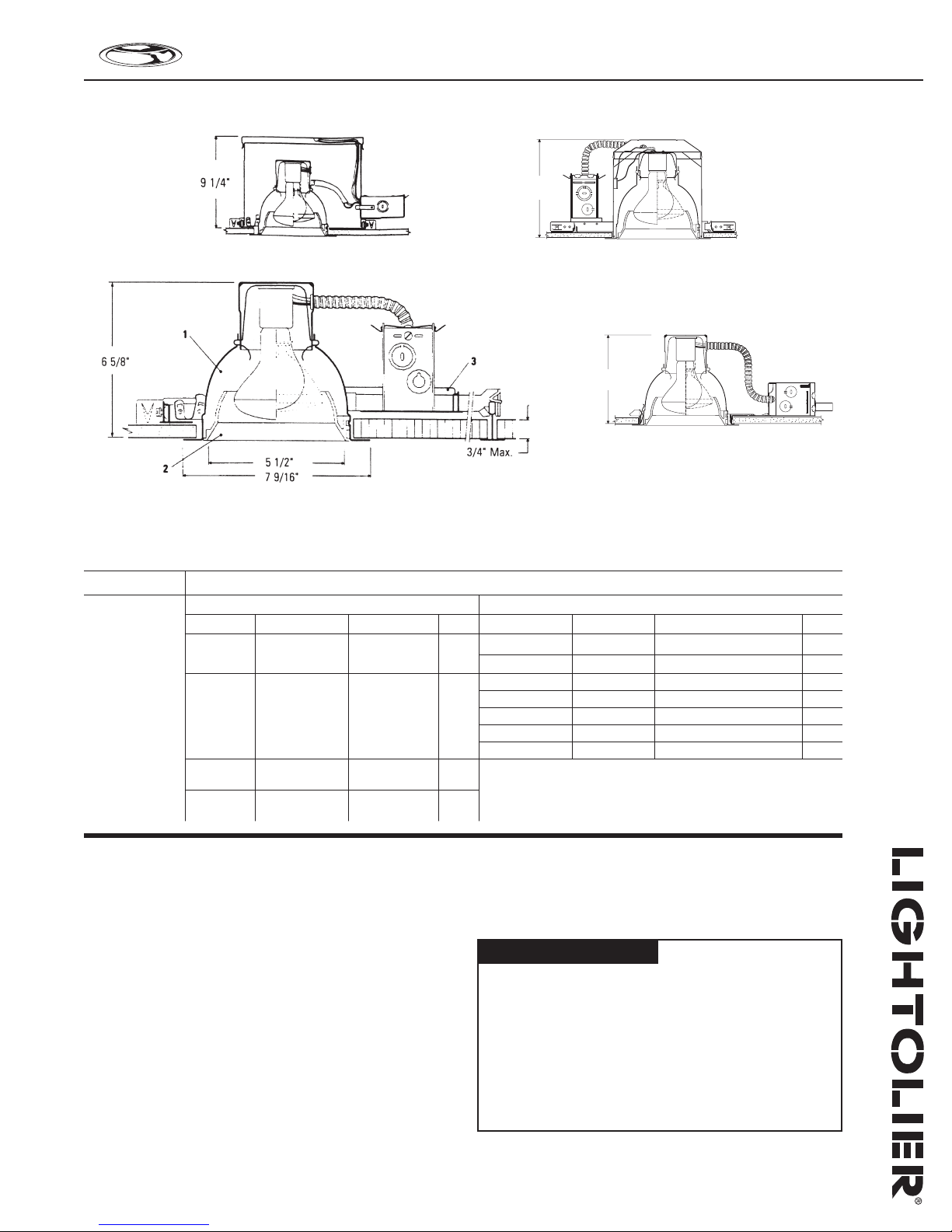

Lytecaster®Recessed Downlighting 1170M1

Page 1 of 2 6 3/4" Aperture Basic White Reflector Reflector Trim

Features

1. Reflector: Hydroformed aluminum, .040" thick (18 ga.) ; non-yellowing,

scruff-resistant Perma White finish with 88% reflectance; white trim flange.

2. Cone: Injection molded high temperature opaque white polymer.

3. Frame-In Kit: (1102P1 standard frame shown). Other frames listed above

and shown on the right. See Frame-In Kit specification sheets for more

details.

Accessories

Medium Base Socket Extender: 1968 - For short neck Par30 lamp

Labels

UL (Suitable for Damp Locations), I.B.E.W.

1170M1/1102P1

Standard Incandescent

1170M1/1104IC/N

0™IC/Non-IC

Convertible

1170M1/1100 DEEP IC Series

Incandescent Insulated Ceiling

7 1/2”

1170M1/1103R

0™Non-IC

Remodeler Ring

6 5/8”

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Reflector Trim

Frame-In Kit — See Individual Frame-In Kit Specification Sheets

1170M1

Basic White

Incandescent Fluorescent

Frame-In Kit Ceiling Type Lamping Height Frame-In Kit Ceiling Type Lamping Height

1102P1

1103R

Non-IC

Non-IC Remodeler

75W A19, PAR30*

85W BR30

6 5/8"

1104F13 Series IC (1) Quad/Triple 13W (GX24q-1) 7 1/2"

1104F18** Series IC (1) Quad/Triple 18W (GX24q-2) 7 1/2"

1100IC

1100AICM

1104IC/N

1104ICR

1104ICX/N

AirSeal®IC

IC Remodeler

AirSeal®-IC

75W PAR30

85W BR30

90W PAR38†*

7 5/16"

7 1/2"

7 1/4"

1104F26** Series IC (1) Quad/Triple 26W (GX24q-3) 7 1/2"

1100FTU Series Non-IC (1) Triple 26/32W (GX24q-3) 6 5/8"

1100AICMFT AirSeal®-IC (1) Triple 26/32W (GX24q-3) 6 7/8"

1910XDH1 Conversion Kit (2) Quad 13W (GX23-2) 6 5/8"

1910XFH1 Conversion Kit (1) Quad 13W (GX23-2) 6 5/8"

1100DICM

1100DAICM

Deep IC

Deep AirSeal®-IC

75W PAR30*

85W BR30

9 1/2"

1104IC/N

1104ICR

Non-IC

Non-IC Remodeler

75W PAR30

85W BR30

7 1/2"

* Use Socket Extender 1968 For Short Neck PAR30.

** Lightolier recommends the use of triple tube lamps

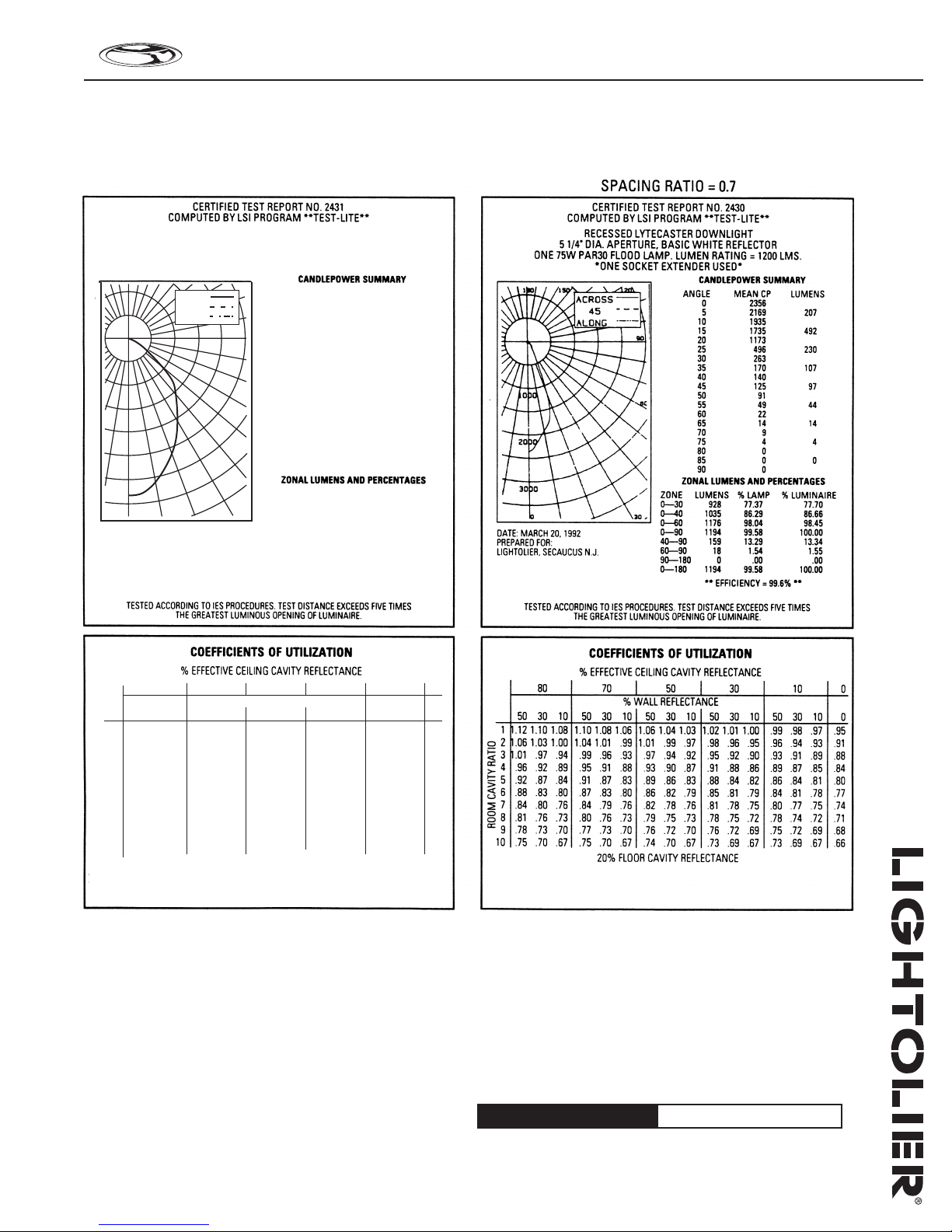

Lytecaster®Recessed Downlighting 1170M1

Page 2 of 2 6 3/4" Aperture Basic White Reflector Reflector Trim

Job Information Type:

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

To convert lighting data for a lower wattage incandescent lamp of the same type, multiply the footcandle (or candlepower) values by the ratio of the lumens of the two lamps.

The coefficients of utilization remain the same.

Conversion Factors: 2 Lt. 13W Quad Tube, C. U. x 0.40, 1 Lt. 13W Qyad Tube, C. U. x

0.45. 75W A19, C. U. x 0.50.

80 70 50 30 10

% WALL REFLECTANCE

50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0

1 1.09 1.06 1.04 1.07 1.04 1.02 1.03 1.01 .99 .99 .97 .96 .96 .94 .93 .91

2 1.00 .96 .92 .99 .94 .91 .95 .92 .89 .92 .90 .87 .90 .87 .85 .83

3 .92 .87 .82 .91 .86 .82 .88 .84 .80 .86 .82 .79 .83 .80 .78 .76

4 .85 .79 .74 .84 .79 .74 .82 .77 .73 .80 .76 .72 .78 .74 .71 .70

5 .79 .72 .67 .78 .71 .67 .76 .70 .66 .74 .69 .66 .73 .69 .65 .64

6 .73 .66 .61 .72 .66 .61 .70 .65 .61 .69 .64 .60 .68 .63 .60 .58

7 .67 .60 .56 .66 .60 .55 .65 .59 .55 .63 .58 .54 .62 .58 .54 .53

8 .62 .55 .51 .61 .55 .50 .60 .54 .50 .59 .54 .50 .58 .53 .50 .48

9 .57 .51 .46 .57 .50 .46 .56 .50 .46 .55 .49 .45 .54 .49 .54 .44

10 .53 .46 .42 .52 .46 .42 .51 .46 .42 .51 .45 .41 .50 .45 .41 .40

20% FLOOR CAVITY REFLECTANCE

ROOM CAVITY RATIO

SPACING RATIO = 0.9

RECESSED LYTECASTER DOWNLIGHT,

5 1/2” DIA. APERTURE, BASIC PERMA-WHITE

ONE PHILIPS 85W BR30 FLOOD LAMP,. LUMEN RATING = 925 LMS.

ANGLE MEAN CP LUMENS

0 678

5 670 36

10 642

15 582 164

20 502

25 428 200

30 369

35 322 203

40 281

45 223 167

50 136

55 70 71

60 42

65 30 31

70 23

75 16 17

80 9

85 5 6

90 2

ZONE LUMENS % LAMPS % LUMINAIRE

0-30 426 46.14 46.29

0-40 629 68.09 68.32

0-60 868 93.89 94.20

0-90 922 99.68 100.00

40-90 292 31.58 31.68

60-90 53 5.78 5.80

90-180 0 .00 .00

0-180 922 99.68 100.00

** EFFICIENCY = 99.7% **

DATE: DATE APRIL 10, 1997

PREPARED FOR:

LIGHTOLIER, FALL RIVER, MA

200

400

600

030

180 150 120

ACROSS

ALONG

10 20 30 40 50 60 70 80 90

3 4 5 6 7 8 9 10

CENTER TO CENTER DISTANCE OF FIXTURES IN FEET

AREA PER FIXTURE IN SQUARE FEET

AVERAGE INITIAL FOOTCANDLES

ROOM SURFACE REFLECTANCES:

80% Ceiling; 60% Walls; 20% Floor

925 Lumens Per Lamp

Large Room (RCR=1)

Small Room (RCR=5)
