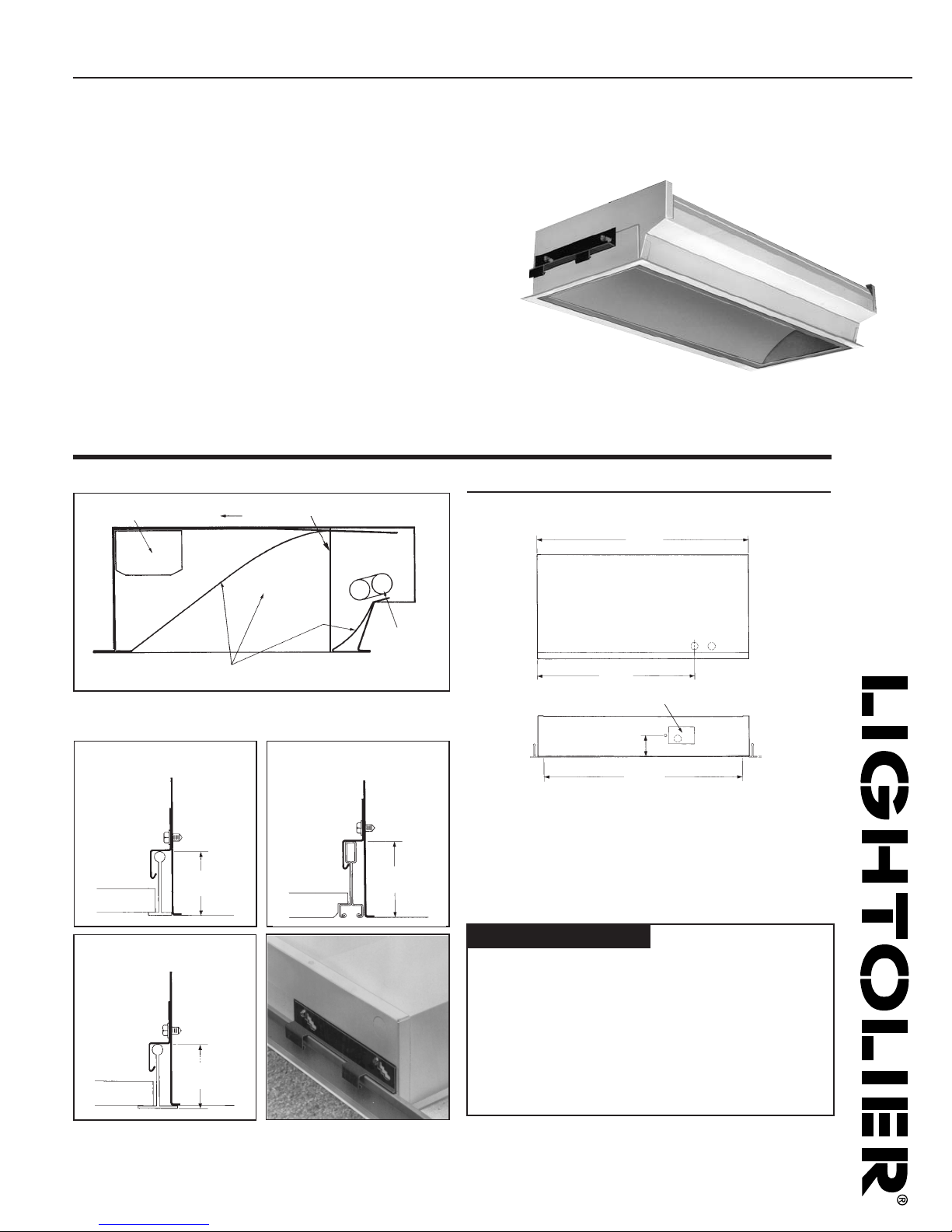

Lightolier WLRK124120SB Manual de usuario

Wal-Lyter WLRK124120SB

Page 1 of 2 High Performance, 2', Lensed Recessed Wallwasher/Accent Light

One Twin-Tube T5 Lamp

Features

• Low iridescent specular reflective system for precise controlled

light output.

• Evenly lights vertical surfaces or displays.

• Pattern 19 virgin acrylic lens eliminates direct glare inside the

cut-off zone (rotates for easy lamp replacement).

• 87% energy savings vs. incandescent.

• 3,150 lumen Biax type lamp requires fewer fixtures to provide the

same wall illumination as a 150 watt incandescent wallwasher.

• 20,000 hours lamp life requires less maintenance than incandescent.

• Fits all lay-in grid ceiling systems.

• One-piece body and adjustable integral hanger for easy, quick

installation.

• UL-Listed access plate.

• Meets NYC Code requirements.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Volts/Ballast:

Lightolier a Genlyte Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

9/05

narrow grid. slot grid

standard grid

1-1/2" 1-3/16"

Features Dimensions

1-1/2"

Mounting Methods

Ballast Wall

4 low iridescent specular

aluminum reflectors

20,000 hour

Biax type lamp

(22-1/2" long)

23-3/8"6"

17-5/8"

2" x 3" access plate

2-7/8"

22-1/16"

opening

adjustable integral hanger

Pattern 19 Lens (rotates)

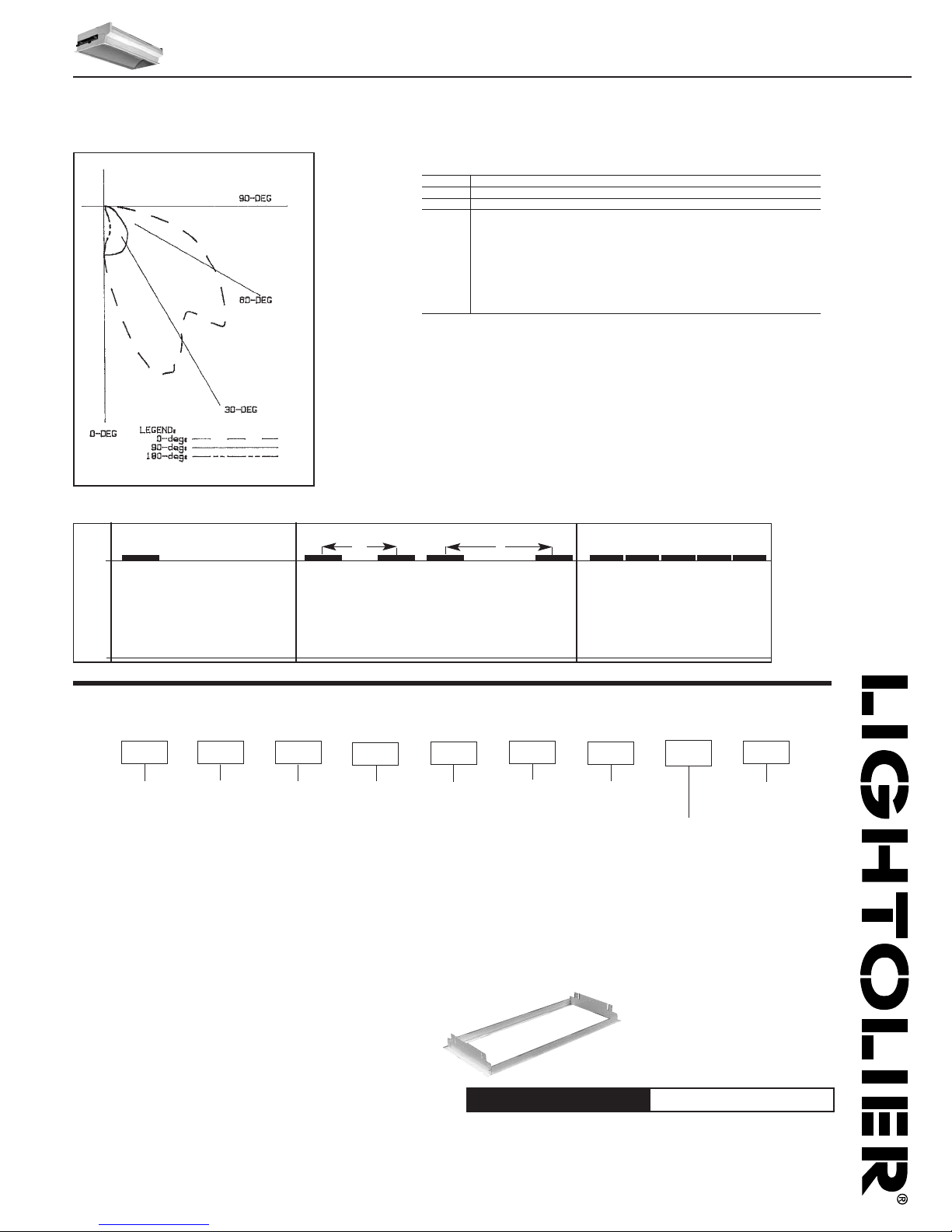

Wal-Lyter WLRK124120SB

Page 2 of 2 High Performance, 2', Lensed Recessed Wallwasher/Accent Light

One Twin Tube T5 Lamp

Lightolier a Genlyte Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Ordering Information

Explanation of Catalog Number. Example: WLRK124120SBGLR

Options/Accessories

Fusing: Internal fast-blow fusing. Suffix: GLR.

Internal slow-blow fusing. Suffix: GMF.

Radio Interference Filter: To order RIF per fixture, Suffix: R.

To order one RIF per ballast. Suffix: B.

Electrical/Wiring Options: Consult factory.

Fluorescent Emergency Lighting System: Factory-installed emergency power

battery pack with charger and inverter. Suffix: EM.

Drywall Frame: Catalog Number: WL2DF/UNV.

Specifications

Materials: Chassis parts are die-formed 20 gauge cold rolled steel with

integral adjustable hanger clamp.

Reflectors–low iridescent specular aluminum

are standard.

Finish: Chassis exterior–phosphate undercoating, baked white acrylic

enamel. Reflector–low iridescent specular is standard.

Lens: Virgin acrylic .187 pattern 19 with square based male conical

prisms (rotates for easy lamp replacement).

Electrical: Rapid start HPF, thermally protected class “P” ballast (Biax type). If

K.O. is within 3" of ballast, use wire suitable for at least 90°.

Labels: I.B.E.W./UL and ULc Listed.

Photometry Model No. WLRK124120SB

Wal-Lyter:

Low iridescent

specular

wallwash

Recessed

Reflector:

K= Pattern 19 virgin

acrylic lens

Lamps

Length:

2=24"

Watts:

1=18 Watts

2=24 Watts

4=40 Watts

5=50 Watts

6=55 Watts

Voltage:

120 or 277

Options:

Add appropriate

suffix to catalog

no, ie: (GLR)

LER = FP - 34.7 IW - 49 BF - 0.95

Comparative yearly lighting energy cost per 1000 lumens = $6.92

coefficients of utilization — zonal cavity method

RF 20 20 20

RC 80 50 30

RW 70 50 30 50 30 10 50 30 10

1625957 555452 535250

2565248 484543 474442

3514541 433936 413835

4474035 383430 363330

5433530 332926 322825

6393126 302522 292522

7362823 272219 262219

8332520 241916 231916

9 30 22 17 2 17 14 21 17 14

10 28 20 15 19 15 12 19 15 12

room cavity ratio

0' 1' 2' 3' 4' 5' 6' 7' 8' 04' 6' 0' 1' 2' 3' 4' 5' 6' 7' 8'

Ceiling

8' 73 56 28 13 075443 093 78 64 78 093 81 65 38 26 38 65 81 151 156 157 156 157 156 157 156 157

7' 72583418107544 100877887100 82694836486982 178174178174178174178174178

6' 48402817117554 078 69 66 69 078 58 52 43 34 43 52 58 144 138 144 138 1444 138 144 138 144

5' 28262115107654 056 53 54 53 056 40 38 35 30 35 38 40 110 106 110 106 110 106 110 106 110

4' 19 19 16 12 097654 045 43 44 43 045 31 31 29 24 29 31 31 089 086 089 086 089 086 089 086 089

3' 14 14 12 10 087654 038 36 36 36 038 26 26 24 20 24 26 26 074 072 074 072 074 072 074 072 074

2' 11 11 10 09076654 033 31 32 31 033 23 22 21 18 21 22 23 065 062 065 062 065 062 065 062 065

1' 09090808076554 031 28 26 28 031 19 20 19 16 19 20 19 057 056 057 056 057 056 057 056 057

Floor

INDIVIDUAL WAL-LYTER MULTIPLE UNITS CONTINUOUS ROW

FOOTCANDLES ON WALL Fixtures 3 feet from wall to outside trim on lamp side of fixture

Ballast Type:

<20THD <10THD

1 Lamp Magnetic (TT5) BX* –

(40 Watt)

1 Lamp Electronic (TT5) BA*–

(18 Watt)

1 Lamp Electronic (TT5) BB*–

(24 Watt)

1 Lamp Electronic (TT5) SB* IB*

(40 Watt)

1 Lamp Electronic (TT5) BE*BP

(50 Watt)

1 Lamp Electronic (TT5) -*BF

(55 Watt)

LOL (TT5) Dimming PB**–

(40 Watt)

*Instant Start Standard

optional drywall frame WL2DF/UNV.
