Lightolier LP200 Manual de usuario

Lightolier is a Philips group brand

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

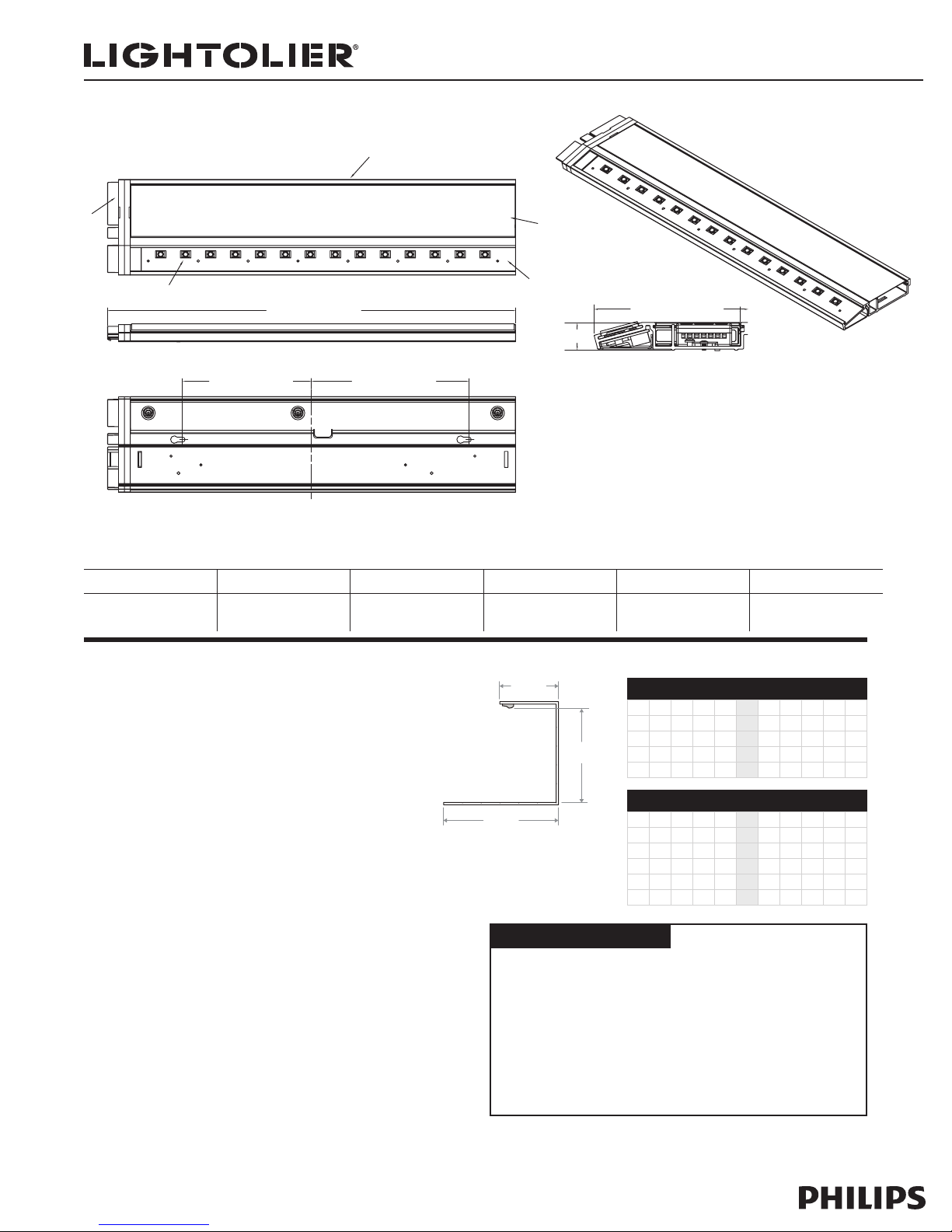

Architectural Decorative LP200

Page 1 of 1 LED Low Profile Undercabinet (Joiner)

Features

1. Heat Sink Housing: Extruded aluminum, design thermally optimized to

reduce LED junction temperature to maintain light output, color and life.

2. Lens: Polycarbonate clear.

3. Joiner: Injection molded polycarbonate.

4. Power Supply Compartment Cover: 24ga. steel die stamped and formed.

Electrical

5. LED: (14) 1W 3300K white LEDs. Average expected life, under normal

operating conditions is 50,000 hours with lumen maintenance of 70%

of original light output.

6. Connecting Wire Harness: 18ga. white, black and green wire

with male/female connectors. (Used for joining to LP201 series.)

7. Integral Power Supply: 24V DC, Class 2 output.

Voltage: 120V

Nom. Input Current (Amps): 0.5A@120V

Power Factor: 0.99

Output Voltage (VDC): 24.0±0.5

Min./Max Output Power (W): 0.9/50

Max. Line Ripple (V): ±0.2

Max. Connected Load: 23W per fixture

Mounting

Keyhole slots.

Interconnect up to 12 fixtures max.

Finish

Matte white or matte black.

Labels

cULus Listed. Suitable for Dry Locations

18 9/16 in [471 mm] 4 3/8 in [110 mm]

5 7/8 in [149 mm] 7 1/8 in [181 mm]

3/4 in [20 mm]

Catalog Number Finish Lamp Wattage Color Temp Voltage

LLP200WH Matte White LED 18W 3300K 120V

LLP200BK Matte Black LED 18W 3300K 120V

Desktop

8.9 13.6 20.3 27.4 33.9 36.0 33.8 28.2 20.6 14.3 9.4

8.9 14.2 21.4 30.0 37.1 40.0 37.4 30.4 22.1 14.8 9.5

8.1 12.8 19.5 27.4 33.4 36.0 33.7 27.5 19.9 13.6 8.7

6.5 10.0 14.7 19.8 23.8 25.7 24.1 20.3 15.1 10.5 7.0

4.7 6.9 9.6 12.3 4.3 14.7 14.2 12.1 9.8 7.1 5.0

3.1 4.3 5.7 7.0 7.6 8.0 7.6 6.7 5.7 4.3 3.3

Back Wall

1.5 4.0 11.8 29.1 47.2 51.8 44.3 28.0 11.2 4.2 1.6

3.5 8.3 19.7 41.5 60.5 65.2 57.8 38.7 18.8 8.2 3.6

4.3 8.6 16.8 29.1 40.0 41.7 37.9 27.1 15.8 8.3 4.4

4.2 7.2 12.0 18.1 23.6 24.0 21.7 16.9 11.4 7.0 4.1

3.6 5.7 8.4 11.6 14.4 13.8 13.2 10.8 8.0 5.4 3.6

Photometric Data for LLP200BK

Back Wall

Desktop

12"

[305 mm]

18"

[457 mm]

24"

[610 mm]

12"

[305 mm]

45°

18"

[457 mm]

24"

[610 mm]

Back Wall

Desktop

ADJ100 (angled 45 deg) MIC100

Back Wall

Desktop

12"

[305 mm]

18"

[457 mm]

24"

[610 mm]

Back Wall

Desktop

LLP options

12"

[305 mm]

18"

[457 mm]

24"

[610 mm]

90°

12"

[305 mm]

18"

[457 mm]

24"

[610 mm]

Back Wall

Desktop

Each square in the charts

equals 4" x 4".

Footcandle measurements

are at the center of

each square.
