LevelOne WBR-3600 Manual de usuario

LevelOne

WBR-3600

11g Wireless ADSL2+ Router

Quick Installation Guide

English Português

Deutsch Svenska

Français Slovenščina

Español 繁體中文

Dutch 한국어

Dansk Русский

Italiano ﻲﺑﺮﻋ

Ελληνικά

This guide covers only the most common

situations. Please refer to the full User

Manual on the CD-ROM if your LAN has

any of the following:

•Router

•Existing DHCP Server

•PCs using Fixed (Static) IP Addresses

English

Front Panel

PWR On - Power on

Off - No power

WLAN On - Wireless enabled.

Off - No Wireless connections currently exist.

Flashing - Data is being transmitted. This includes

"network traffic" as well as user data.

LAN It indicates the connection of each port.

If neither LED is on, there is no active connection

on the corresponding LAN port.

DSL On - ADSL connection established.

Off - No ADSL connection currently exists.

Flashing - ADSL is synchronizing.

NET On - Internet connection is available.

Off - No Internet connection available.

Flashing - Data is being transmitted or received

via the ADSL connection.

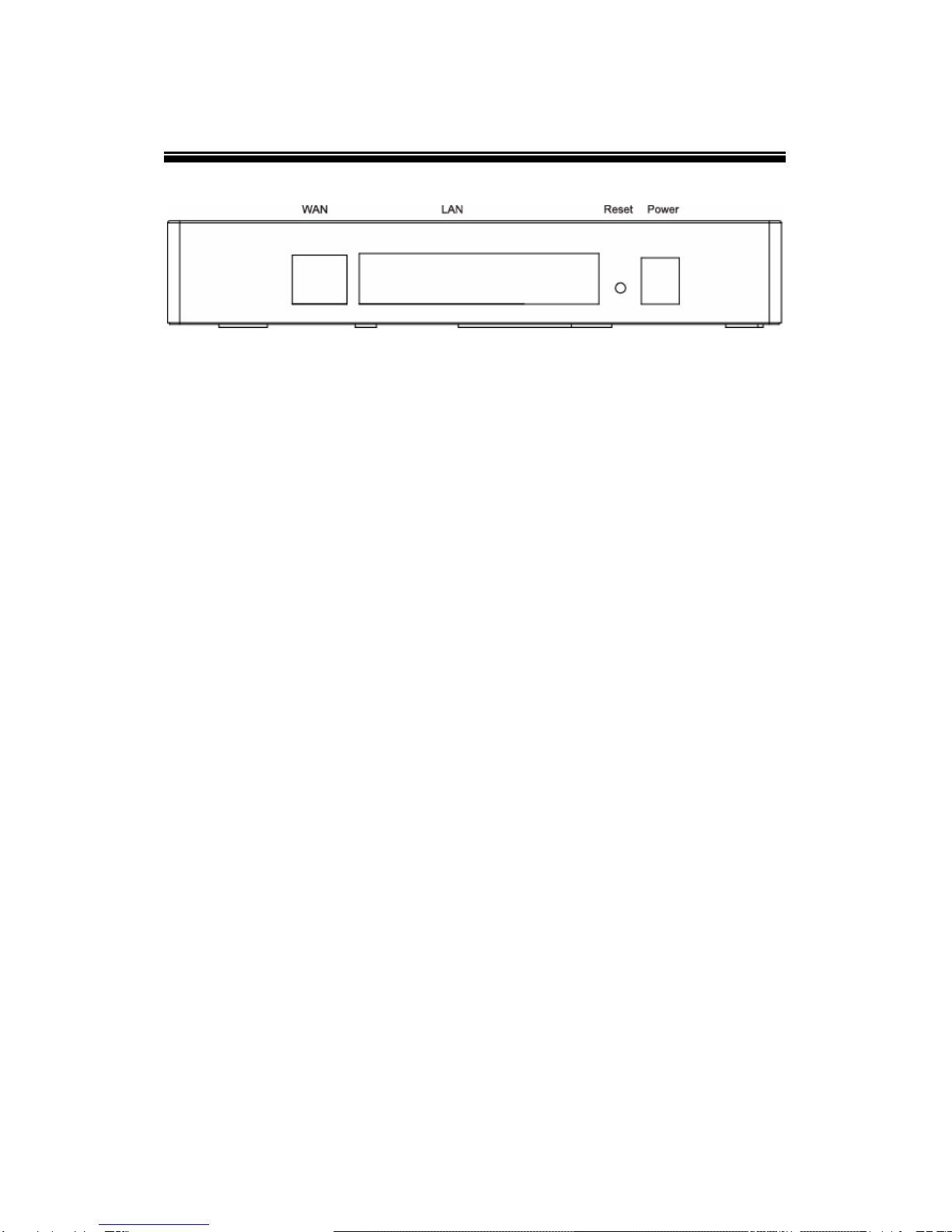

Rear Panel

WAN Connect this port to your ADSL line.

LAN Use standard LAN cables (RJ45 port) to

connect your PCs to these ports.

Reset

Button

This button will reset the WBR-3600 to the

factory default settings.

To do this, press and hold the Reset Button for

five (5) seconds, until the Power LED is lit, then

release the Reset Button, and wait the WBR-

3600 to restart using the factory default values.

Power Connect the supplied power adapter here.

Installation

1. Ensure the WBR-3600 is powered OFF.

2. Checking TCP/IP Settings in your PC

•Select Control Panel - Network Connection.

•Right click the Local Area Connection and choose

Properties.

•Select the TCP/IP protocol for your network card.

•Click on the Properties button. You should then see a

screen like the following.

•Please ensure the TCP/IP setting select the radio

button Obtain an IP address automatically and radio

button Obtain DNS server address automatically.

3. Use standard LAN cables to connect PCs to the LAN

ports on the rear of the WBR-3600.

4. Connect the supplied ADSL cable from the WAN port

on the WBR-3600 (the RJ11 port) to the ADSL

terminator provided by your phone company.

5. Connect the supplied power adapter to the WBR-

3600. Use only the power adapter provided. Using a

different one may cause hardware damage.

6. Ensure the WBR-3600 is powered ON, start your PC.

If it is already started, restart it to ensure it obtains an

IP Address from the WBR-3600's DHCP Server.

7. Check the LEDs.

•The PWR LED should be ON.

•For the LAN (PC) connection, one of the LAN LEDs

should be ON (provided the PC is also ON.)

•The WLAN LED should be ON.

•The DSL LED should be ON if ADSL line is connected.

•The NET LED may be OFF. After configuration, it

should come ON.

8. Start your WEB browser. In the Address box, enter

the following:

http://192.168.0.1

9. When prompted, use the following username and

password.

User name: admin

Password: password

10. The first time you connect to the WBR-3600, you

should run the Setup Wizard to configure the ADSL

and Internet Connection. Click Setup Wizard on the

menu.

11. On the first screen, select VC 1 (Router - Primary

Internet Connection), then click "Next".

12. To quickly configure the WBR-3600, please see the

Setup Wizard section in the CD Manual. Step

through the Wizard until finished. Refer to the data

from your ISP, and the table below, to ensure your

choices are correct.

Connection Type Data required.

Dynamic IP Address Usually, none.

Static (Fixed) IP

Address

IP Address allocated to you, and

related information, such as Network

Mask, Gateway IP address, and DNS

address.

PPPoE, PPPoA a) User name and password are

always required.

b) If using a Static (Fixed) IP address,

you need the IP address and related

information (Network Mask, Gateway

IP address, and DNS address)

IPoA (IP over ATM) IP Address allocated to you, and

related information, such as Network

Mask, Gateway IP address, and DNS

address.

13. On the final screen of the Wizard, run the test and

check that an Internet connection can be established.

If the connection fails, check both your data and the

ADSL connection.

14. If the connection test fails:

•Check all connections, and the front panel LEDs.

•Check that you have entered all data correctly.

Technical Support

Thank you for selecting LevelOne products. LeveOne’s

website contains the latest user documentation and

software updates for LevelOne products.

Please contact LevelOne Technical Support through our

website.

World Wide Web

http://www.level1.com

Deutsch

Frontplatte

PWR Ein - Gerät wird mit Strom versorgt

Aus - Keine Stromversorgung

WLAN Ein - WLAN aktiviert.

Aus - Keine aktuellen WLAN-Verbindungen.

Blinken - Daten werden übertragen. Dazu zählen

„Netzwerkverkehr“ als auch Benutzerdaten.

LAN Diese LEDs zeigen die Verbindungen der

einzelnen Ports an.

Falls eine LED nicht leuchtet, besteht am

jeweiligen LAN-Port keine aktive Verbindung.

DSL Ein - (A)DSL-Verbindung hergestellt.

Aus - Keine aktuelle (A)DSL-Verbindung.

Blinken - (A)DSL-Synchronisierung.

NET Ein - Internetverbindung ist verfügbar.

Aus - Keine Internetverbindung verfügbar.

Blinken - Daten werden per (A)DSL gesendet und

empfangen.
