LEGRAND Pro 21 7756 21 Manual de usuario

N0064HB5/00

Pro 21™

Automatic switch

7756 21

Characteristics

110 V 250 W 250 W 250 VA 2 x 36 W 80 W

230 V 500 W 500 W 500 VA 2 x 36 W 160 W

Ø 26 Ø 38

Incandescent lamp

Halogen lamp

ELV halogen lamp with ferromagnetic

or electronic transformer

Fluorescent tube

Fluocompact lamp

 Voltage 100 - 240 VA

Frequency 50 - 60 Hz

2 x 1,5 / 1 x 2,5 mm2

Depth = min. 40 mm

0°C à + 45°C

EN 50065

IEC 60669-2-1

Automatic mode

The blue led

switch-on

Switch-on during the

set time-frame

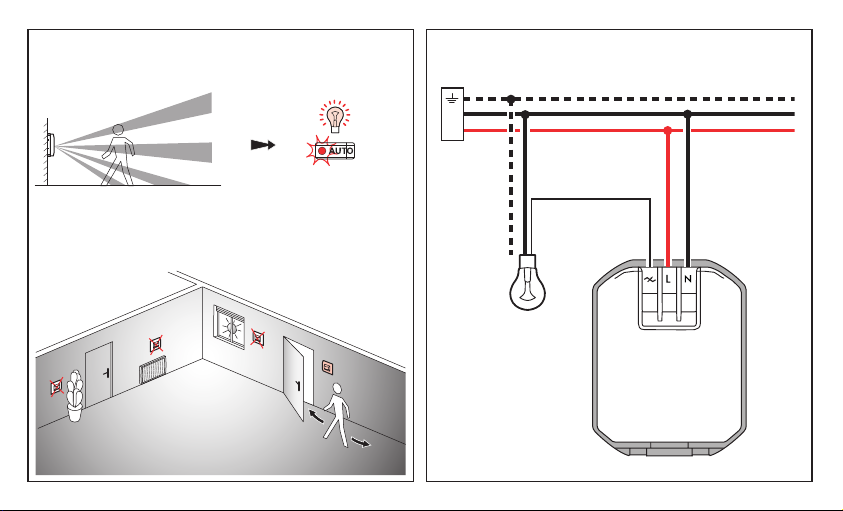

CablingMethod

Installation

2,5 mm

ON OFFAUTO

Description the surveillance area

Timer adjustment

(1 s à 16 mn)

Adjustment of

brightness

threshold

(3 à 1000 lux)

Range adjustment

(3 à 10 m)

LEARN indicator

light

Controlbuttons

Identification No.

LEARN button

10 m

4 m

1,5 m

5 m

10 m

3 m

1,5 m

1,3 m

0,5 m

3 m

1,5 m

1,2 m 1,2 m

3 m

10 m

3 m

10 m

Switch-on The blue lamp

switch-on

Extinction Red lamp

switch-on

Go back in

automatique

mode

Go back in

automatique

mode

Temporized

switch-on

The blue lamp

switch-on

Go back in auto-

matique mode at

the exit from the

surveillance area

Switch-off

during the

Go back in auto-

matique mode

at the end of

temporisation

AUTO

OFF

16 mn



ON OFFAUTO ON OFFAUTO



ON OFFAUTO ON OFFAUTO



ON OFFAUTO



ON OFFAUTO

Operation

Manual operation

Dérogation mode

Automatic leader switch of scenario







Press LEARN

Press the command key that is to be

associated with the leader

The indicator lamps of all the products go off.

The scenario is recorded.

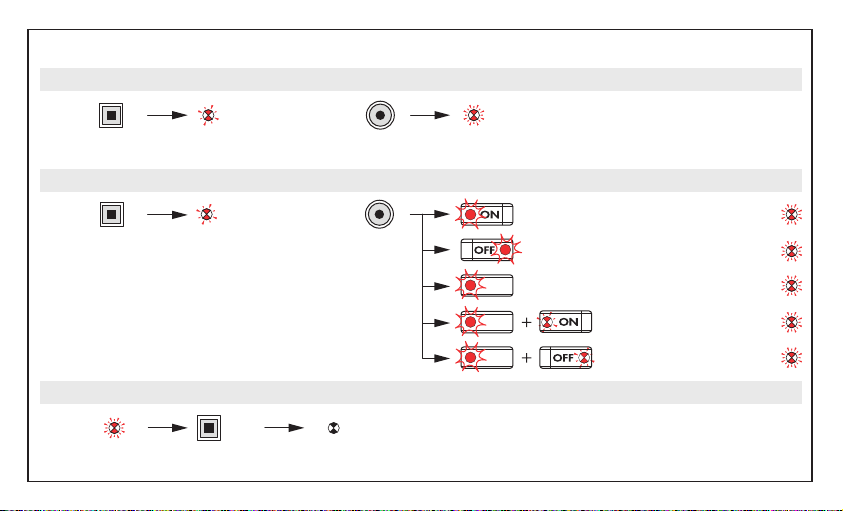

Step 1 : start the learning (on LEADER)

Step 2 : Add an actor to the scenario (on the ACTOR)

Step 3 : Record the scenario (on the LEADER)

To add a number of products to the scenario, repeat operations and  for each actor.

Note :

Two automatic switches can be used as a two-way switch, in which case one must be the LEADER of the other and vice-versa.

Press OFF for a timed

scenario

Press ON for a standard

scenario

Press the

control button









AUTO

Automatic switch with scenario switch / Inter scenario (Leader)

Press LEARN Press the control button that pilots

the scenario

Press LEARN

Press the control

button to be linked

to the leader

Indicator lights on all products switch off.

The scenario has been saved.

Step 1 : start the learning (on LEADER)

Step 2 : add an automatic switch to the scenario (on the ACTOR)

Step 3: save the scenario (on the LEADER)

Manual ON

Manual OFF

automatic mode

(Switch-on activated by

movement detection)

Timed ON (Timing of

the product)

Timed OFF (Timing

reactivated by

movement detection)







Learn scenario

Press LEARN Press the command key that is to

control the scenario

Press LEARN

Press the command key that is to be

associated with the leader

The indicator lamps of all the products go off.

The scenario is recorded.

Step 1 : Start the learn phase (on the LEADER)

Step 2 : Add an actor to the scenario (on the ACTOR)

Step 3 : Record the scenario (on the LEADER)

To add a number of products to the scenario, repeat operations and for each actor.









Modification of a scenario

Press LEARN Press the command key

that controls the scenario

The indicator lamps of all the product

in the scenario blink.

Press the command key

that is to be associated

Step 1: Open the scenario (on the LEADER)

Press LEARN

To remove the product from the

scenario, go to step 3

Step 2 : Modify the state of an actor in the scenario (on the ACTOR)

Step 3 : Record the scenario (on the LEADER)

Press LEARN

The indicator lamps of all the products go off.

The scenario is recorded.



Clearing a scenario

Press LEARN

The scenario is cleared

Press the command key

and hold it down for 10 s

Clear all the scenarios linked with the command key (on the LEADER)

Press LEARN

Return the product to

factory configuration

Press LEARN and hold

down for 10 s

Clear all the scenarios linked to this product (on the LEADER)

5 s

Key

The indicator lamp

goes off

The indicator lamp

blinks slowly

The indicator lamp

blinks quickly

The indicator lamp

flashes

Pro 21™

Bewegungsmelder 3-Leiter

7756 21

Technische Daten

110 V 250 W 250 W 250 VA 2 x 36 W 80 W

230 V 500 W 500 W 500 VA 2 x 36 W 160 W

Ø 26 Ø 38

Glühlampe

Hochvolt- Halogenlampe

Niedervolthalogenlampen mit konven-

tionellem oder elektronischem Trafo

Leuchtstofflampen

Kompaktleuchtstofflampen

 Spannung 100 - 240 VA

Frequenz 50 - 60 Hz

2 x 1,5 / 1 x 2,5 mm2

Einbautiefe = min. 40 mm

0°C à + 45°C

EN 50065

IEC 60669-2-1
