LEGRAND 6338 53 Manual de usuario

Four Source, Eight Zone Distribution Module

6338 53

LE00367AA

SOURCES INTEGRATION

INTERCOM

I/R PORT

SINGLE

A MULTI B

ZONES

12 34

24VDC@2.5A

56 78

DISTRIBUTION MODULE#AU1002

Description

Installation

Figure 1

All components of a Multi-source Audio System are wired centrally from the Four Source, Eight Zone

Distribution Module.Inaddition to providing acentral point of connection, the Module distributes the

necessary voltage to power the system (one power supply per each four zone group).The Triple-source

and Single-source Inputs and Keypad Volume Controls connect directly to the module utilizing RJ-45

connections.The system can support expansion by “daisy chaining” Single Source, Four Zone Distribution

Modules, 6338 21,toany of the eight outputs.The IR RJ45 jack is used to both receive and transmit IR

signals and has its own LED for activity status.

NOTE: The two 24 Volt, 2.5 Amp Power Supplies, 6338 41, are not included and must be purchased

separately.

Installation of the Legrand Four Source, Eight Zone Distribution Module and related components, is best

accomplished at multiple times during new construction, at “First Fix” before the drywall is installed, and at

“Second Fix” after the drywall is installed and painted.

NOTE: The Four Source, Eight Zone Distribution Module provides power to all of the components

of the Audio System.

A "First Fix" Steps:

-Run three Category 5ecables from the room location containing the Source Inputs (typically the

entertainment centre location) to the Enclosure.

-Run Category 5ecables from the room locations which will contain the Keypad Volume Controls to

the Enclosure.

Entertainment Center

-CD player

-Tape Deck

-A/V Receiver

Dual IR Mouse

Emitters (6338 46)

SOURCE

Universal IR Target

(6338 47)

Four Source Eight

Zone Distribution

Module (AU1002)

Local Source

Input (6338 68*)

Universal IR

Remote Control

(6338 50)

Triple source

input (6338 48)

Amplified

Keypad Volume

Control with IR

(6338 64*)

In-Ceiling Speakers

(6338 43)

Audio In

IR Emitters

123

Emitter 3

56KIR Filter

Status

IR Input

Single Source

input (6338 22)

Wallplate

Fourth Audio Device

Spare Cat 5e

Cable run

Wallplate

* Finished in Synergy Anthracite

Safety instructions

This product should be installed preferably by aqualified electrician.

Incorrect installation and use can entail risk of electric shock or fire.Before carrying out the installation,

read the instructions and take account of the product’s specific mounting location.Donot open up the

device.

All Legrand products must be exclusively opened and repaired by personnel trained and approved by

LEGRAND. Any unauthorised opening or repair completely cancels all liabilities and the rights to

replacement and guarantees.Only use genuine accessories.

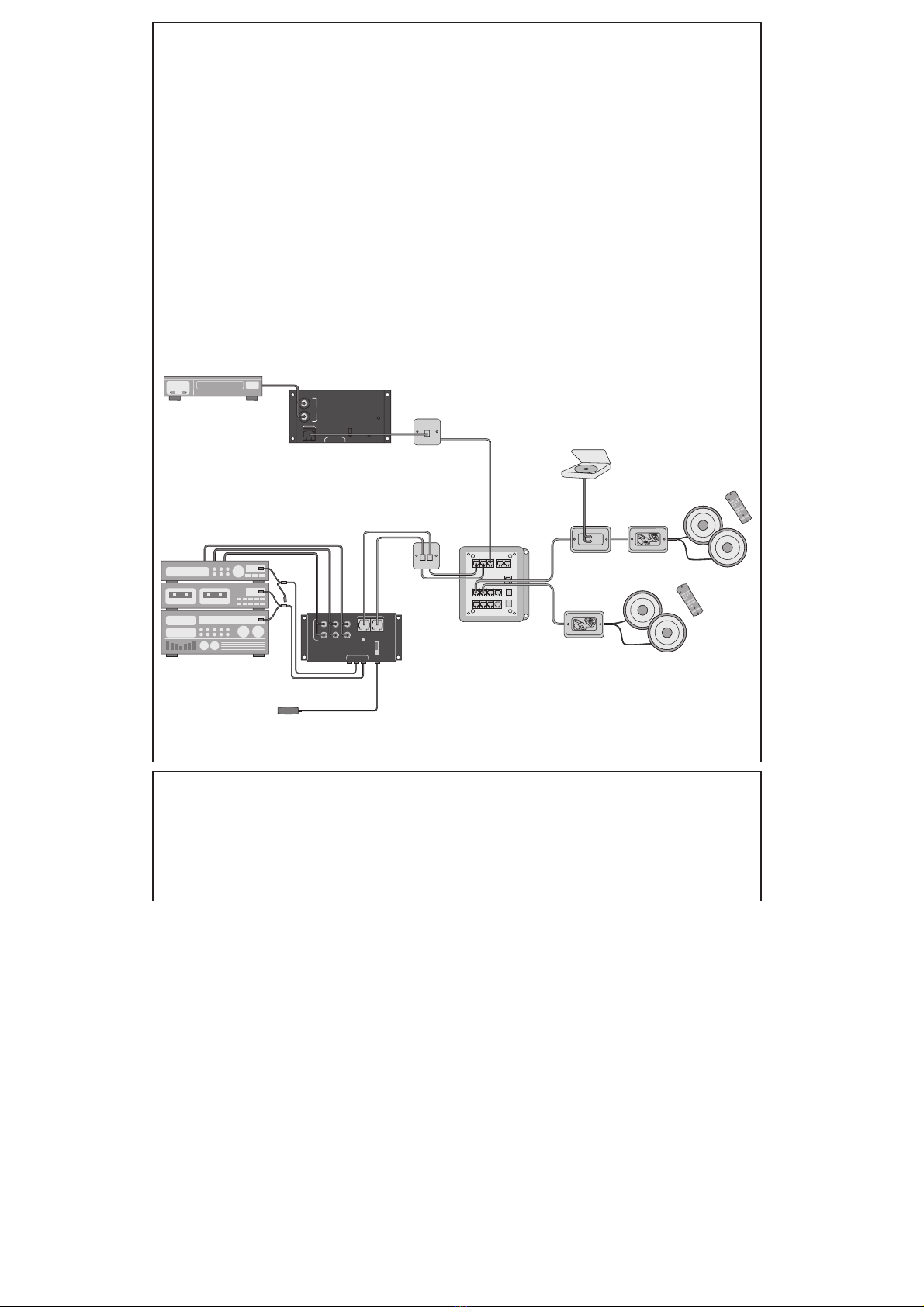

Figure 2

B "Second Fix" Steps:

NOTE: Make sure that the Power Supply is not connected to the Distribution Module.

-Install the Four Source, Eight Zone Distribution Module in an enclosure using the included plate's tabs

and push pins.

-Terminate all Category 5ecables with RJ-45 plugs using the T568A wiring standard.

-Connect the Single Source Input and Triple Source Input AUDIO OUT jacks via aCategory 5ejumper,

to wall jacks with RJ-45 inserts.These jacks in turn should be wired to the SOURCE IN jacks of the

Four Source, Eight Zone Distribution Module (see Figure 2).

-Connect the Category 5 cables coming from the room locations containing the Keypad Volume

Controls to the Zone Output jacks on the Four Source, Eight Zone Distribution Module (see Figure 2).

-If applicable, expand the system by connecting one or more Single Source, Four Zone Distribution

Modules to the Zone Out jacks on the Four Source, Eight Zone Distribution Module.

-Plug one or two 24 Volt power supply cables into the Power jacks on the Distribution Module

(depending on Zone usage).

-Verify system functionality.

Optional components and Cat 5e wiring to control four audio devices
