LEGRAND 4 149 40 Manual de instrucciones

1 / 12

87045 LIMOGES Cedex

Telephone : 05 55 06 87 87 –Fax: 05 55 06 88 88

EMS CX3- Modbus/EMS Interface

Cat. N°: 4 149 40

Contents Pages

1. Description - Use ............................................. 1

2. Range............................................................... 1

3. Overall dimensions .......................................... 1

4. Preparation - Connection ................................. 1

5. General characteristics .................................... 3

6. System architectures ....................................... 6

6.1 Stand Alone........................................................ 6

6.1.1 with local addressing ..................................... 6

6.1.2 with remote addressing ................................. 7

6.2 Supervised ......................................................... 8

6.2.1 with local addressing ..................................... 8

6.2.2 with remote addressing ............................... 10

7. Compliance and approvals ............................ 12

1. DESCRIPTION - USE

. Module dedicated to Energy Management System (EMS CX3) use.

. It performs conversion from the EMS CX3bus to Modbus RS485

protocol.

Symbol:

2. RANGE

. Cat. n° 4 149 40: EMS CX3/Modbus RS485 Interface

Width:

. 1 module. 17,8 mm width.

3. OVERALL DIMENSIONS

4. PREPARATION -CONNECTION

Fixing:

. On symmetric rail EN/IEC 60715 or DIN 35 rail

Operating positions:

. Vertical, Horizontal, Upside down, On the side

Power Supply:

. Mandatory in 12 V d.c. via the specific Power supply module Cat

n°4 149 45

. Two ways:

via specific communication patch cords (cat. nos 4 149 07/08/09) to

connect at the downstream through dedicated ports

via specific communication rails (cat. nos 4 149 01/02/03) to

connect at the rear through dedicated connectors.

Technical data sheet: F02338EN/01

Updated: -

Created: 09/11/2016

2 / 12

EMS CX3- Modbus/EMS Interface

Cat. N°: 4 149 40

4. PREPARATION –CONNECTION

(continued)

Recommended tools:

. For fixing: flat screwdriver 5.5 mm (6 mm maximum).

Data connection (EMS CX3modules inter-connection):

.Via specific communication patch cords (cat. nos 4 149 07/08/09)

Allow data transmission between the different EMS CX3modules.

This type of connection is recommended when there are few EMS

CX3modules, distributed all over the enclosure.

Implementing: with this configuration, the plastic protection cover of

the backside communication ports on the EMS CX3module must be

keep on.

4. PREPARATION –CONNECTION

(continued)

Data connection (EMS CX3modules inter-connection)

(continued)

. Via specific communication rails (cat. nos 4 149 01/02/03).

. Allow data transmission between the different EMS CX3modules.

This type of connection is recommended when there are several

EMS CX3modules on the same DIN row.

Implementing: with this configuration, the plastic protection cover of

the backside communication ports on the EMS CX3module must be

removed.

Technical data sheet: F02338EN/01

Updated: -

Created: 09/11/2016

3 / 12

EMS CX3- Modbus/EMS Interface

Cat. N°: 4 149 40

4. PREPARATION –CONNECTION

(continued)

Data connection (EMS CX3modules inter-connection)

(continued)

. Via a mix between specific communication patch cords and

communication rails in order to create a link between several rows

Two situations:

-Individually connected with communication rails.

The communication patch cord allows to connect two rows.

-Individually connected with communication patch cords &

communication rail.

The communication patch cords allow to connect EMS CX3

module on a row and to connect two rows.

Front USB port:

. Allows, if needed (e.g for configuration), to connect the EMS CX3

Modbus/EMS Interface to a computer via a mini USB/USB

commercial cable.

. Via the Legrand - EMS configurator software (download for free) is

possible to:

- test an EMS installation

- configure the modules characteristics if the lateral DIP Switches

remain on 0000 position

- make the remote and extended addressing procedure (see §6.2.2)

5. GENERAL CHARACTERISTICS

Front face marking:

. By permanent ink pad printing (red line) and laser marking

Lateral side marking:

. By laser.

left side: Standard and programming information

right side: cabling and traceability information

Technical data sheet: F02338EN/01

Updated: -

Created: 09/11/2016

Standards

Indicates the presence

of the addressing track-

wheel

Legrand address

Frame transmission LED

Frame reception LED

Communication Error LED

RS485 Modbus

Cabling information

Traceability information

Data connection

with communication

rail

Data connection

with communication

patch cords

Termination resistance

information

Label: to be removed from the

module and kept if necessary

(module ID info ...)

4 / 12

EMS CX3- Modbus/EMS Interface

Cat. N°: 4 149 40

5. GENERAL CHARACTERISTICS

(continued)

Lateral side marking:

. Upper face.

Signalling LEDs:

. Interface is equipped with 3 signalling LEDs:

-“ER”: Communication error led it blinks red if there is an error

on the communicating bus

-“TX” and “RX”: frame transmission and reception signalling led

they blink yellow when there is communication activity on the

bus

Multi-Functions button:

. Front face button as several functions:

5. GENERAL CHARACTERISTICS

(continued)

Multi-Functions button

(continued)

. Gives information about the operating state on the module

Possible states:

Led color

State

Meaning

red

Slow blinking

Error (e.g. addressing error)

Fast blinking

No function

Steady (without

pressing the

multifunction button)

System alarm detected

(see

Note*)

Steady

(pressing the multi

function button

longer than 20 sec.)

Total reset

[any firmware updates are

preserved]

green

Slow blinking

System process is running.

Wait until the Led turns steady

Fast blinking

(pressing the multi

function button for

10 sec. )

put in “Stand-by” the EMS CX3

module (no remote action and

communication available)

Steady

System OK, connection is

running

orange

Slow blinking

No function

P&L info (refer to next paragraph)

Fast blinking

Device’s firmware update in

progress

Steady

No function

* Note

. Possible system alarms detected by the Modbus/EMS Interface:

loss of communication with an EMS module

error in addressing procedure: possible mix between local and

remote address

(see § 6)

duplicate function error: two EMS modules with the same function

have the same address.

. To turn off the system alarm:

solve the problem according to the indication of the alarm

push the Multifunction button on the Interface the led become

steady green

Insulation voltage:

. Ui = 400 V

Pollution degree:

. 2 according to IEC/EN 60898-1.

Overvoltage category :

. III

Dielectric strength:

. 2500 V

Plastic material:

. Self-extinguishing polycarbonate.

. Heat and fire resistant according to IEC/EN 60695-2-12, glow-wire

test at 960°C.

. Classification UL 94 / IECEN 60695-11-10: V1

Technical data sheet: F02338EN/01

Updated: -

Created: 09/11/2016

Marking indicating that the address of

the Interface is the tenth of the Modbus

address

Switch to insert the 120Ω termination

resistance (see §6.2.2 “RS485 Wiring

diagram”)

5 / 12

EMS CX3- Modbus/EMS Interface

Cat. N°: 4 149 40

5. GENERAL CHARACTERISTICS

(continued)

Ambient operating temperature:

. Min. = -25°C. Max. = +70°C

Ambient storage temperature:

. Min. = -40°C. Max. = +70°C

Protection Index:

. Protection index of terminals against direct contacts:

IP2X (IEC/EN 60529).

. Protection index of terminals against solid and liquid bodies (wired

device): IP 20 (IEC/EN 60529).

. Protection index of the front face against solid and liquid bodies: IP

40 (IEC/EN 60529).

. Class II, front panel with faceplate.

Average weight per device:

.0,050 kg.

Volume when packed:

. 0,21 dm3.

Consumption:

. Values at 12 Vd.c.

Configuration

Stand-by

0,316

26,3

Communication

0,344

28,7

Technical data sheet: F02338EN/01

Updated: -

Created: 09/11/2016

6 / 12

EMS CX3- Modbus/EMS Interface

Cat. N°: 4 149 40

6. SYSTEM ARCHITECTURES

The EMS CX3is a polyvalent system and, according to the needs of the customer, can be set up and/or used as “Stand-alone” or “Supervised”

system. Based on this choice the configuration and addressing methods are different.

Four possible architectures are provided:

6.1 Stand alone system

6.1.1 with local addressing (through the track wheel)

6.1.2 with remote addressing (through a computer)

6.2 Supervised (Computer Supervisory System)

6.2.1 with local addressing

6.2.2 with remote addressing

6.1 Stand-alone system

. Stand alone = autonomous system. To be used by the end-user if it is not necessary to have a computer for the supervision outside the

envelope. Everything can be manage on site.

6.1.1 Stand-alone system with local addressing (through the track wheel)

Local addressing advantages:

-No configuration software needed to set-up the installation

-It is not necessary to use a computer to manage settings (configurations, test, ...) and to use the system (visualize and be alerted,

...). Everything can be done through the Mini configuration module (local display, cat. no 4 149 36/37).

[Refer to the technical sheet

dedicated to this module for details]

-No communication Interfaces or gateways are required.

-Installation can be done without the intervention of a System Integrator

Programming procedure:

. For EMS CX3modules which need some: mandatory through to lateral DIP-switch of each EMS CX3 modules (see § ”Module configuration”)

Addressing procedure:

. For all EMS CX3modules: mandatory through the track wheel located on the top upper face of each EMS CX3 modules

. Marked from 0 to 9 in order to locally define the Modbus address of the EMS CX3 modules

Consequences of the local addressing mode (through the track wheel):

. Each device of the system must be addressed.

. Addresses available: from 1 to 9

. Address 0 not permitted

. It is possible to assign to several devices the same address with the purpose of grouping different functions, because they are related to the

same electrical circuit. For example it is possible to assign the same address to a signalling auxiliary module (cat. no 4 149 29), an universal

control module (cat. no 4 149 32), a measuring module, and so on. In this way on the EMS CX3mini configuration module (local display) the

grouped function will be displayed as a unique “device” with all grouped functions.

[Refer to the schemes hereunder]

Note for the mini configuration module (local display)

. It is possible to assign it the same address as another EMS CX3through the programming menu of the device

. The mini configuration module can be placed everywhere in the EMS CX3bus

Technical data sheet: F02338EN/01

Updated: -

Created: 09/11/2016

7 / 12

EMS CX3- Modbus/EMS Interface

Cat. N°: 4 149 40

6. SYSTEM ARCHITECTURES

6.1 Stand-alone system

(continued)

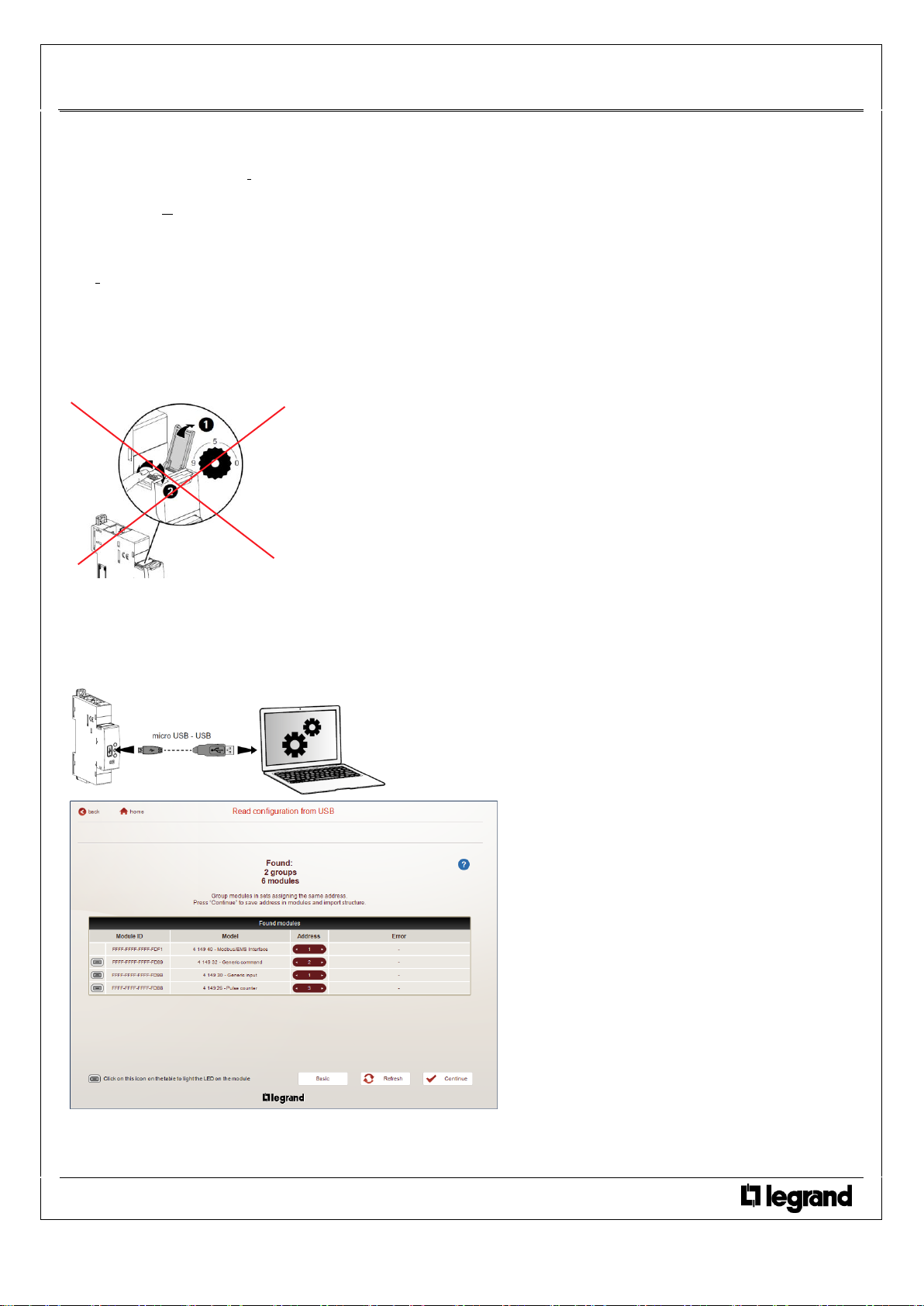

6.1.2 Stand-alone system with remote addressing (through a computer)

Remote addressing advantages:

-Whole configuration (addresses and functions) can be set up through the EMS Configuration software

-Configuration software available for free

-Automatic detection of the EMS CX3modules installed in the system (characteristics, functions, configuration...)

-Increased settings possibilities: load shedding function

-Increased addressing: up to 30 Modbus addresses in a system

Programming procedure:

. For EMS CX3modules which need some: possible through the lateral DIP-switch of each EMS CX3 modules (see § “Module configuration”).

Addressing procedure:

. It is not necessary to address the EMS CX3modules. The track wheel must be left in default position “0”.

. All the addressing/configuring procedure will be done with the Configuration Software (available online for free)

. With remote addressing, the software does the automatic detection of modules installed in the system but the supervision is not possible until

the user assign the remote address and all the characteristics to each module.

Note: it is mandatory to connect the computer to the mini configuration module with an USB-micro USB cable.

[For more details, refer to User

Manual Document]

Technical data sheet: F02338EN/01

Updated: -

Created: 09/11/2016

8 / 12

EMS CX3- Modbus/EMS Interface

Cat. N°: 4 149 40

6. SYSTEM ARCHITECTURES

6.1 Stand-alone system

(continued)

6.1.2 Stand-alone system with remote addressing (through a computer)

(continued)

Consequences for the system architecture:

-for 1 mini configuration module (cat. no 4 149 36/67)

oup to 30 EMS CX3modules (eg. 30 devices grouped per functions with addresses from1 to 30)

It is possible to assign to several devices the same address with the purpose of grouping different functions, because they are related to the

same electrical circuit. For example it is possible to assign the same address to a signalling auxiliary module (cat. no 4 149 29), an universal

control module (cat. no 4 149 32), a measuring module, and so on. In this way on the EMS CX3display or in a supervision system the grouped

function will be displayed as a unique “device” with all grouped functions.

[Refer to the schemes here under]

Note for the mini configuration module (local display)

. It is possible to assign it the same address as another EMS CX3

. The mini configuration module can be placed everywhere in the EMS CX3bus

6.2 Supervised system (Computer Supervisory System)

. Supervised system = System to be used through a Computer Supervisory System to remotely read data from the EMS CX3devices and/or do

operations on these devices (e.g. commands of a motor driven or contactor ...).

6.2.1 Supervised system with local addressing (through the track wheel)

Local addressing advantages:

-No configuration software needed to set-up the installation

-Installation can be done without the intervention of a System Integrator

Programming procedure:

. For EMS CX3modules which need some: mandatory through to lateral DIP-switch of each EMS CX3 modules (see § “Module configuration”)

Addressing procedure:

. For all EMS CX3modules: mandatory through the track wheel located on the top upper face of each EMS CX3 modules

. Marked from 0 to 9 in order to locally define the Modbus address to EMS CX3 modules

In this system the Modbus address of an EMS CX3module device or group of modules (several functions) is obtained considering the address

of the interface Modbus/EMS CX3Interface as tenth and the address of a device or group of function as unit (e.g. Interface address 1 = 10 

address of module n°5 = Modbus address 15)

Technical data sheet: F02338EN/01

Updated: -

Created: 09/11/2016

9 / 12

EMS CX3- Modbus/EMS Interface

Cat. N°: 4 149 40

6. SYSTEM ARCHITECTURES

(continued)

6.2 Supervised system (Computer Supervisory System)

(continued)

6.2.1 Supervised system with local addressing (through the track wheel)

(continued)

Consequences of the local addressing mode (through the track wheel):

. Each device of the system must be addressed.

. Addresses available: from 1 to 9

. Address 0 not permitted

It is possible to assign to several devices the same address with the purpose of grouping different functions, because they are related to the

same electrical circuit. For example it is possible to assign the same address to a signalling auxiliary module (cat. no 4 149 29), an universal

control module (cat. no 4 149 32), a measuring module, and so on. In this way on the EMS CX3display or in a supervision system the grouped

function will be displayed as a unique “device” with all grouped functions.

[Refer to the scheme hereunder]

Note: In this configuration the Modbus address of an EMS CX3module device or group of modules (several functions) is obtained considering

the address of the interface Modbus/EMS CX3Interface as tenth and the address of a device or group of function as unit (e.g. Interface address

1 = 10 and device address = 5 Modbus address = 15)

Consequences for the system architecture:

-for 1 IP/Modbus gateway (cat. no 0 046 89):

oup to 81 Modbus address

omandatory limit of max. 9 Modbus/EMS CX3interfaces or max. 1000 m of Modbus cable (cable Belden 9842, Belden 3106A or

equivalent).

-for 1 Modbus/EMS CX3Interface (cat. no 4 149 40):

oup to 30 EMS CX3modules (ex. 30 devices grouped per functions with addresses from1 to 9)

Note: with local addressing, the Modbus/EMS CX3interface, does the automatic detection of modules (characteristics, functions,

configuration...)

Technical data sheet: F02338EN/01

Updated: -

Created: 09/11/2016

Cat. no 0 046 89

10 / 12

EMS CX3- Modbus/EMS Interface

Cat. N°: 4 149 40

6. SYSTEM ARCHITECTURES

(continued)

6.2 Supervised system

(Computer Supervisory System)

(continued)

6.2.2 Supervised system with remote addressing (through a computer)

Remote addressing advantages:

-Whole of configuration (addresses and functions) can be done a remotely through the EMS Configuration software

-Configuration software available for free

-Automatic detection of the EMS CX3modules installed in the system (characteristics, functions, configuration...)

-Increased settings possibilities: load shedding function

-Increased addressing: up to 32 Modbus/EMS CX3interfaces

-Increased addressing: up to 247 Modbus addresses in a system

Programming procedure:

. For EMS CX3modules which need some : possible through the lateral DIP-switch of each EMS CX3 modules (see § “Module configuration”).

Note: via the configuration software it is possible to assign all the functions and characteristics of each EMS CX3 module

Addressing procedure:

. It is not necessary to address the EMS CX3modules. The track wheel must be left in default position “0”.

. A all the addressing/configuring procedure will be done with the Configuration Software (available online for free)

. With remote addressing, the software does the automatic detection of modules installed in the system but the supervision is not possible until

the user assign the remote address and all the characteristics to each module.

Note: it is mandatory to connect the computer to the different Modbus/EMS CX3interface with an USB-micro USB cable (one interface at a

time).

[For more details, refer to the User Manual Document]

Technical data sheet: F02338EN/01

Updated: -

Created: 09/11/2016

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Unidad de control de LEGRAND

LEGRAND

LEGRAND Wattstopper TDFC-1A Manual de usuario

LEGRAND

LEGRAND 6338 53 Manual de instrucciones

LEGRAND

LEGRAND 0 677 55L Manual de usuario

LEGRAND

LEGRAND Wattstopper ELCU-200-347 Manual de usuario

LEGRAND

LEGRAND 6338 53 Manual de usuario

LEGRAND

LEGRAND AU7004 Manual de usuario

LEGRAND

LEGRAND 4 121 71 Manual de usuario

LEGRAND

LEGRAND BS13 Manual de usuario

LEGRAND

LEGRAND PRO 21 7756 40 Manual de usuario

LEGRAND

LEGRAND 882 04 Manual de usuario

LEGRAND

LEGRAND LCS 0 321 28 Manual de usuario

LEGRAND

LEGRAND Mosaic VDI 0 332 80 Manual de usuario

LEGRAND

LEGRAND DPX 1250 Manual de usuario

LEGRAND

LEGRAND Wattstopper ELCU-100 Manual de usuario

LEGRAND

LEGRAND EMDX AMS Manual de usuario

LEGRAND

LEGRAND 739 60 Manual de usuario

LEGRAND

LEGRAND 0 677 23L Manual de usuario

LEGRAND

LEGRAND LEXIC 074 03 Manual de usuario

LEGRAND

LEGRAND On-Q lyriQ AU1001 Manual de usuario

LEGRAND

LEGRAND adorne Night Light Manual de usuario

LEGRAND

LEGRAND 7756 24 Manual de usuario

LEGRAND

LEGRAND Wattstopper IPPAN3-B Manual de usuario

LEGRAND

LEGRAND EMDX3 MI Manual de usuario

LEGRAND

LEGRAND 416 50 Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
