LEGRAND 4 121 73 Manual de usuario

1/7

87045 LIMOGES Cedex - FRANCE

Telephone : +33 (0)5 55 06 87 87 - Fax : +33 (0)5 55 06 88 88

Connected Dry-Contact

Cat. number : 4 121 73 - 1 991 23

Sommaire Pages

1. Description - Use .....................................1

2. Range..........................................................1

3. Overall dimensions...................................1

4. Preparation - Connection .......................2

5. General characteristics...........................6

6. Compliance and approvals .................... 7

7Equipment and accessories ................... 7

1. DESCRIPTION - USE

Use:

. Allows single-phase measurement up to 80A and control in off-

peak hours mode or in ON/OFF mode (real time or programmed) of

electric vehicle terminals such as Green'up Premium or any other

device equipped with a terminal block 12 VDC / 30VDC direct

current control circuit (eg: heating manager, aeration/ventilation

system, sprinkler system, etc.).

Can also control any type of circuit previously equipped with a

power contactor (single-phase).

This product does not manage the "openings" appliances (roller

shutters, gate).

Product compatible with the load shedding function (connected

smart shedder Cat. number 4 121 72 - 1 991 20).

Technology:

. Monostable dry contact connected for control via smartphone,

voice assistants and/or push button on the front panel.

Measurement of single-phase current up to 80A, by field effect

using a closed toroid (delivered with the module) and sending

data by radio frequency to the connected network.

Symbol:

2. RANGE

Noise level:

. Noiseless switch: <10bB.

Width:

. 1 module. 17.8 mm wide.

Types of contact:

. Normally open contact type «F »

Rated current:

. 2 A

Rated voltage:

. 100 to 240V AC

Rated frequency:

. 50 / 60 Hz

Poles:

. 1 pole «1F »

2. RANGE

(continued)

Configuration and use:

Can be used with:

- Legrand smartphone app

«HOME + CONTROL»

. Available for free on Google Play or App Store

- Voice assistants

- Connected Home Ecosystems

3. OVERALL DIMENSIONS

Technical data sheet: F03387EN/01

Updated on: 06/01/2023

Created on: 28/04/2021

Requires beforehand installation

of a “with Netatmo” connected

starter pack or a Control module

(gateway).

2/7

Connected Dry-Contact

Cat. number : 4 121 73 - 1 991 23

4. PREPARATION - CONNECTION

Mounting:

. On symmetrical rail EN / IEC 60715 or DIN 35.

Operating position:

. Vertical, Horizontal, Flat.

Row positioning:

. The product shape and the positioning of the terminals allow the

passage of single-line, three-lines and plug-in supply busbars in

the upper part of the product. Then, it is possible to freely choose

the position of the Connected Dry-Contact in the row and to

connect by supply busbar the other devices put on the same DIN

rail.

Module maintenance:

. It is possible to switch a Connected Dry-Contact in the middle of

a row supplied with an upstream busbar without disconnecting

the other devices on the same DIN rail.

4. PREPARATION - CONNECTION

(continued)

Wiring of the upstream terminals:

Important: Activate the function peak OFF in the App

In case of a remote control done via a wired push button, the

control is done either via C1 and C2 terminals.

Warning: Do not wire a Neutral on C1 or C2

Authorized control wiring:

. Activate the specifical function in the App.

Wiring of the power supply and the Dry contact:

Technical data sheet: F03387EN/01

Updated on: 06/01/2023

Created on: 28/04/2021

1. Unclip the

clamps to put it in

open position

2. Pull the device

forward in order to

release it from the

DIN rail

3. Pull the device

downward in order to

completely release it

from the prongs of

the busbar

C1: IN terminal for control command (IN)

Use a dry-contact. No power allowed.

C2: Out terminal self-protected Line for

remote (OUT)

Use a dry-contact. No power allowed.

Advantage: «auto protected terminals »

technology. It is not necessary to put a 2A

protection

1: OUT terminal

Dry-Contact

L: IN terminal for the

Line

N: IN terminal for

Neutral

2: OUT terminal

Dry-Contact

3/7

Connected Dry-Contact

Cat. number : 4 121 73 - 1 991 23

4. PREPARATION - CONNECTION

(continued)

Commutable load by the Dry-Contact:

. Maximum voltage: 250V AC or 30V DC

. Maximum current: 2A

. Minimum current: 0.01A

Wireless network:

. Maximum number of devices connected to a zigbee gateway

"with Netatmo" in the network: 100

Wiring diagrams:

. Control of any type of device in single-phase from 12 to 30V DC

via their terminal block provided for this purpose. eg : air

conditioner, heating manager.

For the protection of the installation, it is recommended to use a

circuit breaker or a gG fuse with a rated current according to the

cross section of the cables.

. Control of a single-phase power contactor (eg: for the swimming

pool pump).

To protect the connected Dry-Contact and the control circuit

(terminals 1 and 2), it is mandatory to use a circuit breaker or a

gG fuse with a nominal current of 2A.

4. PREPARATION - CONNECTION

(continued)

. Management of charging station for electric vehicles (possibility

of off-peak information).

For the protection of the installation, it is recommended to use a

circuit breaker or a gG fuse with a rated current according to the

cross section of the cables.

Recommended tools:

. For the upstream terminals:

Flat blade screewdriver 3.5 mm.

. For the downstream terminals:

Screwdriver Pozidriv n°1 or flat-blade 4 mm.

. For clamping:

Screwdriver flat-blade (5,5mm or less) or Pozidriv n°1

Upstream terminal connection (C1, C2):

. Control screw terminals:

- Terminal type: cage

- Depth: 8 mm

- Stripping length recommended: 8 mm

- Screw head: slotted

- Type of screw: M3

- Minimum tightening torque: 0.3Nm / maxi: 0.5Nm / advised:

0.4Nm

Downstream terminal connection (N, L, 1, 2):

. Power screw terminals:

- Terminal type: cage

- Depth: 9 mm

- Stripping length recommended: 9 mm

- Screw head: Posidriv n°1 or slotted

- Type of screw: M3,5

- Minimum tightening torque: 0.8Nm / maxi: 1.4Nm / advised:

1Nm

Conductor type for remote control terminals (C1, C2):

. Copper cables

Without ferrule

With ferrule

Rigid cable

1x (0.75 à 1.5mm²)

Flexible cable

1x (0.75 à 1.5mm²)

1 x (0.75 à 1.5mm²)

Technical data sheet: F03387EN/01

Updated on: 06/01/2023

Created on: 28/04/2021

4/7

Connected Dry-Contact

Cat. number : 4 121 73 - 1 991 23

4. PREPARATION - CONNECTION

(continued)

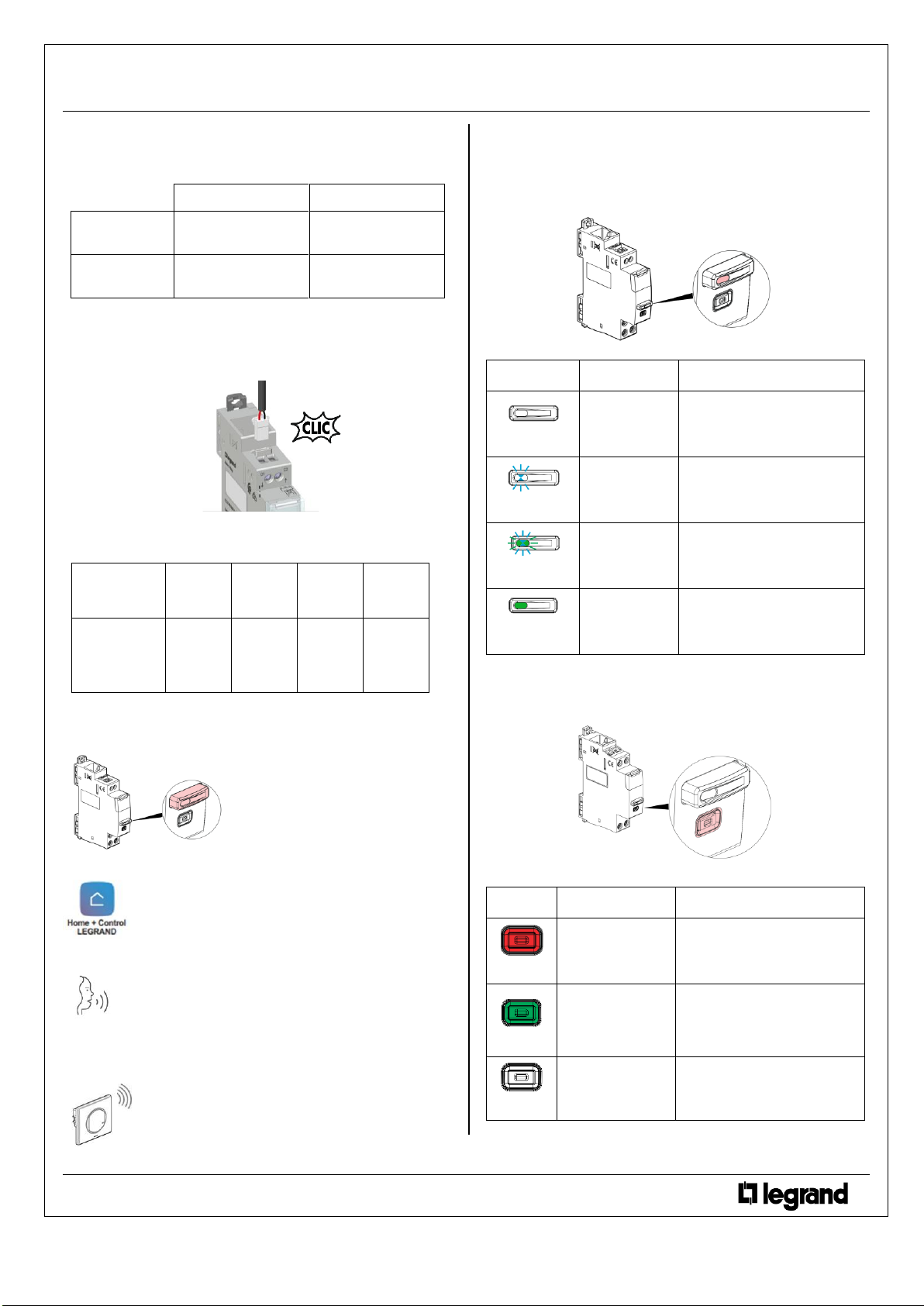

Conductor type for power terminals (N, L, 1, 2):

. Copper cables

Without ferrule

With ferrule

Rigid cable

1x (0.75 à 2.5mm²)

2 x (0.75 à 2.5mm²)

Flexible cable

1x (0.75 à 2.5mm²)

2 x (0.75 à 2.5mm²)

1 x (0.75 à 2.5mm²)

2 x (0.75 à 1.5mm²)

Connection of the measurement coil:

Insert the measurement coil connector into the slot provided on

the connected Dry-Contact until it locks (clips).

NB: If necessary, to disconnect it, use a small screwdriver on the

clips.

Measurement coil capacity:

Conductor

cross section

1.5mm²

2.5mm²

6mm²

10mm²

25mm²

Number of

conductor

flexible or

rigid

Commands of the connected dry contact:

. Operation on-site, directly with the front face push-button of the

device (I, auto, O).

. Via smartphone with the Home + Control smartphone app.

. By voice through a vocal assistant.

. Possibility of associating a “with Netatmo” on-wall wireless

connected push button (Maximum quantity: 20) via the Home +

Control app.

4. PREPARATION - CONNECTION

(continued)

Visualization of the operating mode of the device and

contacts:

. Via the LED, on the push button command

Color

Status

Meaning

OFF

Manual mode and opened

Contact (OFF)

Blue/Off

Slow blinking

Automatic mode and opened

Contact (OFF)

Blue/Green

Slow blinking

Automatic mode and closed

Contact (ON)

Green

Fixed

Manual mode and closed

Contact (ON)

Visualization of the setup:

. Via the LED on the settings button

Color

Status

Meaning

Red

Fixed

Temporary status. Device not

connected to the radio

network

Green

Fixed

Temporary status. Device

correctly paired to the radio

network (when the radio

network is still open)

OFF

Normal status. Device paired

to the radio network (when

the radio network is closed)

Technical data sheet: F03387EN/01

Updated on: 06/01/2023

Created on: 28/04/2021

Connected Home

ecosystems

5/7

Connected Dry-Contact

Cat. number : 4 121 73 - 1 991 23

4. PREPARATION - CONNECTION

(continued)

Add a connected Dry-Contact in a connected

installation (several steps):

. 1/ Beforehand, to create a connected installation you must

install:

Either a Gateway module

Or a connected starter pack (drawing of principle, works with any

kind of “with Netatmo”connected starter pack).

Or any kind of « with Netatmo » gateway

. 2/ Beforehand, the general circuit breaker must be turned OFF.

Then after wiring step done, installation controlled, refit the front

plate so that no active live part is accessible. Then the general

circuit breaker can be powered back ON to simultaneously power

devices and allow them to be connected to the network.

. 3/ Finalize the installation in the Legrand Home + Control

smartphone app

Download the Home + Control App and follow

the instructions for adding the connected product in your setup.

You also have the option of controlling your installation via a voice

assistant and can customize your scenarios via the Home +

Control App.

4. PREPARATION - CONNECTION

(continued)

Connected Dry-Contact resetting to remove it from a

connected installation:

. Press and hold over 5 seconds on the setting button until the

LED on the setting button be fixed red. It is no longer paired with

the Gateway module / Gateway power outlet.

Other configurations & actions:

. All other features and settings such as scenarios etc… are

directly explained step by step in the smartphone app.

Labelling:

. Circuit identification by way of a label inserted in the label

holder situated on the front of the product.

Technical data sheet: F03387EN/01

Updated on: 06/01/2023

Created on: 28/04/2021

6/7

Connected Dry-Contact

Cat. number : 4 121 73 - 1 991 23

5. GENERAL CHARACTERISTICS

Marking of the Connected Dry-Contact:

Principle visuals:

Marking of the front side:

Sectioning distance:

. micro-gap construction contact according to the standard

EN 60669-2-1

Rated insulation voltage (Ui):

. Ui = 250 V~

Degree of pollution:

. 2

Rated impulse withstand voltage (Uimp):

. 4 kV

Influence of altitude:

. No influence up to 2 000 m

Assigned frequency:

. 50 / 60 Hz

Rated operational Dry-Contact current:

. 2 A

Rated voltage of use (Ue):

. Ue = 100 to 240 V ~

Resistance to short-circuits:

. Presumed short circuit current 1500 A according to EN 60669-2-1

. Thermal stress: 15 000 A²s according to EN 60669-2-1

Recommendations:

. For the Dry-Contact protection against short circuits according to

the conditional current, it is recommended to use a circuit breaker

or gG fuse with rated current  2 A.

Dry-Contact endurance:

. 20 000 000 operations without load

. 40 000 operations under inductive load according

to EN 60669-2-1

. 10 000 operations under capacitive and inductive load according

to EN 60669-2-1

Measuring coil characteristics:

Max current 80A

5. GENERAL CHARACTERISTICS

(continued)

Characteristics of the radio interface:

. Standard IEEE 802.15.4

. Frequencies 2,4 à 2,4835Ghz.

. Transmitter output power <100mW.

. Distance max between 2 radio devices: 50m in open field.

Dielectric resistance:

. 2000V between terminals and rail.

. 750V between terminal 1 and 2 from Dry-Contact.

. 3750V between SELV and LV.

Protection degree:

. Protection index of terminals against direct contacts: IP2X (wired

device).

. Protection index of the front face against direct contacts: IP3XD.

. Class II, front panel with front plate.

. Class of protection against mechanical impacts IK04.

Vibrations and shaking resistance:

. vibrations: 10 to 55 to 10Hz single amplitude 0.75mm.

. Shaking: 1000m / s ² (6 ± 1ms).

Plastic material:

. Self-extinguishing polycarbonate.

. Heat and fire resistant according to IEC/EN 60669-2-1, glow-

wire test at 960°C.

. Classification UL 94 V0 (≥1.5mm).

Ambient operating temperature:

. Min. = - 5 °C Max. = + 45 °C.

Ambient storage temperature:

. Min. = - 40 °C Max. = + 70 °C.

Average weight:

. Dry-Contact: 66g.

. Measurement coil: 41g.

Volume when packed:

. 0,62 dm3.

Technical data sheet: F03387EN/01

Updated on: 06/01/2023

Created on: 28/04/2021

Icon, to easily identify

a connected device in

the electrical panel

board

7/7

Connected Dry-Contact

Cat. number : 4 121 73 - 1 991 23

6. COMPLIANCE AND APPROVALS

Compliance to standards:

. IEC/EN60669-2-1 + EN60669-2-5

Environment respect –Compliance with European Union Directives:

. Compliance with Directive 2002/95/EC of 27/01/03 known as "RoHS" which provides for a restriction on the use of dangerous

substances such as lead, mercury, cadmium, hexavalent chromium and polybrominated biphenyl (PBB) and polybrominated diphenyl

ether (PBDE) brominated flame retardants from 1st July 2006

. Compliance with the Directive 91/338/EEC of 18/06/91 and decree 94-647 of 27/07/04

. Compliant with regulation REACH

Conformity with electromagnetic interference (EMC):

. Compliant EN 301 489-1, IEC 60669-2-5, NF EN 60669-2-1

Immunity to shock waves

Radio transmission

Immunity to electrical transients in bursts.

Immunity to conducted disturbances induced by radio fields

Immunity to radiated fields

Electrostatic discharge immunity

Immunity to voltage dips and short break

. Compliance radiated emission according to NF EN55032.

Plastic materials:

. Halogen-free plastics.

. Marking of parts according to ISO 11469 and ISO 1043.

. ISO 7000: 2004, Graphical symbols to be used on equipment - Index and synopsis

Packaging:

. Design and manufacture of packaging in accordance with Decree 98-638 of 20/07/98 and Directive 94/62 / EC.

7. AUXILIARIES AND ACCESSORIES

Beforehand, requires the installation of a " connected starter pack " or " a “gateway module".

Technical data sheet: F03387EN/01

Updated on: 06/01/2023

Created on: 28/04/2021

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Unidad de control de LEGRAND

LEGRAND

LEGRAND LEXIC 074 03 Manual de usuario

LEGRAND

LEGRAND Wattstopper ELCU-200 Manual de usuario

LEGRAND

LEGRAND 739 60 Manual de usuario

LEGRAND

LEGRAND LCS 0 321 28 Manual de usuario

LEGRAND

LEGRAND Bypass MEGALINE/1 Manual de usuario

LEGRAND

LEGRAND 4 121 71 Manual de usuario

LEGRAND

LEGRAND Eliocad 766 88 Manual de usuario

LEGRAND

LEGRAND 5 742 43 Manual de usuario

LEGRAND

LEGRAND 882 15 Manual de usuario

LEGRAND

LEGRAND 6338 53 Manual de usuario

LEGRAND

LEGRAND H4651 Manual de usuario

LEGRAND

LEGRAND Wattstopper ELCU-100 Manual de usuario

LEGRAND

LEGRAND Bticino H4652 Manual de usuario

LEGRAND

LEGRAND EMDX3 MI Manual de usuario

LEGRAND

LEGRAND 5 735 04 Manual de usuario

LEGRAND

LEGRAND Galion TV - R- SAT Manual de usuario

LEGRAND

LEGRAND Wattstopper TDFC-1A Manual de usuario

LEGRAND

LEGRAND 4 149 40 Manual de instrucciones

LEGRAND

LEGRAND 6338 53 Manual de instrucciones

LEGRAND

LEGRAND Wattstopper ELCU-200-347 Manual de usuario

LEGRAND

LEGRAND 7756 24 Manual de usuario

LEGRAND

LEGRAND 067697 Cómo utilizar

LEGRAND

LEGRAND 882 05 Manual de usuario

LEGRAND

LEGRAND Wattstopper IPPAN3-B Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
