LEGRAND Wattstopper IPPAN3-B Manual de usuario

IPPAN3-B

Installation Manual

Version 1.0

May 2020

CONTENTS

1.0 OVERVIEW

2.0 IPPAN3-B MODULE

2.1 SPECIFICATIONS

2.2 ANTENNAS

2.3 OPERATING CHANNELS

3.0 MODES OF OPERATION

4.0 INSTALLATION

4.1 DESIGN GUIDELINES

4.2 END USER GUIDELINES

5.0

AGENCYCERTIFICATIONS

6.0

OEM LABELING REQUIREMENTS

7.0

END USER LICENSE AGREEMENT

1.0

OVERVIEW

Thank you for choosing the IPPAN3-B module by Wattstopper. This manual will guide

you through the process of installing the module.

IPPAN3-B embeds wireless IPv6-based communication into each Wattstopper or host

device, and uses wireless mesh networking technology to connect to the internet.

Each

IPPAN3-B module has a unique IPv6 address and “smart” functionality which

enables

wireless data gathering, communication, and control of the host device.

The IPPAN3-B module is designed to be a self-contained IEEE® 802.15.4 and BLE

compliant wireless interface to be employed in conjunction with a variety of daughter

boards that maintain a stable 2.1-3.3Vdc supply. IPPAN3-B provides a diverse set of

I/O options such as serial interface or general purpose I/O. IPPAN3-B is comprised of

microcontroller, transceiver, amplifier, and two antennas.

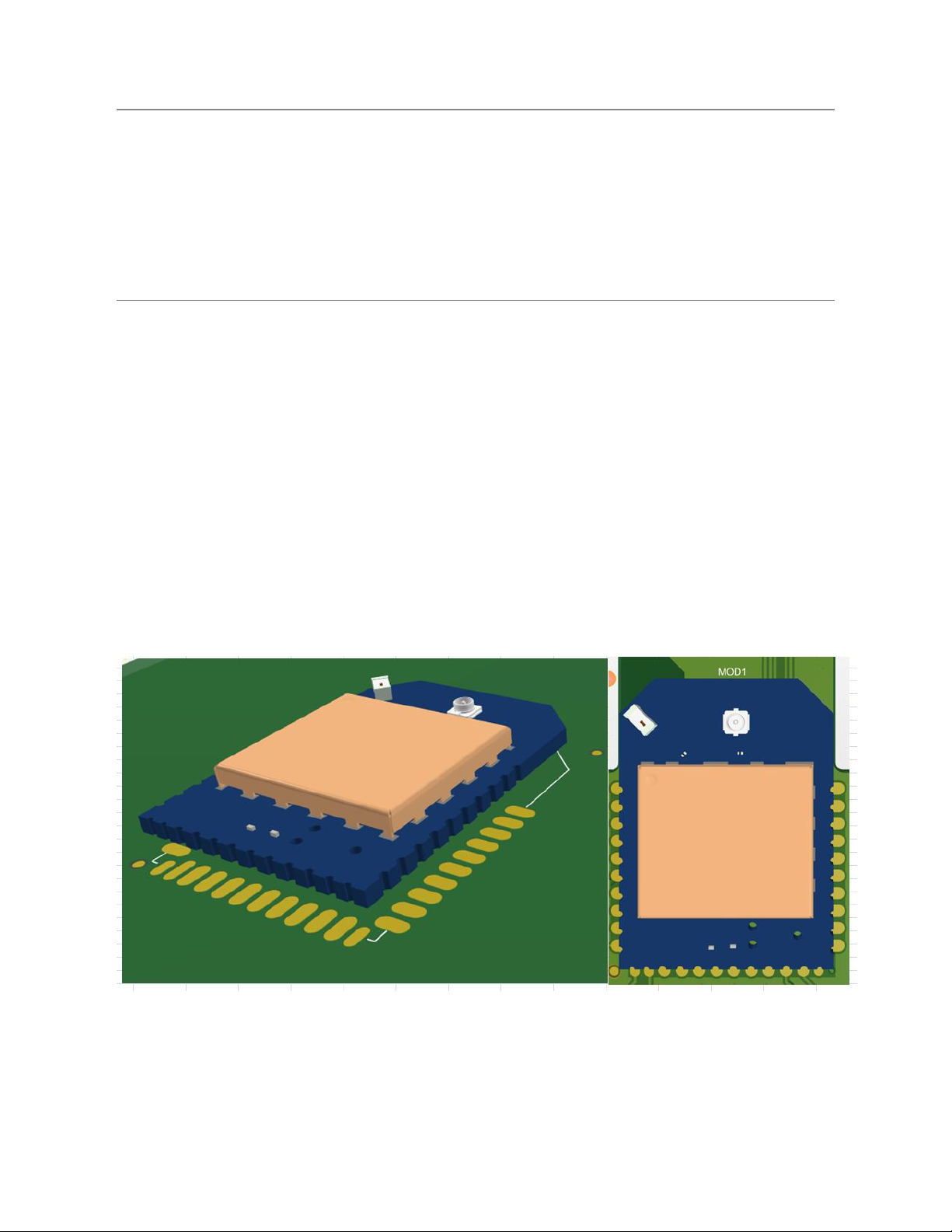

2.0 IPPAN3-B MODULE

FIG 1.0

2.1

SPECIFICATIONS

Specification

IPPAN3-B

Performance

Tuning Range

Internally calibrated for the selected IEEE

channel

Data Rate

250kb/s

Max 802.15.4 Radio Output Power

16.4dBm

Max BLE Radio Output Power

2.0dBm

802.15.4 Receiver Sensitivity

-101dBm

BLE Receiver Sensitivity

-96 dBm

Power Requirements

VCC

2.0 - 3.3Vdc, 0.3A

General

Dimensions

5.7 x 24.3 x 33 mm (H x W x D)

Operating Temperature

-30° C to + 60° C

Humidity

90% RH (max), non-condensing

AgencyApproval

United States (FCC, 15.247)

Q4B-P3B

Industry Canada (IC)

21161-P3B

FIG 2.0

FIG 3.0

PIN #

NAME

DESCRIPTION

3v3/VCC

Voltage Supply

UART-DOUT

Serial UART Out

UART-DIN

Serial UART In

GPIO_4

High Drive General Purpose Input/Output

RESET

Module Inverted Reset

EXT_SPI_MISO

SPI Master Input →Slave Output

EXT_SPI_CLK

SPI Clock

GPIO_0

General Purpose Input/Output

EXT_SPI_MOSI

SPI Master Output →Slave Input

GND

Ground

SPARE(<10kHz)

General Purpose Input/Output (Low Frequency)

SPARE(HI f)

General Purpose Input/Output (High Frequency)

IN_SCLK

General Purpose Input/Output

IN_BUS_MOSI

SPI Master Output →Slave Input

IN_BUS_MISO

SPI Master Input →Slave Output

SLEEP_AMP/NFC1

Radio sleep control or Near-Field Communication

AMP_BYPASS/NFC2

Front End Bypass or Near-Field Communication

CTX

General Purpose Input/Output (Low Frequency)

GPIO_6

General Purpose Input/Output

SWDCLK

SWD Clock

SWDIO

SWD Data

GPIO_2

General Purpose Input/Output

GPIO_5

General Purpose Input/Output

EXT_SPI_CS

SPI CS or General Purpose Input/Output

I2C_DATA

I2C Data

I2C_CLK

I2C Clock

GPIO-3

General Purpose Input/Output

GPIO_1

General Purpose Input/Output

AtoD PWM GPIO

Analog to Digital Converter or Pulse Width Modulation or General Purpose Input/Output

AtoD PWM GPIO

Analog to Digital Converter or Pulse Width Modulation or General Purpose Input/Output

AtoD PWM GPIO

Analog to Digital Converter or Pulse Width Modulation or General Purpose Input/Output

AtoD PWM GPIO

Analog to Digital Converter or Pulse Width Modulation or General Purpose Input/Output

FIG 4.0

2.2

Antennas

The IPPAN3-B module can have two antennas. ANT1 antenna use ceramic antenna ,

the gain less than 0.5dBi, and the ANT2 antenna can use Dipole antenna and other

wire antennas, but the gain can not higher than 2.0dBi.

2.3 Operating Channels

IPPAN3-B provides a wide range of channels.

IEEE 802.15.4 Operating

Channels

Operating Frequency

[GHz]

2.405

2.410

2.415

2.420

2.425

2.430

2.435

2.440

2.445

2.450

2.455

2.460

2.465

2.470

2.475

FIG 5.0

3.0

Modes of Operation

The final use and application of IPPAN3-B is dependent on the firmware pre-installed

at the factory. However, all applications have common modes of operations that can

be summarized as follows for both the IEEE® 802.15.4 and BLE radios:

NOTE: IEEE® 802.15.4 can be used only when BLE is not in use.

Idle Mode

IPPAN3-B enters idle mode of operation whenever the device is not in transmit, or

receive mode, or when there is no data to process.

Data Processing Mode

When an interrupt, timer, frame reception, or frame transmission event occurs

IPPAN3-B moves out of idle mode and into data processing mode. In this mode

IPPAN3-B can processes information and act on data accordingly.

Receive Mode

When a 802.15.4, or BLE, compliant message is received by the transceiver and it’s

either addressed for IPPAN3-B or broadcast the device can be said to be in receive

mode. In receive mode IPPAN3-B validates data and address before accepting the

message for processing.

Transmit Mode

In this mode IPPAN3-B generates an 802.15.4, or BLE, compliant message that can

be sent directly to another IPPAN3-B or broadcast to all other IPPAN3-B modules

within radio range. Transmission mode is preceded by user interaction, a data logging

event, a

network maintenance message or as a response to a message

acknowledgement request.

4.0

INSTALLATION

IPPAN3-B will come pre-programmed from the manufacturer, and in many cases

pre-installed in a device. If you have elected to install IPPAN3-B in house, it is

important to understand how to handle, install, and use properly.

4.1 DESIGNGUIDELINES

●The IPPAN3-B Module is designed either to be surface mounted.

●standard 20 pin footprint using the following sockets:

○Samtec P/N: MMS-110-01-L-SV

○Samtec P/N: SMM-110-02-SM-S

●Standard electrostatic discharge precautions should be taken when handling the

module.

●The socket should be designed in a manner where the radiating structures

(antenna) are away from other sensitive electronics

●No antenna modifications can be made (see section 5.0)

●FCC labeling guidelines must be maintained (see section 5.0)

●All stated electrical maximum and minimum values must be met (see section 2.1)

FIG 6.0

4.2

END USER GUIDELINES

The module is designed to be used in fixed locations. If the end user experiences

communication problems it is recommended to move the transceivers closer to one

another or purchase a repeater.

Objects including, but not limited to, steel reinforced walls, metal electrical boxes,

water, and snow may degrade the working distance between transceivers, and should

be avoided. IPPAN3-B is designed to operate in a mesh network, and in most cases

adding nodes can help overcome communication issues.

FCC requires specific text to be placed within user’s manual or operator instruction

guide for the final commercial product. Specific details on this text can be found in

section 5.0.
