LEGRAND 5 742 43 Manual de usuario
This product is a connected accessory which requires you to buy and install the Arteor with
Netatmo connected starter pack rst.
Pack contents
Characteristics
(*)
Or 10 lamps max. For comfortable lighting, we recommend using bulbs of the same
type and brand.
(**)The ferromagnetic transformers must be charged to more than 60% of their power.
When calculating the permissible power, the ferromagnetic transformer efficiency must
be taken into account.
Connected
lighting micromodule
R L
+ 5°C
+ 45°C LED **
50/60 Hz 1 x 1.5 mm2
240 V~ Max. 300 W (*)100 W 250 W 250 VA 250 VA
100 V~ Max. 150 W (*)50 W 125 W 125 VA 125 VA
Connected lighting micromodule
5 742 43
LE11047AA
2
Before you start: wiring precautions
To install or replace a latching relay, only use the product:
x 1
Connected lighting micromodule
You can keep the existing push buttons or replace them with wireless controls
Do not use: a connected switch (with dimmer option) to control a connected
lighting micromodule.
To control your micromodule:
At least one wireless lighting control from the "...with Netatmo” connected ranges must be
paired with it.
To create your wireless lighting two-way switch:
Add one or several wireless lighting controls from the "...with Netatmo” connected ranges.
3
1 Install the connected lighting micromodule
The Arteor with Netatmo connected lighting micromodule can be easily installed in a
ceiling light or in wall lights.
OFF
1
Switch OFF the power at the main circuit breaker

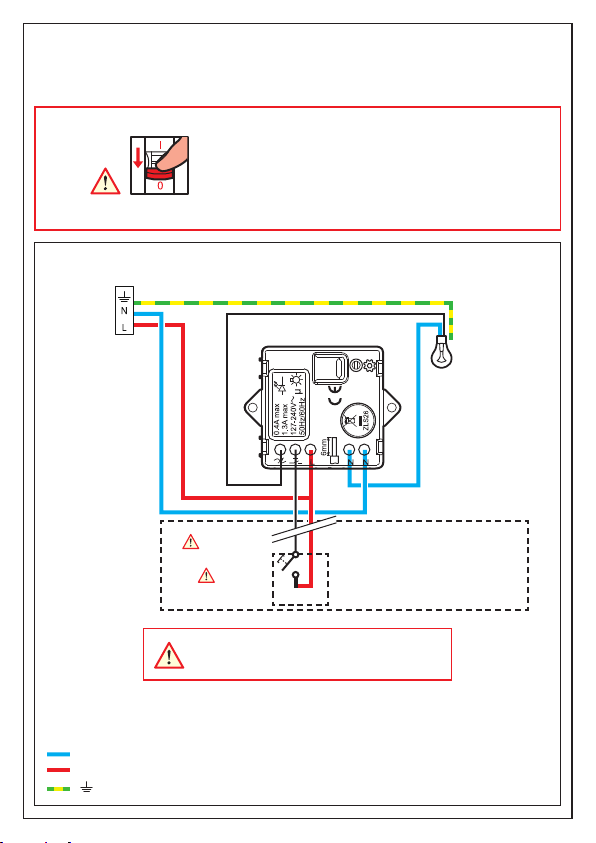

2Wire the connected lighting micromodule
Option: remote control wiring
using a non-illuminated
mechanical pushbutton.
x 5 Max.
N (neutral) = blue
L (live) = any except blue and green/yellow
(earth) = green/yellow
Frequency bands: 2.4 - 2.4835 GHz
Power level: <100mW
Max. 30m
Make sure that the power is off
before continuing with the installation.
Safety instructions
This product should be installed in compliance with installation rules, preferably by a qualied electrician.
Incorrect installation and/or incorrect use can lead to risk of electric shock or re.
Before carrying out the installation, read the instructions and take account of the product’s specic
mounting location.
Do not open up, dismantle, alter or modify the device except where specically required to do so by the
instructions. All Legrand products must be opened and repaired exclusively by personnel trained and
approved by Legrand. Any unauthorised opening or repair completely cancels all liabilities and the rights
to replacement and guarantees. Use only Legrand brand accessories.
SIMPLIFIED EU DECLARATION OF CONFORMITY
The undersigned,
Legrand
declares that the radio-electric equipment referred to in these instructions
complies with directive 2014/53/EU.
The full text of the EU declaration of conformity
is available on the following website:
www.legrandoc.com
2 To add a connected product to your connected installation, you should
follow the instructions:
- in the user guide in your connected starter pack
- in the Legrand Home + Control application (Settings/Add a new product section)
- or consult the user manual on legrand.fr
LEGRAND - Pro and Consumer Service - BP 30076
87002 LIMOGES CEDEX FRANCE • www.legrand.com
www.legrand.fr/reference/574243
.Arteor with Netatmo
10 (*)
.%60(**)
L R
**
LED حﺎﺑﺻﻣ م°45 +
م°5 +
21.5 x 1 50/60
250
250
250 100(*)300 240
125
125
125 50(*)150 100
5 742 43
6
:
1
... with Netatmo
... with Netatmo
7
①
Arteor with Netatmo
➋
2.4835 - 2.4
100 <
م
م
مﻠﻣ 6
م
ك
ك
5
30
➊
SIMPLIFIED EU DECLARATION OF CONFORMITY
The undersigned,
Legrand
declares that the radio-electric equipment referred to in these instructions
complies with directive 2014/53/EU.
The full text of the EU declaration of conformity
is available on the following website:
www.legrandoc.com
③
LegrandHome + Control
legrand.fr
LEGRAND - Pro and Consumer Service - BP 30076
87002 LIMOGES CEDEX FRANCE • www.legrand.com
www.legrand.fr/reference/574243
Legrand
Legrand
Legrand
