Larson Electronics EPL-HB-100LED-RT-CM Manual de usuario

EPL-HB-100LED-RT-CM

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

1of 2

100W Explosion Proof HighBay LED Light Fixture

14,000 Lumens - Paint Spray Booth Approved

Instruction Manual

This explosion proof light is designed for illumination of industrial locations. It uses the latest in

solid state lighting technology for long life, low maintenance and high efficiency.

The unique design focuses the light where it is needed, giving improved efficiency over a

conventional HIDluminaire.

This light fixture is shipped preconfigured to work in the selected voltage range. This includes

100-277V AC 50/60hz or 11-25V AC/DC depending on model selected. An internal, universal input

power-factor-corrected switch allowsit to be used from any voltage within range without variation in

light output.Check product label for correct input voltage!

WARNING

To avoid the risk of fire, explosion or electric shock, this product should be installed, inspected

and maintained by a qualified electrician only, in accordance with all applicable electrical codes.

To avoid electric shock:

Be certain electrical power is OFF before and during installation and maintenance.

Luminaire must be connected to a wiring system with an equipment-grounding conductor.

To avoid explosion:

Make sure the supply voltage is within the luminaires’ voltage rating.

Ensure the marked T rating is less than the ignition temperature of the Hazardous

Atmosphere.

Do not operate in ambient temperatures above those indicated on the luminaire nameplate.

Do not operate if the lens is cracked or damaged. All fasteners should be properly seated.

For supplyconnections, use wire rated for at least 110°C

Recommendedmounting height is 15-40 feet.

MOUNTING

This fixture features a ceiling mounted junction box with mounting tabs, allowing the fixture to be

mounted to any flat surface that is capable of supporting the load, and where holes can be

drilled for the mounting hardware. Wiring is accessed through the 3/4'' NPT hubs on the junction

box. See wiring diagram below for completing connections.

EPL-HB-100LED-RT-CM

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

2of 2

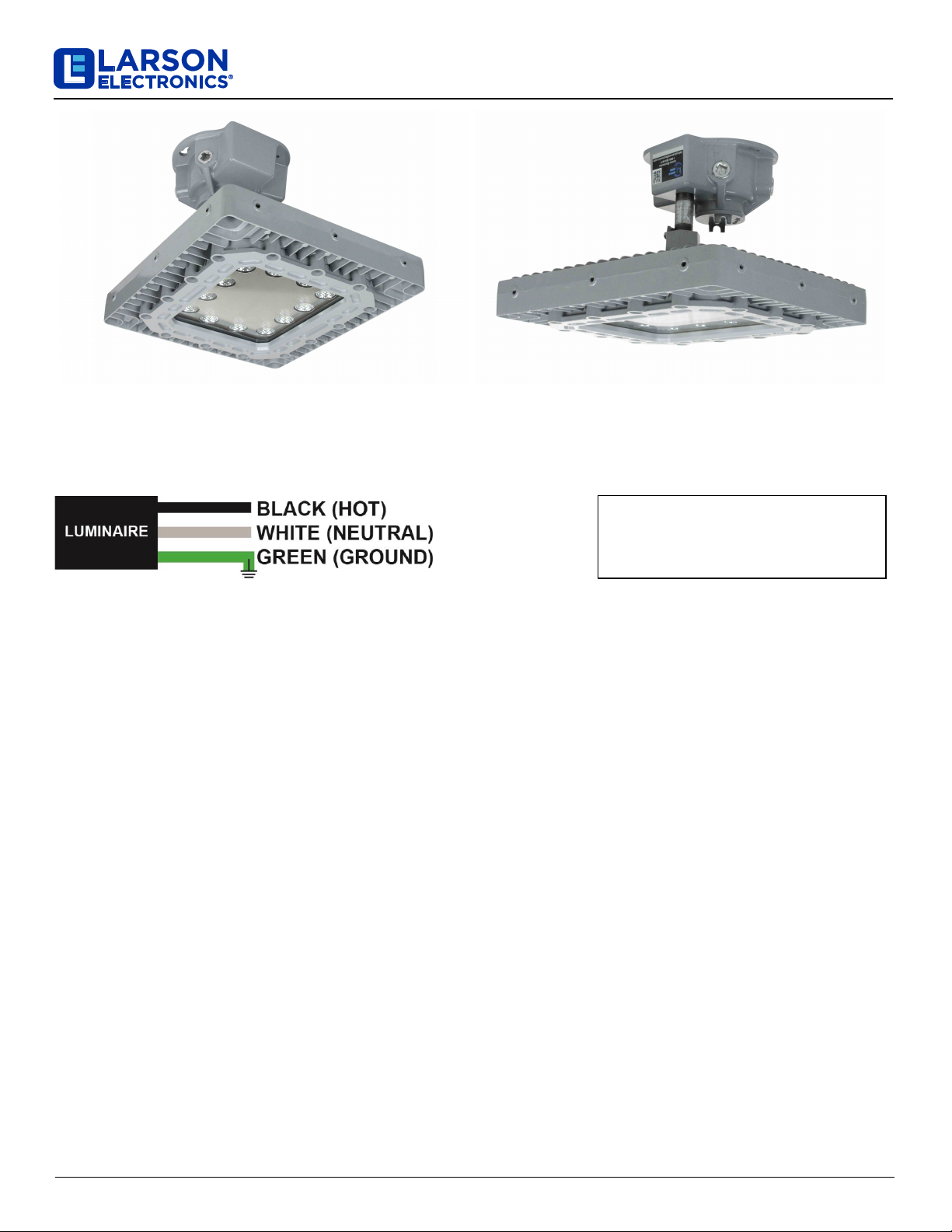

WIRING (see attached wiring diagram)

This unit comes preconfigured in the selected voltage, beam angle, and color temperature. Wire light

to the correct voltage. Follow all applicable local, state, and National Electrical Code for the

hazardous area!

MAINTENANCE

Caution: To avoid personal injury, disconnect power to the light and allow the unit to cool

down before performing maintenance.

Warning: No user serviceable parts inside of fixture. Risk of electric shock. Removal of the lens

will void the warranty.

1. Perform visual, mechanical and electrical inspections on a regular basis. We recommend

routine checks to be made on a yearly basis. Frequency of use and environment should

determine this. It is recommended to follow an Electrical Preventive Maintenance Program

as described in NFPA 70B: Recommended practice for Electrical Equipment.

2. The lens should be cleaned periodically as needed to ensure continued photometric

performance. Clean the lens with a damp, non-abrasive, lint-free cloth. If not sufficient, use

mild soap or a liquid cleaner.

3. Inspect the cooking fins on the luminaire to ensure that they are free of any obstructions

or contamination (i.e. excessive dust build-up). Clean with a non-abrasive cloth if

needed.

4. Do not operate if the lens is cracked or damaged. All fasteners should be properly seated.

Should further information not covered by these instructions be required, please contact Larson Electronics at

1-800-369-6671 or sales@larsonelectronics.com for further assistance.

Please visit LarsonElectronics.com for Warranty and Return information.

WARNING: CHECK NAMEPLATE

FOR PROPER VOLTAGE. DAMAGE

FROM IMPROPER VOLTAGE WILL

VOID WARRANTY.
