Larson Electronics GAU-PT-150LTL-LED-480V Manual de usuario

GAU-PT-150LTL-LED-480V

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

1of 2

160 Watt High Intensity LED Light

21,600 Lumens - 347-480VAC -Pole Top Slip Fit - Outdoor Rated

Instruction Manual

Thank you for your purchase of the Larson Electronics GAU-PT-150LTL-LED-480V.

WARNING:

READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.

CRITICAL SAFETY INSTRUCTIONS:

•INSTALLATION SHOULD ONLY BE CONDUCTED BY A QUALIFIED ELECTRICIAN IN ACCORDANCE WITH NEC AND ANY RELEVANT

LOCAL BUILDING CODES.

•RISK OF FIRE OR ELECTRIC SHOCK. FIXTURE INSTALLATION REQUIRES KNOWLEDGE OF LUMINAIRES ELECTRICAL SYSTEMS. IF

NOT QUALIFIED, CONTACT A QUALIFIED ELECTRICIAN.

•BE CERTAIN ELECTRICAL POWER IS OFF BEFORE AND DURING INSTALLATION AND MAINTENANCE.

•MAKE SURE THE SUPPLY VOLTAGE IS THE SAME AS THE RATED LUMINAIRE FIXTURES VOLTAGE.

•TO PREVENT WIRING DAMAGE OR ABRASION, DO NOT EXPOSE WIRING TO EDGES OF SHEET METAL OR SHARP OBJECTS. SUITABLE

FOR DAMP LOCATIONS.

IMPORTANT

READ CAREFULLY BEFORE INSTALLING THIS FIXTURE. SAVE THESE INSTRUCTIONS FOR FUTURE

REFERENCE. THE LEDWP-600E MUST BE WIRED IN ACCORDANCE WITH NATIONAL ELECTRICAL CODE AND

ALL APPLICABLE LOCAL CODES. PROPER GROUNDING IS REQUIRED FOR SAFETY.

WE STRONGLY ENCOURAGE ONLY A LICENSED ELECTRICIAN INSTALL, OPERATE AND MAINTAIN THIS

PRODUCT. IF YOU ARE NOT QUALIFIED OR UNFAMILIAR WITH ANY ASPECT OF THIS INSTRUCTION SHEET,

CONSULT AN ELECTRICIAN. THERE ARE NO SERVICEABLE PARTS INSIDE.

WARNING: MAKE SURE POWER IS TURNED OFF BEFORE STARTING THE

INSTALLATION OR PERFORMING ANY MAINTENANCE.

RISK OF FIRE/ELECTRIC SHOCK –DISCONNECT POWER AT BREAKER BEFORE INSTALLING OR SERVICING.

RISK OF PERSONAL INJURY –FIXTURE MAY BECOME UNSTABLE OR DAMAGED IF NOT INSTALLED PROPERLY.

RISK OF BURN –ALLOW FIXTURE TO COOL BEFORE SERVICING.

The GAU-PT-150LTL-LED-480V Pole Top Slip Fit LED Flood Light offers intense light output and is ideal for flood lighting, light towers

and industrial and outdoor lighting applications that require mounting the light on a pole or where an available pole makes for a

convenient mounting location. Producing 21,600 lumens, an 80,000 hour service life, 347-480V volt compatibility, and IP67 waterproof

rating, this LED flood light provides operators with a rugged and powerful LED alternative to 400 watt metal halide lamps that uses little

power and can withstand rugged use and abusive conditions. Operators may choose from a variety of available outside diameters

depending on their specific required pole diameter.

WIRING

Standard pigtail(flying leads) wiring

We strongly encourage a licensed electrician install this product,in all locations especially in outdoor areas

where weatherproofing may be required. Universal voltage driver permits operation at 347 - 480V.

Warning: Check product label for correct input voltage!

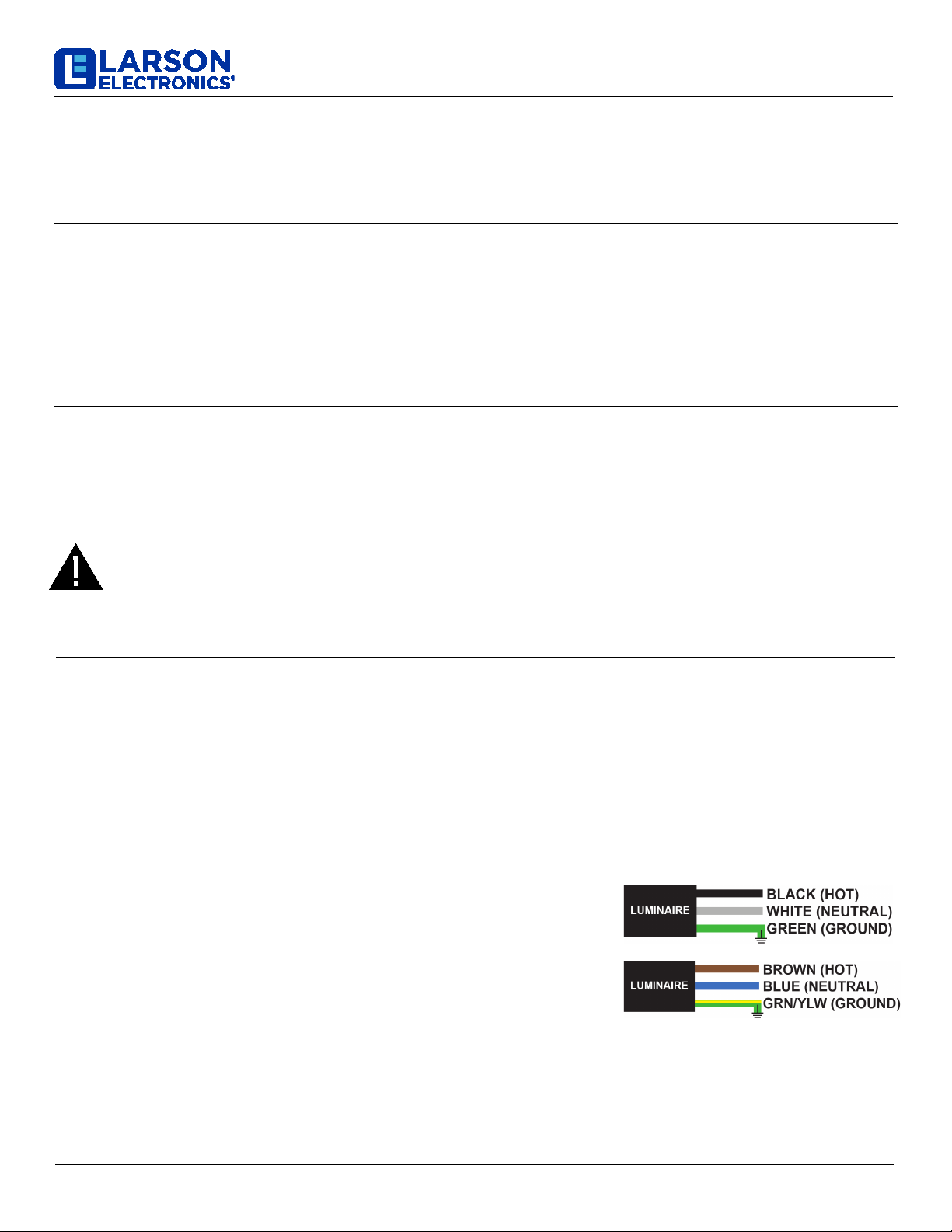

Attach supply line wires to the appropriate light fixture wires as shown

in thediagram 

Secure each pair of wires according to the diagram. Utilize a junction box or

similar device and take precautionary steps for weatherproofing all

connections if installed in a location where water may come in contact with the

unit. Ensure the unit is properly grounded and that wiring is done according to

all local and national electrical/building codes.

VOLTAGE

This light is universal voltage capable and can be operated with 347-480 VAC without modifications. 347V is common in

Western Canada, while 480V is common in the United States and Eastern Canada. This explosion proof LED light fixture is

IP67 rated, dust-proof, and protected against high pressure jets and temporary submersion. The cast aluminum body and

LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to

dissipate heat which increases the efficiency and lifespan of the LEDs and electronics.

GAU-PT-150LTL-LED-480V

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

2of 2

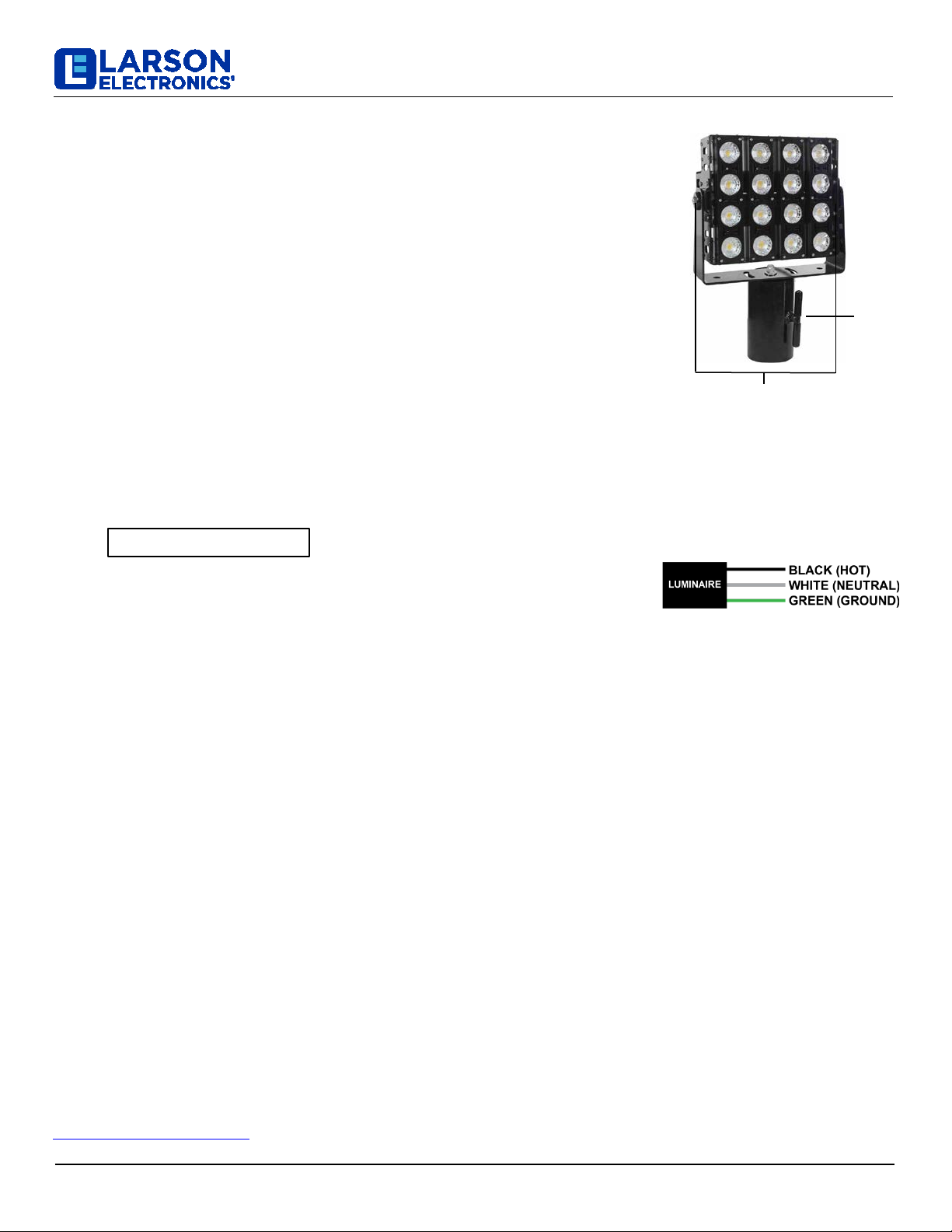

INSTALLATION

We strongly recommend only a licensed electrician install this product.

Make sure power is disconnected prior to installing. Fixture must be

mounted to a surface that can structurally support the load.

The fixture is supplied with the desired beam config, light color and voltage.

A 2.5’ whip is already affixed to the housing for wiring.

Mount following the steps below:

1. Turn off power at electrical panel.

2. Mount light by its trunnion mount to pole. The LED wall pack ships

with your selected pole mount size.

3. Loosen hand screw and mount to pole capable of holding its weight.

Tighten hand screw to secure to pole. Plan a way for wiring to

connect such as using a separate junction box and run power to the

CORRECT VOLTAGE.

4. Adjust lamp vertically by loosening hex bolts on either side.

5. Swing lamp into final position and tighten any loose bolts.

6. Wire the whip/power cord to existing power source. Follow proper

steps to weatherproof electrical connections as necessary.

7. Turn power on.

This light is“instant-on” and will illuminate once power issupplied to

the unit.

ADJUTMENT BOLTS

Voltage: 120-277V AC Amps: 1.25A @ 120V, 0.625A @ 240V, 0.54A @ 277V

HAND

SCREW

MOUNTING

The GAU-PT-150LTL-LED-480V pole top slip fit mount LED light features an adjustable swivel bracket constructed of 3/8"

aluminum that allows over 270° of adjustment and is attached to a slip fit yoke for easy installation. The slip fit yoke is built to

customer`s specs, enabling operators to mount this LED light to their specific pole size. For example, selecting a 2" OD

mount means that the yoke mount will fit onto pipes or bull horns with a 2" OD. The entire selection of outside diameters is

listed below in the specifications section.

MAINTENANCE

There are no serviceable parts inside the fixture. However, it is good practice to routinely clean and check the

fixture for proper function.

•Disconnect power running to the lamp and be sure the fixture is cool to the touch.

•Use a non-abrasive glass cleaning solution to clean the lens.

Note: It is not necessary to open the fixture and clean or touch the LED’s.

USE AND CARE

Unauthorized modification may impair the function and/or safety of this device and could affect the life of the equipment.

Always check for damaged or worn out parts before using the device. Store it in a secure place out of the reach of

children when not in use.Inspect for good working condition prior to storage and before re-use.

REPLACEMENT PARTS

The GAU-PT-150LTL-LED-480V is designed to provide years of reliable performance. Should the need for replacement

parts arise, please contact Larson Electronics.

THESE INSTRUCTIONS MAY NOT COVER ALL DETAILS OR VARIATIONS OF THIS PRODUCT FOR YOUR EQUIPMENT OR INSTALLATION REQUIREMENTS.

SHOULD FURTHER INFORMATION NOT COVERED BY THESE INSTRUCTIONS BE REQUIRED, PLEASE CONTACT LARSON ELECTRONICS BY EMAIL AT

SALES@LARSONELECTRONICS.COM OR BY PHONE AT 1-800-369-6671 FOR FURTHER ASSISTANCE.

PLEASE VISIT LARSONELECTRONICS.COM FOR WARRANTY AND RETURN INFORMATION.
