EPL-EMG-CM-42W

INSTALLATION, OPERATION & MAINTENACE DATA SHEET

(EPL-EMG-CM SERIES COMPACT FLUORESCENT EMERGENCY FACTORY SEALED LIGHTING FIXTURES)

IMPORTANT SAFEGUARDS –READ AND

ALL SAFETY INSTRUCTIONS.

NOTE: LAMP MUST BE INSTALLED BEFORE OPERATING

Remove globe assembly, unpack bulb and insert into socket.

See installation instruction sections 4 & 5 for removal of globe assembly.

NOTE: Read this sheet carefully before beginning installation.

•

Do not use this equipment for other than the intended use as specified on equipment

nameplate.

•

WARNING: Turn off the supplying circuit before beginning installation, or

performing any maintenance including re-lamping.

•

Do not install near gas or electric heaters.

•

Do not attempt to service battery. The emergency ballast contains a sealed, no-

maintenance battery. Contact manufacturer for information on replacements.

•

Batteries must be recycled or disposed of properly.

•

Servicing should be performed by qualified service personnel.

•

The use of accessory equipment not recommended by the manufacturer can

cause an unsafe condition

•

Equipment should be mounted in locations and at heights were it will not readily be

subjected to tampering by unauthorized personnel.

•

The emergency ballast is for use with quad pin compact fluorescent lamps only.

INSTALLATION:

Important Note:

1. All installations must comply with the applicable local and/or National Electrical

Code.

2. Before installing, check the fixture nameplate to be sure you have the correct

fixture.

3. Verify ground continuity in the electrical system.

4. The emergency ballast must be connected to an unswitched power source.

5. Refer to nameplate for specific ambient and supply wire temperature rating.

Following steps required for installation -

1. Install unit’s mounting accessory

per instructions supplied with the

mount.

2. Install unit’s pushbutton test

station (purchased separately) per

instructions supplied with the

station. Station must be wired to

fixture mount to provide a method

of disconnecting the supply source

from the unit. An example of how

this can be completed is shown in

Fig.1 for typical installation.

3. Verify that the supply voltage

available is 120V thru 277V.

4. The fixture comes wired for 120V

thru 277V operation from the

factory. Lamp provided with

fixture is to be installed in a non-

hazardous environment as follows:

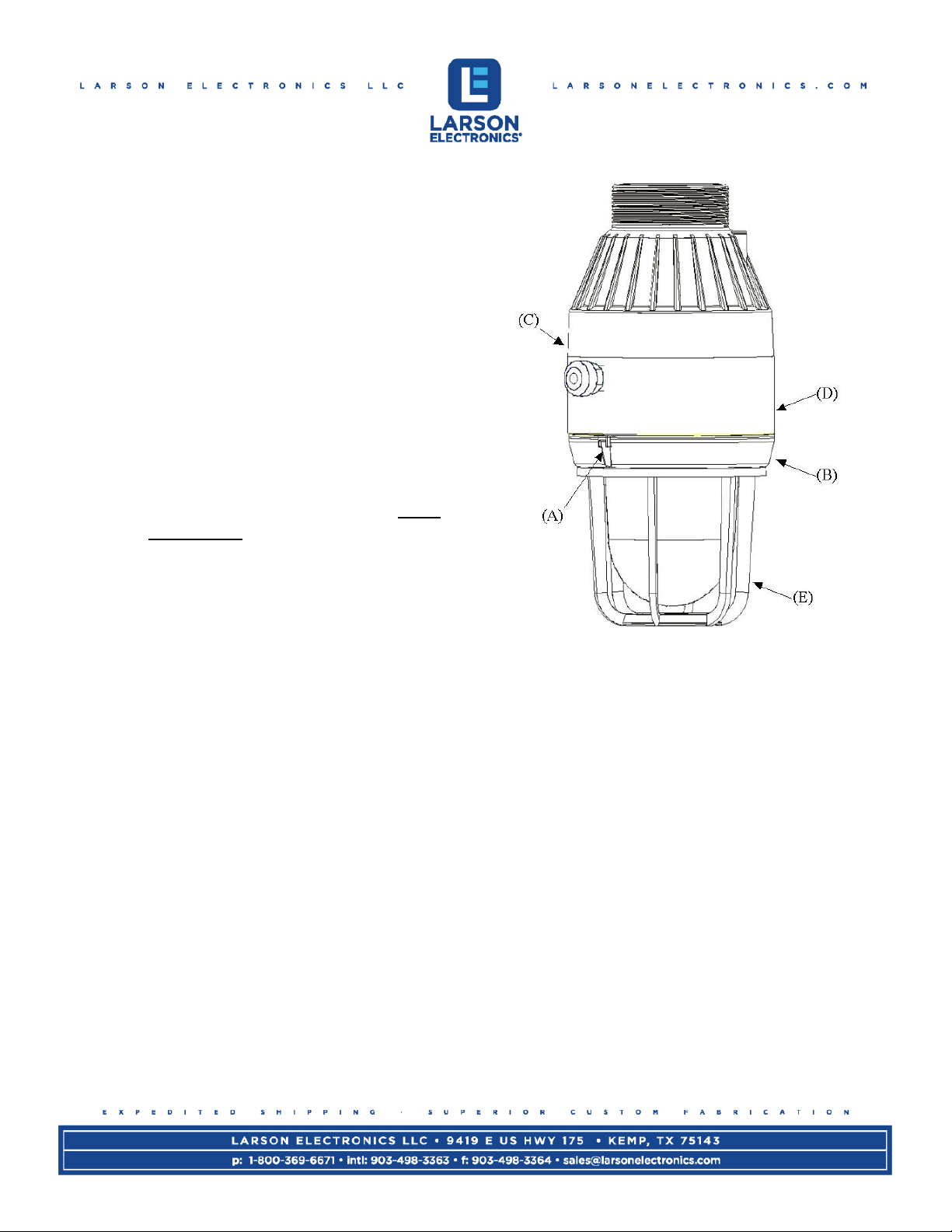

(A) Unscrew and remove the

globe support assembly (B) from

the unit tank (C). Install lamp. Re-

attach globe assembly (B) to unit

tank (C). Attach fixture to the

installed mount. If 277V

application is desired refer to step

CAUTION: During installation or maintenance, care must be taken to avoid

scratching, nicking or chipping the glass globe.

5. Make sure the external threads at the top of the unit tank are free of any dirt,

metal chips or other foreign materials. Apply a thin coat of lubricant to the

threads.

NOTE: Take extreme care not to cross thread the unit when installing into the

mounting accessory. Install the unit by threading into the mounting accessory; the

electrical contacts will automatically

engage. Be sure the unit is threaded tight. Tighten the set screw on the side of the

mounting accessory.

6. Energize unit and verify that proper charging of the fixture is occurring by

observing if the red charging indicator lamp inside of globe area is on.

7. Test emergency lamp operation by pressing PUSH-TO-TEST pushbutton of

test station and observe that the lamp operates.

8. To install optional guard (E) loosen the four screws on the bottom of the globe

support ring, slip the guard over the screws and rotate to the locked position.

Tighten the screws firmly.

NOTE: Emergency ballast must be charged for 36 hrs before running test(s).

MAINTENANCE:

As routine maintenance, this emergency fixture should be checked

periodically to ensure it is working. The following schedule is recommended.

1. Visually inspect the charging indicator light monthly. It must be illuminated.

2. Test operation of the circuit at 30 day intervals for a minimum of 30

seconds. The lamp should operate.

3. Conduct a 90 minute discharge test once a year. The lamp should operate

for 90 minutes.

CAUTION: To reduce the risk of electrical shock, disconnect the AC input and

inverter before servicing.

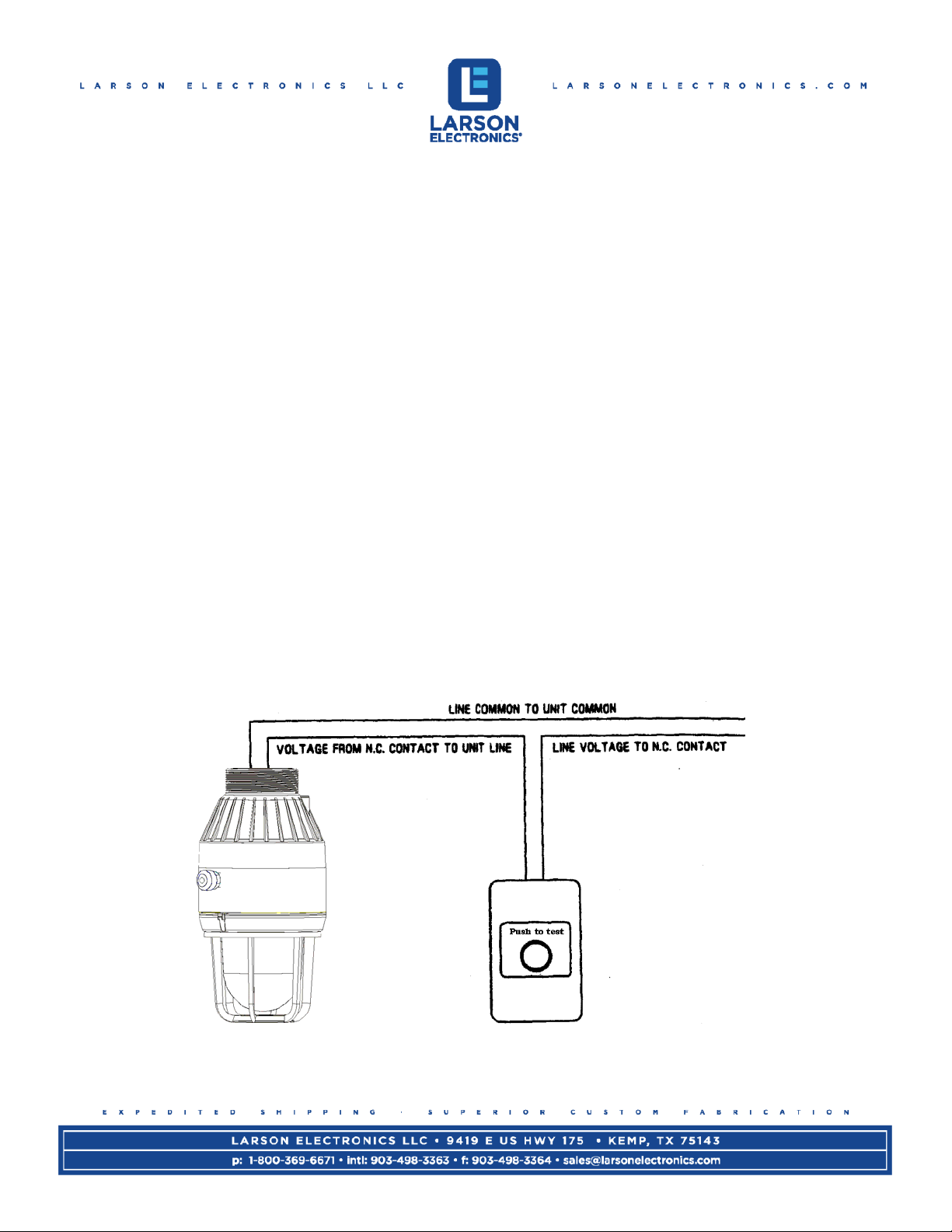

FIG.1
