Foundation 4K UHD Processor OWNER’S REFERENCE

Vanguard Family - Owner's Reference

www.krellonline.com 2

Table of Contents

Getting Started______________________(3)

(DAC) Vanguard Universal DAC:

Front Panel_________________________(5)

Rear Panel Diagram_________________ (6)

Remote Diagram____________________ (7)

(VIA) Vanguard Integrated Ampliﬁer

& Digital Vanguard Integrated

Ampliﬁer (DVI) Front Panel___________ (8)

(VIA) Vanguard Integrated Ampliﬁer

and Digital Vanguard Integrated Ampliﬁer

(DVI) - Rear Panel__________________ (9)

All Vanguards Software Update__________(12)

Spotify Connect App___________________(13)

mconnect Control App__________________(14)

Warranty_____________________________(20)

Service ______________________________(22)

Speciﬁcations_________________________(23)

Krell Contact Information_______________ (25)

*Roon and Spotify are only available on the DVI and DAC versions.

Vanguard Family - Owner's Reference

www.krellonline.com 3

Getting Started

WARNINGS

This product complies with the EMC directive

(89/336/EEC) and the low-voltage directive

(73/23/EEC).This CLASS 1 apparatus must be

connected to anAC MAIN socket outlet with a

protective earthing connection

Thank you for your purchase of a Krell

Vanguard component. The Vanguard Family

includes the Vanguard Universal DAC w/Digital

Preamp Option (DAC), the Digital Vanguard

Integrated Amplier (DVI) and the Vanguard

Integrated Amplier (VIA).

This manual covers all three Vanguard models

and notes differences where appropriate.

The Vanguard Integrated Amplier can be equipped

with or without the Optional Digital Module that is

used in the Vanguard Universal DAC and Digital

Vanguard Integrated Amplifier.

All Vanguard models feature discrete signal paths

from input to output and employ a wide bandwidth

design with low negative feedback for sonic accuracy

throughout the frequency spectrum. All circuits up to

the driver stage operate in pure Class A.

Krell’s surface mount technology (SMT) means that

Vanguard components employ the most sophisticated

circuit designs possible without requiring the typical

space. SMT allows individual circuit elements to be

placed very close together. This shortens signal paths

and allows circuit elements to operate at the same

temperature, resulting in more accurate signal transfer

and enhanced reliability. This combination of sophis-

ticated circuitry and small space makes it possible to

design and manufacture a very high powered 200W

per channel amplier in a small enclosure. The Van-

guard is easy to operate and integrate into your

system. The remote control accesses all functions, and

remote control connection options allow the Vanguard

to be easily connected with other components.

The Theater Throughput (Digital Vanguard

Integrated Amplifier and Vanguard Integrated

Amplier) feature provides easy integration of these

models into a home theater system.

The optional digital module (Vanguard Integrated

Amplier) adds a full range of digital technologies

and connections that are already included in the

Vanguard Universal DAC and Digital Vanguard

Integrated Amplier.

WARNING: Do not place the component where it

could be exposed to dirt or excessive moisture. The

ventilation grids on the top and bottom of the

Vanguard must be unobstructed at all times. Do not

place ammable material on top of or beneath the

unit. When making connections to this or any other

model, make sure all components are off. Turn off all

system power before connecting the Vanguard to any

other component. Make sure all cable and speaker

wire terminations are of the highest quality, free from

frayed ends, short circuits or cold solder joints.

Vanguard Family - Owner's Reference

www.krellonline.com

Unpacking / Placement / AC Power Guidlines

Open the shipping box and remove the top layer of

foam. You will see these items:

1. Vanguard unit and Accessories - Included

A. 1 AC power cord

B. 1 handheld remote control

C. 2 AAA batteries

D. 1 CD w/ owner’s reference

E. 1 warranty registration card

F. 1 trigger cable

G. 1 T-10 Torx Screwdriver

2. Carefully remove all items from the shipping box.

3. Place the preamplier and power supply in a safe

location and remove the protective plastic wrapping.

Place the Vanguard on a rm, level surface, away

from excessive heat, humidity, or moisture. The

Vanguard is a precision instrument and should be

handled with the utmost care when deciding where

it is to be placed and while it is being unpacked and

nally installed. Make sure the installation location

is dry and level, and able to provide adequate ven-

tilation. The Vanguard runs warm to the touch and

requires the bottom and top of the unit be free from

obstruction with good circulation of air. Allow a

minimum of 2 inches (5cm) above the unit for proper

ventilation, and at least one inch (2.54 cm) on each

side. Additional ventilation may be required when

the unit occupies the same space with other electron-

ics that generate heat, like power ampliers. Please

consult an authorized KRELL dealer or KRELL

Industries to insure proper installation guidelines.

The Vanguard is designed to work all over the world.

The operating voltage is determined at the factory and

is specically set to operate in the country of nal

destination. The Vanguard requires good clean power

and doesn’t require additional ltration. A 15 Amp

circuit is recommended for the Vanguard.

Note:

The Vanguard may not operate correctly when AC

regeneration or voltage conversion devices are

utilized, but at a minimum, they must be rated for the

maximum power consumption of the Vanguard.

Note:

Save all packing materials; if you need to ship the

Vanguard in the future, repack the unit in its original

packaging to prevent shipping damage.

Recommended Cleaning Instructions for Krell Products

Clean your Krell product gently, using a high quality

lint-free cloth that has not been treated with chemicals

of any kind.

Please note the following: Do not use cleaning agents

of any kind, such as water, alcohol, or other common

cleaning products.

Thank you.

Vanguard Family - Owner's Reference

www.krellonline.com

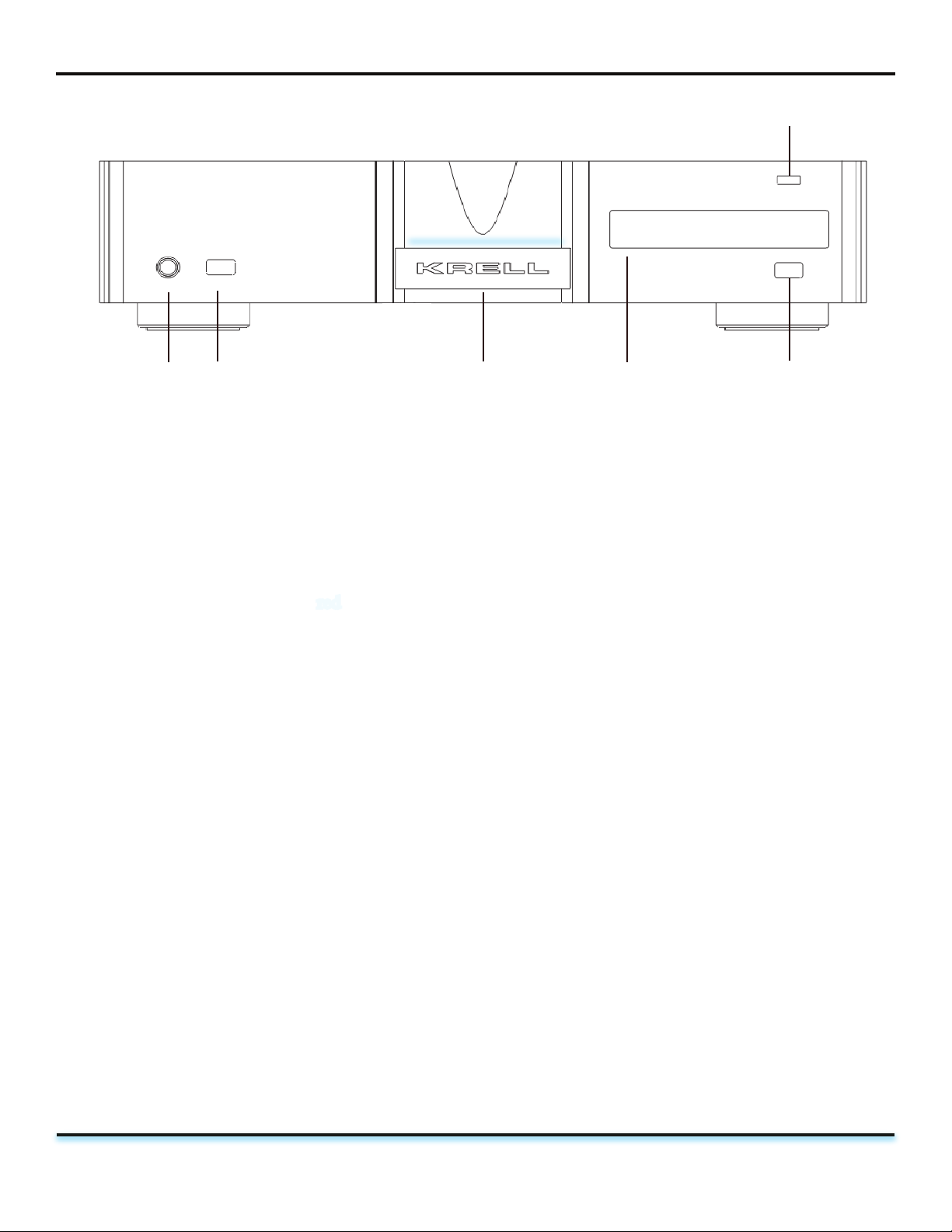

The Vanguard Universal DAC Figure 1 -- Front Panel

uPower

Use this button to switch the Vanguard between

stand-by and operational modes.

vStand-by Indicator

The stand-by indicator illuminates red when the

Vanguard is plugged into a standard AC wall

receptacle and the rear panel power switch is in the

ON position. The indicator illuminates blue when the

Vanguard is in operational mode.

wInfared Sensor

IR receives commands from the remote control. Make

sure this is not obstructed.

xFront Panel Display

The front panel display shows the input selected,

volume, balance, and Theater Throughput status.

yUSB input

For playback of audio les from a USB ashdrive.

(Please see page 14 - mConnect App)

uwvxw

Vanguard Family - Owner's Reference

www.krellonline.com 6

The Vanguard Universal DAC Figure 2 - Rear Panel

 HDMI Inputs and Outputs

The Vanguard is equipped with 2 HDMI Inputs and 1

Output.

Ethernet

The Ethernet port connects the Vanguard to a home

network for control, ﬁrmware updates and network

streaming.

IR In

The Vanguard is equipped with an RC-5 input that

makes custom installation easy and secure by

accepting baseband RC-5 input commands from a

remote IR detector or hard wired remote controllers.

12 VDC In/Out (12 V trigger)

The 12 V Trigger input allows you to place the

Vanguard into the stand-by or operational mode from

other components. The 12 V trigger output allows the

Vanguard to turn other components on or off.

Power Switch

Use this power switch to change the Vanguard from

off to the stand-by mode.

AC Power Cord Receptacle

The connector is for use with the provided IEC stan-

dard 15 amp power cord. This connector and power

cord must remain unobstructed for easy removal in

case of emergency.

BalancedAnalog Outputs

The Vanguard is equipped with one pair of

balanced outputs via XLR connectors.

Single-EndedAnalog Outputs

The Vanguard is equipped with one pair of single-

ended outputs via RCA connectors.

DigitalAudio Inputs

The Vanguard is equipped with one coaxial and

one optical digital input.























Using this disables the front panel IR detector.

Vanguard Family - Owner's Reference

www.krellonline.com 7

Remote Control Buttons have the same function as the

front panel controls, when applicable.

uPower

Use this button to switch the

Vanguard between stand-by and operational modes.

vMute Button

Use this to mute the Vanguard output. To un-mute,

press the mute button again.

wAnalog Input Buttons (VIAand DVI)

Use these buttons to select analog inputs on the

Vanguard.

xDigital Input Buttons (DVI, DAC)

Use these buttons to select digital inputs on the

Vanguard. Note: These buttons are only active when

the optional digital module is installed.

yBAL (Balance) Buttons (VIA,DVI)

Use these buttons to shift the balance to the left or the

right channel. Note: In menu mode, the balance but-

tons are used for left and right navigation.

zThe Enter button

Use the enter button to conrm menu selections.

{Volume Up/Down Buttons

Adjusts volume up and down on VIA, DVI and

DAC with a range of 0-100.

|Menu Button

Use this to access the menu functions of the Vanguard

}CD / DVD Transport Control

Not in use for Vanguard; used to control basic

CD / DVD functions on other Krell products.

Vanguard Integrated Amplifier / Digital Vanguard Integrated Amplifier

Vanguard Universal DAC Figure 3 - Remote Control

Note: The remote comes with two AAA batteries

that have to be installed. Use the supplied Torx

Screwdriver to remove the 4 battery panel Torx

screws (T10) then install the batteries.

}

{

Vanguard Family - Owner's Reference

www.krellonline.com

uPower

Use this button to switch the Vanguard between stand-

by and operational modes.

vVolume/Navigation Up/Down Buttons

Use these buttons to adjust the amplier output level

and navigate through the menu system. The output

level is indicated numerically on the front panel

display, with a range from 0-100.

w Left/Right Navigation Buttons Use these but-

tons to navigate through the menu system.

xEnter Button

Press the enter button or use the enter key to conrm

menu selections.

yMute Button

Use this to mute the Vanguard output. To un-mute,

press the mute button again.

z Menu Button

Use to access the menu functions of the Vanguard.

{Source Button

Use this button to select the source functions of the

Vanguard.

|Stand-by Indicator

The stand-by indicator illuminates red when the Van-

guard is plugged into a standard AC wall receptacle

and the rear panel power switch is in the ON position.

The indicator illuminates blue when the Vanguard is

in operational mode.

}Front Panel Display

The front panel display shows the input selected, vol-

ume, balance, and Theater Throughput status.

~Infrared sensor

Receives commands from the remote control. Make

sure this is not obstructed.

USB input

Only active when optional digital module is installed.

(Please see page 13 - mConnect App)

Vanguard Integrated Ampliﬁer and Digital Vanguard Integrated Ampliﬁer Figure 4 - Front Panel

vw|

{

Vanguard Family - Owner's Reference

www.krellonline.com

Fans

The Vanguard is equipped with two cooling fans. Be

sure to leave them unobstructed for proper ventilation.

Loudspeaker Outputs

The Vanguard is equipped with gold-plated binding

posts for each ampliﬁer channel.

Ethernet

The Ethernet port connects the Vanguard to a home

network for control, ﬁrmware updates and, network

streaming for DVI.

BalancedAnalog Inputs

The Vanguard is equipped with one pair of balanced

(B-1) inputs via XLR connectors.

Single-EndedAnalog Inputs

The Vanguard is equipped with three pairs of single-

ended (S-1, S-2, or S-3 on Remote) inputs via RCA

connectors.

Vanguard Integrated Ampliﬁer and Digital Vanguard Integrated Ampliﬁer Figure 5 - Rear Panel

IR In

The Vanguard is equipped with an RC-5 input that

makes custom installation easy and secure by accept-

ing baseband RC-5 input commands from a remote IR

detector or hard wired remote controllers.

12 VDC In/Out (12 V trigger)

The 12 V Trigger input allows you to place the Van-

guard into the stand - by or operational mode from

other components. The 12 V trigger output allows the

Vanguard to turn other components on or off.

Power Switch and Connector

The connector is for use with the provided IEC stan-

dard 15 amp power cord. This connector and power

cord must remain unobstructed for easy removal in

case of emergency. Use this power switch to change

the Vanguard from off to the stand-by mode.

Digital Connections module (DVI)

The optional digital connections module adds one

coaxial, one optical, two HDMI inputs and one HDMI

output.

(DVI Only)

VIA / DVI

HDMI

Using this disables the front panel IR detector.

Vanguard Family - Owner's Reference

www.krellonline.com

Operating the Vanguard When powering up any sys-

tem, always turn ampliers on last. When powering

down, always turn ampliers off rst.

1. When the amplier is in stand-by mode - with the

red stand-by indicator (2) - turn the amplier on by

pressing the power button on the front panel or the

power key on the remote control (1). There are audi-

ble clicks and the blue power indicator (2) will illumi-

nate. The Vanguard is now in the operational mode.

2. With the amplier in the mute position, or the vol-

ume control fully attenuated (O), select a source (4)

from the front panel or the remote control.

3. Start playing the source.

4. Set the volume to a comfortable listening level

using the up or down keys on the front panel or the

level keys on the remote control (3).

5. To turn the amplier off, press the power button on

the front panel or the power key on the remote control

(1). The red stand-by indicator (2) illuminates. It is

now safe to turn off the rest of the system.

Vanguard Integrated Ampliﬁer/Digital Vanguard Integrated Ampliﬁer - Operating the Vanguard

Menu Options (from Remote or Front Panel)

The Vanguard menu system offers a number of

options and information. Main selections include:

• Source Setup

• Network Setup

• Diagnostic Mode

• Software Version

• Software Update

• Display Setup

• Restore Settings

• Save Settings

• Serial Number

Press the Vanguard's Menu button (7), then use the

navigation buttons or keys to highlight one of the

menu options. Press the Enter button or key to select.

Source Setup

Press the Enter button and use the Up or Down but-

tons to highlight the desired parameter to edit. Press

the Enter button to select. Assign Names: The rst

input is displayed. Press the Up or Down buttons to

select a different source.

To edit the currently displayed source, press the Enter

button and the cursor will begin ashing at the rst

character eld. Use the Up or Down buttons to change

the character. Use the Right or Left buttons to move

the blinking cursor to another character and repeat the

editing procedure. Press Enter to conrm changes.

Press the Up or Down buttons to select a different

source and repeat the editing process. The edited

name will appear when the Source button is pressed

on the remote or front panel. The new source name

{

•Operation Mode

Tabla de contenidos

Otros manuales de Amplificador de Krell Industries

Krell Industries

Krell Industries Evolution Two Manual de usuario

Krell Industries

Krell Industries S-275 Manual de usuario

Krell Industries

Krell Industries Evolution 400 Guía de inicio rápido

Krell Industries

Krell Industries KAV-300IL Manual de usuario

Krell Industries

Krell Industries PAM-3 Manual de usuario

Krell Industries

Krell Industries Foundation 4K Guía de inicio rápido

Krell Industries

Krell Industries KAV-400xi Manual de usuario

Krell Industries

Krell Industries PHANTOM II Guía de inicio rápido

Krell Industries

Krell Industries EVOLUTION TWO MONAURAL PREAMPLIFIER Guía de inicio rápido

Krell Industries

Krell Industries S-1200 Guía de inicio rápido

Krell Industries

Krell Industries KCT Manual de usuario

Krell Industries

Krell Industries EVOLUTION 222 Guía de inicio rápido

Krell Industries

Krell Industries Preamplifier KRS-IA Manual de usuario

Krell Industries

Krell Industries Power Amplifier KAV-150a Guía de inicio rápido

Krell Industries

Krell Industries kSL-2 Guía de inicio rápido

Krell Industries

Krell Industries EVOLUTION 222 Manual de usuario

Krell Industries

Krell Industries KAV-500i Manual de usuario

Krell Industries

Krell Industries Audio + Video Standard Surround... Guía de inicio rápido

Krell Industries

Krell Industries Amplifier KAV-250a Guía de inicio rápido

Krell Industries

Krell Industries Preamplifier KAV-250p Guía de inicio rápido

Krell Industries

Krell Industries 350Mcx Manual de usuario

Krell Industries

Krell Industries 300 Manual de usuario

Krell Industries

Krell Industries Evolution 402 Manual de usuario

Krell Industries

Krell Industries PAM-7 Manual de usuario

Manuales populares de Amplificador de otras marcas

ASTRO

ASTRO HVO V40 P Manual de usuario

Marantz

Marantz SUPERSCOPE BLA-545 Instrucciones de montaje

NAD

NAD CI980 Manual de usuario

Technics

Technics SE-CH770 Manual de usuario

Harman Kardon

Harman Kardon HK6300 Manual de usuario

NAD

NAD T975 Manual de usuario

McIntosh

McIntosh MA6850 Manual de usuario

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manual de usuario

Viatron

Viatron Autrix Manual de usuario

GME

GME GA9800 Manual de usuario

Atlas

Atlas CP700 Manual de usuario

Roland

Roland KC-1000 Manual de usuario

Pyle

Pyle PFMRA350BW Manual de usuario

Advantage

Advantage S-250 Manual de usuario

IRT Electronics

IRT Electronics DVA-3007 Manual de usuario

Dimavery

Dimavery BA-100 Series Manual de usuario

Sony

Sony XM-S400D Manual de usuario

Schertler

Schertler ROY X Manual de usuario
