Kramer VS-21HDCP-IR Manual de usuario

KRAMER ELECTRONICS LTD.

USER MANUAL

MODEL:

VS-21HDCP-IR

2x1 DVI Switcher

P/N: 2900-000556 Rev 5

VS-21HDCP-IR – Contents

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 3

2.3 Recycling Kramer Products 3

3Overview 4

3.1 Defining the VS-21HDCP-IR 2x1 DVI Switcher 4

4Connecting the VS-21HDCP-IR 6

4.1 Controlling the VS-21HDCP-IR via RS-232 7

4.2 Using the Remote Control Transmitter 8

4.3 Controlling via the Remote Terminal Block Connector 8

5Acquiring an EDID 9

6Technical Specifications 10

6.1 Default Communication Parameters 10

7Protocol 2000 11

7.1 Syntax 11

7.2 Instruction Codes 12

8Protocol 3000 Syntax 13

8.1 Host Message Format 13

8.2 Device Message Format 13

8.3 Command Terms 14

8.4 Entering Commands 15

8.5 Bidirectional Definition 15

8.6 Command Forms 15

8.7 Command Chaining 15

8.8 Maximum String Length 16

8.9 Backward Support 16

8.10 Commands 16

Figures

Figure 1: VS-21HDCP-IR 2x1 DVI Switcher 5

Figure 2: Connecting the VS-21HDCP-IR 2x1 DVI Switcher 7

Figure 3: Connecting the REMOTE Input Select Connector 8

VS-21HDCP-IR - Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront video, audio, presentation, and broadcasting professionals

on a daily basis. In recent years, we have redesigned and upgraded most of our

line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:

Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:

Sierra Products.

Congratulations on purchasing your Kramer VS-21HDCP-IR 2x1 DVI Switcher,

which is ideal for the following typical applications:

Presentation graphics selection and routing

VS-21HDCP-IR - Getting Started

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Go to http://www.kramerelectronics.com to check for up-to-date

user manuals, application programs, and to check if firmware

upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

Use only good quality connection cables (we recommend Kramer high-

performance, high-resolution cables) to avoid interference, deterioration in

signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

Do not secure the cables in tight bundles or roll the slack into tight coils

Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

Position your Kramer VS-21HDCP-IR away from moisture, excessive sunlight

and dust

This equipment is to be used only inside a building. It may only be

connected to other equipment that is installed inside a building.

VS-21HDCP-IR - Getting Started

2.2 Safety Instructions

Caution:

There are no operator serviceable parts inside the unit

Warning:

Use only the Kramer Electronics input power wall

adapter that is provided with the unit

Warning:

Disconnect the power and unplug the unit from the wall

before installing

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

VS-21HDCP-IR - Overview

3 Overview

The high quality Kramer VS-21HDCP-IR is an HDCP (High-Bandwidth Digital

Content Protection) compatible 2x1 DVI Switcher that accepts two DVI inputs—

letting you select either DVI input using a pushbutton located on the front panel—

and routes the selected DVI input signal to the DVI output.

DVI-D (Digital). Note that only the digital signal (DVI-D) is available on the DVI connector.

The VS-21HDCP-IR features:

A maximum data rate of 6.75Gbps (2.25Gbps per graphic channel)

HDCP compliance

HDTV compatibility

HDMI Support for Compressed Audio Channels

EDID PassThru that passes EDID signals between the source and display

Flexible control options that include front panel buttons, RS−232, IR remote

control, remote contact closure

Compact MultiTOOLS® size where three units can be rack mounted

side−by−side in a 1U rack space with the optional RK−13 universal rack

adapter

3.1 Defining the VS-21HDCP-IR 2x1 DVI Switcher

This section defines the VS-21HDCP-IR.

VS-21HDCP-IR - Overview

Figure 1: VS-21HDCP-IR 2x1 DVI Switcher

Feature

Function

INPUT 1 DVI Connector

Connect to the DVI source 1

INPUT 2 DVI Connector

Connect to the DVI source 2

OUTPUT DVI Connector

Connect to the DVI acceptor

RS-232 9-pin D-sub

Connector

Connects to the PC or Serial Controller

No Null-modem adapter/Connector is required

REMOTE Terminal Block

Connectors

Connect to a contact closure switch (see Section 4.3)

5V DC

+5V DC connector for powering the unit

Remote IR Receiver Window

and LED

Receives signals from the infrared remote control

transmitter and the yellow LED lights when receiving

signals from the infrared remote control transmitter

ON LED (Green)

Lights when receiving power

IN 1 LED (Green)

Lights when input 1 is selected

IN 2 LED (Green)

Lights when input 2 is selected

OUT LED (Green)

Lights when the output is connected

SELECT Switch

Press to toggle between selecting input 1 and input 2

VS-21HDCP-IR - Connecting the VS-21HDCP-IR

4 Connecting the VS-21HDCP-IR

Always switch off the power to each device before connecting it to your

VS-21HDCP-IR. After connecting your VS-21HDCP-IR, connect its

power and then switch on the power to each device.

To connect the VS-21HDCP-IR as illustrated in the example in Figure 2:

1. Connect up to two DVI sources to the INPUT connectors, as follows:

INPUT 1 connector to DVI source 1 (for example, a computer)

INPUT 2 connector to DVIsource 2 (for example, a set top box)

2. Connect the OUTPUT connector to the DVI acceptor (for example, a DVI

display).

3. Connect the 5V DC power adapter to the power socket and connect the

adapter to the mains electricity (not illustrated in Figure 2).

4. If required, connect a PC or controller to the RS-232 port (see Section 4.1).

5. Press the SELECT button to choose which DVI input to route to the output.

The SELECT button toggles between INPUT 1 and INPUT 2, lighting the IN

1 LED when INPUT 1 is selected, or the IN 2 LED when IN 2 is selected.

Alternatively you can press key 1 or 2 on the remote transmitter, once setup (see

Section 4.2), or use the contact closure remote control pins (see Section 4.3) or use

RS-232.

VS-21HDCP-IR - Connecting the VS-21HDCP-IR

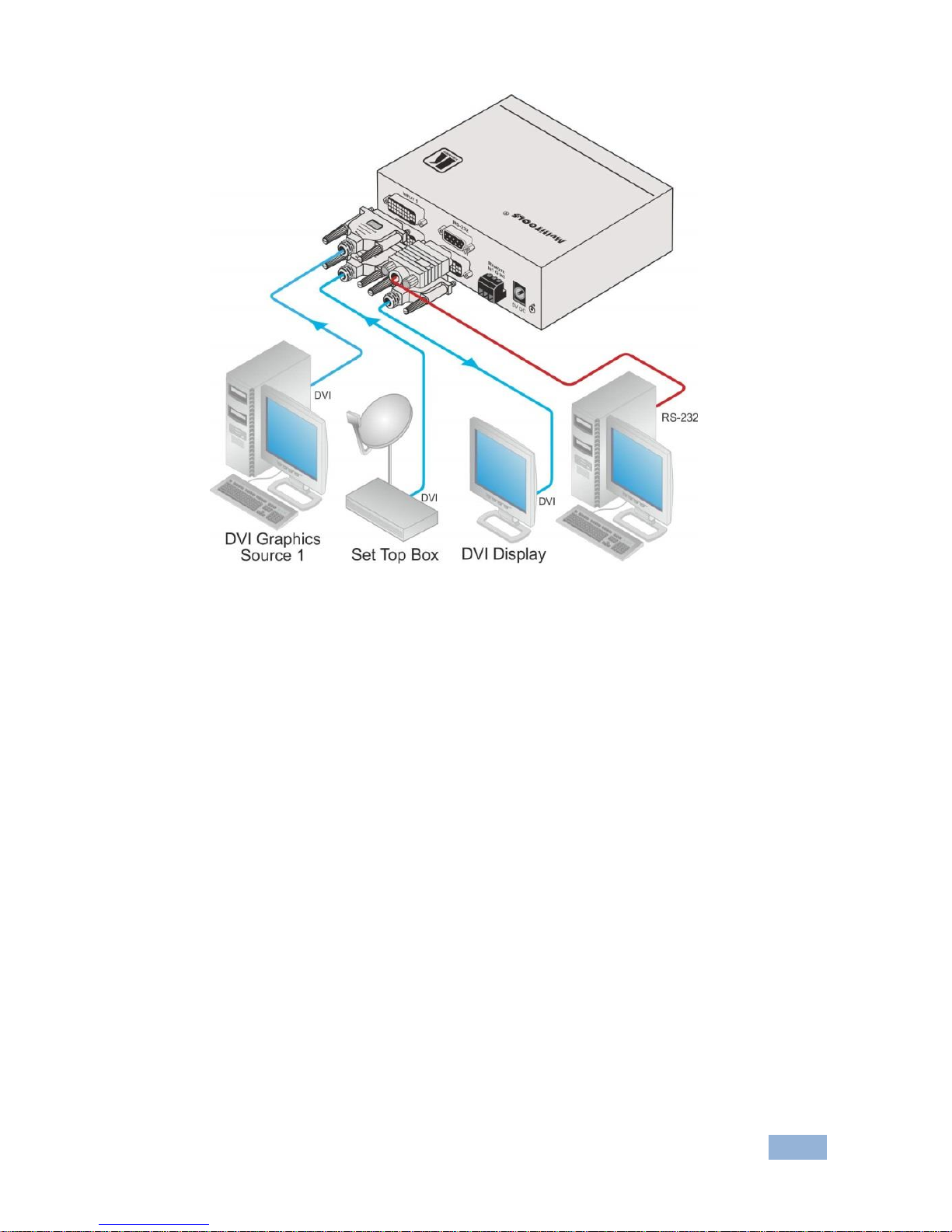

Figure 2: Connecting the VS-21HDCP-IR 2x1 DVI Switcher

4.1 Controlling via RS-232

You can connect to the VS-21HDCP-IR via an RS-232 connection using, for

example, a PC. Note that a null-modem adapter/connection is not required.

To connect to the VS-21HDCP-IR via RS-232:

Connect the RS-232 9-pin D-sub rear panel port on the VS-21HDCP-IR unit

via a 9-wire straight cable (only pin 2 to pin 2, pin 3 to pin 3, and pin 5 to pin

5 need to be connected) to the RS-232 9-pin D-sub port on your PC
