VP-550X Quick Start

P/N:

2900- 301381QS

Rev:

Scan for full manual

VP-550X Quick Start Guide

This guide helps you install and use your VP-550X for the first time.

Go to www.kramerav.com/downloads/VP-550X to download the latest user manual and check if firmware

upgrades are available.

Step 1: Check what’s in the box

VP-550X 4K Presentation Switcher/Scaler

1 Set of rack ears

4 Rubber feet

Remote control transmitter with batteries

1 Power cord

1 Quick start guide

2 Cable straps

Step 2: Get to know your VP-550X

Feature

Function

IR Receiver

Receives signals from the remote-control transmitter.

IR LED

Lights when the unit accepts IR remote commands.

Input Selector

Buttons

USB-C

Press to select a USB-C source.

HDMI

Press to select the HDMI input (from HDMI 1 to HDMI 7).

VGA

Press to select the computer graphics input.

Press to select the composite video input.

FREEZE Button

Press to freeze/unfreeze the output video image.

Not applicable when in video bypass mode.

MUTE Button

Press to toggle between muting (blocking out the sound) and enabling the audio output (both

line and speakers).

Muting the audio is not applicable when in audio bypass mode.

MENU Button

Press to enter/exit the on-screen display (OSD) menu.

Navigation

Buttons



Press to decrease numerical values or select from several definitions.

When not within the OSD menu mode, press to decrease the output volume.



Press to move up the menu list.



Press to increase numerical values or select from several definitions.

When not within the OSD menu mode, press to increase the output volume.



Press to move down the menu list.

Enter

Press to accept changes and change the SETUP parameters.

RESET TO XGA/1080p

Button

Press and hold for about 5 seconds to toggle resetting the video resolution to XGA or 1080p.

PANEL LOCK Button

Press and hold for about 5 seconds to lock/unlock the front panel buttons (panel locking

options are configurable).

Feature

Function

HDMI INPUT Connectors

Connect to an HDMI source (from 1 to 7).

You can connect Step-in devices to inputs 1 and 2.

VGA 15-pin HD Connector

Connect to a computer graphics source.

CV IN RCA Connector

Connect to a composite video source.

USB-C IN Connector

Connect to a USB-C port, charging up to 18W.

48V MIC Switch

Move up (ON) to select a condenser type microphone; down (OFF) to select

a dynamic-type microphone.

MIC 3-pin Terminal Block Connector

Connect to a microphone source.

AUX 3-pin Terminal Block Connector

Connect to an auxiliary source.

VGA 3-pin Terminal Block Connector

(audio signal related to VGA IN)

Connect to the analog audio associated with the computer graphics source.

CV 3-pin Terminal Block Connector

(audio signal related to CV IN)

Connect to the analog audio associated with the composite video source.

HDMI OUT Connectors

Connect to HDMI acceptors (from 1 to 2).

CTRL IN 3-pin Terminal Block Connector

Connect to a PC or remote controller to control VP-550X via RS-232 Protocol

commands.

LINE OUT Balanced Stereo 5-pin Terminal

Block Connector

Connect to a balanced stereo analog audio acceptor.

CTRL OUT 3-pin Terminal Block

Connectors

Connect to an acceptor (for example, a display) to control it via RS-232

Protocol 3000 commands.

ETHERNET Connector

Connects to the PC or other Serial Controller through computer networking.

Mains Socket

Connect the mains power cord.

Mains Fuse Holder

Fuse for protecting the device.

Power Switch

Switch for turning the unit ON or OFF.

Step 3: Mount VP-550X

To rack mount the machine, attach both rack

ears (by removing the screws from each side of

the machine and replacing those screws through

the rack ears) or place the machine on a table.

•Ensure that the environment (e.g., maximum ambient

temperature & air flow) is compatible for the device.

•Avoid uneven mechanical loading.

•Appropriate consideration of equipment nameplate ratings

should be used for avoiding overloading of the circuits.

•Reliable earthing of rack-mounted equipment should be

maintained.

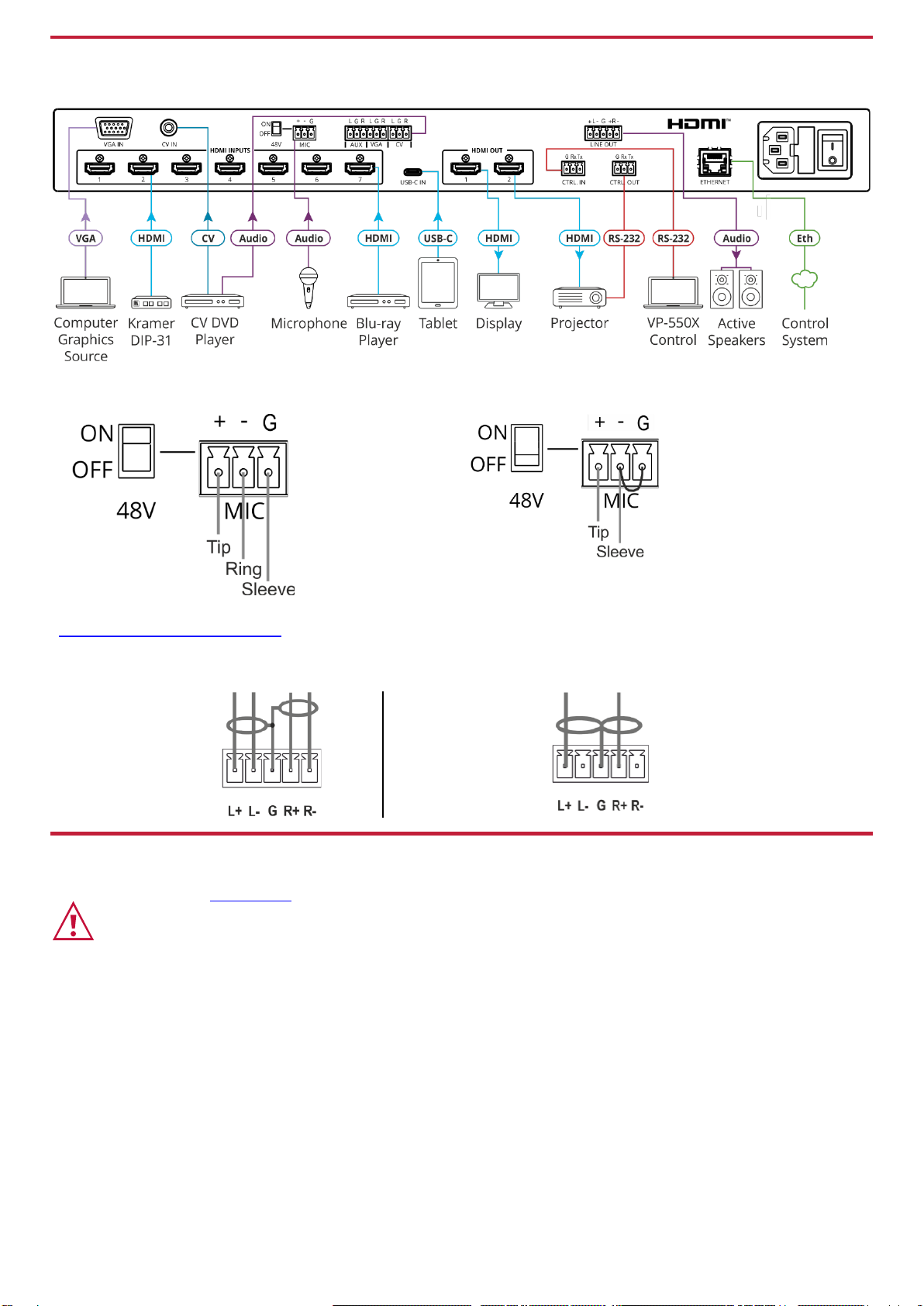

Step 4: Connect inputs and outputs

Always switch OFF the power on each device before connecting it to your VP-550X.

Condenser Microphone Pinout

Dynamic Microphone Pinout

For optimum range and performance use the recommended Kramer cables available at

www.kramerav.com/product/VP-550X.

Connecting the audio output

To a balanced stereo

audio acceptor:

To an unbalanced stereo

audio acceptor:

Step 5: Connect power

Connect the power cord to VP-550X and plug it into the mains electricity.

Safety Instructions (See www.kramerav.com for updated safety information)

Caution:

•For products with relay terminals and GPI\O ports, please refer to the permitted rating for an external connection, located next to the terminal or in the User Manual.

•There are no operator serviceable parts inside the unit.

Warning:

•Use only the power cord that is supplied with the unit.

•Disconnect the power and unplug the unit from the wall before installing.

•Do not open the unit. High voltages can cause electrical shock! Servicing by qualified personnel only.

•To ensure continuous risk protection, replace fuses only according to the rating specified on the product label which located on the bottom of the unit.

Step 6: Operate VP-550X

Operate VP-550X:

•Remotely, by RS-232 serial

commands transmitted by a touch

screen system, PC, or other serial

controller.

•Using the embedded webpages

via the Ethernet

•Remotely, using the IR remote

control transmitter.

•Via the front panel buttons.

RS-232 Control / Protocol 3000

Baud Rate:

115,200

Parity:

None

Data Bits:

Command Format:

ASCII

Stop Bits:

Example: (route input HDMI 2 to the outputs): #ROUTE1,1,2<CR>

Default Ethernet Parameters

IP Address:

192.168.1.39

UDP Port #:

50000

Subnet mask:

255.255.0.0

TCP Port #:

5000

Gateway:

192.168.0.1

Authentication

User/Password

Admin/Admin

•Via the OSD menu buttons using the front panel navigation buttons.

OSD Menu Item

Function


Set the Contrast brightness and color.

For VGA: adjust the phase, clock horizontal and vertical

position.

For video: adjust the hue, sharpness, and noise reduction.

Input

Select the input.

Output

Define image size.

Enable or disable bypass mode.

Select the output resolution.

Audio

Set the input volume for each input individually.

Set the output volume.

Set delay time.

Enable or disable DRC and loudness.

Mute/unmute the output audio.

Set the audio source for each input to analog or embedded, or

select automatically.

Define microphone settings: mic mode, depth, trigger, attack

time, hold time, and release time.

Adjust mic volume.

Adjust equalizer level per bandwidth.

Enable/bypass DSP.

OSD

Define OSD position, timeout timer, transparency, and display.

EDID Manage

For each input, acquire the EDID from a selected output or use

a default EDID value.

Advanced

Define Ethernet parameters.

Set HDCP modes.

AUTO sync off option.

Define auto switch mode.

Set Lock mode behavior.

Enable/disable daily reset.

View device lifetime.

Info.

View the input and output information, and firmware version.

Factory

Perform full factory reset.

Perform soft reset, excluding Ethernet parameters.

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
