Kramer VS-88DTP Manual de usuario

KRAMER ELECTRONICS LTD.

USER MANUAL

MODEL:

VS-88DTP

8x8 DVI - Twisted Pair Matrix

Switcher

P/N: 2900-000749 Rev 2

VS-88DTP – Contents i

Contents

1Introduction 1

2Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 2

2.3 Recycling Kramer Products 3

3Overview 4

3.1 Defining the VS-88DTP 8x8 DVI - Twisted Pair Matrix Switcher 5

3.2 Using the IR Transmitter 8

4Installing the VS-88DTP in a Rack 9

5Connecting the VS-88DTP 10

5.1 Connecting to the VS-88DTP via RS-232 11

5.2 Connecting a PC or Controller to the RS-485 Port 12

5.3 Connecting the VS-88DTP via Ethernet 15

6Operating the VS-88DTP 18

6.1 Routing Inputs to Outputs 18

6.2 Disconnecting Outputs 18

6.3 Storing and Recalling Setups in Presets 19

6.4 Switching Between Protocol 2000 and Protocol 3000 19

6.5 Acquiring the EDID 20

6.6 Locking and Unlocking the Front Panel Buttons 22

6.7 Control Configuration via the Ethernet Port 22

7Controlling the VS-88DTP Remotely via Ethernet 23

7.1 Connecting to the VS-88DTP via your Browser 23

7.2 The Main Switching Matrix Page 26

7.3 The Configuration Page 31

8Technical Specifications 33

9Default Communication Parameters 34

10 Default EDID 35

11 Updating the VS-88DTP Firmware 37

12 Table of ASCII Codes for Serial Communication (Protocol 3000) 38

13 Hex Codes for Serial Communication (Protocol 2000) 39

14 Kramer Protocol 40

14.1 Switching Protocols 40

14.2 Kramer Protocol 3000 40

14.3 Kramer Protocol 2000 47

ii VS-88DTP - Introduction

Figures

Figure 1: VS-88DTP 8x8 DVI - Twisted Pair Matrix Switcher Front Panel 6

Figure 2: VS-88DTP 8x8 DVI - Twisted Pair Matrix Switcher Rear Panel 7

Figure 3: Connecting the VS-88DTP 8x8 DVI - Twisted Pair Matrix Switcher 11

Figure 4: RS-485 DIP-switches 13

Figure 5: RS-485 Termination DIP-switch 14

Figure 6: Control of Multiple VS-88DTP Devices via RS-232 and RS-485 15

Figure 7: Local Area Connection Properties Window 16

Figure 8: Internet Protocol (TCP/IP) Properties Window 16

Figure 9: Preset Number Assignments using the Selector Buttons 19

Figure 10: Java Test Page Success Message 23

Figure 11: Entering the IP Number in the Address Bar 24

Figure 12: The Loading Page 24

Figure 13: First Time Security Warning 25

Figure 14: Main Switching Matrix Page 26

Figure 15: Selecting a Switching Point on the Matrix 27

Figure 16: Switching in the Offline Mode 28

Figure 17: Selecting Preset 07 29

Figure 18: Selecting Preset 03 30

Figure 19: Recalling a Preset in Offline Mode 30

Figure 20: Configuration Page 31

VS-88DTP - Introduction 1

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront the video, audio, presentation, and broadcasting

professional on a daily basis. In recent years, we have redesigned and upgraded

most of our line, making the best even better!

Our 1,000-plus different models now appear in 11 groups that are clearly defined

by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;

GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:

Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:

Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:

Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11:

Sierra Products.

Congratulations on purchasing your Kramer VS-88DTP 8x8 DVI - Twisted Pair

Matrix Switcher, which is ideal for the following typical applications:

•Conference room presentations

•Advertising

•Rental and staging

2 VS-88DTP - Getting Started

2 Getting Started

We recommend that you:

•Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

•Review the contents of this user manual

•Use Kramer high performance high resolution cables

Go to http://www.kramerelectronics.com to check for up-to-date

user manuals, application programs, and to check if firmware

upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

•Use only good quality connection cables to avoid interference, deterioration

in signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

•Do not secure the cables in tight bundles or roll the slack into tight coils

•Avoid interference from neighboring electrical appliances that may adversely

influence signal quality

•Position your Kramer VS-88DTP away from moisture, excessive sunlight and

dust

2.2 Safety Instructions

Caution: There are no operator-serviceable parts inside the unit

Warning: You use only the power cord that is supplied with the

unit. Do not open the unit. High voltages can cause

electrical shock! Servicing by qualified personnel only.

Warning: Disconnect the power and unplug the unit from the wall

before installing

VS-88DTP - Getting Started 3

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC

aims to reduce the amount of WEEE sent for disposal to landfill or incineration by

requiring it to be collected and recycled. To comply with the WEEE Directive,

Kramer Electronics has made arrangements with the European Advanced

Recycling Network (EARN) and will cover any costs of treatment, recycling and

recovery of waste Kramer Electronics branded equipment on arrival at the EARN

facility. For details of Kramer’s recycling arrangements in your particular country

go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

4 VS-88DTP - Overview

3 Overview

The VS−88DTP is a high−performance matrix switcher for DVI signals. The unit

accepts up to eight DVI inputs, reclocks and equalizes the signals, and routes to

any or all DGKat™ twisted pair outputs simultaneously for connection to

compatible TP receivers, for example, the PT-572HDCP+ or TP-574.

More specifically, the VS-88DTP features:

•A maximum data rate of 4.95Gbps (1.65Gbps per graphic channel)

•8 DVI-D inputs on DVI-I connectors

•8 DGKat twisted pair outputs on RJ-45 connectors

•HDTV compatibility (no HDCP compliance)

•DGKat™ Signal Integration that converts TMDS as well as control and

communication to signals that run over twisted pair cables. Kramer strongly

recommends using Kramer DGKat™ cables designed specifically for

optimum performance

•Kramer Equalization & re-Klocking™ Technology that rebuilds the digital

signal integrity to travel longer distances

•I-EDIDPro™ Kramer Intelligent EDID Processing™, an intelligent EDID

handling & processing algorithm that ensures Plug and Play operation for

DVI systems

•A system range of up to 30m (98ft) at 1080p on shielded BC-DGKat524

cable; up to 70m (230ft) at 1080p on shielded BC-DGKat623 cable; up to

90m (295ft) at 1080p on shielded BC-DGKat7a23 cable

•Flexible control options including: front panel, IR remote (included), RS-232

(K-Router™ Windows®-based software is included), RS-485, Ethernet

(Windows®-based Ethernet Configuration Manager & Virtual Serial Port

Manager included)

•Output disconnect for each output

•Front panel lockout to prevent tampering with the front panel buttons

•16 memory locations that store multiple switches as presets to be recalled

and executed when needed

VS-88DTP - Overview 5

•A worldwide power supply of 100-240V AC

•A standard 19” rack mount size of 1U with included rack “ears”

Note: The VS-88DTP requires STP (shielded twisted pair) cable. For optimum

range and performance, use Kramer's BC-DGKat524, BC-DGKat623 or

BC-DGKat7a23 cables. The transmission range depends on the signal resolution,

graphics card and display used. The distance using non-Kramer CAT 5, CAT 6,

and CAT 7 cables may not reach these ranges. Use only shielded cable where

both ends of the shield are soldered to ground.

3.1 Defining the VS-88DTP 8x8 DVI - Twisted Pair Matrix

Switcher

This section defines the VS-88DTP.

VS-88DTP - Overview

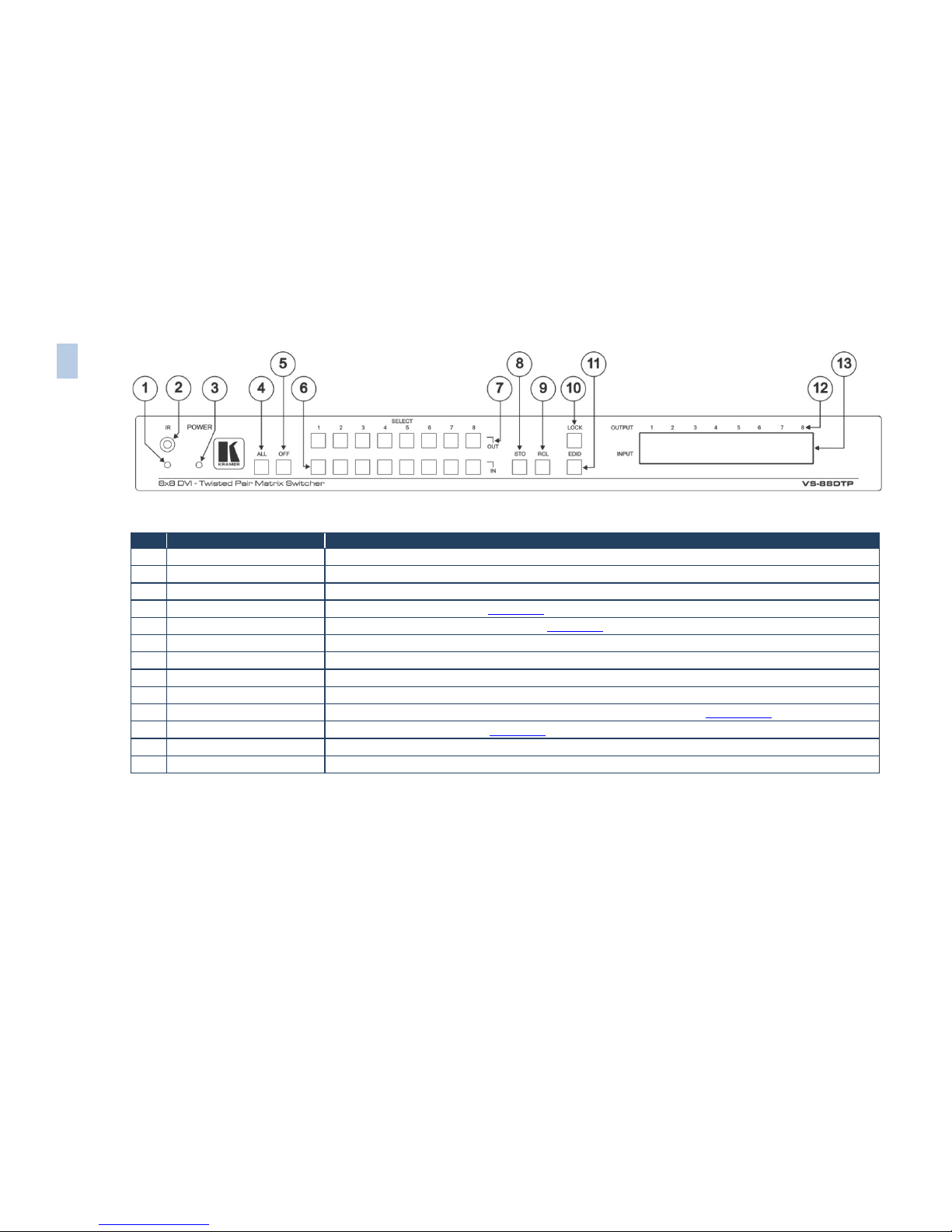

Figure 1: VS-88DTP 8x8 DVI - Twisted Pair Matrix Switcher Front Panel

# Feature Function

1 IR LED Lights yellow when receiving a signal from an IR remote control

2 IR Sensor IR remote control signal receiver

3 POWER LED Lights green when the device is powered on

4 ALL Button Press to select all outputs (see Section 6.1

)

OFF Button Press to disconnect one or all outputs (see Section 6.2

)

SELECT IN Buttons Press to select an input (1 to 8) following the selection of an output

7 SELECT OUT Buttons Press to select an output (1 to 8) followed by the selection of an input

8 STO Button Press to store a matrix configuration

9 RCL Button Press to recall a matrix configuration

10 LOCK Button Press and hold to toggle locking and unlocking the front panel buttons (see Section 7.2.4

)

EDID Button Press to acquire the EDID (see Section 6.5

) (lights when configuring the EDID)

OUTPUT Numbers Indicates the relevant output to which an input (1 to 8, shown on the 7-segment display) is currently switched

13 7-segment Display Displays the selected video input switched to the output (marked above each input)

6VS-88DTP – Overview
