Kramer VS-88A Manual de usuario

Kramer Electronics, Ltd.

USER MANUAL

Models:

VS-88A,

8x8Balanced Audio Matrix Switcher

VS-88V,

8x8Video Matrix Switcher

SD-7588V,

8x8SDI Matrix Switcher

Contents

Introduction 1

Getting Started 1

2.1

Quick Start 2

Overview 3

Your Matrix Switchers 3

4.1

Your VS-88A 8 x 8 Balanced Audio Matrix Switcher 4

4.2

Your VS-88V 8x8 Video Matrix Switcher 7

4.3

Your SD-7588V 8x8 SDI Matrix Switcher 10

Installing in a Rack 13

Connecting Your 88 Series Matrix Switchers 14

6.1

Connecting a VS-88A 15

6.2

Connecting a VS-88V 16

6.3

Connecting an SD-5788V 17

6.4

Connecting the Stereo Audio Input/Output 18

6.5

Connecting Several Units and the PC 18

6.6

Connecting a Component, Y/C, RGBS or RGBHV Switcher 19

Operation 20

7.1

Understanding Modes 20

7.1.1

System Modes 21

7.1.2

Confirmation Modes 21

7.2

Setup Information 22

7.2.1

Setting DIP-Switches 22

7.2.2

Setup Capacity 23

7.2.3

Switching the Power On 23

7.2.4

Timeout and Priority 23

7.3

Using the Pushbutton Controls 23

7.3.1

Storing a Setting 23

7.3.2

Recalling a Setting 24

7.3.3

Locking and Unlocking Settings 24

Technical Specifications 24

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Contents

Figures

Figure 1: VS-88A 8x8 Balanced Audio Matrix Switcher 5

Figure 2: VS-88V 8x8 Video Matrix Switcher 8

Figure 3: SD-7588V 8x8 SDI Matrix Switcher 11

Figure 4: Connecting the VS-88A 15

Figure 5: Connecting the VS-88V 16

Figure 6: Connecting the SD-5788V 17

Figure 7: Connecting a Balanced Stereo Audio Input and Output 18

Figure 8: Connecting an Unbalanced Stereo Audio Input 18

Figure 9: Connecting an Unbalanced Stereo Audio Output 18

Figure 10: System Connection: Switchers and the PC 19

Figure 11: Component Switcher: VS-88V Group Connection 20

Figure 12: Rear Panel DIP-switches 22

Tables

Table 1: VS-88A 8x8 Balanced Audio Matrix Switcher Features 6

Table 2: VS-88V 8x8 Video Matrix Switcher Features 9

Table 3: SD-7588V 8x8 SDI Matrix Switcher Features 12

Table 4: Rear Panel DIP-switches 22

Table 5: Machine # DIP-switch Settings 22

Table 6: Push Button Sequence Summary 24

Table 7: Technical Specifications for the VS-88A 25

Table 8: Technical Specifications for the VS-88V 25

Table 9: Technical Specifications for the SD-7588V 25

Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast

range of problems that confront the video, audio, presentation, and

broadcasting professional on a daily basis. In recent years, we have

redesigned and upgraded most of our line, making the best even better! Our

1,000-plus different models now appear in 11 groups

that are clearly

defined by function.

Thank you for purchasing your Kramer 88 Series switcher: VS-88A,

VS-88V, and/or SD-7588V. These products are ideal for:

Broadcast studios for on-air switching and signal routing

Production studios, for connecting various sources to acceptors

Non-linear editing suites and presentation applications

Each switcher package also includes the following items:

Power cord

Windows

-based Kramer control software

This user manual

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and

packaging materials for possible future shipment

Review the contents of this user manual

Use Kramer high-performance high-resolution cables

1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems;

GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;

GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity;

GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products

2 We recommend that you use only the power cord supplied with this device

3 Downloadable from our Web site at http://www.kramerelectronics.com

4 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com

5 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Getting Started

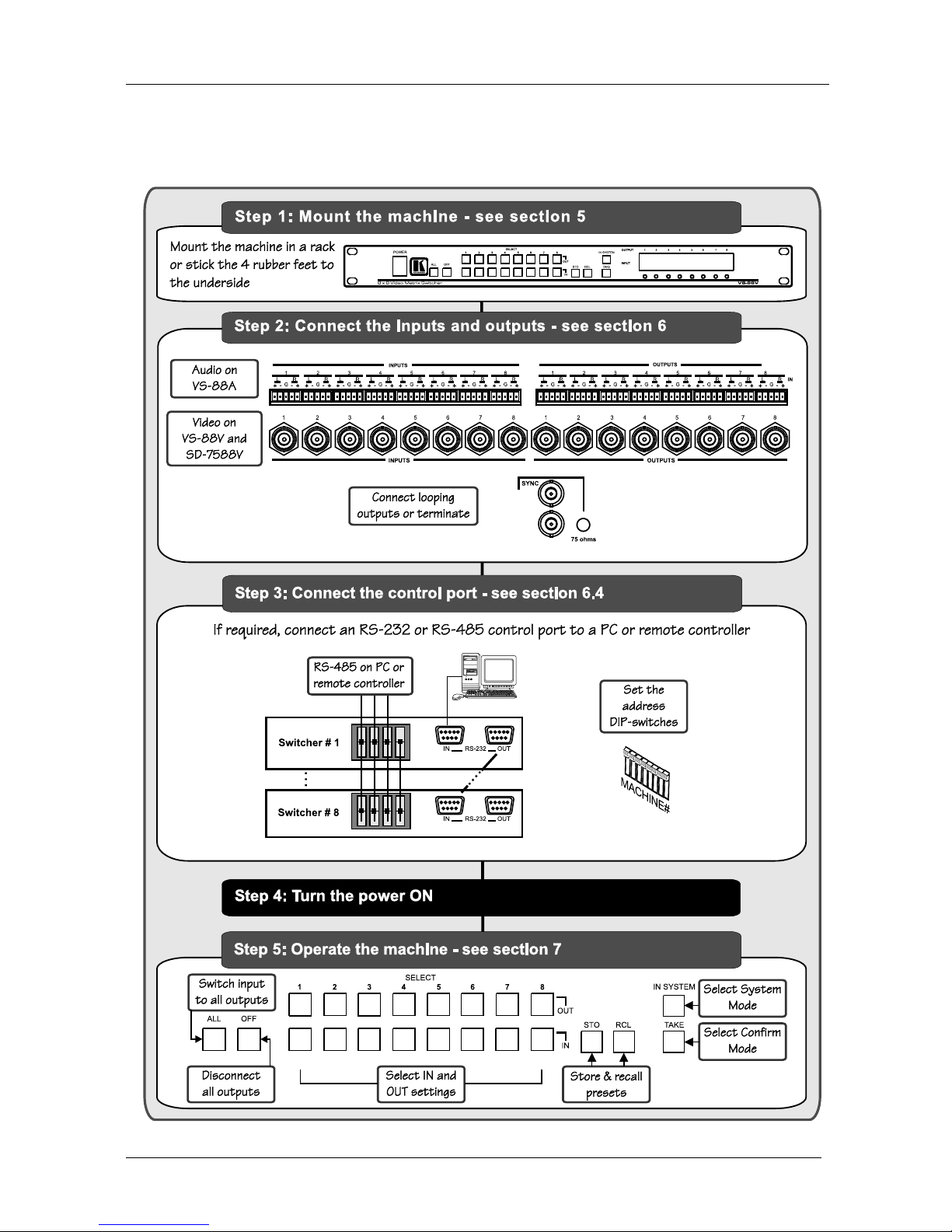

2.1 Quick Start

This quick start chart summarizes the basic setup and operation steps.

Overview

3 Overview

The 88 Series is a group of 8x8 vertical interval matrix switchers for

video/stereo audio/data signals that support the simultaneous connection of

one or more inputs to several outputs

The major innovation with the 88 Series is the ability to switch different

kinds of signals simultaneously. Vertical interval switching ensures an

undisturbed picture transition. Switching is implemented according to the

SMPTE RP-168 standard, when using synchronized SDI sources.

The 88 Series includes the following items:

VS-88A 8 x 8 Balanced Audio Matrix Switcher

VS-88V 8 x 8 Video Matrix Switcher

SD-7588V 8 x 8 SDI Matrix Switcher

To achieve the best performance:

Use only good quality connection cables

to avoid interference,

deterioration in signal quality due to poor matching, and elevated

noise levels (often associated with low quality cables).

Avoid interference from neighboring electrical appliances that

may adversely influence signal quality and position your Kramer

products away from moisture, excessive sunlight and dust

4 Your Matrix Switchers

This section describes the products

in the 88 Series range that can function

separately

or switch together in the same manner in the In System mode

1 However, you cannot connect two or more inputs to a single output

2 Available from Kramer Electronics on our Web site at http://www.kramerelectronics.com

3 Switchers in the 88 Series share identical front panel controls. The VS-88V and SD-7588V have rear panel BNC

connectors. The VS-88A has rear panel detachable terminal block connectors

4 Standalone

5 Section 7.1 describes the different modes

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your Matrix Switchers

4.1 Your VS-88A 8 x 8 Balanced Audio Matrix Switcher

The VS-88A is a high-performance 8x8 stereo audio matrix switcher for

balanced audio stereo signals using detachable terminal block connectors. In

addition, the VS-88A:

Is a true matrix switcher, enabling the user to simultaneously route

any input to any or all outputs

Delivers excellent audio performance ensuring that it remains

transparent in almost any audio application

Is controllable via the front panel buttons as well as the built-in

RS-232 and RS-485 interfaces

Includes 15 preset memory locations for quickly and easily

accessing the most frequently used configurations

Functions as a standalone unit as well as part of a Kramer multi-

signal switcher system

Figure 1 and Table 1 define the VS-88A:

1 Which includes digital and analog video, digital and analog audio and RS-422 control switchers. When integrated in a

system, it switches together with the video during the vertical interval, thus supporting true IN SYSTEM mode

Your Matrix Switchers

Figure 1: VS-88A 8x8 Balanced Audio Matrix Switcher

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your Matrix Switchers

Table 1: VS-88A 8x8 Balanced Audio Matrix Switcher Features

# Feature Function

1 POWER Switch Illuminated switch supplying power to the unit

2 ALL Button Pressing ALL before pressing an IN button, connects that input to all outputs

3 OFF Button Pressing OFF after pressing an OUT button disconnects that output from the

inputs. To turn off the connections, press the ALL button and then the OFF

button

4 OUT Select the output to which the input is switched (from 1 to 8)

SELECT

Buttons IN Select the input to switch to the output (from 1 to 8)

5 STO Button Pressing STO (Store) followed by an output button stores the current setting

(see section 7.3.1)

6 RCL Button Pressing the RCL (Recall) button and the corresponding OUT key recalls a

setup. Press the RCL button again to implement the new status (see section

7.3.2)

7 IN SYSTEM Button Pressing IN SYSTEM twice

, switches between the Standalone mode (in which

the switcher implements any action independently from the others) and the In

System mode (in which all switchers implement the same action simultaneously)

8 TAKE Button

(TAKE = CONFIRM)

Pressing TAKE toggles the mode between the CONFIRM mode

and the AT

ONCE mode (user confirmation per action is unnecessary)

9 OUTPUT labels Identifies a connection between the output and the input shown below it

INPUT Status Display Displays the selected input switched to the output (marked above each input)

10 INPUT Terminal Block

Connectors Connect to balanced stereo audio sources (from 1 to 8)

11 OUTPUT Terminal

Block Connectors Connect to balanced stereo audio acceptors (from 1 to 8)

12 MACHINE # DIP-switches setup (see section 7.2.1)

13 RS-485 Connector RS-485 detachable terminal block port. Pins # 1 to # 3 are for RS 485 and pin #

4 is for vertical sync distribution

14 Power Connector with

Fuse AC connector enabling power supply to the unit

15 RS-232 OUT 9-pin

D-sub Connector Connects to the RS-232 IN 9-pin D-sub port of the next unit in the daisy-chain

connection

16 RS-232 IN 9-pin

D-sub Connector Connects to PC

1 For example, press ALL and then Input button # 2 to connect input # 2 to all the outputs

2 For example, press STO and then the Output button # 3 to store in Setup # 3

3 After pressing IN SYSTEM once, it blinks

4 When in Confirm mode, the TAKE button illuminates

5 The 88 Series RS-485 connector has 4 pins, and the Remote Controller RS-485 connector has just 3 pins

6 If the unit is the final unit in the daisy-chain connection, no termination is required

Your Matrix Switchers

4.2 Your VS-88V 8x8 Video Matrix Switcher

The VS-88V is a high-performance 8x8 Video Matrix Switcher for

composite video signals. In addition, the VS-88V:

Is a true matrix switcher, enabling the user to simultaneously route

any input to any or all outputs

Supports more than 200MHz video bandwidth

Switches during the vertical interval

Accepts analog video as the external source for its vertical interval

trigger

Is controllable via the front panel buttons as well as the built-in

RS-232 and RS-485 interfaces

Includes 15 preset memory locations for quickly and easily

accessing the most frequently used configurations

Functions as a standalone unit as well as part of a Kramer multi-

signal switcher system

Can be combined as part of a group of VS-88V switchers that

comprise a component switcher

Figure 2 and Table 2 define the VS-88V:

1 Transitions are glitch-free when sources share a common reference sync

2 Which includes digital and analog video, digital and analog audio, and RS-422 control switchers. When integrated into a

system, it can provide the rest of switchers with the vertical interval trigger

3 See section 6.6 and Figure 11

Otros manuales para VS-88A

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Conmutador de matriz de Kramer

Kramer

Kramer VP-8x4AK Manual de usuario

Kramer

Kramer VS-88UHD Manual de usuario

Kramer

Kramer Cobra MX-88 Manual de usuario

Kramer

Kramer VS-88DVI Manual de usuario

Kramer

Kramer Sierra Video 3216SXL Manual de usuario

Kramer

Kramer VS-84HDCPxl Manual de usuario

Kramer

Kramer VP-725DS Manual de usuario

Kramer

Kramer Sierra Pro XL 1208V5S Manual de usuario

Kramer

Kramer VP-2x2 Manual de usuario

Kramer

Kramer VP-4x4 Manual de usuario

Kramer

Kramer SD-7308 Manual de usuario

Kramer

Kramer VS-88HN Manual de usuario

Kramer

Kramer XL 1616V4 Manual de usuario

Kramer

Kramer VS-1602xl Manual de usuario

Kramer

Kramer VS-88UHD Manual de usuario

Kramer

Kramer Sierra Video 3264V5Sxl Manual de usuario

Kramer

Kramer VS-44HN Manual de usuario

Kramer

Kramer VP-1608 Manual de usuario

Kramer

Kramer VS-44HDXI Manual de usuario

Kramer

Kramer VS-3232V Manual de usuario

Kramer

Kramer LASSEN XL 3232S Manual de usuario

Kramer

Kramer Sierra Video 1616V5S Manual de usuario

Kramer

Kramer XL 3232VS Manual de usuario

Kramer

Kramer VS-88H2A Manual de usuario

Manuales populares de Conmutador de matriz de otras marcas

Broadcast Tools

Broadcast Tools SS 8.2 Manual de usuario

Altimium

Altimium MATF32 Manual de usuario

ALFAtron

ALFAtron ALF-MUK44N Manual de usuario

Monoprice

Monoprice Blackbird 15377 Manual de usuario

PTN

PTN FMX12 Manual de usuario

CYP

CYP nT15GX01 Manual de usuario

TESmart

TESmart HMA0402A40 Manual de usuario

Octava

Octava HD4XSTPMX Manual de usuario

Intelix

Intelix FLX-88 Instrucciones de funcionamiento

Roland

Roland XS-1HD Manual de usuario

Atlona

Atlona AT-HDMI-22M Manual de usuario

Link

Link HD8X8 Manual de usuario

AMX

AMX AVS-OP-2020-117 Instrucciones y recetas

Lindy

Lindy 38042 Manual de usuario

Extron electronics

Extron electronics MTPX Plus Series Manual de usuario

Key Digital

Key Digital Champion KD-16x16CS Manual de usuario

Shinybow USA

Shinybow USA SB-8811 Manual de usuario

Optimus

Optimus Compact Manual de usuario
