USER MANUAL

Model:

VP-4x4

4x4 VGA/XGA Audio Matrix Switcher

Contents

Introduction 1

Getting Started 1

Overview 2

Your VGA/XGA Audio Matrix Switcher 2

4.1

Connecting the VP-4x4 5

4.1.1

Connecting a PC 5

4.1.2

Connecting a Phoenix Terminal Block Cable 6

4.1.3

Dipswitch Settings 6

Operating Your Audio Matrix Switcher 7

5.1

Displaying Unit Characteristics 7

5.2

Choosing the Audio-Follow-Video or Breakaway Option 8

5.2.1

Setting the Audio-Follow-Video Option 8

5.2.2

Setting the Breakaway Option 8

5.3

Switching OUT-IN Combinations 8

5.4

Confirming Settings 9

5.4.1

Toggling between the AT ONCE and CONFIRM Modes 9

5.4.2

Confirming a Switching Action 10

5.5

Storing/Recalling Input/Output Configurations 10

5.5.1

Storing an Input/Output Configuration 11

5.5.2

Recalling an Input/Output Configuration 11

5.5.3

Deleting an Input/Output Configuration 11

5.6

Locking the Front Panel 12

Technical Specifications 12

Figures

Figure 1: VP-4x4 VGA/XGA Audio Matrix Switcher 3

Figure 2: Connecting a PC without using a Null-modem Adapter 5

Figure 3: VP-4x4 Connections 6

Figure 4: VP-4x4 Unit Characteristics 7

Figure 5: SELECTOR Buttons 11

Tables

Table 1: Front Panel VP-4x4 VGA/XGA Audio Matrix Switcher Features 4

Table 2: Rear Panel VP-4x4 VGA/XGA Audio Matrix Switcher Features 4

Table 3: Rear Panel Dipswitches 7

Table 4: Technical Specifications of the VP-4x4 VGA/XGA Audio Matrix Switcher 12

Introduction

1 Introduction

Dedication by Kramer Electronics since 1981, to the development and

manufacture of high quality video/audio equipment, makes the Kramer line

an integral part of the finest production and presentation facilities in the

world. In recent years, Kramer has redesigned and upgraded most of the line,

making the best even better!

The Kramer line of professional video/audio electronics is one of the most

versatile and complete available, and is a true leader in terms of quality,

workmanship, price/performance ratio and innovation. In addition to our high

quality industrial and broadcast switchers and matrix switchers, we also offer

excellent amplifiers, remote controllers, processors, interfaces and computer-

related products. Congratulations on purchasing your Kramer VP-4x4

VGA/XGA Audio Matrix Switcher.

This product is ideal for the following typical applications:

 Professional display systems requiring true 4x4 matrix operation

 Multimedia and presentation source and acceptor selection

 Remote monitoring of computer activity in schools and businesses

 Rental/staging applications

The package includes the following items:

 VP-4x4 VGA/XGA Audio Matrix Switcher

 Power cord

 Windows 95/98/NT

Kramer control software

 Null-modem adapter

 This user manual

 Kramer concise product catalog/CD

2 Getting Started

We recommend that you:

 Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

 Review the contents of this user manual

Overview

KRAMER ELECTRONICS, LTD.

3 Overview

The VP-4x4 is a true 4x4 matrix switcher for VGA / XGA signals and stereo

balanced audio signals. The VP-4x4 enables the user to simultaneously route

any or all of the 4 inputs to any or all of the 4 outputs.

In addition the VP-4x4 includes:

 Video bandwidth of 440 MHz that ensures transparent VGA / XGA

performance

 Easy-to-connect detachable terminal block connectors on which the audio

signals reside

 DC coupled inputs and outputs

 Audio-follow-video and breakaway options

 Storing and recalling setup options

 “Take” button for precise switch control

 “Lock” button to prevent tampering with the front panel

 The ability to control via the front panel buttons, or remotely by RS-485

or RS-232 serial commands transmitted by a touch screen system, PC, or other

serial controller

To achieve the best performance:

 Connect only good quality connection cables, thus avoiding interference,

deterioration in signal quality due to poor matching, and elevated noise levels

(often associated with low quality cables)

 Avoid interference from neighboring electrical appliances that may

adversely influence signal quality

 Position your Kramer VP-4x4 in a location free from moisture and away

from excessive sunlight and dust

4 Your VGA/XGA Audio Matrix Switcher

Figure 1 illustrates the front and rear panels of the VP-4x4. Tables 1 and 2

define the front and rear panels of the VP-4x4, respectively.

Your VGA/XGA Audio Matrix Switcher

Figure 1: VP-4x4 VGA/XGA Audio Matrix Switcher

Your VGA/XGA Audio Matrix Switcher

KRAMER ELECTRONICS, LTD.

Table 1: Front Panel VP-4x4 VGA/XGA Audio Matrix Switcher Features

# Feature Function

1 Power Switch Illuminated switch supplying power to the unit

2 SELECTOR IN

Buttons

Select the input to switch to the output

3 SELECTOR OUT

Buttons

Select the output to which the input is switched

}

The SELECTOR IN and OUT

buttons also store/recall the

input/output configurations

4 ALL Button Pressing ALL before pressing an INPUT button, connects that input to all outputs

5 OFF Button Pressing OFF after pressing an OUTPUT button disconnects that output from the

inputs. To disconnect all the outputs, press the ALL button and then the OFF button

6 Video STATUS

OUT labels

Identifies a cross point between each video output to which the video input

displayed below it is connected

7 Audio STATUS

OUT labels

Identifies a cross point between each audio output to which the audio input

displayed below it is connected

8 Audio IN STATUS

7-segment Display

Displays the selected audio input switched

to the output (marked above each input)

Also displays the firmware version

number and the MACHINE #

9 Video IN STATUS

7-segment Display

Displays the selected video input switched to

the output (marked above each input)

Also displays the number of IN and

OUT ports

VID Button Affects video (the default)

AFV Button Affects audio-follow-video

AUD Button Affects audio

STO Button Pressing STO (STORE) followed by an output button stores the current setting

RCL Button Pressing the RCL (RECALL) button and the corresponding OUTPUT key recalls a

setup. The stored status blinks. Pressing a different OUTPUT button lets you view

another setup. After making your choice, pressing the RCL button again

implements the new status

TAKE Button Pressing TAKE toggles the mode between the CONFIRM mode

and the AT

ONCE mode (user confirmation per action is unnecessary)

LOCK Button Disengages the front panel switches

Table 2: Rear Panel VP-4x4 VGA/XGA Audio Matrix Switcher Features

# Feature Function

1 Audio INPUTS Phoenix Connectors Audio inputs

2 Audio OUTPUTS Phoenix Connectors Audio outputs

3 RS-485 Connector RS-485 Phoenix detachable terminal block port

4 RS-232 Connector DB 9F connector connects to PC or Remote Controller

5 MACHINE # Dipswitches setup

6 Power Connector with Fuse AC connector enabling power supply to the unit

7 VGA/XGA Video OUTPUTS Connects to the VGA/XGA video outputs (1 to 4)

8 VGA/XGA Video INPUTS Connects to the VGA/XGA video inputs (1 to 4)

1 Refer to section 5.5

2 For example, press ALL and then Input button # 2 to connect input # 2 to all the outputs

3 Refer to section 5.1

4 Refer to section 5.1

5 For example, press STO and then the Output button # 3 to store in Setup # 3

6 Only view, nothing is implemented at this stage

7 When in Confirm mode, the TAKE button illuminates

Your VGA/XGA Audio Matrix Switcher

4.1 Connecting the VP-4x4

To connect the VP-4x4, connect the following

to the rear panel ports:

 Power cord

 VGA / XGA video input and output cables

 Audio input and output cables

 A PC via the null-modem adapter (when using the Kramer Control

software or other controller) if control via RS-232 is required

 RS-485 Phoenix terminal block cable if control via RS-485 is required

In addition, set the dipswitches as section 4.1.3 describes.

4.1.1 Connecting a PC

To connect a PC to the VP-4x4, without using a Null-modem adapter:

 Connect the RS-232 DB9 port on your PC to the RS-232 DB9 rear panel

port on the Master VP-4x4 unit, as Figure 2 illustrates (depending on whether

the PC has a 9-pin or 25-pin connector)

Figure 2: Connecting a PC without using a Null-modem Adapter

To connect a PC to the VP-4x4, using a Null-modem adapter:

 Connect the RS-232 DB9 rear panel port on the Master VP-4x4 unit to

the Null-modem adapter and connect the Null-modem adapter with a 9 wire

flat cable to the RS-232 DB9 port on your PC, as Figure 3 illustrates

1 Switch OFF the power on each device before connecting it to your VP-4x4. After connecting your VP-4x4, switch on its

power and then switch on the power on each device

Your VGA/XGA Audio Matrix Switcher

KRAMER ELECTRONICS, LTD.

4.1.2 Connecting a Phoenix Terminal Block Cable

Connect a Phoenix terminal block cable connector to the RS-485 port on each

VP-4x4 unit in the series

, as Figure 3 illustrates.

Figure 3: VP-4x4 Connections

4.1.3 Dipswitch Settings

The VP-4x4 includes a set of 4 dipswitches, as Figure 3 illustrates above.

You configure each VP-4x4 unit by setting the dipswitches as follows:

 Pull a dipswitch DOWN to set it to ON

 Pull a dipswitch UP to set it to OFF

 Set dipswitch 4 to ON for the first and last units only

(otherwise set

dipswitch 4 to OFF)

1 You can connect up to 8 units

2 Acts as a terminator

Operating Your Audio Matrix Switcher

 Set dipswitches 1, 2 and 3 according to Table 3:

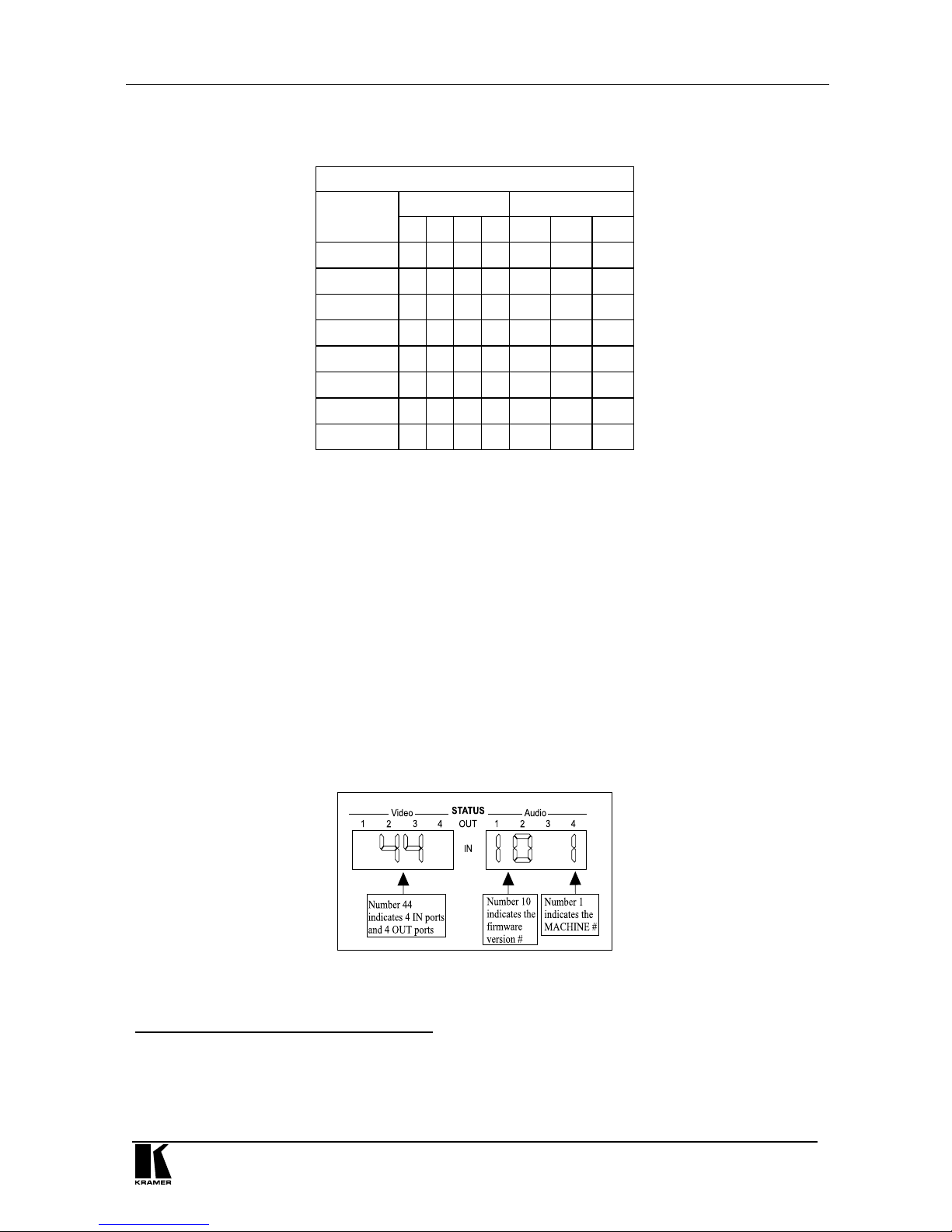

Table 3: Rear Panel Dipswitches

Dipswitch Settings

Self Address Dipswitch

Machine #

3 2 1 0 1 2 3

Master

0 0 0 0 OFF

OFF

2 0 0 0 1 OFF

OFF

3 0 0 1 0 OFF

ON OFF

4 0 0 1 1 OFF

ON ON

5 0 1 0 0 ON OFF

OFF

6 0 1 0 1 ON OFF

7 0 1 1 0 ON ON OFF

8 0 1 1 1 ON ON ON

5 Operating Your Audio Matrix Switcher

Operate your VP-4x4 via:

 The front panel buttons

 RS-232 serial commands transmitted by a touch screen system, PC

, or

other serial controller

5.1 Displaying Unit Characteristics

Clarify the following VP-4x4 unit characteristics, as Figure 4 illustrates:

 The number of IN and OUT ports

 The firmware version number and the MACHINE #

Figure 4: VP-4x4 Unit Characteristics

1 For instructions on using the Windows 95/98/NT

Control Software, refer to the separate user manual (included on the

CD-ROM in .pdf format), Kramer Control Software

2 Via the Video IN STATUS 7-segment

display as item 9 in Figure 1 illustrates

3 Via the Audio IN STATUS 7-segment

display as item 8 in Figure 1 illustrates

Operating Your Audio Matrix Switcher

KRAMER ELECTRONICS, LTD.

VP-4x4 unit characteristics display in the following circumstances:

 Immediately (and automatically) after switching on the power; and

 When simultaneously pressing the 3 SELECTOR IN buttons

1, 2 and 3,

for 3 seconds

5.2 Choosing the Audio-Follow-Video or Breakaway Option

You can switch stereo audio signals in one of 2 ways, either:

 Audio-follow-video (AFV), in which all operations and status indicators

relate to both the video and the audio channels

; or

 Breakaway, in which video and audio channels switch independently

5.2.1 Setting the Audio-Follow-Video Option

To set the Audio-follow-video (AFV) option:

1. Press the AFV button.

The AFV button illuminates. The audio will follow the video.

2. If the audio configuration differs from the video configuration, both the

Audio IN STATUS 7-segment displays and the AUD button will blink

and require reconfiguring for AFV operation.

3. Press the TAKE button to confirm the modification (reconfiguring the

audio according to the video).

5.2.2 Setting the Breakaway Option

To set the Breakaway option:

1. Press either the AUD (for audio control only) or the VID (for video

control only) button.

2. If the AUD button illuminates all switching operations relate to the Audio

section.

3. If the VID button illuminates all switching operations relate to the Video

section.

5.3 Switching OUT-IN Combinations

To switch a video/audio input to a video/audio output, do the following:

Item 2 in Figure 1

2 Audio and video connections are the same

3 Warning that changes are about to occur in the audio section

Otros manuales para VP-4x4

Tabla de contenidos

Otros manuales de Conmutador de matriz de Kramer

Kramer

Kramer VS-88DT Manual de usuario

Kramer

Kramer VP-8x8 Manual de usuario

Kramer

Kramer VS-88H2A Manual de usuario

Kramer

Kramer VP-16x18AK Manual de usuario

Kramer

Kramer XL 1608V2S Manual de usuario

Kramer

Kramer Sierra Video 1616V3S Manual de usuario

Kramer

Kramer VP-32K Manual de usuario

Kramer

Kramer XL 1608V4S Manual de usuario

Kramer

Kramer Sierra Video 6432V5xl Manual de usuario

Kramer

Kramer VS-44H2A Manual de usuario

Kramer

Kramer XL 1616VS Manual de usuario

Kramer

Kramer VS-6464DN-EM Manual de usuario

Kramer

Kramer MTX3-88-SE Manual de usuario

Kramer

Kramer VS-48HN Manual de usuario

Kramer

Kramer Sierra Video 1204V5S Manual de usuario

Kramer

Kramer VS-42UHD Manual de usuario

Kramer

Kramer 88V5 Manual de usuario

Kramer

Kramer Cobra MX-1616 Manual de usuario

Kramer

Kramer VP-81SID Manual de usuario

Kramer

Kramer VP-4x4K Manual de usuario

Kramer

Kramer VS-44H2 Manual de usuario

Kramer

Kramer VP-26 Manual de usuario

Kramer

Kramer BC/VS-2216 Manual de usuario

Kramer

Kramer VS-1616DN-EM Manual de usuario

Manuales populares de Conmutador de matriz de otras marcas

Broadcast Tools

Broadcast Tools SS 8.2 Manual de usuario

Altimium

Altimium MATF32 Manual de usuario

ALFAtron

ALFAtron ALF-MUK44N Manual de usuario

Monoprice

Monoprice Blackbird 15377 Manual de usuario

PTN

PTN FMX12 Manual de usuario

CYP

CYP nT15GX01 Manual de usuario

TESmart

TESmart HMA0402A40 Manual de usuario

Octava

Octava HD4XSTPMX Manual de usuario

Intelix

Intelix FLX-88 Instrucciones de funcionamiento

Roland

Roland XS-1HD Manual de usuario

Atlona

Atlona AT-HDMI-22M Manual de usuario

Link

Link HD8X8 Manual de usuario

AMX

AMX AVS-OP-2020-117 Instrucciones y recetas

Lindy

Lindy 38042 Manual de usuario

Extron electronics

Extron electronics MTPX Plus Series Manual de usuario

Key Digital

Key Digital Champion KD-16x16CS Manual de usuario

Shinybow USA

Shinybow USA SB-8811 Manual de usuario

Optimus

Optimus Compact Manual de usuario
