Installation Guide

Six-Port Thermostatic Valve

Mproduct numbers are for Mexico (i.e. K-12345M)

Los números de productos seguidos de Mcorresponden a México

(Ej. K-12345M)

Français, page “Français-1”

Español, página “Español-1”

K-682

1043183-2-B

IMPORTANT INSTRUCTIONS

WARNING: When using electrical products, basic precautions should always be followed, including

the following:

DANGER: Risk of electric shock. Connect only to circuits protected by a Ground-Fault

Circuit-Interrupter (GFCI) or Earth-Leakage Circuit Breaker (ELCB). Grounding is required. The unit

should be installed and grounded by a qualiﬁed service representative.

WARNING: Risk of electric shock. A licensed electrician should route all electrical wiring.

WARNING: Risk of electric shock. Disconnect power before servicing.

WARNING: Unauthorized modiﬁcation may cause poor performance of the valve. Do not make

modiﬁcations to the valve as this could adversely affect the performance of the valve and void the

warranty. Kohler Co. shall not be liable under its warranty or otherwise for personal injury or damage

caused by any such unauthorized modiﬁcation.

WARNING: Risk of injury or property damage. Please read all instructions thoroughly before

beginning installation.

NOTICE: Follow all plumbing, electrical, and building codes.

NOTICE: Provide generous, unrestricted service access to the valve. Provide access for servicing the

valve and interface. This access must be located immediately next to the valve. Refer to the roughing in

information.

Speciﬁcations

Pressures

Maximum Static Pressure 125 psi, 862 kPa, 8.6 bar

Supply Pressure Differential* Max 5 psi, 34.5 kPa, 0.34 bar (Equal pressures recommended.)

Minimum Flow Rate 1.6 gpm (Less than 72 psi dynamic pressure.)

6 lpm (Less than 500 kPa maintaining pressure.)

2.1 gpm (Greater than 72 psi dynamic pressure.)

8 lpm (Greater than 500 kPa maintaining pressure.)

Temperatures

Programmable Temperature Max 120°F (49°C) Min 79°F (26°C) Full cold may also be selected.

Default Temperature at Start-up 102°F (39°C)

Minimum Mixed Temperature

Differential from Hot Supply 3.6°F (2°C)

Optimum Thermostatic Control Range 86°F (30°C) to 120°F (49°C)

Temperature Stability at Recommended

Supply Conditions +/- 1.6°F (1°C)

Ambient Temperature Greater than 34°F (1°C), Max 104°F (40°C)

Maximum Relative Humidity 95% non-condensing

Electrical

Electrical Service 100-240 VAC, 50-60 Hz, 1.5 A

User Interface Cable Length (supplied) 30 ft (9.14 m)

* In commercial applications where there is a large difference in hot and cold supply pressures or frequent

ﬂuctuation in either supply line is anticipated, it is strongly recommended that pressure regulators be

installed.

1043183-2-B 2 Kohler Co.

Thank You For Choosing Kohler Company

We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before

you start installation. If you encounter any installation or performance problems, please don’t hesitate to

Company.

Tools and Materials

Sealant

Tape

Screwdrivers

Level

Pencil

DrillAdjustable

Wrench

Plus:

• (2) 3/4" and (6) 1/2" Union Connectors

• Wood and Framing Materials

• PEX Tubing or Copper Tubing

• (2) Water Hammer Arrestors (Recommended)

• (2) Supply Shut-Off Valves

Hacksaw or Tube Cutter

Propane

Torch

Solder

Pipe Wrench Wood Saw Hammer

Kohler Co. 3 1043183-2-B

Roughing-In

Before You Begin

CAUTION: Risk of product damage. The power supply and valve are rated to operate in temperatures

up to 104°F (40°C). Do not install the power supply or valve under a whirlpool surround or any

location where the temperature may reach temperatures over 104°F (40°C).

CAUTION: Risk of product damage. This valve contains plastic and rubber components; do not apply

excessive heat near the valve or apply ﬂux or acids directly onto the valve.

CAUTION: Risk of product damage. Do not apply petroleum-based lubricants to the valve

components.

CAUTION: Risk of product damage. Inlet and outlet threaded connections should be made using

sealant tape or liquid sealant. Do not use oil-based, non-setting compounds, such as plumbers putty, on

the threaded connections.

CAUTION: Risk of solenoid failure. No outlet should not ﬂow more than 10 gal/min.

Observe all local plumbing, building, and electrical codes.

Provide access for servicing.

Read these instructions and determine all required components along with their installation

locations before beginning this installation.

For optimum performance, 3/4″dedicated water supply lines are recommended.

A minimum 2″(5.1 cm) drain or a drain system capable of handling a water ﬂow of 20 gpm (76

lpm) is recommended for this installation.

20-1/8" (51.1 cm)

21-5/16" (54.1 cm)

5-15/16" (15 cm)

13' 1/8" (396.6 cm)30-7/8" (78.4 cm)

22-1/4" (56.5 cm)

1/2" NPT Outlets (6)

3/4" NPT Inlets

Cold

Hot

7-3/8"

(18.7 cm)

9-3/16"

(23.3 cm)

(7.6 cm)

2-1/8"

(5.4 cm)

3-5/16"

(8.4 cm)

1-3/4" (4.4 cm)

3-1/16" (7.8 cm)

2-3/16" (5.6 cm)

3-3/16"

(8 cm)

(5.1 cm)

1-5/16" (3.3 cm)

1043183-2-B 4 Kohler Co.

Before You Begin (cont.)

If possible, ﬂush all piping thoroughly before installing the valves to prevent clogging the inlet

ﬁlters.

A licensed electrician should install a 120 V GFCI electrical outlet, within the stud framing, in close

proximity to the valve.

If possible, install the electrical outlet prior to installing the valve.

A dedicated water heater, 80 gallon (302.8 L) or larger, is recommended for this installation.

This valve complies with UL1951, ASME A112.18.1, ASSE 1016, CSA B125, and CSA C222 No.

218.2-93. This valve is listed with ASSE, CSA, IAPMO/UPC, and UL.

Kohler Co. reserves the right to make revisions in the design of faucets without notice, as speciﬁed

in the Price Book.

Kohler Co. 5 1043183-2-B

1. Valve Mounting Conﬁgurations

CAUTION: Risk of product damage. Do not mount the valve with the inlets located at the top.

Vertical and horizontal mounting options are shown above. Do not mount the valve with the inlets

pointing up or vertically with the inlets at the top.

Mounting on a Horizontal SurfaceMounting on a Vertical Surface

Do not install with inlets

pointing up or at the top.

1043183-2-B 6 Kohler Co.

2. Component Conﬁgurations

NOTE: Preprogrammed component conﬁgurations are shown; other options are possible. Use of

conﬁgurations other than the preprogrammed options will LIMIT the preprogrammed massage functions.

Massage functions that correspond with custom conﬁgurations can be programmed. Refer to the

″Digital Interface Homeowners Guide.″

The bodyspray to valve outlet ratio must be equal for all bodysprays installed. All bodysprays must

have equal ﬂow rates; unequal ﬂow rates will cause the massage mode to shut down. See examples

below:

Correct: For an example with four installed bodysprays; one bodyspray to one valve outlet (1:1) using four

valve outlets (Envelop).

Incorrect: For an example with four installed bodysprays; two bodysprays each installed to one valve outlet

(1:1) and the other two bodysprays installed to one valve outlet (2:1).

Wall 3

Floor

Ceiling

Wall 2

Wall 1

Floor

Wall 2

Frontage Envelop

Unwind

Downpour Surround

Linear

CH 12 34 5612 34 56

12 34 56

If bodysprays, watertiles or watertile

showerheads are present in these outlets,

they will not cycle.

***

233

221

12 34 56

12 34 56CH

Kohler Co. 7 1043183-2-B

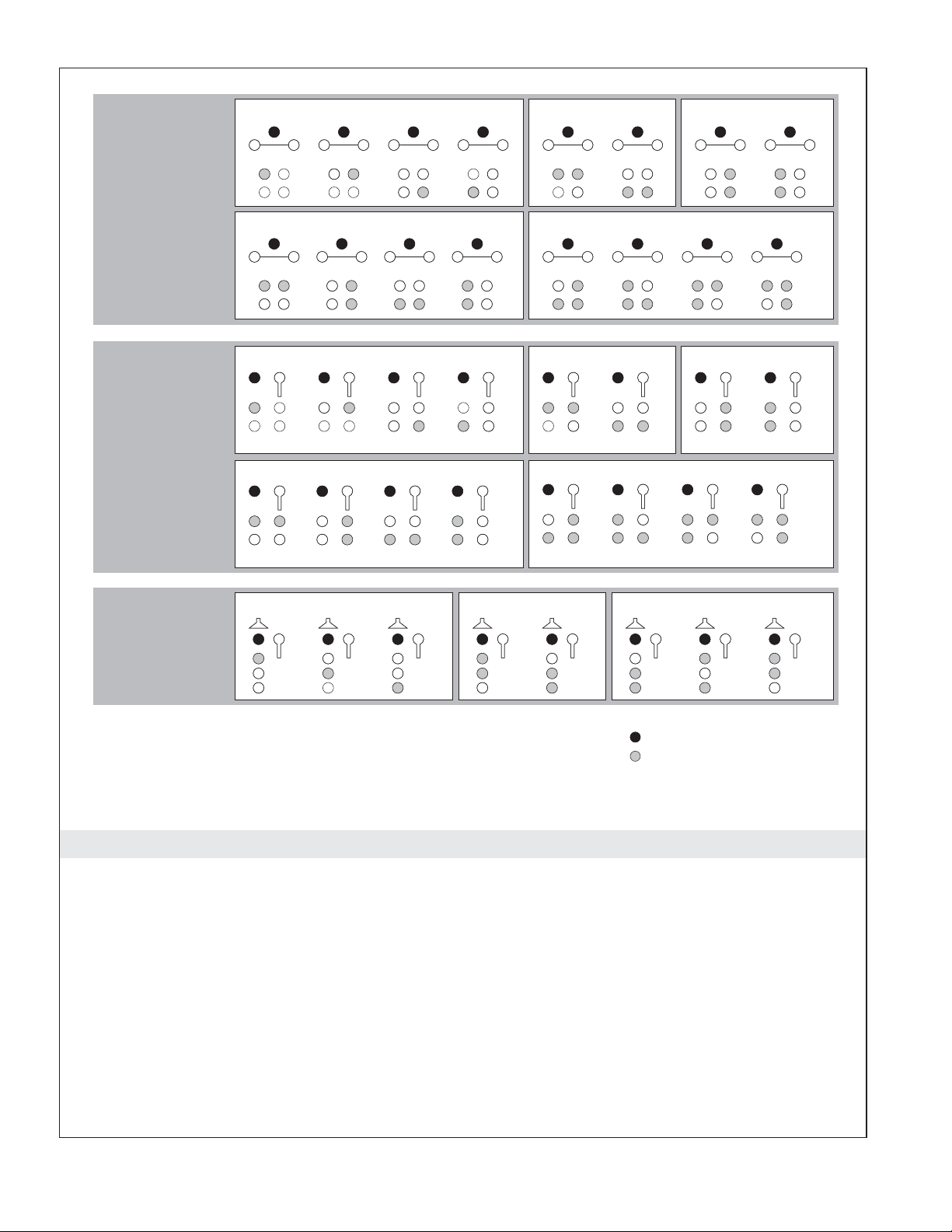

3. Massage Cycling Conﬁgurations

Configuration 1

Frontage

Envelop

Configuration 2

Unwind

Configuration 3

= Constant on

= On while cycling

NOTE: Primary outlets and any outlets designated as

handshowers will not be included in the cycling pattern. For

installations that include both body sprays and watertiles, the

outlets designated as watertiles will not cycle.

Single

Dual 1

Dual

Wave

Dual 2

Wave

Dual 3

Dual 1 Dual 2

Dual 3 Wave

1043183-2-B 8 Kohler Co.

4. Massage Cycling Conﬁgurations

Configuration 4

Linear

Downpour

Configuration 5

Surround

Configuration 6

= Constant on

= On while cycling

NOTE: Primary outlets and any outlets designated as

handshowers will not be included in the cycling pattern. For

installations that include both body sprays and watertiles, the

outlets designated as watertiles will not cycle.

Single

Single Dual Wave

Dual Wave

Kohler Co. 9 1043183-2-B

5. Custom Component Conﬁgurations

Draw in the components for your custom shower.

Draw lines from the valve to each component. Be aware that:

•Outlet 1 is always recommended to be the primary showerhead.

•The installer must determine the desired sequence for Single mode and plumb the ports to the

bodysprays accordingly.

•Custom mode will allow the user to select a different water outlet as the primary showerhead, but it

is not recommended.

•In Custom mode, the bodysprays will cycle up the solenoid bank regardless of which port is the

primary outlet.

Wall 3

Floor

Ceiling

Wall 2

Wall 1

Floor

Wall 2

CH 12 34 56

12 34 56CH

1043183-2-B 10 Kohler Co.
