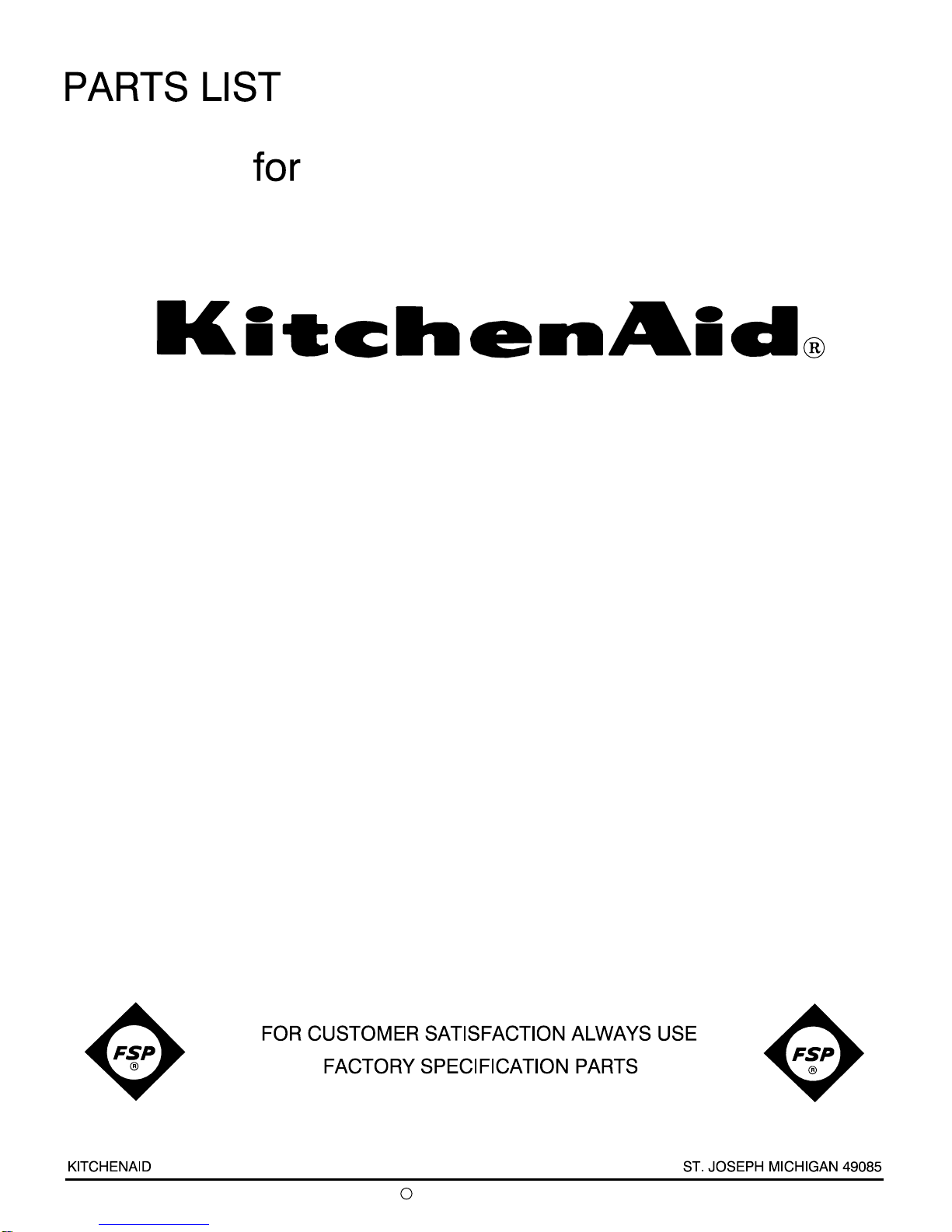

KitchenAid 4KFPW760OB1 Manual de usuario

c2006 KITCHENAID

FOOD PROCESSOR

12 CUP − WIDE MOUTH

MODELS:

KFPW760WH1 (White)

KFPW760OB1 (Onyx Black)

KFPW760ER1 (Empire Red)

KFPW760QWH1 (White)

KFPW760QOB1 (Onyx Black)

KFPW760QER1 (Empire Red)

KFPW760QBU1 (Cobalt Blue)

KFPW760QBW1 (Blue Willow)

KFPW760QGC1 (Gloss Cinnamon)

4KFPW760WH1 (White)

4KFPW760OB1 (Onyx Black)

7−06 Litho In U.S.A. (skr) Part No. 8212142 Rev. A

MOTOR AND HOUSING PARTS

For Models: KFPW760_ _1, 4KFPW760_ _1

8212142

MOTOR AND HOUSING PARTS

For Models: KFPW760_ _1, 4KFPW760_ _1

8212142

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8211864 Use & Care Guide

8212142 Repair Parts List

2 8211849 Sleeve, Motor

Shaft

3 8211828 Seal, Oil

4 Housing, Motor

8212184 White

8212238 Onyx Black

8212236 Empire Red

8212237 Cobalt Blue

8212284 Blue Willow

8212285 Gloss Cinnamon

5 8211610 Clamp, Cable

6 8211731 Screw, Clamp

7 8212186 Motor, Sheet Metal

8 8212188 Grommet, Motor

9 Base, Housing

8212183 White

8212190 Onyx Black

8212187 Empire Red

8212189 Cobalt Blue

8212282 Blue Willow

8212283 Gloss Cinnamon

10 Cover, Screw

8212185 White

8212193 Onyx Black

8212191 Red

8212192 Blue

8212286 Blue Willow

8212287 Gloss Cinnamon

11 8211829 Screw, Motor

Locking

12 8211848 Bezel, Switch

Panel

13 8211607 Clip, Capacitor

14 Overlay, Switch

Assembly

8211847 Silver

15 8211605 Terminal Block

16 8211852 Cover, Terminal

17 8211842 Nameplate

18 8211608 Capacitor

19 8212011 Relay & Switch

Assembly

20 Foot

8211844 White

8211845 Black

21 Cord, Power

8211855 Black

8211856 White

ATTACHMENT PARTS

For Models: KFPW760_ _1, 4KFPW760_ _1

8212142

ATTACHMENT PARTS

For Models: KFPW760_ _1, 4KFPW760_ _1

8212142

Illus. Part

No. No. DESCRIPTION

1 8211760 Spatula

2 Disc,Slicing

8211929 2 mm

8211930 4 mm

3 8212012 Blade, Mini

4 8211858 Adapter, Shaft &

Disc

5 8212014 Blade,

Multipurpose

6 8212020 Pusher, Double

7 Cover, Work Bowl

8212242 White

8212243 Onyx Black

8212245 Empire Red

8212244 Cobalt Blue

8212407 Blue Willow

8212408 Gloss Cinnamon

8 Bowl, Work

8212246 White

8212249 Onyx Black

8212247 Empire Red

8212248 Cobalt Blue

8212288 Blue Willow

8212289 Gloss Cinnamon

9 Disc, Shredding

8211933 4 mm

10 8211926 Bowl, Mini

11 8212016 Blade, Dough

12 8211928 Bowl, Chef’s

13 8212025 Extractor, Citrus

14 8212033 Whip, Egg−12 cup

OPTIONAL PARTS

NOT ILLUSTRATED

8212034 Accessory Box

8211927 Lid, Mini Bowl

Disc, Slicing

8211931 6 mm

Disc, Shredding

8211932 2 mm

8211934 6 mm

8211935 Disc, Julienne

8211936 Disc, Grating

Parmesan/Ice

8211937 Disc, Cutting

French Fry

8211938 Rack, Disc
