KitchenAid KFP0921 Manual de usuario

Food Processor

KFP0921

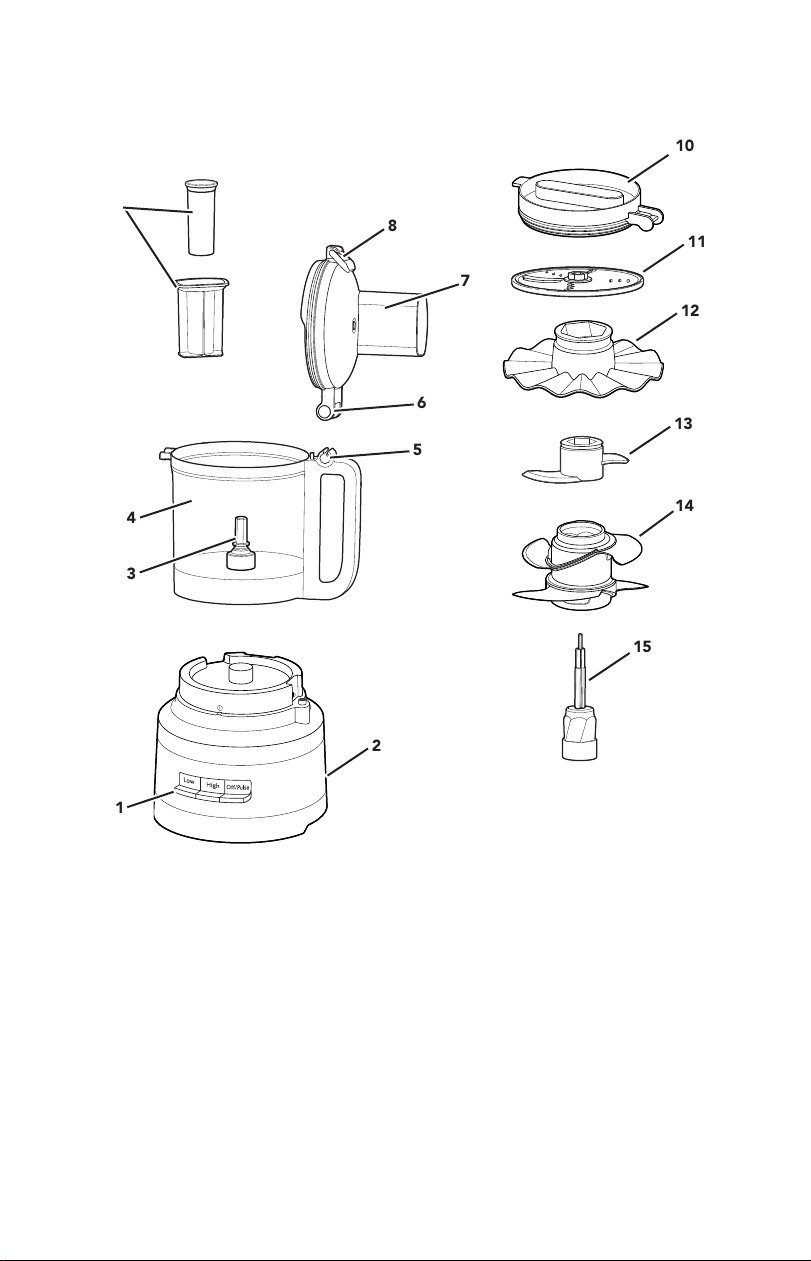

PARTS AND FEATURES

1Heavy-Duty Base

2Power Cord and Cord Storage

(not shown)

3Drive Pin

49-Cup (2.1 L) Work Bowl

5Handle Hinge

6Lid Hinge

7Work Bowl Cover with 2-in-1 Feed

Tube

8Lid Latch

92-piece Food Pusher

10 Refrigerator Lid

11 Reversible Slicing/Shredding Disc

12 Whisking Accessory

13 Dough Blade

14 Multi-Purpose Four Blade

15 Drive Adapter

ENGLISH

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always

be followed, including the following:

1. Read all instructions.

2. To protect against risk of electrical shock, do not put Food Processor in water

or other liquid.

3. This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they are closely supervised and instructed concerning use

of the appliance by a person responsible for their safety. Close supervision is

necessary when any appliance is used by or near children. Children should be

supervised to ensure that they do not play with appliance.

4. Turn the appliance OFF, then unplug from the outlet when not in use, before

assembling or disassembling parts and before cleaning. To unplug, grasp the

plug and pull from the outlet. Never pull from the Power Cord.

5. Avoid contacting moving parts.

6. Do not operate any appliance with a damaged cord or plug, or after the

appliance malfunctions, or is dropped or damaged in any manner. Return

appliance to the nearest Authorized Service Facility for examination, repair, or

electrical or mechanical adjustment.

7. The use of attachments not recommended or sold by KitchenAid may cause

re, electric shock, or injury.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter.

10. Keep hands and utensils away from moving Blades or Discs while processing

food to reduce the risk of severe injury to persons or damage to the Food

Processor. A scraper may be used but must be used only when the Food

Processor is not running.

PRODUCT SAFETY

11. Blades are sharp. Handle carefully.

12. To reduce the risk of injury, never place cutting Blade or Discs on Base without

rst putting Bowl properly in place.

13. Be certain Cover is securely locked in place before operating appliance.

14. Never feed food by hand. Always use Food Pusher.

15. Do not attempt to defeat the Cover interlock mechanism.

16. Do not ll the Bowl above the marked maximum ll line (or rated capacity) to

avoid risk of injury due to damage to the Cover or Bowl.

SAVE THESE INSTRUCTIONS

PRODUCT SAFETY

ELECTRICAL REQUIREMENTS

This product is designed for household use only.

Voltage: 120 VAC

Frequency: 60 Hz

NOTE: This Food Processor is equipped with a polarized plug (one Blade is wider than

the other). To reduce the risk of electrical shock, this plug will fit in a polarized outlet only

one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit,

contact a qualified electrician. Do not modify the plug in any way.

ENGLISH

ACCESSORIES SELECTION GUIDE

Action Setting Food Accessory

Whisking/

Whipping Low or High Cream, Eggs Whisk Accessory

Chop Low or Pulse

Cheese

Chocolate

Fruits

Fresh herbs

Nuts

Tofu

Vegetables Multi-Purpose Four Blade

Mince or Purée High or Pulse

Mix Low

Pasta Sauce

Pesto

Salsa

Sauces

Batters

Slice

Low

Fruit (soft)

Potatoes

Tomatoes

Vegetables (soft) Reversible Slicing/

Shredding Disc (slicing

side)

High

Cheese

Chocolate

Fruit (hard)

Vegetables (hard)

Shred (medium)

Low Potatoes

Vegetables (soft)

Reversible Slicing/

Shredding Disc (shredding

side)

High

Cabbage

Cheese

Chocolate

Fruits (hard)

Vegetables (hard)

Knead Pulse/High Yeast

Dough Dough Blade

FOR DETAILED INFORMATION ON USING THE FOOD PROCESSOR

Visit www.kitchenaid.com/quickstart for additional instructions with videos, inspiring

recipes, and tips on how to use your Food Processor.

Before ﬁrst use

Before using your Food Processor for the first time, wash all parts and accessories either

by hand or in the dishwasher (see “Care and Cleaning” section).

NOTE: Your Food Processor is designed so that all accessories may be stored inside the

Work Bowl.

Lift up the Lid Latch to unlock the Cover.

Tilt the Work Bowl Cover back and lift it

straight up so that the Lid Hinge pulls out

of the Handle Hinge.

Remove all parts and accessories from

the Work Bowl, and lift the Food Pusher

out of the Feed Tube.

Place the Work Bowl on the Base, aligning

the Handle with the raised button on the

right side of the Base. The Bowl will click

into place and should be flush against the

Base when properly aligned.

Place the Drive Adapter in the Work

Bowl, lowering it onto the Drive Pin.

PRODUCT ASSEMBLY

IMPORTANT: Place the Food Processor on a dry, level countertop with the controls

facing forward. Do not plug in the Food Processor until it is completely assembled.

ENGLISH

PRODUCT ASSEMBLY

NOTE: For ease of assembly, install the desired Blade or Disc before attaching the Work

Bowl Cover.

NOTE: Your Food Processor will not operate unless the Work Bowl Cover is fully closed

and the Work Bowl is properly seated on the Base.

To attach the Work Bowl Cover, hook the

Lid Hinge into the Handle Hinge on the

Work Bowl and close the Cover.

Once the Work Bowl Cover is closed,

push the Lid Hinge down into the locked

position.

5 6

INSTALLING THE MULTIPURPOSE BLADE OR DOUGH BLADE

Place the Blade on the Drive Adapter.

Rotate the Blade so it falls down to the

base of the Adapter.

Install the Work Bowl Cover, and be sure

the Lid Latch is pushed down to the

locked position.

PRODUCT ASSEMBLY

INSTALLING THE REVERSIBLE SLICING/SHREDDING DISC

To slice: Turn the Disc so that the raised

Slicing Blade is facing up.

To shred: Turn the Disc so that the small,

raised Shredding Blades are facing up.

The Disc can be placed in two different

positions: level with the top of the Bowl

for processing, and lower, inside of the

Bowl for storage.

NOTE: Make sure the Disc is level

with the top of the Bowl for best

performance.

Hold the Disc by its center hub and lower

it onto the Drive Adapter, aligning the

mark on the center hub of the Disc to the

matching mark on the Adapter. When

properly placed, the Disc should be level

with the top of the Bowl. If the Disc falls

to the storage position, lift it out, turn it

90°, and lower it again.

Install the Work Bowl Cover, and be sure

the Lid Latch is pushed down to the

locked position.

2 3

Process

Storage

Alignment

marks

ENGLISH

PRODUCT USAGE

Rotating Blade Hazard

Always use food pusher.

Keep ngers out of openings.

Keep away from children.

Failure to do so can result in

amputation or cuts.

Before operating the Food Processor, be

sure the Work Bowl, Blades/Disc, and Work

Bowl Cover are properly assembled on the

Base (see the “Product Assembly” section).

To turn on, press Low or High. The Food

Processor will run continuously and the

indicator light will glow.

To turn off, press Low or High again, or

press Off/Pulse.

To use the Pulse function:

Press Off/Pulse for short bursts, or press

and hold for longer bursts. The Pulse

function runs at high speed only. The

Food Processor will turn off when the

Off/Pulse button is released.

When finished, press the Off/Pulse

button. The indicator light will go out

and the Blade or Disc will slow to a stop.

Wait until the Blade or Disc comes to a

complete stop before removing the Work

Bowl Cover. Be sure to turn off the Food

Processor before removing the Work

Bowl Cover, or before unplugging the

Food Processor.

PRODUCT USAGE

USING THE 2-IN-1 FEED TUBE

The 2-in-1 feed tube features a 2-piece

food pusher. To slice or shred small items,

insert the 2-piece food pusher into the feed

tube.

Use the small feed tube and pusher to

process small or slender items, like single

carrots or celery stalks.

To slowly drizzle oil into ingredients, just ﬁll

the small pusher with the desired amount

of oil. A small hole in the bottom of the

pusher will drizzle the oil at a constant rate.

REMOVING PROCESSED FOODS

Turn the Food Processor off: Press the

Off/Pulse button and unplug the Food

Processor before disassembling.

Lift the Lid Latch to unlock the Work

Bowl Cover, then lift the Cover to

remove.

If using the Disc, remove it before

removing the Bowl. Holding the Disc by

the center hub, lift it straight up.

Remove the Drive Adapter and

Accessory, if using. The Blade will stay

in place on the Drive Adapter when you

remove the Adapter.

1 2

3 4

2-piece

food

pusher
