User Guide

Keysight N4917CPCA

Optical Receiver Stress Test

for CPRI Fronthaul Networks

Notices

No part of this manual may be reproduced

in any form or by any means (including

electronic storage and retrieval or transla-

tion into a foreign language) without prior

agreement and written consent from

Keysight Technologies as governed by

United States and international copyright

laws.

Manual Part Number

N4917-91030

Edition

Edition 2.0, March 2019

Keysight Technologies Deutschland GmbH

Herrenberger Strasse 130,

71034 Böblingen, Germany

Technology Licenses

The hardware and/or software described in

this document are furnished under a

license and may be used or copied only in

accordance with the terms of such license.

U.S. Government Rights

The Software is “commercial computer

software,” as defined by Federal Acquisition

Regulation (“FAR”) 2.101. Pursuant to FAR

12.212 and 27.405-3 and Department of

Defense FAR Supplement

(“DFARS”) 227.7202, the U.S. government

acquires commercial computer software

under the same terms by which the soft-

ware is customarily provided to the public.

Accordingly, Keysight provides the Soft-

ware to U.S. government customers under

its standard commercial license, which is

embodied in its End User License Agree-

ment (EULA), a copy of which can be found

at http://www.keysight.com/find/sweula.

The license set forth in the EULA represents

the exclusive authority by which the U.S.

government may use, modify, distribute, or

disclose the Software. The EULA and the

license set forth therein, does not require

or permit, among other things, that Key-

sight: (1) Furnish technical information

related to commercial computer software

or commercial computer software docu-

mentation that is not customarily provided

to the public; or (2) Relinquish to, or other-

wise provide, the government rights in

excess of these rights customarily provided

to the public to use, modify, reproduce,

release, perform, display, or disclose com-

mercial computer software or commercial

computer software documentation. No

additional government requirements

beyond those set forth in the EULA shall

apply, except to the extent that those

terms, rights, or licenses are explicitly

required from all providers of commercial

computer software pursuant to the FAR and

the DFARS and are set forth specifically in

writing elsewhere in the EULA. Keysight

shall be under no obligation to update,

revise or otherwise modify the Software.

With respect to any technical data as

defined by FAR 2.101, pursuant to FAR

12.211 and 27.404.2 and DFARS 227.7102,

the U.S. government acquires no greater

than Limited Rights as defined in FAR

27.401 or DFAR 227.7103-5 (c), as appli-

cable in any technical data.

Warranty

THE MATERIAL CONTAINED IN THIS DOCU-

MENT IS PROVIDED "AS IS," AND IS SUB-

JECT TO BEING CHANGED, WITHOUT

NOTICE, IN FUTURE EDITIONS. FURTHER,

TO THE MAXIMUM EXTENT PERMITTED BY

APPLICABLE LAW, KEYSIGHT DISCLAIMS

ALL WARRANTIES, EITHER EXPRESS OR

IMPLIED WITH REGARD TO THIS MANUAL

AND ANY INFORMATION CONTAINED

HEREIN, INCLUDING BUT NOT LIMITED TO

THE IMPLIED WARRANTIES OF MER-

CHANTABILITY AND FITNESS FOR A PAR-

TICULAR PURPOSE. KEYSIGHT SHALL NOT

BE LIABLE FOR ERRORS OR FOR INCIDEN-

TAL OR CONSEQUENTIAL DAMAGES IN

CONNECTION WITH THE FURNISHING,

USE, OR PERFORMANCE OF THIS DOCU-

MENT OR ANY INFORMATION CONTAINED

HEREIN. SHOULD KEYSIGHT AND THE

USER HAVE A SEPARATE WRITTEN AGREE-

MENT WITH WARRANTY TERMS COVER-

ING THE MATERIAL IN THIS DOCUMENT

THAT CONFLICT WITH THESE TERMS, THE

WARRANTY TERMS IN THE SEPARATE

AGREEMENT WILL CONTROL.

Safety Notices

CAUTION

A CAUTION notice denotes a hazard.

It calls attention to an operating pro-

cedure, practice, or the like that, if

not correctly performed or adhered

to, could result in damage to the

product or loss of important data. Do

not proceed beyond a CAUTION

notice until the indicated conditions

are fully understood and met.

WARNING

A WARNING notice denotes a hazard.

It calls attention to an operating pro-

cedure, practice, or the like that, if

not correctly performed or adhered

to, could result in personal injury or

death. Do not proceed beyond a

WARNING notice until the indicated

conditions are fully understood and

met.

2 Keysight N4917CPCA Optical Receiver Stress Test for CPRI Fronthaul Networks User Guide

Keysight N4917CPCA Optical Receiver Stress Test for CPRI Fronthaul Networks User Guide 3

Contents

1Overview

Optical Receiver Stress Test Solution for CPRI Fronthaul Networks —

At a Glance 6

Applicable Standards 6

System Description 7

2 System Requirements For N4917CPCA

Hardware and Software Requirements 12

PC Hardware Requirements 12

PC Software Requirements 12

PC Interfaces 12

Instrument Firmware Requirements 12

Supported Equipment 14

BERT 14

Signal Generator for Sinusoidal Interference 14

Signal Generator for System Clock 14

Lightwave Measurement System 15

DCA-X Oscilloscope 16

DCA-M Oscilloscope 16

Clock Recovery 16

Equipment Configuration 18

Recommended Setup using DCA-M 19

Recommended Setup using DCA-X 20

4 Keysight N4917CPCA Optical Receiver Stress Test for CPRI Fronthaul Networks User Guide

Contents

3 Concepts and Features of N4917CPCA Software

Software concept and flow of Optical Receiver Test 24

Software Functions and Features 25

Parameter files 30

Stressed Receiver Sensitivity Specifications 31

Example CPRI parameter file 33

4 Using the N4917CPCA Software

Starting the System Software 38

Selecting a Standard for Optical Receiver Stress Test 39

Connecting to Equipment 40

System Performance Check 44

Main GUI 48

Stressed Eye Calibration 50

Set Parameter file and Result file 50

Parameter details 53

Running the Stressed Eye calibration 59

OMA setting for DUT measurement 63

Testing a CPRI Interface 66

Jitter Conformance Test 67

Set Result file 68

Parameter Details 69

Running the Jitter Conformance Test 70

Jitter Performance Test 73

Set Result file 74

Parameter Details 74

Running the Jitter Performance Test 75

Fully Automated Jitter Tolerance Testing 79

Index

Keysight N4917CPCA Optical Receiver Stress Test for

CPRI Fronthaul Networks User Guide

1Overview

Optical Receiver Stress Test Solution for CPRI Fronthaul Networks — At a

Glance / 6

System Description / 7

6 Keysight N4917CPCA Optical Receiver Stress Test for CPRI Fronthaul Networks User Guide

1 Overview

Optical Receiver Stress Test Solution for CPRI Fronthaul Networks — At a Glance

The N4917CPCA Optical Receiver Stress Test solution for CPRI Fronthaul

Networks is based on the N4917B Optical Receiver Stress Test solution for

100GBASE transceivers, with some modifications to the stress calibration

recipe and adjustable bit rate to meet the needs of CPRI Fronthaul

Network Testing.

The Keysight N4917CPCA Optical Receiver Stress Test Solution provides a

platform for stressed receiver sensitivity test, which can be used with

10GBASE, 40GBASE, and 100GBASE devices in a CPRI Fronthaul

environment. The solution consists of several test instruments such as a

Bit Error Rate Tester (BERT), Digital Sampling Scope (DCA), Optical

Reference Transmitter, Tunable Laser, and Optical Attenuator operating

together with the N4917CPCA software package.

Some salient features of the N4917CPCA Optical Receiver Stress Test

Solution include:

• remote control of all the test instrumentation

• automated calibration of the optical stressed eye parameters (ER, VECP

J2, J9, and OMA)

• adjustable target values for ER, VECP, J2, J9, and OMA

• jitter tolerance compliance and margin tests

Applicable Standards

The N4917CPCA Optical Receiver Stress Test software supports

automated optical stressed receiver sensitivity test for optical transceivers

in a CPRI Fronthaul environment that are compliant with the following

standards:

Test Name Reference Standard

10GBASE-LR/ER/SR IEEE 802.3 2018 Clause 52

40GBASE-LR4/ER4 IEEE 802.3 2018 Clause 87

100GBASE-LR4/ER4 IEEE 802.3 2018 Clause 88

- CPRI Specification V7.0

Keysight N4917CPCA Optical Receiver Stress Test for CPRI Fronthaul Networks User Guide 7

Overview 1

System Description

The N4917CPCA Test Solution for Optical Stressed Eye consists of:

• a BERT to generate electrical signal

• an electrical-optical converter that modulates the optical signal from a

fixed or tunable laser

• a digital sampling oscilloscope required for calibration of the stressed

eye

8 Keysight N4917CPCA Optical Receiver Stress Test for CPRI Fronthaul Networks User Guide

1 Overview

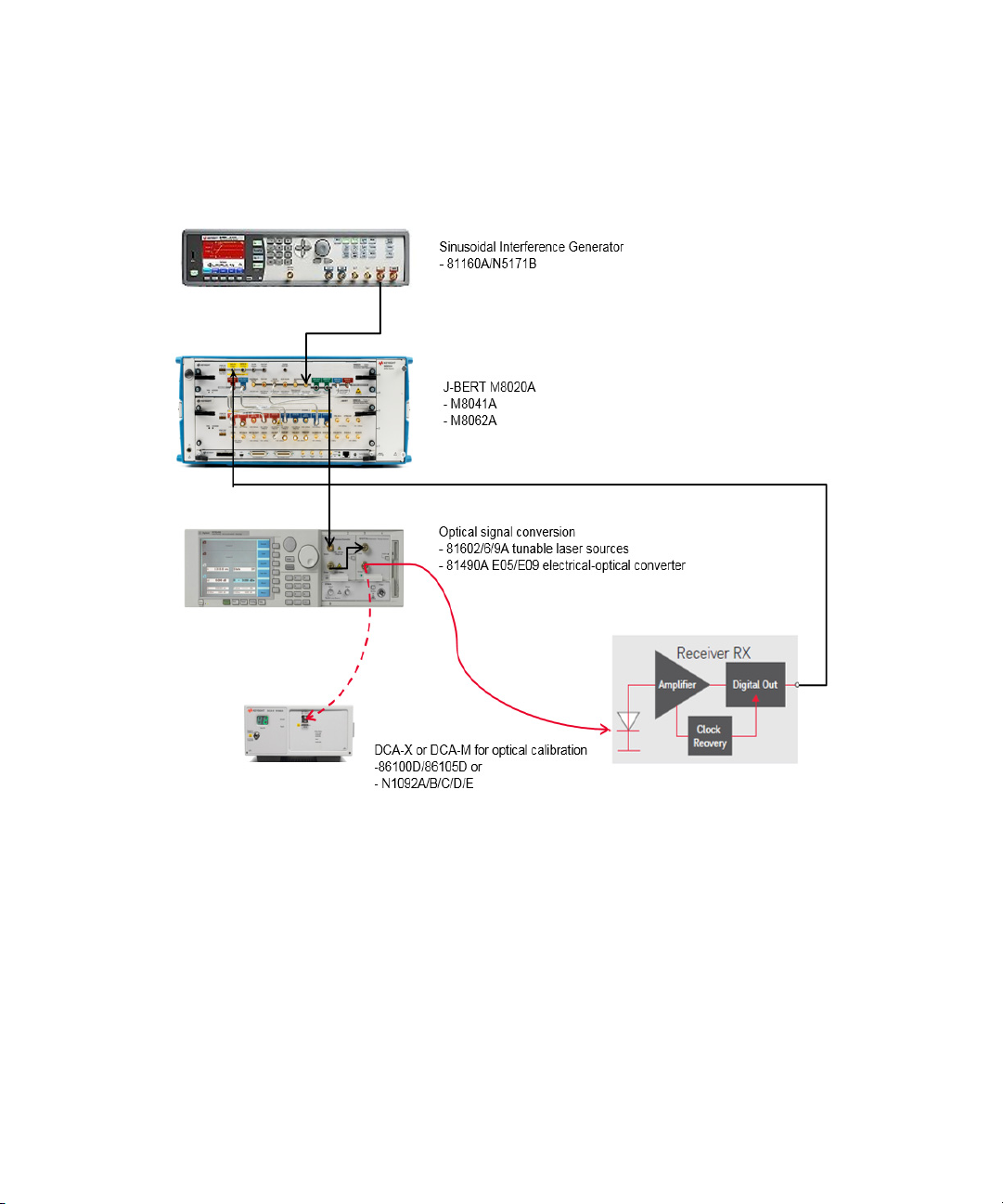

Figure 1 shows a typical Optical Receiver Stressed Test equipment setup.

Figure 1 Example setup

In the Optical Stressed Eye Test Setup, the J-BERT M8020A

High-Performance BERT system is the core instrument that generates an

electrical signal with all the required impairments (random, BUJ and

sinusoidal timing jitter, ISI and sinusoidal amplitude interference) at the

data signal output. It uses a combination of built-in stress sources along

with an external generator.

Keysight N4917CPCA Optical Receiver Stress Test for CPRI Fronthaul Networks User Guide 9

Overview 1

The electrical signal generated from the BERT is fed into an 81490/91A

electrical-optical converter to modulate the laser and create a stressed

optical signal.

Depending on which standard is being tested, either an 8160xA tunable

laser or the internal 8149xA laser can be used. The optical output of the

8149xA is attenuated to achieve the required optical power level at the

input of the receiver under test.

Prior to testing the receiver, the optical signal for each wavelength is

calibrated using an N1092x DCA-M Sampling Oscilloscope or an

86100D/N1000A DCA-X Wide-Bandwidth Oscilloscope with an 86105D

optical module set up as a reference receiver.

The equipment used in the Optical Stressed Eye Test Setup is under

control of the N4917CPCA Test Solution software, which takes care of the

various equipment settings and performs an iterative adjustment of the

BERT stresses until the optical signal measured on the DCA meets the

required stressed eye parameters.

The N4917CPCA Optical Receiver Stress Test Solution software also

allows for precise repeatable calibration of an optical stressed eye. The

N4917CPCA Optical Receiver Stress Test solution enables an additional

stress source, bounded uncorrelated jitter (BUJ) to be used as an

alternative to sinusoidal jitter or random jitter when calibrating the

stressed eye. BUJ can provide a better model for crosstalk in CPRI

fronthaul network testing. A simple switch in the software GUI enables the

user to choose between BUJ and PJ2 (sinusoidal jitter) for 40/100GBASE

standards, or BUJ and RJ (random jitter) for the 10GBASE standard.

Additionally CPRI fronthaul networks generally run at slightly different line

rates, e.g. CPRI option 10 bit rate is 24.33024 Gb/s instead of 25.78125

Gb/s. The N4917CPCA lets the user adjust the bit rate prior to a stressed

eye calibration.

Once you achieve the calibrated stressed eye, proceed to test an actual

device (DUT). In fronthaul testing priority is placed on the impact of jitter

on the recovered clock frequency, which is usually measured with an

oscilloscope. Consequently, DUT BER measurements at the receiver are

not common. However if required, the N4917CPCA does provide

semi-automated Jitter Tolerance measurements routines or you can

perform the equivalent fully automated measurement on a Bit Error Rate

Tester (BERT).

10 Keysight N4917CPCA Optical Receiver Stress Test for CPRI Fronthaul Networks User Guide

1 Overview

Tabla de contenidos

Otros manuales de Equipo de prueba de Keysight Technologies

Keysight Technologies

Keysight Technologies MSO-X 2002A Manual de usuario

Keysight Technologies

Keysight Technologies M8000 Series Manual de usuario

Keysight Technologies

Keysight Technologies Infiniium 9000 Series Manual de usuario

Keysight Technologies

Keysight Technologies InfiniiVision 1000 X-Series Manual de usuario

Keysight Technologies

Keysight Technologies N108 A-Series Manual de usuario

Keysight Technologies

Keysight Technologies U3020AS62 Manual

Keysight Technologies

Keysight Technologies PNA-X N524xB Manual de usuario

Keysight Technologies

Keysight Technologies i3070 Series 5i Manual de usuario

Keysight Technologies

Keysight Technologies U3022AM42 Manual

Keysight Technologies

Keysight Technologies N5511A Manual de usuario

Keysight Technologies

Keysight Technologies 8490D Manual de servicio

Keysight Technologies

Keysight Technologies N7015A Manual de usuario

Keysight Technologies

Keysight Technologies E6640A Manual de usuario

Keysight Technologies

Keysight Technologies N7015A Manual de usuario

Keysight Technologies

Keysight Technologies U3022AH10 Manual

Keysight Technologies

Keysight Technologies N4000A SNS Series Manual de servicio

Keysight Technologies

Keysight Technologies U3042AE12 Manual

Keysight Technologies

Keysight Technologies S8780A Manual de usuario

Keysight Technologies

Keysight Technologies 16047A Manual de operación

Keysight Technologies

Keysight Technologies 85038A 7-16 Manual

Keysight Technologies

Keysight Technologies 11683AZ Option H01 Manual de servicio

Keysight Technologies

Keysight Technologies RF PA/FEM Guía del usuario

Keysight Technologies

Keysight Technologies Infiniium 90000A Series Manual de usuario

Keysight Technologies

Keysight Technologies 85041A Manual de servicio

Manuales populares de Equipo de prueba de otras marcas

SMART

SMART KANAAD SBT XTREME 3G Series Manual de usuario

Agilent Technologies

Agilent Technologies BERT Serial Manual de usuario

Agilent Technologies

Agilent Technologies N3280A Manual de usuario

Vernier

Vernier Go Direct Voltage Manual de usuario

Lifeloc

Lifeloc R.A.D.A.R. Manual de usuario

Fluke

Fluke T5-600 Instrucciones de funcionamiento e instalación

Mercury

Mercury TSL01 Manual de usuario

MAHA

MAHA MBT Series Manual de usuario

Fuji Electric

Fuji Electric P-61 Manual de usuario

ETC

ETC SealerAtor Manual de usuario

Skyfine

Skyfine ETHYWAY V2 Manual de usuario

Appion

Appion G5 Twin Manual de usuario

PCB Piezotronics

PCB Piezotronics 8159-0112A Manual de usuario

BW Technologies

BW Technologies MicroDock II Manual de usuario

Sun Nuclear

Sun Nuclear 1027 Manual de usuario

Biomark

Biomark HPR LITE READER Manual de usuario

Hioki

Hioki 3169-20 Manual de usuario

Ashcroft

Ashcroft ATE-100 Manual de usuario
