Keysight Technologies 16454A Manual de operación

Operation and

Service Manual

Keysight 16454A

Magnetic Material Test

Fixture

Keysight 16454A MAGNETIC MATERIAL TEST FIXTURE

Operation and Service Manual

Manual Change

Keysight Part No. N/A

January 2015

Change 1

Change the part number in Table 2-1 in Page 2-2 as follows.

Table 2-1. 16454A Contents

Reference

Designator

Description

Keysight Part

Number

Quantity

1 Tweezers 8710-2081 1

2 Fixture Holder 16454-00601 1

3 Screw, Hex Recess 0515-1050 2

4 Test fixture (Large) (not assigned) 1

5 Test fixture (Small) (not assigned) 1

6 Holder A 16454-25002 1

7 Holder B 16454-25001 1

8 Holder C (WITHOUT HOLE) 16454-25004 1

9 Holder D (WITH HOLE) 16454-25003 1

10 Holder Case 1540-0622 1

11 Hex Key, 2.5 mm Across Flats 5188-4452 1

- Carrying Case116454-60101 1

- Operation and Service Manual116454-90020 1

1 These parts are not shown in this figure.

○

Change 2

Change the part number in Table 5-1 in Page 5-2 as follows.

Table 5-1. Replaceable Parts List

Reference

Designator

Keysight Part Number

Quantity

Description

1 16454-00601 1 Fixture Holder

2 0515-1050 2 Screw, Hex Recess

3 16454-23004 1 Fixture Flange (Large)

4 1250-0816 2 Conn-RF Conn

5 16454-2300511 Center Pin

6 16454-2300311 Fixture Cap (Large)

7 16454-23002 1 Fixture Flange (Small)

8 16454-2300111 Fixture Cap (Small)

9 16454-25002 1 Holder A

10 16454-25001 1 Holder B

11 16454-25004 1 Holder C (WITHOUT HOLE)

12 16454-25003 1 Holder D (WITH HOLE)

13 1540-0622 1 Holder Case

14 5188-4452 1 Hex Key, 2.5 mm Across Flats

15 8710-2081 1 Tweezers

16 0470-0013 1 Thread Sealant

- 16454-60101 1 Carrying Case2

- 16454-90020 1 Operation and Service Manual2

1 Keysight internal-only part number.

2 These parts are not shown in this figure.

○

Agilent 16454A Magnetic Material T

est Fixture

Operation and Service Manual

Agilent Part No. 16454-90020

Printed in JAPAN July 2001

Fifth Edition

Notice

The information contained in this document is subject to change without notice

This document contains proprietary information that is protected by copyright. All rights are

reserved. No part of this document may be photocopied, reproduced, or translated to another

language without the prior written consent of the Agilent T

echnologies .

Agilent T

echnologies Japan, Ltd.

Component T

est PGU-Kobe

1-3-2, Murotani, Nishi-ku, Kobe-shi,

Hyogo

,651-2241 Japan



Manual Printing History

The manual printing date and part number indicate its current edition. The printing date

changes when anew edition is printed. (Minor corrections and updates that are incorporated

at reprint do not cause the date to change.) The manual part number changes when extensive

technical changes are incorporated.

December 1993

::::::

::::::::::::::::::::: ::::

:::

First Edition (part number: 16454-90000)

ebruary 1999

:::::

::::::::::::::::::::: :: :::::

Second Edition (part number: 16454-90000)

January 2000

:::::: ::::

::::::::::::::::::::: :: :: :::::

Third Edition (part number: 16454-90000)

April 2001

::::::::

::::::::::::::::::::: :: :::::::::

ourth Edition (part number: 16454-90010)

July 2001

:::::::::::::::::::::::

:::::::::::::

Fifth Edition (part number: 16454-90020)

iii

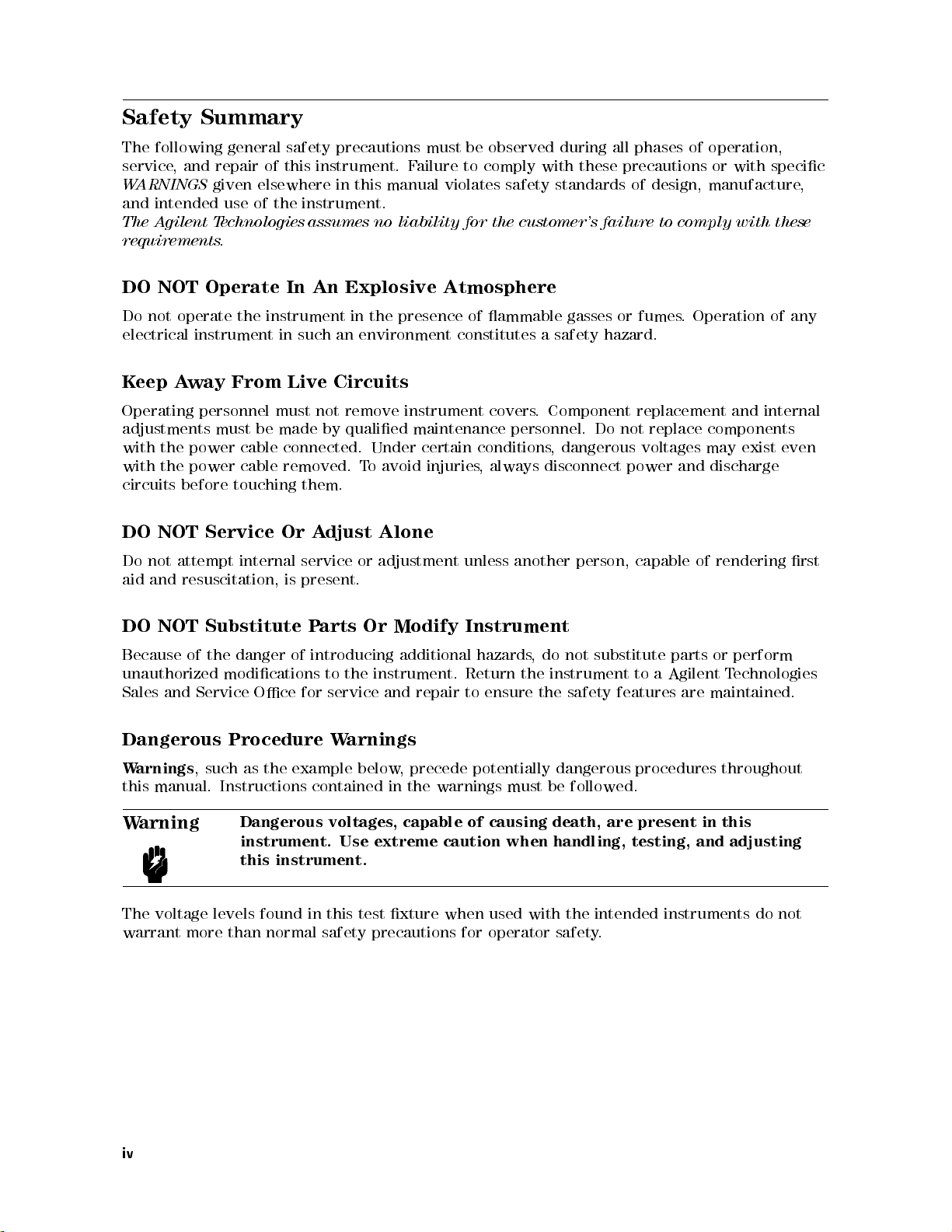

Safety Summary

The following general safety precautions must be observed during all phases of operation,

service

,and repair of this instrument. F

ailure to comply with these precautions or with specic

ARNINGS

given elsewhere in this manual violates safety standards of design, manufacture,

and intended use of the instrument.

The A

gilent T

echnologies assumes no liability for the customer's failure to comply with these

requirements

DO NOT Operate In An Explosive Atmosphere

Do not operate the instrument in the presence of ammable gasses or fumes

.Operation of any

electrical instrument in such an environment constitutes asafety hazard.

eep A

way From Live Circuits

Operating personnel must not remove instrument covers

. Component replacement and internal

adjustments must be made by qualied maintenance personnel. Do not replace components

with the power cable connected. Under certain conditions

, dangerous voltages may exist even

with the power cable removed. T

oavoid injuries

,always disconnect power and discharge

circuits before touching them.

DO NOT Service Or A

djust Alone

Do not attempt internal service or adjustment unless another person, capable of rendering rst

aid and resuscitation, is present.

DO NOT Substitute P

arts Or Modify Instrument

Because of the danger of introducing additional hazards

,do not substitute parts or perform

unauthorized modications to the instrument. Return the instrument to aAgilent T

echnologies

Sales and Service Oce for service and repair to ensure the safety features are maintained.

Dangerous Procedure Warnings

Warnings

,suchas the example below

,precede potentially dangerous procedures throughout

this manual. Instructions contained in the warnings must be followed.

Warning

Dangerous voltages

,capable of causing death, are present in this

instrument. Use extreme caution when handling, testing, and adjusting

this instrument.

The voltage levels found in this test xture when used with the intended instruments do not

warrant more than normal safety precautions for operator safety

Operating Precaution

Do not exceed the operating input power, voltage, and current level and signal type

appropriate for the instrument being used, refer to your instrument's operation manual.

Caution

Electrostatic discharge (

esd

)candamage the highly sensitive microcircuits in

your instrument. ESD damage is most likely to occur as the test xtures are

being connected or disconnected. Protect them from ESD damage by wearing a

grounding strap that provides ahigh resistance path to ground. Alternatively

ground yourself to discharge any static charge built-up by touching the

outer shell of any grounded instrument chassis before touching the test port

connectors

Never touch the test clip contacts

Use awork station equipped with an anti-static work surface

Certication

Agilent T

echnologies certies that this product met its published specications at the time

of shipment from the factory

.Agilent T

echnologies further certies that its calibration

measurements are traceable to the United States National Institute of Standards and

echnology

,to the extent allowed by the Institution's calibration facility

,or

to the calibration

facilities of other International Standards Organization members

arranty

This Agilent T

echnologies instrument product is warranted against defects in material and

workmanship for aperiod of one year from the date of shipment, except that in the case of

certain components listed in

Instrument Specications

of this manual, the warranty shall be

for the specied period. During the warranty period, Agilent T

echnologies will, at its option,

either repair or replace products that prove to be defective

For warranty service or repair

, this product must be returned to aservice facility designated

by Agilent Technologies. Buyer shall prepay shipping charges to Agilent T

echnologies

and Agilent T

echnologies shall pay shipping charges to return the product to Buyer

However, Buyer shall pay all shipping charges

, duties

, and taxes for products returned to

Agilent T

echnologies from another country

Agilent T

echnologies warrants that its software and rmware designated by

Agilent T

echnologies for use with an instrument will execute its programming instruction when

property installed on that instrument. Agilent T

echnologies does not warrant that the operation

of the instrument, or software

,orrmware will be uninterrupted or error free

Limitation Of Warranty

The foregoing warranty shall not apply to defects resulting from improper or inadequate

maintenance by Buyer

,Buyer-supplied software or interfacing, unauthorized modication or

misuse

,operation outside the environmental specications for the product, or improper site

preparation or maintenance

No other warranty is expressed or implied. A

gilent T

echnologies specically disclaims the

implied warranties of merchantability and tness for a particular purpose

Exclusive Remedies

The remedies provided herein are buyer's sole and exclusive remedies. Agilent T

echnologies

shall not be liable for any direct, indirect, special, incidental, or consequential damages

whether based on contract, tort, or any other legal theory

Assistance

Product maintenance agreements and other customer assistance agreements are available for

Agilent T

echnologies products.

or any assistance

,contact your nearest Agilent T

echnologies Sales and Service Oce

ddresses are provided at the back of this manual.
