Juniper QFX5120 Series Manual de usuario

Quick Start Guide

QFX5120 Switch Quick Start

IN THIS GUIDE

System Overview | 1

Tools and Parts Required for Installation | 2

Part 1: Install a Power Supply | 4

Part 2: Install a Fan Module | 5

Part 3: Mount the Switch on Four Posts of a Rack | 7

Part 4: Connect Power to the Switch | 10

Part 5: Perform Initial Configuration | 13

Safety Warnings Summary | 15

Contacting Juniper Networks | 16

System Overview

The QFX5120 switches deliver low latency, rich Layer 2 and Layer 3 features, and advanced EVPN-VXLAN capabilities.

These switches can be used as data center top-of-rack and as aggregation switches for enterprise multicloud deployments.

These switches are also designed for extremely agile data centers that demand support for overlay and underlay network

architectures.

Two variants of the QFX5120 switches are available—32-port and 48-port switches, with AC or DC power supplies, and

with different airflow directions. Offering native 25-Gigabit Ethernet with 100-Gigabit Ethernet uplink ports on the

QFX5120-48Y, combined with 32 ports of 100-Gigabit Ethernet on the QFX5120-32C, the QFX5120 switches are ideally

suited for spine-and-leaf network deployments. The QFX5120 switches run standard Junos operating system (OS).

QFX5120-48Y switches also support virtual chassis technology. You can interconnect up to two QFX5120-48Y switches

in a QFX5120-48Y virtual chassis.

•The QFX5120-32C switch offers 2 SFP+ ports that operate at 10-Gbps speed, and 32 ports that operate at 40-Gbps

(with QSFP+ transceivers) and 100-Gbps speeds (with QSFP28 transceivers).

NOTE: The QFX5120-32C switch does not support 1-Gigabit Ethernet connections.

•The QFX5120-48Y switch offers 48 small-form factor pluggable (SFP+) ports that operate at 1-Gbps, 10-Gbps, and

25-Gbps speeds along with 8 quad small form-factor pluggable (QSFP28) ports that operate at 40-Gbps (with QSFP+

transceivers) and 100-Gbps speeds (with QSFP28 transceivers).

NOTE: By default, the QFX5120-48Y switch offers 10-Gbps speed. You need to configure to set 1-Gbps and

25-Gbps speeds.

You can use breakout cables to channelize each port to increase the number of interfaces.

The QFX5120-48Y switch is available in four models, with AC or DC power supplies and with front-to-back or back-to-front

airflow. The QFX5120-32C switch is available in four models, with AC or DC power supplies, and with front-to-back or

back-to-front airflow.

NOTE: See the complete documentation at https://www.juniper.net/documentation/product/en_US/qfx5120.

Tools and Parts Required for Installation

To mount a QFX5120 switch on a rack, you need:

•Two front-mounting brackets and twelve screws to secure the brackets to the chassis—provided

•Two rear-mounting brackets—provided

•Screws to secure the chassis to the rack—not provided

•Phillips (+) screwdriver, number 2—not provided

•Electrostatic discharge (ESD) grounding strap—not provided

To connect the QFX5120-48Y switch to earth ground, you need:

•A grounding cable (minimum 12 AWG (2.5 mm²), minimum 90° C wire, or as permitted by the local code), a grounding

lug (Panduit LCD10-10A-L or equivalent), a pair of 10-32 x .25- in. screws with #10 split-lock washers, and a pair of

#10 flat washers—not provided

To connect the QFX5120-32C switch to earth ground, you need:

•A grounding cable (minimum 14 AWG (1.5 mm²), minimum 90° wire, or as permitted by the local code), a grounding lug

(4.3 mm circular Lug), one 8 mm screw—not provided

To connect power to the switch, you need:

•For all the AC-powered models (QFX5120-48Y-AFO2, QFX5120-48Y-AFI2, QFX5120-32C-AFO, and

QFX5120-32C-AFI)—An AC power cord with a plug appropriate for your geographical location, and a power cord

retainer—provided.

•For all the DC-powered models (QFX5120-48Y-DC-AFO2 and QFX5120-48Y-DC-AFI2)—DC power source cables (12

AWG) with ring lugs attached (Molex 190700069 or equivalent)—not provided.)

To perform initial configuration of the switch, you need:

•An Ethernet cable with an RJ-45 connector attached—provided

•An RJ-45 to DB-9 serial port adapter—provided

•A management host, such as a PC, with an Ethernet port—not provided

addition or change to the installation base or if the installation base is moved. Juniper Networks will not be held accountable

for not meeting the hardware replacement service-level agreement for products that do not have registered serial numbers

or accurate installation base data.

Update your installation base at https://www.juniper.net/customers/csc/management/updateinstallbase.jsp.

CAUTION:

•AC and DC power supplies in the same chassis.

•Power supplies with different airflow directions in the same chassis.

•Power supplies and fan modules with different airflow airflow directions in the same chassis.

WARNING: To prevent ESD damage, wrap and fasten one end of an ESD wrist strap around your

bare wrist, and connect the other end of the strap to the ESD point on the switch.

NOTE: Power supplies and fan modules must have the same airflow direction. The airflow direction on the

power supplies must match the respective airflow direction on the fan modules.

Part 1: Install a Power Supply

NOTE: Each power supply must be connected to a dedicated power source outlet. The power supply slots are

on the rear panel.

To install a power supply (see Figure 1,Figure 2,Figure 3, and Figure 4):

1. If the power supply slot has a cover panel, use your fingers to hold and gently pull the cover panel outward to remove

the cover panel. Save the cover panel for later use.

2. Without touching the power supply pins, leads, or solder connections, remove the power supply from the bag.

3. Using both hands, place the power supply in the power supply slot on the rear panel of the switch and slide it in until

it is fully seated and the ejector lever fits into place.

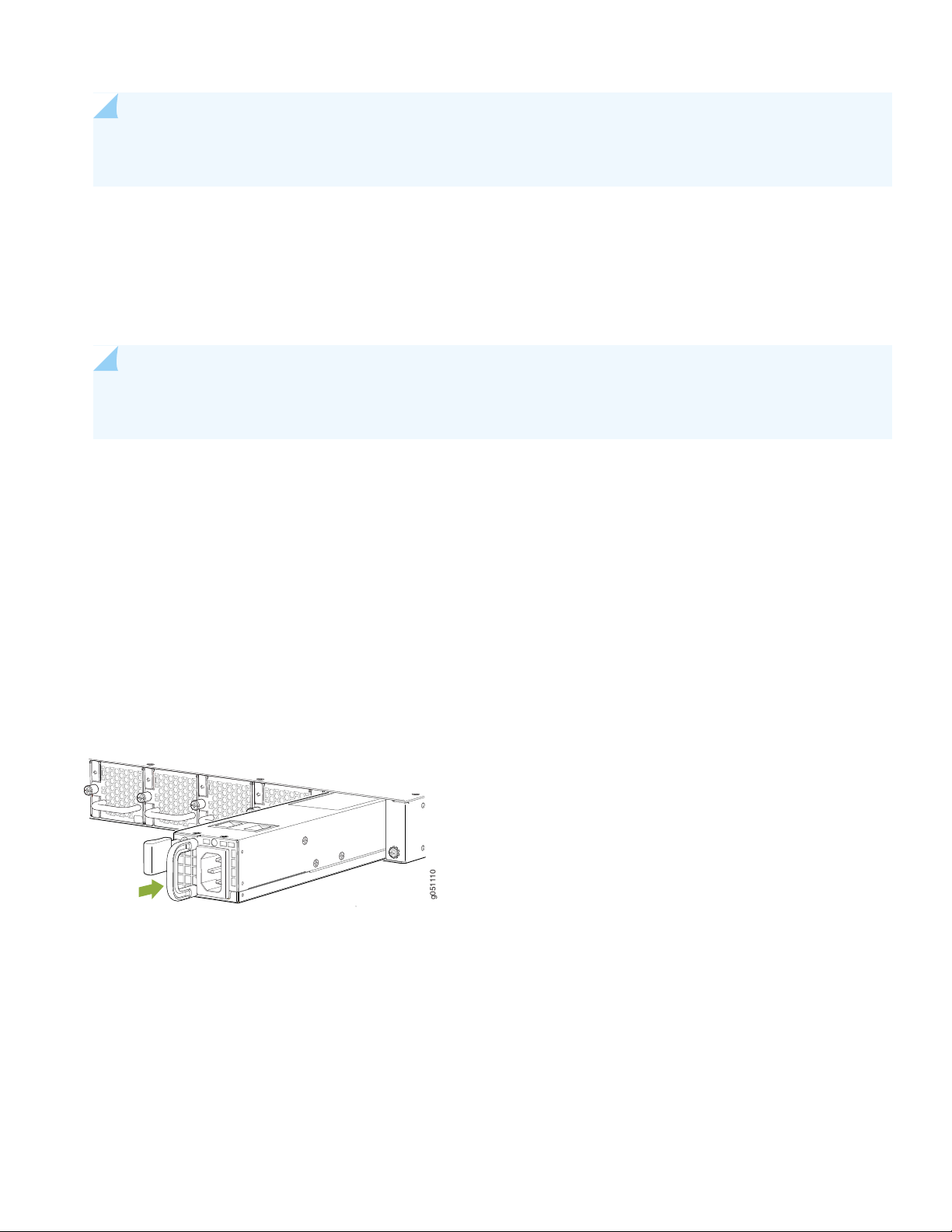

Figure 1: Installing an AC Power Supply in the QFX5120–32C Switch

g051110

Figure 2: Installing a DC Power Supply in the QFX5120–32C Switch

g051116

Figure 3: Installing an AC Power Supply in the QFX5120-48Y Switch

g022511

Figure 4: Installing a DC Power Supply in the QFX5120-48Y Switch

g022517

Part 2: Install a Fan Module

NOTE: The fan module slots are located on the rear panel of the switch.

Figure 5: Installing a Fan Module in the QFX5120-32C Switch

g051120

Figure 6: Installing a Fan Module in the QFX5120-48Y Switch

g050481

1. Remove the fan module from its bag.

2. Hold the handle of the fan module with one hand, and support the weight of the module with the other hand. Place

the fan module in the fan module slot on the rear panel of the switch and slide it in until it is fully seated.

3. Tighten the screws on the faceplate of the fan module by using a screwdriver.

Part 3: Mount the Switch on Four Posts of a Rack

You can mount a QFX5120 switch on four posts of a 19-in. rack. This guide describes the procedure to mount the switch

on a 19-in. rack.

Mounting a QFX5120 switch requires one person to lift the switch and a second person to install the mounting screws

to secure the switch to the rack.

NOTE: The QFX5120-32C switch with two power supplies and fans installed in it weighs approximately 21.12

lbs (9.12 kg).The QFX5120-48Y switch with two power supplies and fans installed in it weighs approximately

23.7 lb (10.75 kg).

1. Place the rack in its permanent location, allowing adequate clearance for airflow and maintenance, and secure the rack

to the building structure.

NOTE: While mounting multiple units on a rack, mount the heaviest unit at the bottom and mount the other

units from the bottom to the top in decreasing order of weight.

2. Place the switch on a flat, stable surface.

3. Position the front-mounting brackets along the side panels of the chassis, aligning them with the front panel.

4. Attach the brackets to the chassis by using the mounting screws. Tighten the screws (see Figure 7,Figure 8, and

Figure 9.

Figure 7: Attaching Front-Mounting Brackets to the QFX5120-32C Chassis

g051132

Figure 8: Aligning the Holes for Mounting Rail and Attaching with Screws to the QFX5120-32C Chassis

g0xxxxx

g051133

5. Position the mounting brackets along the side panels of the chassis, aligning them with the front panel.

Figure 9: Attaching Front-Mounting Brackets to the QFX5120-48Y Chassis

g022533

6. Have one person grasp both sides of the switch, lift the switch, and position it in the rack, aligning the mounting bracket

holes with the threaded holes in the rack rail. Align the bottom hole in each mounting bracket with a hole in each rail,

making sure that the chassis is level (see Figure 10 and Figure 11).

Figure 10: Connecting the Front-Mounting Brackets to the rack for the QFX5120-32C Switch

g051134

g0xxxxx

Figure 11: Connecting the Front-Mounting Brackets to the rack for the QFX5120-48Y Switch

g022534

7. Have the second person secure the switch to the rack by inserting the screws appropriate for the rack through the

bracket and the threaded holes on the rack. Tighten the screws.

8. On the rear of the switch chassis, slide the rear-mounting brackets into the front-mounting brackets on either side of

the chassis until the rear-mounting brackets contact the rack rails (see Figure 12 and Figure 13).

Figure 12: Connecting the Rear-Mounting Brackets to the QFX5120-32C Switch

g0xxxxx

g051135

Figure 13: Connecting the Rear-Mounting Brackets to the QFX5120-48Y Switch

g022535

9. Secure the rear-mounting brackets to the rear posts by using the screws appropriate for your rack.

Figure 14: Securing the Rear-Mounting Brackets to the Rear Posts

g022536

10. Ensure that the chassis is level by verifying that all the screws on the front posts of the rack are aligned with the screws

on the rear posts of the rack.

Part 4: Connect Power to the Switch

Depending on the model of your switch, you can use either AC or DC power supplies. The power supplies are installed in

the slots on the rear panel.

Before you connect power to the switch, wrap and fasten one end of an ESD wrist strap around your bare wrist, and

connect the other end of the strap to the ESD point on the switch.

To connect power to an AC-powered switch (see Figure 16 and Figure 15):

1. Push the end of the retainer strip into the hole next to the inlet on the power supply faceplate until it snaps into place.

2. Press the tab on the retainer strip to loosen the loop. Slide the loop until you have enough space to insert the power

cord coupler into the inlet.

3. Insert the power cord coupler firmly into the inlet.

4. Slide the loop toward the power supply until it is snug against the base of the coupler.

5. Press the tab on the loop, and draw out the loop into a tight circle.

6. If the AC power source outlet has a power switch, set it to the OFF (O) position.

NOTE: The switch powers on as soon as power is provided to the power supply. There is no power switch

on the switch.

7. Insert the power cord plug into the power source outlet.

8. If you are installing the power supply in a QFX5120-32C switch, verify that the LED on the power supply is lit green.

If the LED is lit in red or is blinking, remove power from the power supply, and replace the power supply.

Figure 15: Connecting Power to an AC-Powered QFX5120-32C Switch

g051112

9. If you are installing the power supply in a QFX5120-48Y switch, verify that the AC and DC LEDs on the power supply

are lit green. If the fault LED is lit, remove power from the power supply, and replace the power supply.
