Juniper QFX5210 Manual de usuario
Quick Start Guide
QFX5210 Quick Start Guide
IN THIS GUIDE
Mounting and Connecting Power to the Switch | 1
Connect Power to the Device | 3
Performing the Initial Software Configuration for the QFX5210 | 4
Safety Warnings Summary | 6
Mounting and Connecting Power to the Switch
IN THIS SECTION
Before You Start | 1
Mount the Switch | 2
Before You Start
The QFX5210-64C is available in AC and DC power models. Mount QFX5210-64C models only in a four-post rack. This
procedure describes the installation into a four-post rack and connecting AC power. For DC connection procedures, see
the complete QFX5210 hardware documentation at https://www.juniper.net/documentation/ .
To install a Juniper Networks QFX5210, you need:
•Electrostatic discharge (ESD) grounding strap (not provided)
•One pair of mounting rails (provided)
•One pair of mounting blades (provided)
•Eight screws to secure the chassis and mounting blades to the rack (not provided)
•Twelve #2 Phillips, M4 screws to secure the mounting rails to the chassis (provided)
•Screwdriver appropriate for your rack mounting screws (not provided)
•Two power cords with plugs appropriate for your geographical location (provided)
•RJ-45 cable and RJ-45 to DB-9 serial port adapter (provided)
•Management host, such as a PC laptop, with a serial port (not provided)
•Grounding cable kit with bracket, lug, and 10-32 screws (not provided). To install the grounding cable and lug to earth
ground, see QFX5210 Hardware Guide.
Mount the Switch
To mount the switch in a 4-post 19 inch rack:
1. Attach the ESD grounding strap to your bare wrist and to a site ESD point.
NOTE: If you are mounting multiple units in the rack, mount the heaviest device at the bottom and mount the
others from bottom to top in order of decreasing weight. The QFX5210-64C weighs approximately 31.09 lb
(14.1 kg) with power supplies and fans installed. Installing these devices in a rack or cabinet requires two people
to lift the switch and secure it to the rack.
2. Place the rack in its permanent location, allowing adequate clearance for airflow and maintenance, and secure it to the
building structure.
3. Determine whether the end with field replaceable units (FRUs) or the ports are to be placed at the front of the rack.
4. Align the holes in the mounting rail with the holes on the side of the chassis.
5. Attach the mounting rail to the device using six mounting screws. See Figure 1.

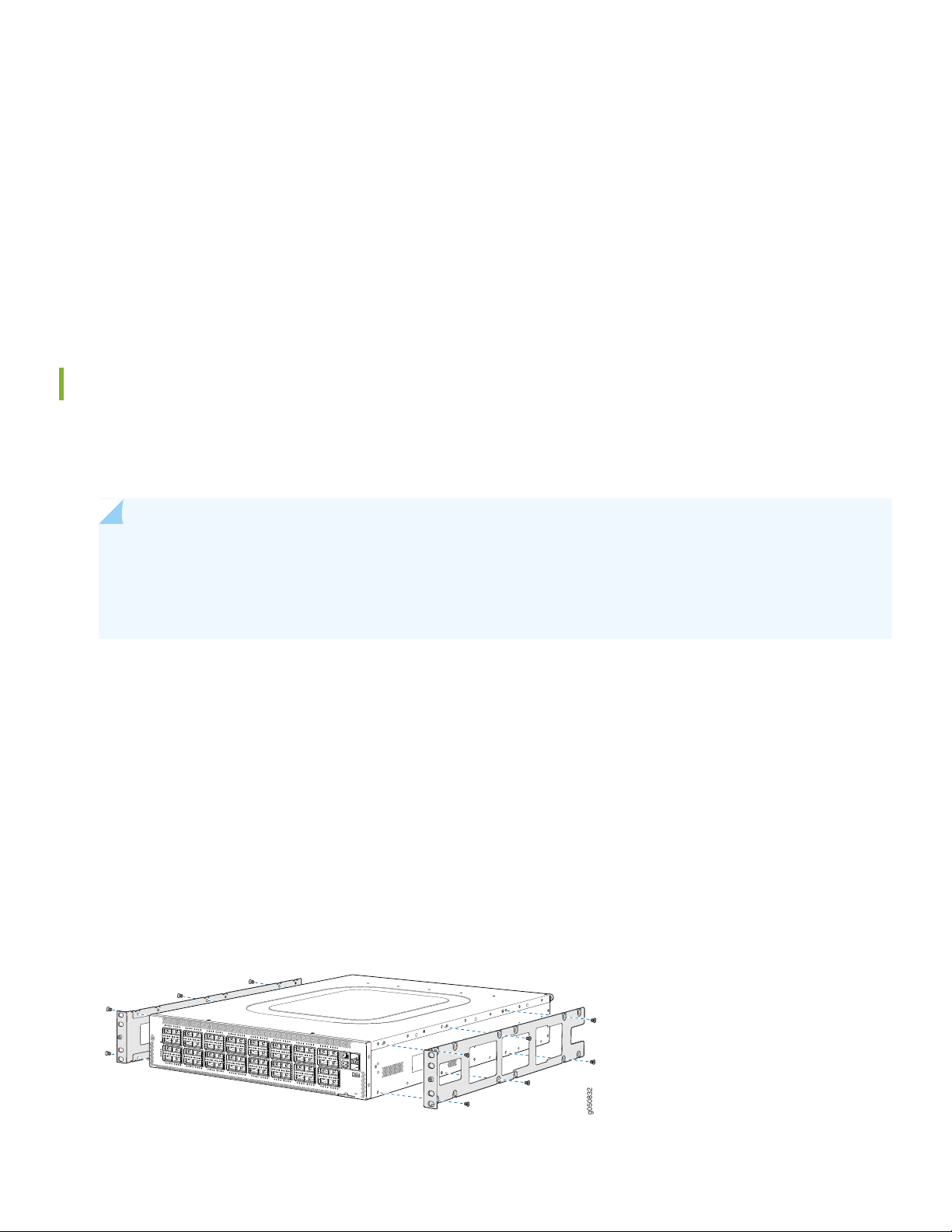

Figure 1: Attaching the Rails to the Chassis
g050832
2
6. Repeat steps 4and 5on the opposite side of the device.
7. Have one person grasp both sides of the unit, lift it, and position it in the rack so that the mounting rail is aligned with
the rack holes.
8. Have a second person secure the front of the device to the rack using four mounting screws (and cage nuts and washers
if your rack requires them). Tighten the screws.
9. Continue to support the device while sliding the mounting blades into the channel of the mounting rails and securing
the blades to the rack. Use the four mounting screws (and cage nuts and washers if your rack requires them) to attach
each blade to the rack. Tighten the screws. See Figure 2.
Figure 2: Slide Blades into Mounting Rails and Attach to the Rack
g050834
10. Ensure that the chassis is level by verifying that all the screws on the front of the rack are aligned with the screws at
the back of the rack.
11. Attach a grounding cable to earth ground and then attach it to the chassis grounding points.
Connect Power to the Device
The device is supplied with two factory-installed power supplies. To connect power to an AC-powered switch:
1. If the AC power source outlet has a power switch, set it to the OFF (0) position.
2. Insert the coupler end of the power cord into the AC power cord inlet on the AC power supply faceplate.
3. Push the power cord retainer onto the power cord.
4. Insert the power cord plug into the power source outlet.
3
5. If the AC power source outlet has a power switch, set it to the ON (|) position.
6. Verify that the AC and the DC LEDs are lit green and on steadily.
Performing the Initial Software Configuration for the QFX5210
You must perform the initial configuration of the QFX5210 through the console port using the command-line interface
(CLI) or through Zero Touch Provisioning (ZTP). In order to use ZTP to provision the device, you must have access to a
Dynamic Host Control Protocol (DHCP) server and a File Transfer Protocol (anonymous FTP), Hypertext Transfer Protocol
(HTTP), or Trivial File Transfer Protocol (TFTP) server on which the software image and configuration files are stored. For
more information about using ZTP for provisioning the device, see Understanding Zero Touch Provisioning.
Before you begin connecting and configuring a QFX5210, set the following parameter values on the console server or
PC:
•Baud Rate—9600
•Flow Control—None
•Data—8
•Parity—None
•Stop Bits—1
•DCD State—Disregard
To connect and configure the switch from the console:
1. Connect the console port to a laptop or PC using the supplied RJ-45 cable and RJ-45 to DB-9 adapter. The console
(CON) port is located on the management panel of the switch.
2. Log in as root. There is no password. If the software booted before you connected to the console port, you might need
to press the Enter key for the prompt to appear.
login: root
3. Start the CLI.
root@% cli
4. Enter configuration mode.
root> configure
5. Add a password to the root administration user account.
[edit]
4
root@# set system root-authentication plain-text-password
New password: password
Retype new password: password
6. (Optional) Configure the name of the switch. If the name includes spaces, enclose the name in quotation marks (“ ”).
[edit]
root@# set system host-name host-name
7. Configure the default gateway.
[edit]
root@# set routing-options static route default next-hop address
8. Configure the IP address and prefix length for the switch management interface.
[edit]
root@# set interfaces em0 unit 0 family inet address address/prefix-length
NOTE: The management port em0 (C0) is found on the FRU end of the QFX5210 switch.
9. (Optional) Configure the static routes to remote prefixes with access to the management port.
[edit]
root@# set routing-options static route remote-prefix next-hop destination-ip retain no-readvertise
10. Enable telnet service.
[edit]
root@# set system services telnet
NOTE: When Telnet is enabled, you cannot log in to a QFX5210 switch through Telnet using root credentials.
Root login is allowed only for SSH access.
11. Enable SSH service for root login.
[edit]
root@# set system services SSH
12. Commit the configuration to activate it on the switch.
[edit]
root@# commit
5
Safety Warnings Summary
This is a summary of safety warnings. For a complete list of warnings, including translations, see the hardware documentation
at https://www.juniper.net/documentation/.
WARNING: Failure to observe these safety warnings can result in personal injury or death.
•Permit only trained and qualified personnel to install or replace device components.
•Perform only the procedures described in this quick start and the hardware guide. Other services must be performed
only by authorized service personnel.
•Before installing the device, read the planning instructions in the hardware guide to make sure that the site meets power,
environmental, and clearance requirements for the device.
•Before connecting the device to a power source, read the installation instructions in the hardware guide.
•Manually installing the device in a rack or cabinet at a height above 60 in. (152.4 cm) requires two people to lift the unit
and install mounting screws. To prevent injury, keep your back straight and lift with your legs, not your back.
•If the rack or cabinet has stabilizing devices, install them in the rack before mounting or servicing the switch in the rack
or cabinet.
•Before installing or after removing an electrical component, always place it component-side up on a flat antistatic mat
or in an antistatic bag.
•Do not work on the device or connect or disconnect cables during electrical storms.
•Before working on equipment that is connected to power lines, remove jewelry, including rings, necklaces, and watches.
Metal objects heat up when connected to power and ground and can cause serious burns or become welded to the
terminals.
Power Cable Warning (Japanese)
The attached power cable is only for this product. Do not use this cable for another product.
g040300
6
Contacting Juniper Networks
For technical support, see https://www.juniper.net/support/requesting-support.html.
Juniper Networks, the Juniper Networks logo, Juniper, and Junos are registered trademarks of Juniper Networks, Inc. in the
United States and other countries. All other trademarks, service marks, registered marks, or registered service marks are the
property of their respective owners. Juniper Networks assumes no responsibility for any inaccuracies in this document. Juniper
Networks reserves the right to change, modify, transfer, or otherwise revise this publication without notice. Copyright © 2019
Juniper Networks, Inc. All rights reserved. Rev. 01, June 2018.
