Juniper Day One+ Manual de usuario
Day One+
EX4400
IN THIS GUIDE
Step 1: Begin | 1
Step 2: Up and Running | 8
Step 3: Keep Going | 11
Step 1: Begin
IN THIS SECTION
Meet the EX4400 Ethernet Switches | 2
Install the EX4400 | 3
Power On | 5
In this guide, we provide a simple, three-step path, to quickly get you up and running with your new EX4400. We’ve
simplified and shortened the installation and configuration steps, and included how-to videos. You’ll learn how to install
an AC-powered EX4400, power it up, and configure basic settings.
NOTE: Are you interested in getting hands-on experience with the topics and operations covered in this guide?
Visit Juniper Networks Virtual Labs and reserve your free sandbox today! You’ll find the Junos Day One Experience
sandbox in the stand alone category. EX switches are not virtualized. In the demonstration, focus on the virtual
QFX device. Both the EX and QFX switches are configured with the same Junos commands.
Meet the EX4400 Ethernet Switches
Juniper Networks®EX4400 Ethernet Switches are our first cloud-ready switches. You can manage EX4400 switches
deployed in a cloud network by using Juniper Mist™. EX4400 switches support Virtual Chassis technology, making it easy
for you to scale the network without increasing the number of devices to manage. You can also channelize the QSFP28
ports to increase the number of interfaces.
The EX4400 switches are available in 24-port and 48-port models, with AC or DC power supplies, and with different
airflow directions. The RJ-45 ports in EX4400-24P, EX4400-24MP, EX4400-48P, and EX4400-48MP switches support
IEEE 802.3bt (PoE-bt), providing up to 90 W per port. All switch models provide a slot for installing an optional extension
module.
In this guide, we show you how to install an AC-powered EX4400 switch with the fan modules and a power supply
preinstalled. If you need instructions for installing fans, power supplies, and optional extension modules, see the EX4400
Switch Hardware Guide.
Here are the port configuration details for the EX4400 switch models:
Access PortsModels
•24 10/100/1000-Mbps RJ-45 ports on the front panel
•2 100GbE QSFP28 ports on the rear panel
EX4400-24T and
EX4400-24P
•24 100/1000/2500/5000/10000-Mbps RJ-45 ports on the front panel
•2 100GbE QSFP28 ports on the rear panel
EX4400-24MP
•48 10/100/1000-Mbps RJ-45 ports on the front panel
•2 100GbE QSFP28 ports on the rear panel
EX4400-48T and
EX4400-48P
2
Access PortsModels
•36 100/1000/2500-Mbps RJ-45 ports on the front panel
•12 100/1000/2500/5000/10000-Mbps RJ-45 ports on the front panel
•2 100GbE QSFP28 ports on the rear panel
EX4400-48MP
•36 SFP ports and 12 SFP+ ports on the front panel
•2 100GbE QSFP28 ports on the rear panel
EX4400-48F
Install the EX4400
IN THIS SECTION
What's in the Box? | 3
What Else Do I Need? | 3
Install the EX4400 in a Rack | 4
What's in the Box?
•EX4400 switch with two preinstalled fan modules and one preinstalled AC power supply
•One AC power cord appropriate for your geographical location
•An Ethernet cable
•An RJ-45 to DB-9 serial port adapter
•Two brackets to mount the switch in a two-post rack or on two posts of a 19-in. four-post rack
•Eight screws to attach the mounting brackets to the chassis
•Four rubber feet to mount the switch on a desktop or other level surface
•Covers for the empty extension module slot and the empty power supply slot
What Else Do I Need?
•Someone to help you secure the switch to the rack
•Four rack mount screws appropriate for your rack to secure the switch to the rack
•A number 2 Phillips (+) screwdriver
•An electrostatic discharge (ESD) grounding strap
•A management host such as a laptop or desktop PC
3
•A serial-to-USB adapter (if your laptop or desktop PC doesn’t have a serial port)
•Two 10-32 x .25-in. screws with #10 split-lock washers to secure the grounding lug
•A grounding cable: 14 AWG (1.5 mm²), minimum 90° C wire, or as permitted by the local code, with a Panduit
LCD10-10AF-L or equivalent lug attached
CAUTION: Ensure that a licensed electrician has attached the appropriate grounding lug to the
grounding cable that you supply. Using a grounding cable with an incorrectly attached lug can damage
the switch.
Install the EX4400 in a Rack
Before you start the installation, be sure to review the General Safety Guidelines and Warnings. Also, have someone
available to help you secure the switch to the rack.
You can install the EX4400 switch on a desktop or other level surface, in a two-post or four-post rack, or on a wall. The
mounting kit that ships in the box has the brackets you need to install the EX4400 switch in a two-post rack or on the
front posts of a 19-in four-post rack. We’ll walk you through how to install the switch in a two-post rack.
NOTE: If you want to install the switch in a four-post rack or on the wall , you’ll need to order separate mounting
kits. The four-post rack mount kit also has brackets for mounting the EX4400 switch in a recessed position in
the rack.
Let's get going and start the installation!
1. Place the switch on a flat, stable surface.
2. Wrap and fasten one end of the ESD grounding strap around your bare wrist, and connect the other end to a site ESD
point.
3. Attach the mounting brackets to the sides of the EX4400 switch using the eight screws in the rack mount kit and a
screwdriver.
4

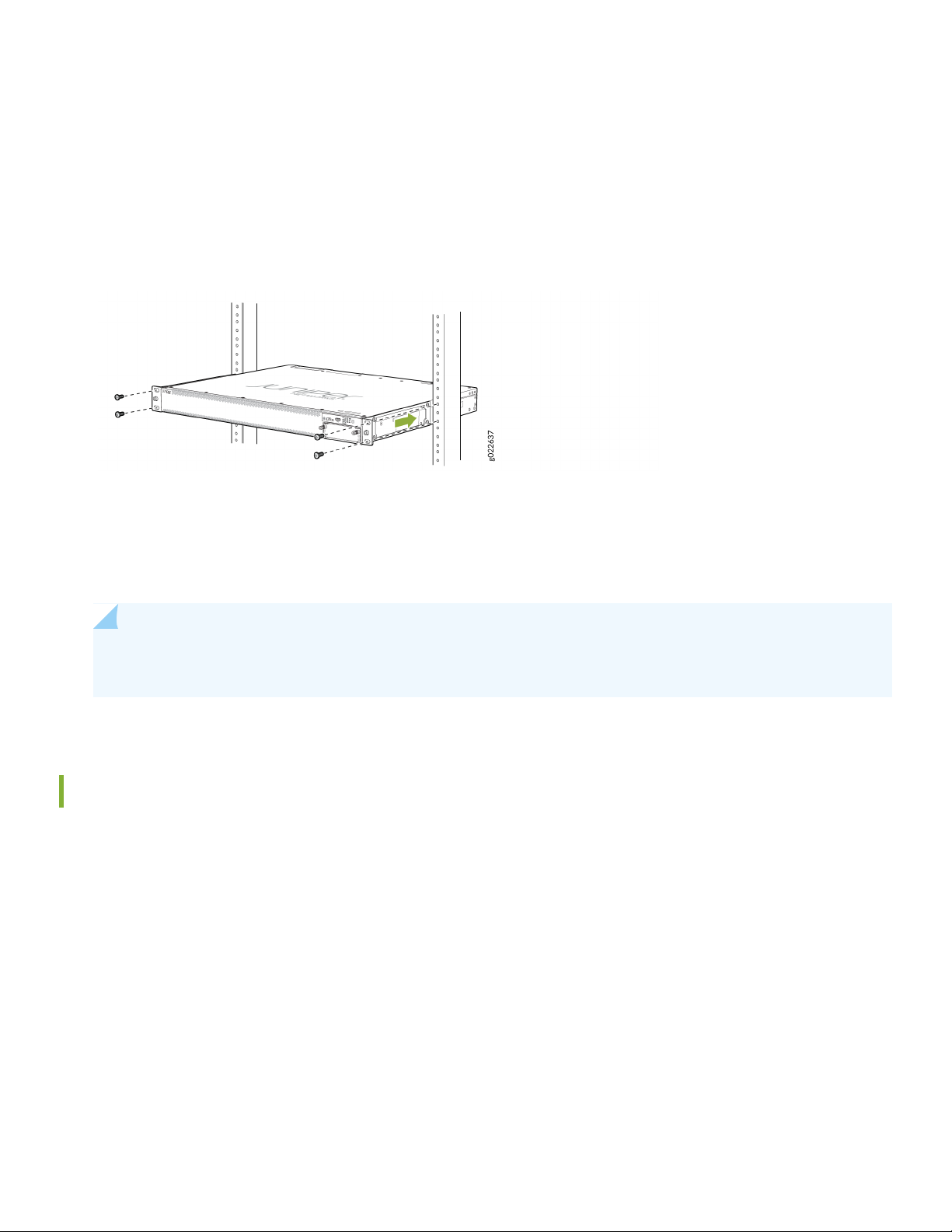

4. Lift the switch and position it in the rack. Position the switch so that the AIR IN labels on the fan modules are facing
the cold aisle, or the AIR OUT labels on the fan modules are facing the hot aisle. Line up the bottom hole in each
mounting bracket with a hole in each rack post, making sure the switch is level.
5. While you’re holding the switch in place, have a second person insert and tighten the rack mount screws to secure the
mounting brackets to the rack posts. Make sure to tighten the screws in the two bottom holes first, and then tighten
the screws in the two top holes.
6. Check that the mounting brackets on each side of the rack are lined up with each other.
7. Cover the empty extension module and the power supply slots by using the covers that came with the switch.
NOTE: The slot covers reduce the risk of objects or substances entering the chassis. They also ensure optimal
cooling for the switch.
Power On
Now you’re ready to connect the EX4400 switch to a dedicated AC power source. The switch comes with the AC power
cord for your geographic location.
Here's how to connect the EX4400 switch to AC power:
1. Wrap and fasten one end of the ESD grounding strap around your bare wrist, and connect the other end of the strap
to a site ESD point.
2. Connect one end of the grounding cable to a proper earth ground, such as the rack.
5
3. Place the grounding lug attached to the grounding cable over the protective earthing terminal on the rear panel.
4. Secure the grounding lug to the protective earthing terminal using the 10-32 x .25-in. screws with #10 split-lock
washers.
5. Dress the grounding cable. Be sure that the cable doesn’t block access to or touch other device components, and that
it doesn’t drape where people could trip over it.
6. Ensure that the power supply is fully inserted in the rear panel of the switch.
6
7. On the rear panel, connect the retainer strip and power cord to the AC power socket:
a. Push the end of the retainer strip into the hole next to the AC power socket until it snaps into place. Ensure that
the loop in the retainer strip points upward.
b. Press the small tab on the retainer strip to loosen the loop.
c. Slide the loop until you have enough space to insert the power cord into the AC power socket.
d. Firmly plug in the power cord to the AC power socket on the switch.
e. Slide the loop toward the power supply until it is snug against the base of the power cord coupler.
f. Press the tab on the loop, and draw out the loop into a tight circle.
8. If the AC power source outlet has a power switch, turn it off.
9. Plug in the power cord to the AC power source outlet.
10. If the AC power source outlet has a power switch, turn it on. The switch powers on as soon as you plug it in. The
EX4400 doesn't have a power switch.
11. Check to see that the OUT.OK LED on the power supply is lit steadily green. If not, disconnect the power supply from
the power source. You’ll need to replace the power supply (see Maintain the EX4400 Power System in the EX4400
Switch Hardware Guide).
7
Step 2: Up and Running
IN THIS SECTION
Plug and Play | 8
Customize the Basic Configuration | 8
Now that the EX4400 is powered on, let’s do some initial configuration to get it up and running on the network. It’s simple
to configure and manage the EX4400 using the CLI.
Plug and Play
The EX4400 switch ships with factory-default settings that enable plug-and-play operation. These settings load as soon
as you power on the switch.
Customize the Basic Configuration
You can easily customize the factory-default configuration with just a few commands. When you commit changes to the
configuration, a new configuration file is created. This becomes the active configuration. You can always revert to the
factory-default configuration whenever you want.
Have the following information ready before you begin customizing the switch:
•Root authentication password
•Management port IP address
•Default gateway IP address
•DNS server IP address
8
1. Verify that the serial port settings for your laptop or desktop PC are set to the default values:
•Baud Rate—9600
•Data—8
•Flow Control—None
•Parity—None
•Stop Bits—1
•DCD State—Disregard
2. Connect the console port (labeled CON) on the rear panel of the EX4400 switch to a serial port on your laptop or
desktop PC using the Ethernet cable and RJ-45 to DB-9 adapter. If your laptop or desktop PC doesn't have a serial
port, use a serial-to-USB adapter (not provided).
3. At the Junos OS login prompt, type root to log in. You don't need to enter a password. If the software boots before
you connect your laptop or desktop PC to the console port, you might need to press the Enter key for the prompt to
appear.
login: root
4. Start the CLI.
root@:RE:0% cli
root>
5. Enter configuration mode.
root> configure
[edit]
root#
6. Add a password to the root administration user account. Enter a plain-text password, an encrypted password, or an
SSH public key string. In this example, we show you how to enter a plain-text password.
[edit]
root# set system root-authentication plain-text-password
New password: password
Retype new password: password
7. Configure the default gateway.
[edit]
9
root# set routing-options static route 0/0 next-hop address
8. Configure the IP address and prefix length for the management interface on the switch.
[edit]
root# set interfaces me0 unit 0 family inet address address/prefix-length
NOTE: The management port me0 (labeled MGMT) is on the rear panel of the EX4400 switch.
The management interface provides a dedicated out-of-band management channel to manage devices on the network.
If you need to configure in-band management, see Configure Junos OS on the EX4400 in the EX4400 Switch Hardware
Guide.
9. Configure the IP address of a DNS server.
[edit]
root# set system name-server address
10. Configure the SSH service.
[edit]
root# set system services ssh root-login allow
11. Commit the configuration to activate it on the switch.
[edit]
root# commit
12. When you’ve finished configuring the switch, exit configuration mode.
[edit]
root# exit
root>
10
