Product/Technical Bulletin VA-8122

Issue Date March 2016

Part No. 14-1213-8, Rev. C www.johnsoncontrols.com

Code No. LIT-977380

The VA-8122 Proportional Valve Actuator is an electric

actuator that provides proportional control of valves

with up to a 5/16 in. stroke in Heating, Ventilating, and

Air Conditioning (HVAC) applications. This compact,

non-spring return actuator has a 22 lb minimum

seating force in a compact, easy-to-install package.

The VA-8122 can be ordered factory coupled to the

1/2 in. or 3/4 in. VG7000 Series bronze valves for hot

or cold water service only. The VA-8122 can be used

for retrofits of VT Series Terminal Unit Valves (with

slotted stems) and VB-5x39 Series Flare Valves.

Refer to the appropriate valve literature for more

information.

Figure 1: VA-8122-1 Valve Actuator

Features and Benefits

AUTOCAL Pushbutton

Allows the actuator to define the control input

range proportionally over the stroke

qSimplified Setup and

Adjustment Procedures Reduces installation costs

Selectable Direction of

Action, Drive Down (DD) or

Drive Up (DU)

Provides application flexibility

Wide Range of Control

Inputs (Voltage and

Current)

Meets the needs of most applications

qPower Failure Detection;

Low Voltage Indication Prevents data corruption of the actuator’s

memory and warns of insufficient supply

voltage

Light-Emitting Diode (LED) Reduces commissioning time and displays

operating status

VA-8122 Proportional Valve Actuator

2VA-8122 Proportional Valve Actuator Product/Technical Bulletin

Operation

The actuator uses a reversible synchronous motor to

accurately position the valve. The motor can reliably

generate 22 pounds of force in either the Drive Down

(DD) or Drive Up (DU) direction.

Once the valve closes, a shutoff force builds up. When

this force reaches 22 pounds, a lever within the

actuator operates a force sensor that stops the motor.

The constant load at the end of travel ensures tight

valve seat shutoff and compensates for seat wear.

Field calibration of shutoff is not required. The actuator

maintains the shutoff force and its last position even if

power is removed.

Note: The valve stem can be positioned manually by

turning the manual adjustment knob shown in

Figure 2. Rotating the knob counterclockwise

moves the valve stem up.

Yoke/

Machine Screw

Lever

Plate

Drive

Screw

Jumpers

W1-W5 AUTOCAL

Pushbutton

Spade

Terminals (3)

LED

Circuit Board

+24

COM

VDC/mA

Stem Retainer/

Position Indicator Manual

Adjustment

Knob

Figure 2: VA-8122 Components

IMPORTANT: There are no internal mechanical

stops in the actuator. Never drive

the actuator unless it is installed on

the proper valve body, or the

actuator may be damaged.

Dimensions

See Figure 3 for actuator dimensions.

5.00

127.0

2.50

63.5

0.87

22.2

4.50

114.3

0.50*

12.7

2.50*

63.5

* Required for cover

removal clearance.

Figure 3: VA-8122 Dimensions, in. (mm)

Installation

IMPORTANT: Dripping water must be prevented

from entering the actuator housing,

since this could damage the

actuator. Do not cover the actuator

with thermal insulating material.

Note: The VA-8020-100 kit (ordered separately) is

required if mounting to a VT Series Terminal

Unit Valve.

Kit Includes

•VA-8122 actuator

•VA-8020-605 stem retainer and clip kit

Tools Required

•5/16 in. (8 mm) nut driver or 3/16 in. (5 mm)

flat-blade screwdriver

•needle-nose pliers

•crescent wrench (to fit 1-1/4 in. bonnet

adaptor nut)

VA-8122 Proportional Valve Actuator Product/Technical Bulletin 3

Mounting

IMPORTANT: Do not use on valves having a

stroke over 5/16 in. Travel beyond

5/16 in. will damage the actuator or

prevent complete shutoff.

Note: In horizontal piping applications, it is

recommended that the valve be mounted

within 85° of the upright position. When

mounted in vertical piping, the valve must be

protected from moisture.

Unpack the actuator and proceed as follows:

1. Remove the actuator cover by pressing inward on

the plastic tabs while sliding the cover up and

forward.

2. Make sure that the lever plate is within 1/4 in.

(6.4 mm) of the upper stop. (See Figure 4.)

Lever Plate

Approximately

1/4 in.

Coupler

Yoke/

Machine Screw Manual

Adjustment

Knob

Figure 4: Plate Position

3. For VT valves, thread the bonnet adaptor nut

(included in the VA-8020-100 kit) onto the

valve bonnet shown in Figure 5, and tighten with a

wrench until it is snug.

Bonnet

Adaptor Nut

Packing

Nut

Valve

Bonnet

Stem

Figure 5: Valve Bonnet Adaptor

4. Position the actuator yoke on the bonnet adaptor

nut, making sure the yoke is flush with the surface

of the nut.

Note: If the valve stem is touching the coupler and

preventing a flush contact, use the manual

adjustment knob (shown in Figure 4) to

reposition the coupler.

5. Secure the actuator to the valve bonnet by

tightening the hex-head machine screw provided.

6. Place the stem retainer and coupling clip over the

valve stem, so the lower (shorter) portion of the

coupling clip is positioned in the locking groove on

the valve stem as shown in Figure 6.

Valve Stem

Coupler

Coupling Clip

Stem

Retainer Lower Portion

of Clip

Figure 6: VA-8020-605 Stem Retainer and Clip Kit

Note: The extended portion of the stem retainer

must be located on the right so that it lines up

in the window of the cover. It may be

necessary to pull the valve stem up to meet

the coupler or to rotate the manual adjustment

knob (shown in Figure 4) clockwise to run the

coupler down.

7. Push the white plastic stem retainer until the

coupling clip moves forward into the groove, and

the retainer locks the clip in place.

8. Verify that the valve stem is located at the back of

the groove by examining the connection.

To remove the coupling clip, use pliers to grip the stem

retainer and pull outward. (See Figure 6.)

4VA-8122 Proportional Valve Actuator Product/Technical Bulletin

Calibration

The actuator drives in proportion to the amount of

change in the input control signal. It accepts the input

control signal ranges by means of jumpers. Electrical

connections for the control input are made via spade

terminals that are mounted on the circuit board located

under the actuator’s cover. (See Figure 2 for the

location of the calibration components.)

Jumpers

The type of input control signal is determined by the

position of Jumper W1. When Jumper W1 is in the

VDC position (factory setting), the input signal is

DC voltage. When Jumper W1 is in the mA position,

the signal changes to current input. The direction of

action, either DD (factory setting) or DU, is selected

with Jumper W2. The range of the input signal is

determined by the position of Jumpers W3, W4,

and W5. (See Table 1 and Table 2.)

Table 1: Jumper Settings

W5*

Shown in Factory (Default) Settings

(Drive Down)

(Drive Up)

DU 6-9 VDC

(Current Input)

VDC

(Voltage Input)

* The 6-9 VDC position of Jumper W5 overrides Jumper W3.

0-10 VDC

(0-20 mA)

2-10 VDC

(4-20 mA)

0-10 VDC

0-20 VDC

Table 2: Available Input Control Signal vs. Input Jumpers

Control Signal Jumper W1 Jumper W3 Jumper W4 Jumper W5*

VDC

0-10

2-10

0-10

0-20

—

6-9

0 to 10 VDC

X X X X

2 to 10 VDC

6 to 9 VDC

12 to 18 VDC

X X X X

0 to 20 VDC

4 to 20 VDC

0 to 20 mA

X X X X

4 to 20 mA

* When Jumper W5 is in the 6 to 9 VDC position, it overrides Jumper W3.

Table 3: Calibration Values for the AV-8122

Control Signal Values (All Nominal)

0 to 10 VDC

0.7 to 9.3 VDC

2 to 10 VDC 2.6 to 9.4 VDC

6 to 9 VDC

6.5 to 8.5 VDC

0 to 20 VDC

1.4 to 18.6 VDC

4 to 20 VDC 5.2 to 18.8 VDC

0 to 20 mA

1.4 to 18.6 mA

4 to 20 mA

5.2 to 18.8 mA

VA-8122 Proportional Valve Actuator Product/Technical Bulletin 5

Direction of Action

The actuator’s direction of action is selected with

Jumper W2. (See Figure 3.) The action of the actuator

can be reversed by moving Jumper W2 on the circuit

board. When Jumper W2 is in the DD position (factory

setting), a low control input signal will cause the

actuator lever arm to move to the highest position

(valve stem up). A high control input signal will cause

the actuator lever arm to move to the lowest position

(valve stem down). When Jumper W2 is in the

DU position, the lever arm will be low for a low control

input signal and high for a high control input signal.

(See Figure 7.)

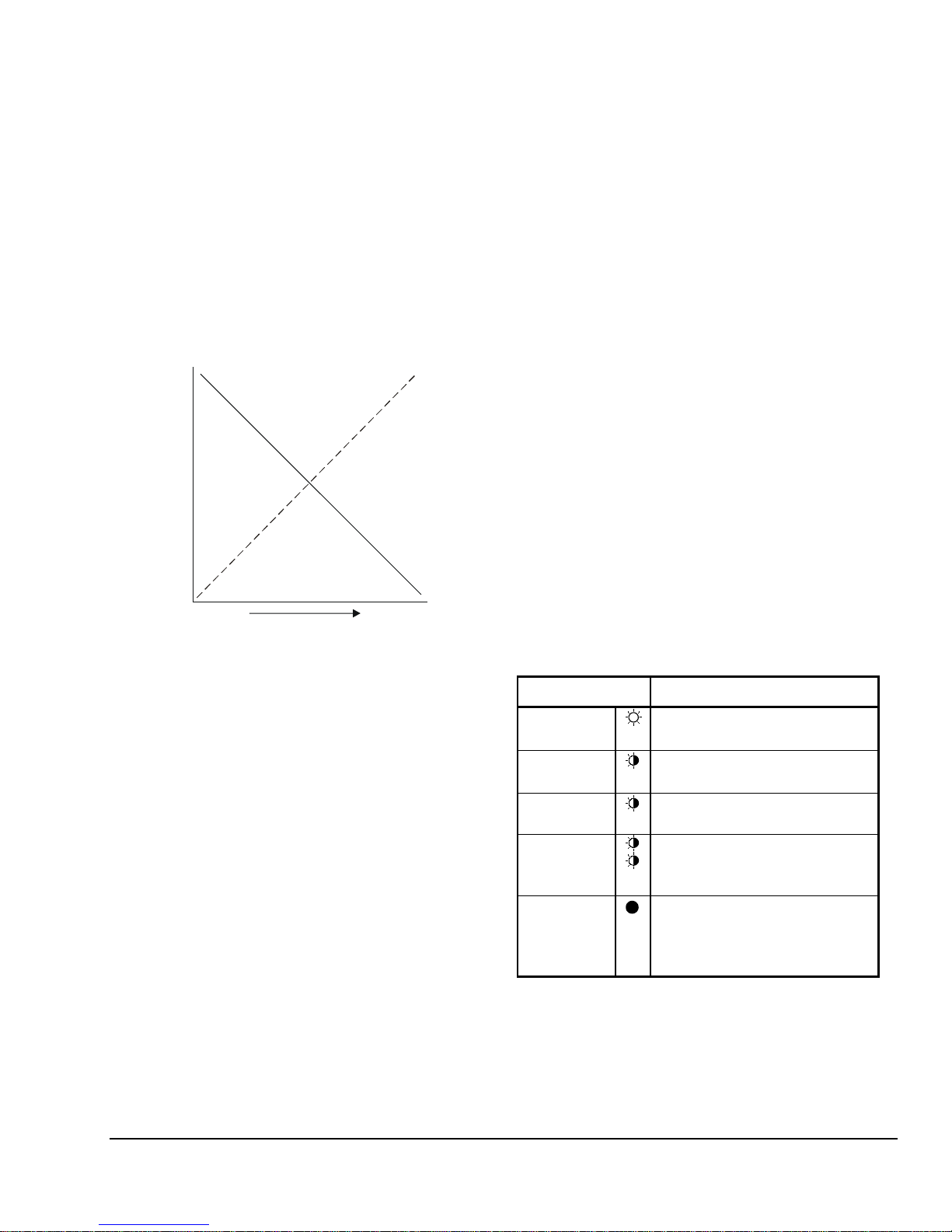

DU Mode

DD Mode

Low Control

Input Signal

Stem

Down

Stem

Signal Increase High Control

Input Signal

Figure 7: DD/DU Direction

The DD mode will result in the Direct Acting (DA)

operation of a Push-Down-To-Open (PDTO) valve.

Auto Calibration

The VA-8122 is factory calibrated for a 5/16 in. valve

stroke. To compensate for minor variations in strokes,

use the Auto Calibration or AUTOCAL mode during the

calibration and installation of the actuator. This mode

allows the actuator to define the control input range

proportionally over the valve stroke stored in

nonvolatile memory (retains data when power is lost or

removed).

Note: Once calibrated, it is not necessary to

recalibrate if a jumper is changed.

To activate the AUTOCAL mode, depress the

AUTOCAL pushbutton for approximately 3 seconds

until the LED turns off. The actuator drives to the

DU end-stop, then to the DD end-stop, and stores

these positions in nonvolatile memory. The actuator

will drive to the setpoint determined by the control

signal applied after going through AUTOCAL.

Note: AUTOCAL mode only occurs when the

pushbutton is depressed. It does not occur

automatically when power is supplied to the

actuator.

LED

The VA-8122 has a green LED display to indicate the

actuator’s operating mode. (See Table 4.)

Table 4: Operating Display

LED Indication Description

On Solid Power is applied; actuator is at

setpoint or stalled (not driving).

Single

Blinking Power is applied; actuator is

driving down or up.

Fast Single

Blinking Insufficient supply voltage

Double

Blinking Actuator is driving during the

Auto Calibration mode

(AUTOCAL pushbutton released).

Off Power is not applied or Auto

Calibration mode is initiated

(AUTOCAL pushbutton

depressed for 3 seconds).

6VA-8122 Proportional Valve Actuator Product/Technical Bulletin

Wiring

CAUTION: Risk of Electric Shock.

Disconnect the power supply before making

electrical connections to avoid electric shock.

MISE EN GARDE : Risque de décharge

électrique.

Débrancher l'alimentation avant de réaliser tout

raccordement électrique afin d'éviter tout risque de

décharge électrique.

CAUTION: Risk of Property Damage.

Do not apply power to the system before checking all

wiring connections. Short circuited or improperly

connected wires may result in permanent damage to

the equipment.

MISE EN GARDE : Risque de dégâts matériels.

Ne pas mettre le système sous tension avant d'avoir

vérifié tous les raccords de câblage. Des fils formant

un court-circuit ou connectés de façon incorrecte

risquent d'endommager irrémédiablement

l'équipement.

IMPORTANT: Make all wiring connections in

accordance with the National

Electrical Code and local

regulations.

When a 24 VAC power signal is applied to the +24 and

COM terminals, the VA-8122 accepts a DC voltage

input control signal or current input signal at the

VDC/mA (+) and COM (–) terminals.

The VA-8122 wiring connections are made to the

tab receptacles shown in Figure 8. Use either the

quick-connect terminals shown in Figure 9 or an

M9000-105 Pluggable (3-position) Terminal Block.

Controller

Input Signal

24 VAC

Supply

VDC/mA+24 VAC COM

(Common)

Figure 8: VA-8122 Wiring

IMPORTANT: Install all the quick-connect

terminals in the same direction to

each other to prevent the terminals

from shorting. (See Figure 9.)

Figure 9: Orientation of Terminals

Input lines to the actuator must be wired correctly for

the valve to move in the proper direction. (Refer to the

specific controller wiring instructions as needed.) Wire

the actuator as follows:

1. Push in the two tabs on the side of the actuator

cover and lift and remove it.

2. Insert the controller leads through the plate on the

side of the actuator.

3. Make the wiring connections to the terminals as

shown in Figure 8.

Commissioning

Field calibration of the force sensor is not required.

If power is removed from the VA-8122, the valve stem

remains in its intermediate position until power is

reapplied.

If the control signal to the actuator is lost, the valve

stem moves to the zero input signal position:

valve stem up in DD mode or down in DU mode.

Checkout

The VA-8122 is factory set as follows:

•Jumper W1 in the VDC position

•Jumper W2 in the DD position

•Jumpers W3 and W4 in the 0 to 10 VDC position

•Jumper W5 in the "—" position

If this is the intended operation, proceed as follows:

1. Depress the AUTOCAL pushbutton. (Actuator

drives to the DU end-stop, the DD end-stop, and

then returns to the setpoint.)

2. Provide minimum control signal. (Actuator drives

the valve stem up, and the motor stops.)

VA-8122 Proportional Valve Actuator Product/Technical Bulletin 7

3. Provide maximum control signal. (Actuator drives

the valve stem down, and the motor stops.)

4. Observe the vertical movement of the indicator

within the actuator window to ensure proper

positioning. The installation is complete.

Note: If factory settings are to be changed, see the

Calibration section.

Ordering Information

Field repairs must not be made. To order a

proportional valve actuator, contact the nearest

Johnson Controls representative and specify product

code number VA-8122-1.

Actuator Combinations

The VA-8122-1 is available factory coupled to 1/2 in.

or 3/4 in. VG7000 Series bronze valves. The VA-8122

is also available for retrofitting VG7000 Series bronze

valves, VT Series Terminal Unit Valves (with slotted

stems), and VB-5x39 Series Flare Valves. Refer to the

AV-8122 Series Proportional Control Actuated Valve

Product/Technical Bulletin (FAN 977 or 1628.3), and

the VG7000 Series Bronze Valves ANSI Class 250

(PN16) Body Size 1/2 through 2 inch (DN15 to DN50)

Product/Technical Bulletin (FAN 977, 125, or 1628.3)

for available configurations. Accessories for the

VA-8122 can be found in Table 5.

Table 5: Accessories

Product

Code Number Description

VA-8020-100 Mounting kit for VT Series valves

VA-8020-601 Replacement cover only

VA-8020-605* Stem retainer and clip kit

M9000-105 Pluggable 3-position terminal

block

* One kit is included with the actuator. If ordered separately,

it must be ordered in multiples of five.

8VA-8122 Proportional Valve Actuator Product/Technical Bulletin

Specifications

Product

VA-8122 Proportional Valve Actuator

Power Requirements

24 VAC at 50/60 Hz, 5.0 VA supply minimum, Class 2

Input Signal

Jumper Selectable: 0 (2) to 10 VDC, 0 (4) to 20 VDC, 6 (12) to 9 (18) VDC, 0 (4) to 20 mA

Factory Setting: 0 to 10 VDC, Drive Down (DD) action on signal increase

Input Impedance

Voltage Input: 0 to 10 VDC, 150,000 ohms and 0 to 20 VDC, 450,000 ohms

Current Input: 0 to 20 mA, 500 ohms

5/16 in. Stroke Time

50 Hz: Approximately 108 seconds nominal

60 Hz: Approximately 90 seconds nominal

Force

Shutoff and Breakaway: 22 lb (98 N) minimum

Cycles

60,000 full cycles; 1,500,000 repositions

Enclosure

NEMA 1, IP20

Audible Noise Rating

35 dBA maximum at 3.28 ft (1 m)

Ambient Operating

Conditions

35 to 135°F (2 to 57°C);

85°F (30°C) maximum dew point at 90% RH, non-condensing

Ambient Storage

Conditions

-40 to 150°F (-40 to 65°C);

85°F (30°C) maximum dew point at 90% RH, non-condensing

Valve Media Temperature

Water: 195°F (90°C) maximum

Steam: Actuator is not rated for this application.

Dimensions (H x W x D)

4.5 x 5.0 x 2.5 in. (114 x 127 x 64 mm)

Shipping Weight

1.6 lb (0.74 kg)

Agency Compliance

UL 873 Recognized, File E27734, Guide XAPX2

CSA C22.2 No. 139 Certified, File LR85083, Class 3221 02

The performance specifications are nominal and conform to acceptable industry standards. For application at conditions beyond these

specifications, consult the local Johnson Controls office. Johnson Controls, Inc. shall not be liable for damages resulting from misapplication

or misuse of its products.

European Single Point of Contact:

NA/SA Single Point of Contact:

APAC Single Point of Contact:

JOHNSON CONTROLS

WESTENDHOF 3

45143 ESSEN

GERMANY

JOHNSON CONTROLS

507 E MICHIGAN ST

MILWAUKEE WI 53202

USA

JOHNSON CONTROLS

C/O CONTROLS PRODUCT MANAGEMENT

NO. 22 BLOCK D NEW DISTRICT

WUXI JIANGSU PROVINCE 214142

CHINA

Building Efficiency

507 E. Michigan Street, Milwaukee, WI 53202

Metasys® and Johnson Controls® are registered trademarks of Johnson Controls, Inc.

Tabla de contenidos

Otros manuales de Controladores de Johnson Controls

Johnson Controls

Johnson Controls PENN P70 Series Manual

Johnson Controls

Johnson Controls VA-747 Series Manual de usuario

Johnson Controls

Johnson Controls VA9204-B-2 Series Manual de usuario

Johnson Controls

Johnson Controls LP-NRM653-000C Manual de usuario

Johnson Controls

Johnson Controls Metasys NCE25 series Manual de usuario

Johnson Controls

Johnson Controls M100C Series Manual de usuario

Johnson Controls

Johnson Controls EDA-8100 Instrucciones de montaje

Johnson Controls

Johnson Controls CK721-A Manual de usuario

Johnson Controls

Johnson Controls VA7820-GG-1 Series Manual de usuario

Johnson Controls

Johnson Controls FEU2610 Series Manual de usuario

Johnson Controls

Johnson Controls FX Supervisory Controller RS-485 Card Manual de usuario

Johnson Controls

Johnson Controls M9206-DN Series Manual de usuario

Johnson Controls

Johnson Controls EasyIO FW-08 V3 Manual de usuario

Johnson Controls

Johnson Controls M9304-GGA-1N Manual de usuario

Johnson Controls

Johnson Controls M91 GDA-1N Series Manual de usuario

Johnson Controls

Johnson Controls F4-CG Series Manual de usuario

Johnson Controls

Johnson Controls M9200 Series Manual de usuario

Johnson Controls

Johnson Controls System 350 P352AB Series Manual de usuario

Johnson Controls

Johnson Controls VA-7010 Series Manual

Johnson Controls

Johnson Controls Tyco KT-1 Manual de usuario

Johnson Controls

Johnson Controls METASYS ASC Manual de usuario

Johnson Controls

Johnson Controls LN Series Manual de usuario

Johnson Controls

Johnson Controls FEC26 Series Manual de usuario

Johnson Controls

Johnson Controls CIS01 Manual de instrucciones

Manuales populares de Controladores de otras marcas

Digiplex

Digiplex DGP-848 Instrucciones de funcionamiento

YASKAWA

YASKAWA SGM series Manual de usuario

Sinope

Sinope Calypso RM3500ZB Manual de usuario

Isimet

Isimet DLA Series Style 2 Manual de instalación

LSIS

LSIS sv-ip5a Manual de usuario

Rockwell Automation

Rockwell Automation 1769-L31 Manual de usuario

Airflow

Airflow Uno hab Manual de usuario

ABB

ABB ACS580-01 drives Manual de usuario

Panasonic

Panasonic GM1 Series Manual de usuario

Emerson

Emerson SW93 Manual de usuario

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manual de usuario

Panasonic

Panasonic FP? Positioning Unit RTEX Manual de usuario

Samson

Samson Type 5824 Manual de servicio

Alpha IP

Alpha IP MIOB 21001 Manual de usuario

Siemens

Siemens OpenAir GMA 1 Series Manual de usuario

Surecom

Surecom SR-629 Manual de usuario

Fishman

Fishman TriplePlay Manual de usuario

Regulus

Regulus SRS1 T Manual de usuario
