Johnson Controls P2000 Manual

24-10707-15 Revision E

December 2017

P2000

Security Management System

CKM-EP1502

authentic Mercury™ controller

hardware

installation

Johnson Controls

No part of this document may be reproduced without the prior permission of Johnson Controls.

If this document is translated from the original English version by Johnson Controls, all reasonable

endeavors will be used to ensure the accuracy of translation. Johnson Controls shall not be liable

for any translation errors contained herein or for incidental or consequential damages in connection

with the furnishing or use of this translated material.

Due to continuous development of our products, the information in this document is subject to

change without notice. Johnson Controls shall not be liable for errors contained herein or for

incidental or consequential damages in connection with furnishing or use of this material. Contents

of this publication may be preliminary and/or may be changed at any time without any obligation to

notify anyone of such revision or change, and shall not be regarded as a warranty.

Other Manufacturers’ Documentation

Johnson Controls does not duplicate documentation of other equipment manufacturers. When

necessary, Johnson Controls provides documentation that supplements that of other manufacturers.

When unpacking your equipment, keep all original manufacturer documentation for future

reference.

Technical Support

For factory technical support, Johnson Controls authorized field technicians or authorized dealer

representatives can contact Global Security Solutions Technical Support by phone at

(866) 893-0423 or (414) 524-1214, or by email at [email protected]. They

can also call the Field Support Center at (800) 524-1330 or (414) 524-5000 and use options 6, 1, 7.

End users and customers should contact their local Johnson Controls branch or authorized dealer

for any of their support needs (technical support, maintenance contracts, on-site field support,

P2000 Software Service Agreements, Service Partnerships, and so on). Visit

http://www.johnsoncontrols.com/location-finder to find your local Johnson Controls office.

For material returns contact the branch if the material was purchased through a Johnson Controls

branch or through the Product Sales Operations Team, if ordered through the Advanced Order

Management System (AOMS) and follow the RMA process; or contact the authorized dealer

representative where the material was purchased directly.

Single Point of Contact by Region

Acknowledgment

Metasys® and Johnson Controls® are trademarks of Johnson Controls. All other company and

product names are trademarks or registered trademarks of their respective owners.

European Single Point of Contact

JOHNSON CONTROLS

WESTENDHOF 3

45143 ESSEN

GERMANY

NA/SA Single Point of Contact

JOHNSON CONTROLS

507 E MICHIGAN ST

MILWAUKEE WI 53202

USA

APAC Single Point of Contact

JOHNSON CONTROLS

C/O CONTROLS PRODUCT

MANAGEMENT

NO. 22 BLOCK D NEW DISTRICT

WUXI JIANGSU PROVINCE 214142

CHINA

Declarations of Conformity

United States: This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at his own expense.

Canada: CAN ICES-3 (A)/NMB-3(A)

European Union: This product complies with the requirements of the EMC Directive.

This equipment must not be modified for any reason and it must be installed as stated in the

Manufacturer’s instruction.

If this shipment (or any part thereof) is supplied as second-hand equipment, equipment for sale

outside the European Economic Area or as spare parts for either a single unit or system, it is not

covered by the Directives.

UNDERWRITERS LABORATORIES COMPLIANCE VERIFICATION SHEET

The following model number is listed under Underwriters Laboratories® (UL) 1076 for Proprietary

Burglar Alarm Units and Systems, UL 294 for Access Control Systems Units and Underwriters

Laboratories of Canada ULC/ORD-C1076-86.

CKM-EP1502

When installed at the site the following requirements must be met to comply with these standards.

1. The CKM-EP1502 shall be mounted in Listed Enclosures CKM-CE75-E2M, CKM-CE150-E4M

and Listed Burglar Alarm and Access Control System Units SPF10000-1I00, SPF1I100-1I00 or

SPF1I300-1J00.

2. A CKM-EP1502 mounted in Listed Enclosures CKM-CE75-E2M, CKM-CE150-E4M, and

Listed Burglar Alarm and Access Control System Units SPF10000-1I00, SPF1I100-1I00 or

SPF1I300-1J00 shall be powered through the CKM-F8P power distribution module.

3. Transient protection devices that are installed must not be removed or defeated.

4. Do not connect equipment to an AC power source that is controlled by a switch.

5. A 1.5Kohm/750ohm custom end-of-line resistance supervised circuit was investigated by

Underwriter Laboratories.

6. Power for devices connected through relay/control output wiring must be provided by a UL

Listed power limited power source.

7. RS485-type readers have not been investigated by Underwriters Laboratories.

8. Encrypted communication has not investigated by Underwriters Laboratories.

9. RS232 communication has not investigated by Underwriters Laboratories.

10. Assa Abloy Aperio 1-to-8 communication hub and locks have not been investigated by

Underwriters Laboratories.

11. For a UL 294 Listed system the following Listed readers may be used.

Manufacturer Models

HID Global Corp. 30387, 31503, 31815, 31880, 32005, 32788, 32985, 5355, 5365,

5395, 5405, 5455, 6005, 6100, 3110-6445, R10T, R10N, R15N,

R15T, RP15N, RP15T, R40N, R40T, RK40N, RK40T, RP40N,

RP40T, RPK40N, RPK40T

All models may be followed by additional suffixes

OSDP Readers: R10Exxx, RP10Exxx, R15Exxx, RP15Exxx,

R30Exxx, RP30Exxx, R40Exxx, RP40Exxx, RK40Exxx,

RPK40Exxx.

All models may be followed by additional suffixes. The last “X” in

the model number maybe an “R” or “N”

Mercury Security Corp. MR-5, MR-20

12. The maximum Wiegand line impedance is 8 ohms, representing 22 AWG @ 500 feet.

13. The HID 3110-6445 shall be powered by a separate power source that is UL 294 or UL 603

power limited power source.

14. Suitable for use with the model P2K-nnn-UL-X Security Management System, where n may be

any number 0 through 9 and where X may be any three letters A through Z.

15. UL 294 Performance Levels

Destructive Attack Level I

Endurance Level IV

Line Security Level II

Standby Power Level I

CKM-EP1502 Hardware Installation Manual

24-10707-15 Rev. E

CKM-EP1502 CONTROLLER

This document provides hardware installation and setup instructions for

CKM-EP1502, the authentic Mercury™ intelligent dual reader controller. This

document is divided into the following sections:

•General Information on page 1

•Mounting Information on page 2

•Wiring Information on page 3

•Memory and Real-Time Clock Backup Battery on page 7

•Setup Information on page 8

•Addressing Mode Configuration (Static IP or DHCP) on page 12

•Status LEDs on page 14

•Specifications on page 15

•Maintenance on page 17

•Connecting Third Party Devices (Assa Abloy®) on page 18

GENERAL INFORMATION

The CKM-EP1502 intelligent dual reader controller provides decision making,

event reporting, and database storage for the Mercury hardware platform. Two

reader interfaces provide control for two doors.

It communicates with the host via onboard 10-BaseT/100Base-TX Ethernet

port. Port 1 (RS-232) is reserved for future use.

Two physical barriers can be controlled with the CKM-EP1502. Each reader

port can accommodate a read-head that utilizes Wiegand, magnetic stripe, or

two-wire RS-485 electrical signaling standards; one- or two-wire LED

controls; and buzzer control (one-wire LED mode only). Four Form-C relay

outputs may be used for strike control or alarm signaling. The relay contacts are

rated at 5 A at 30 VDC, dry contact configuration. Eight inputs are provided for

monitoring the door contacts, exit push buttons and alarm contacts. The CKM-

EP1502 requires 12-24 VDC for power. We recommend that the CKM-EP1502

be mounted 0.25 in. minimum above any conductive surface.

CKM-EP1502 Hardware Installation Manual

24-10707-15 Rev. E

MOUNTING INFORMATION

Figure 1: CKM-EP1502 Hardware

CKM-EP1502 Hardware Installation Manual

24-10707-15 Rev. E

WIRING INFORMATION

This sections covers the following:

•Cable Routing

•Input Power, Cabinet Tamper, and UPS Fault Input Wiring

•Communication Wiring

•Reader Wiring

•Input Circuit Wiring

•Relay Circuit Wiring

Cable Routing

The cables should run in grounded conduit or at least two feet from AC

power, fluorescent lights, or other high energy sources.

IMPORTANT: All data cables should be physically separated from power lines. If

conduit is used, do not run data cables in the same conduit as power cables or

certain door strike cables, e.g. strike voltage greater that 42V or Magnetic door

locks without EMI suppression.

All cables must conform with the following regulations:

• National Electrical Code

•NFPA 70

• Local electrical codes

• Canadian Electric Code C22.1 (installations in Canada)

• BSI Standard BS7671, latest edition (installations in Great Britain)

Cabling should be made using good wiring practices and should be long

enough to allow service loops at their terminations in the enclosure.

CKM-EP1502 Hardware Installation Manual

24-10707-15 Rev. E

Input Power, Cabinet Tamper, and UPS Fault Input Wiring

The CKM-EP1502 requires 12-24 VDC power. Locate power source as

close to the unit as possible.

IMPORTANT: Connect power with minimum of 18 AWG wire. Connect the GND

signal to earth ground in one location within the system. Multiple earth ground

connections may cause ground loop problems and is not advised.

IMPORTANT: Observe polarity on 12-24 VDC input.

There are two dedicated inputs for cabinet tamper and UPS fault

monitoring. Normal (safe) condition is a closed contact. If you are not

using these inputs, install a jumper wire.

Figure 2: CKM-EP1502 Input Power, Cabinet Tamper, and UPS Fault Input Wiring

Communication Wiring

The CKM-EP1502 controller communicates to the host via the onboard

10-BaseT/100Base-TX Ethernet interface (port 0).

The serial I/O device communication port (TB3) is a two-wire RS-485

interface which you can use to connect additional I/O panels. The

interface allows multidrop communication on a single bus of up to 4,000

feet (1,219 m). Use twisted pairs (minimum 24 AWG) with an overall

shield for communication.

IMPORTANT: Install the termination jumper ONLY on the panel at each end of the

RS-485 bus. Failure to do so compromises the proper operation of the

communication channel.

CKM-EP1502 Hardware Installation Manual

24-10707-15 Rev. E

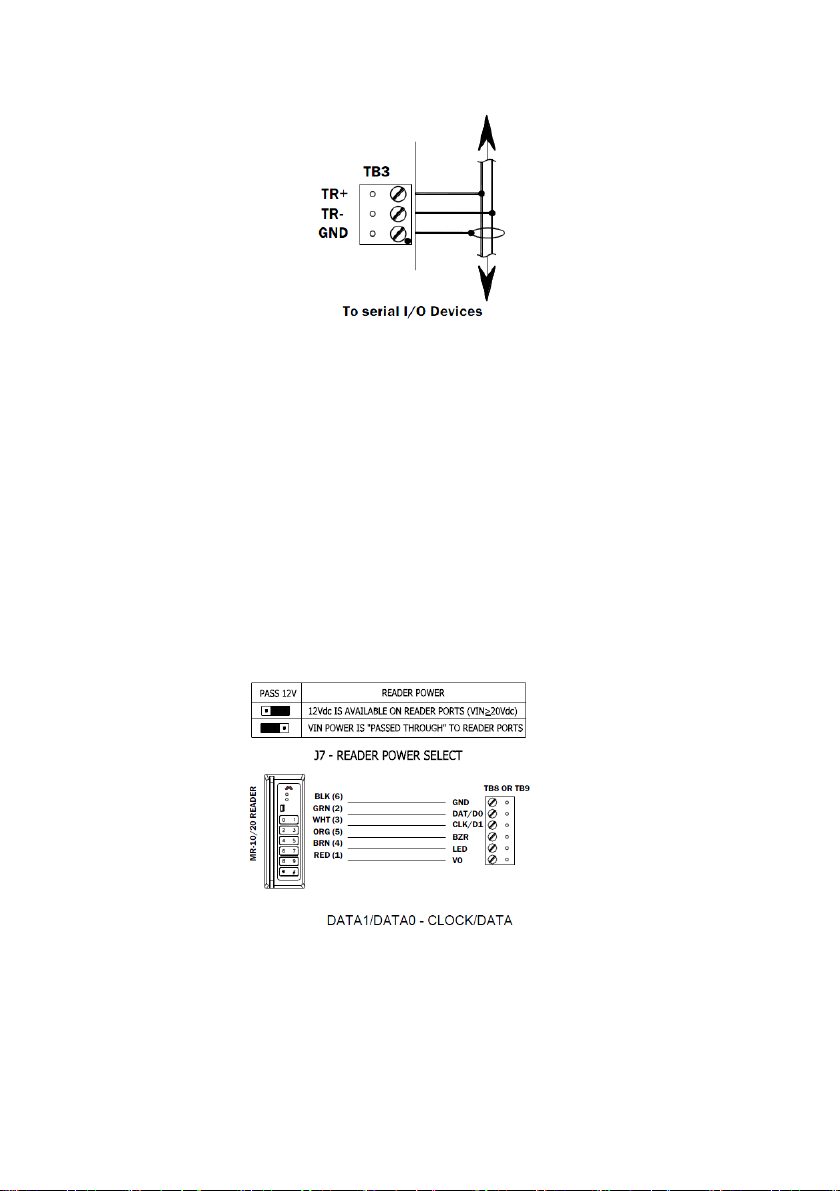

Figure 3: CKM-EP1502 Communications Wiring

Reader Wiring

Each reader port supports Wiegand, magnetic stripe, and two-wire RS-

485 electrical interfaces. Power to the reader is selectable: 12 VDC (VIN

must be greater than 20 VDC), or power is passed through (PT) from the

input voltage of the CKM-EP1502 (TB1-VIN) and is current limited to

150 mA for each reader port. Readers that require different voltage or

have high current requirements should be powered separately. Refer to

the reader manufacture specifications for cabling requirements. In the

two-wire LED mode, the Buzzer output in used to drive the second LED.

Reader port configuration is set via the host software.

Figure 4: CKM-EP1502 Reader Wiring

CKM-EP1502 Hardware Installation Manual

24-10707-15 Rev. E

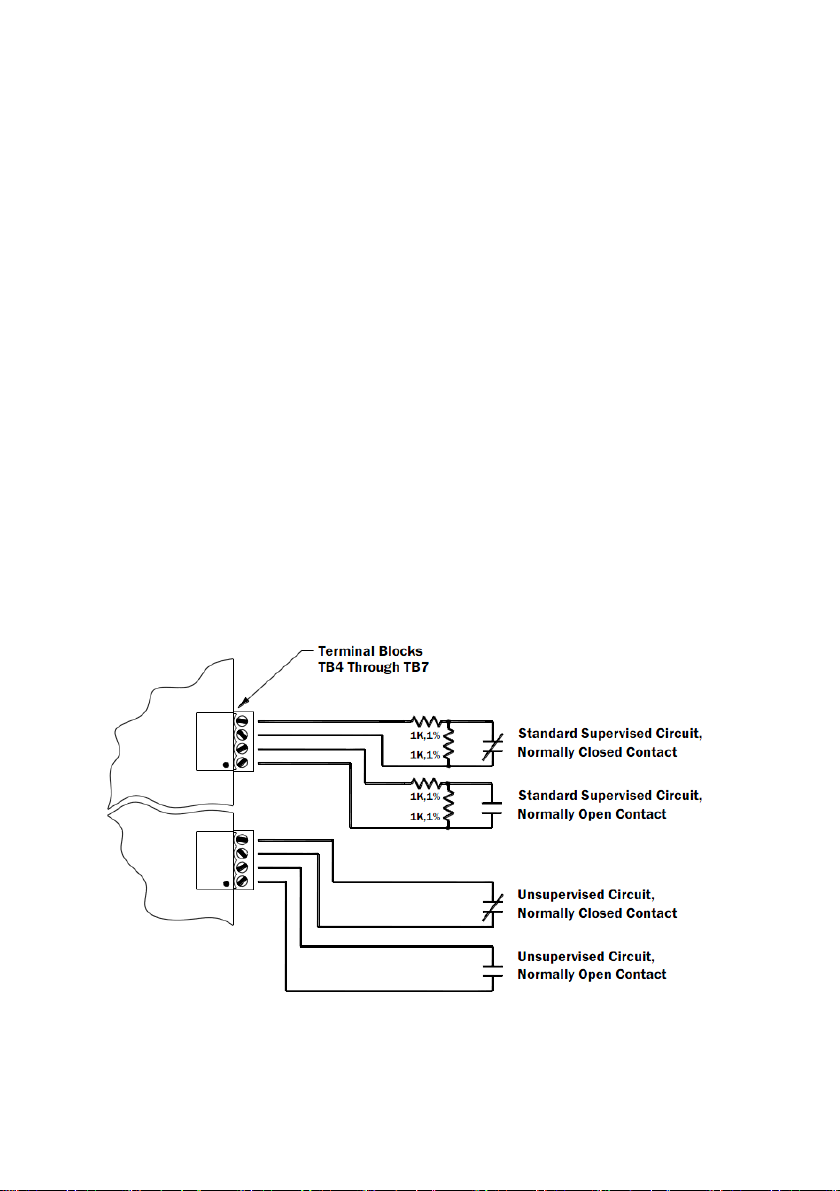

Input Circuit Wiring

Typically, you use these inputs to monitor door position, request to exit,

or alarm contacts. You can configure input circuits as unsupervised or

supervised.

When request to exit (REX) input is supervised, the strike remains locked

when a transition to open state or short state occurs. Such transitions do

not generate notifications. The strike relay unlocks only when the REX

input changes to the active state, that is, when the REX switch contact

opens or closes depending on the configuration.

When you configure input circuits as unsupervised, reporting consists of

only the open or closed states.

When you configure input circuits as supervised, the input circuit reports

not only open and closed states, but also open and short. A supervised

input circuit requires two resistors added to the circuit to facilitate proper

reporting. The standard supervised circuit requires 1k Ohm, 1% resistors,

and should be located as close to the sensor as possible. Configure

custom end of line (EOL) resistances via the host software.

The input circuit wiring configurations shown in Figure 5 are supported,

but may not be typical.

Figure 5: CKM-EP1502 Input Circuit Wiring

Otros manuales para P2000

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Controladores de Johnson Controls

Johnson Controls

Johnson Controls VA-7010 Series Manual

Johnson Controls

Johnson Controls FMS-1655L Manual de usuario

Johnson Controls

Johnson Controls CK721-A Manual de usuario

Johnson Controls

Johnson Controls CK721-A Guía de inicio rápido

Johnson Controls

Johnson Controls NAE Manual de instrucciones

Johnson Controls

Johnson Controls FAC2611-0U Manual de usuario

Johnson Controls

Johnson Controls PENN ACT2 Manual de servicio

Johnson Controls

Johnson Controls LN-IO -1 Series Manual de usuario

Johnson Controls

Johnson Controls M9203-B Series Manual de usuario

Johnson Controls

Johnson Controls VMA1615 Manual de usuario

Johnson Controls

Johnson Controls LX-HPUL-1 Manual de usuario

Johnson Controls

Johnson Controls P266 Series Manual de usuario

Johnson Controls

Johnson Controls VA9208-AG Series Manual de usuario

Johnson Controls

Johnson Controls V-4000-1 Manual de usuario

Johnson Controls

Johnson Controls VA9104-AGA-1S Manual de usuario

Johnson Controls

Johnson Controls PENN P70 Series Manual

Johnson Controls

Johnson Controls FMS-1655 Series Manual de usuario

Johnson Controls

Johnson Controls tyco Power Neo HS2016 Manual de usuario

Johnson Controls

Johnson Controls VMA18 Series Manual de usuario

Johnson Controls

Johnson Controls TEC2245-4 Manual de usuario

Johnson Controls

Johnson Controls FX Supervisory Controller RS-485 Card Manual de usuario

Johnson Controls

Johnson Controls BMMS-1P Instrucciones de funcionamiento originales

Johnson Controls

Johnson Controls FEU2610 Series Manual de usuario

Johnson Controls

Johnson Controls TEC-2647-4 Manual de usuario

Manuales populares de Controladores de otras marcas

Digiplex

Digiplex DGP-848 Instrucciones de funcionamiento

YASKAWA

YASKAWA SGM series Manual de usuario

Sinope

Sinope Calypso RM3500ZB Manual de usuario

Isimet

Isimet DLA Series Style 2 Manual de instalación

LSIS

LSIS sv-ip5a Manual de usuario

Rockwell Automation

Rockwell Automation 1769-L31 Manual de usuario

Airflow

Airflow Uno hab Manual de usuario

ABB

ABB ACS580-01 drives Manual de usuario

Panasonic

Panasonic GM1 Series Manual de usuario

Emerson

Emerson SW93 Manual de usuario

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manual de usuario

Panasonic

Panasonic FP? Positioning Unit RTEX Manual de usuario

Samson

Samson Type 5824 Manual de servicio

Alpha IP

Alpha IP MIOB 21001 Manual de usuario

Siemens

Siemens OpenAir GMA 1 Series Manual de usuario

Surecom

Surecom SR-629 Manual de usuario

Fishman

Fishman TriplePlay Manual de usuario

Regulus

Regulus SRS1 T Manual de usuario
