Network Room Modules

Installation Guide Part No. 24-85638-1214, Rev. E

Issue Date June 14, 2010

Figure 1: Dimensions, mm (in.)

80 (3.15)

120

(4.72)

25 (0.98)

(6)

Display

in Celsius and

Fahrenheit units

80 (3.15) 35

(1.38)

(1)

LCD Display

with back-light

(2)

Dial for Temperature

SetpointAdjustment

(3)

°C / °F Button

(4)

Fan Button for fan speed adjustment

(5)

Service tool socket

Figure 2: Removing the Cover from the Base

III

Figure 3: Wall Mounting Base Dimensions, mm (in.)

31 (1.22)

60 (2.36)

2 x Ø 4.2 (0.16)

66 (2.60)66 (2.60)

60 (2.36)

4,3 (0.17)

4,3 (0.17) 4,3 (0.17)

29 (1.14)

(1.30)

(1.50)

5.7 (0.22)

34 (1.34)

67 (2.64)

Figure 4: Dual-Switch DIP Switch Block

Figure 5: Terminal Block Connection

Figure 6: Service Port (4-pin) for LP-NRM0xx-000C Series

Figure 7: Port (6-pin Modular Jack) for LP-NRM5xx-000C and

LP-NRM6xx-000C Series

1Network Room Modules Installation Guide

Network Room Modules

Installation Guide

READ THIS INSTRUCTION SHEET AND THE SAFETY WARNINGS

CAREFULLY BEFORE INSTALLING, AND SAVE IT FOR FUTURE USE

General Features

• Network Room Modules (NRMs) are designed for use with

Johnson Controls® Facility Explorer FX06, FX07, FX14, and FXVMA

Field Controllers.

• The Liquid Crystal Display (LCD), along with a dial and push button(s) on

the front of the NRM, allow the occupant to view and adjust the setpoint

temperature in the controller, and to manually override the speed of the

fan in the controlled equipment.

• The NRM connects to the Local Link Display Bus of the FX field

controller. Configure the NRM with the FX Builder programming tool,

which is part of the FX Tools Pro Software package.

• The LP-NRM0xx-000C Series NRM requires a 15 to 24 VAC/VDC power

supply from the FX Controller or from an external power source, and has

a 4-pin service port (Figure 6).

• The LP-NRM5xx-000C and LP-NRM6xx-000C Series NRMs require a

15 VDC power supply from the FX Controller or from an external power

source, and have a 6-pin Modular Jack service port (Figure 6).

North American Emissions Compliance

United States

This equipment has been tested and found to comply with the limits for a

Class A digital device pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

when this equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may

cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference, in

which case the user will be required to correct the interference at his/her

own expense.

Part No. 24-85638-1214, Rev. E

Issue Date June 14, 2010

2Network Room Modules Installation Guide

Canada

This Class (A) digital apparatus meets all the requirements of the Canadian

Interference-Causing Equipment Regulations.

Cet appareil numérique de la Classe (A) respecte toutes les exigences du

Règlement sur le matériel brouilleur du Canada.

Tools

• Flat-head screwdrivers, 3 mm and 5 mm (1/8 to 5/32 in.)

• Drill, bits, and appropriate 4 mm (3/16 in.) screws and plugs

• Pointed tool (available from Johnson Controls, Ordering Code TM-9100-8900

in Europe, or T-4000-119 in North America)

Figure 1: Dimensions, mm (in.)

(1) LCD Display with backlight

(2) Dial for temperature set point adjustment

(3) °C/°F Button

(feature available in specific models, see Ordering Codes)

(4) Fan button for fan speed adjustment

(feature available in specific models, see Ordering Codes)

(5) Service port

(6) Display in Celsius and Fahrenheit units

Mounting

The NRM mounts directly on a wall surface in the room you want to control.

Choose a location for the NRM while considering the following information:

• Place the room module where the occupant can easily read the LCD and

use the controls.

• Place the module where theambient temperature is representative of the

general room conditions if you want to use the built-in temperature

sensor to measure space temperature. For example, there should be a

sufficient amount of air circulation.

• Avoid cold or warm air drafts, radiant heat, and direct sunlight.

• Place some insulating material in the wiring access hole or conduit to

prevent the introduction of air from outside the room.

3Network Room Modules Installation Guide

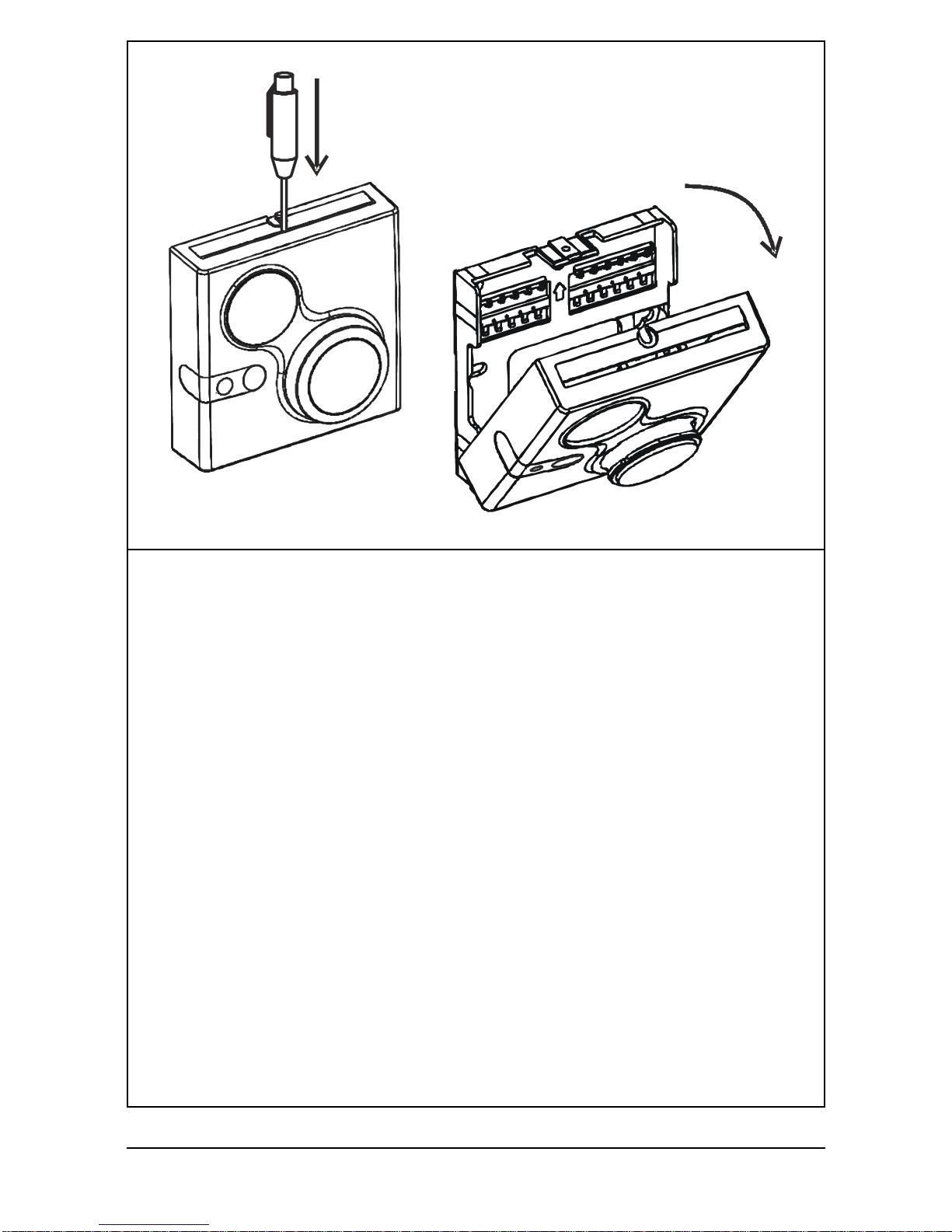

Figure 2: Removing the Cover from the Base

1. Remove the retaining screw (if inserted) from the top of the module

enclosure.

2. Remove the module cover from the base by inserting a pointed tool into

the narrow slot at the center top of the cover. While pressing down

gently, pry the base away from the cover. As the two parts separate,

remove the tool and continue to pull the cover away from the base until

the cover is free.

Figure 3: Wall Mounting Base Dimensions, mm (in.)

1. Hold the module base on the wall to cover the electrical outlet and mark

the position of at least two holes. Drill the holes and insert the plastic

plugs (wall anchors) into the holes.

2. Mount the module base on the wall and secure with at least two screws.

For other mounting options, see Ordering Codes and refer to the

corresponding installation sheets.

Addressing

Figure 4: Dual-Switch DIP Switch Block

NRM models which are not addressable have a fixed physical address of

191. For those models which are addressable, the NRM's address must be

set using its dual-switch DIP switch block, located on the printed wiring

board. See Table 1 for details on addressing the NRM.

Note: You must cycle power to the NRM (disconnect/reconnect the NRM

or cycle power to the field controller) for the address change to take

effect.

Table 1: NRM Addressing

DIP Switch

Address Switch 2 Switch 1

191 OFF OFF

192 OFF ON

193 ON OFF

194 ON ON

4Network Room Modules Installation Guide

Wiring

CAUTION: Risk of Electric Shock.

Disconnect power supply before making electrical

connections to avoid electric shock.

IMPORTANT: The Complementary Metal Oxide Semiconductor

(CMOS) circuits in the controller are sensitive to static electricity.

Take suitable precautions.

IMPORTANT: The LP-NRM0xx-000C Series NRM accepts VAC or

VDC power. The LP-NRM5xx-000C and LP-NRM6xx-000C Series

accept VDC power only.

IMPORTANT: Use this NRM Room Command Module only as an

operating control. Where failure or malfunction of the NRM could

lead to personal injury or property damage to the controlled

equipment or other property, additional precautions must be

designed into the control system. Incorporate and maintain other

devices, such as supervisory or alarm systems or safety or limit

controls, intended to warn of or protect against failure or

malfunction of the NRM.

IMPORTANT: The installation of electrical wiring must conform to

local codes and should be carried out by authorized personnel only.

Users should ensure that all Johnson Controls products are used

safely and without risk to health or property.
