FX20/FX60 Supervisory Controllers

Installation Instructions

Application

The FX20 and FX60 are Web-based supervisory class

controllers in the Facility Explorer product family. The

FX20/FX60 manages networks of field controllers

using open communication protocols, such as N2,

LONWORKS®, and BACnet® protocols.

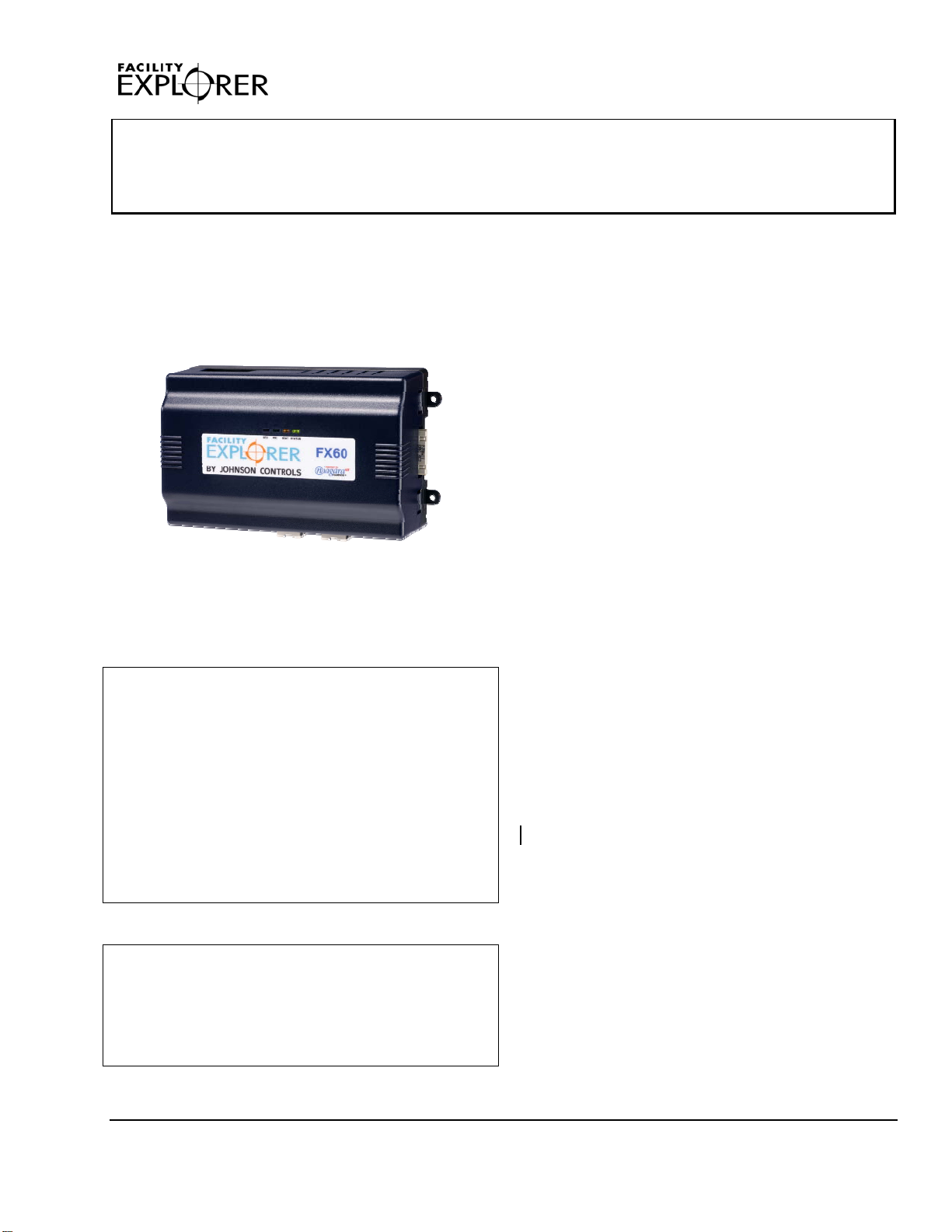

Figure 1: FX60 Supervisory Controller

North American Emissions Compliance

United States

This equipment has been tested and found to comply

with the limits for a Class A digital device pursuant to

Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful

interference when this equipment is operated in a

commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the

instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in

a residential area is likely to cause harmful

interference, in which case the user will be required to

correct the interference at his/her own expense.

Canada

This Class (A) digital apparatus meets all the

requirements of the Canadian Interference-Causing

Equipment Regulations.

Cet appareil numérique de la Classe (A) respecte

toutes les exigences du Règlement sur le matériel

brouilleur du Canada.

Installation

Parts Included

Unpack the FX20/FX60 and accessories

(power module, option cards), if ordered. Inspect the

contents of the packages for damaged or missing

components. If damaged, notify the appropriate carrier

and return any damaged components for repair or

replacement.

Included in this package are the following items:

FX Supervisory Series controller

Hardware bag containing a grounding wire with

quick disconnect 0.187 in. (4.75 mm) female

connector.

Power module (if ordered). The power module

may be one of the following:

LP-FXPM24-0

(24 VAC, DIN rail mountable)

LP-FXPM263-0

(90-263 VAC, DIN rail mountable)

LP-FXPMUS-0

(90-240 VAC, with U.S. wall adapter)

LP-FXPMEU-0

(90-240 VAC, with European wall adapter)

LP-FXPMUK-0

(90-240 VAC, with U.K. wall adapter)

Communication cards (if ordered)

LP-FXLONFTT-1

LP-FXRS232-0

LP-FXRS485-0

LP-FXMDM-0

LP-FXWTC-0

Expansion Input/Output (NDIO) Modules

(if ordered)

LP-FXNDIO16-0

LP-FXNDIO34-0

LP-FXRIO16-0

2FX20/60 Supervisory Controllers Installation Instructions

Materials and Special Tools Needed

You may require the following materials and tools for

installation:

DIN Rail: type NS35/7.5 (35 x 7.5 mm) and DIN

rail end clips. Length of DIN rail depends on the

number of optional DIN rail mounted options.

If using a 24 VAC power module: UL Listed,

Class 2, 24 VAC transformer, rated at minimum of

8.5 VA to 20 VA, dedicated to powering the

FX20/FX60 and its accessories (cannot power

additional equipment).

Suitable screws and screwdriver for mounting DIN

rail or, if DIN rail is not used, for mounting bases of

FX20/FX60 and any optional accessories.

#2 Phillips screwdriver: used to install and remove

optional communication modules.

small flat-blade screwdriver: used for mounting

and removing the FX20/FX60 from the DIN rail

and for making wiring connections to the RS-485,

LONWORKS, and Input/Output (I/O) connectors.

Safety Precautions

The following information relates to the installation and

startup of the FX20/FX60.

WARNING: Risk of Electric Shock.

Disconnect power supply before making electrical

connections. Contact with components carrying

hazardous voltage can cause electric shock and

may result in severe personal injury or death.

AVERTISSEMENT: Risque de décharge

électrique. Débrancher l'alimentation avant de

réaliser tout branchement électrique. Tout contact

avec des composants conducteurs de tensions

dangereuses risque d'entraîner une décharge

électrique et de provoquer des blessures graves,

voire mortelles.

IMPORTANT: Use copper conductors only. Make

all wiring connections in accordance with local,

national, and regional regulations. Do not exceed the

FX20/FX60 electrical ratings.

IMPORTANT: Do not install or use the FX20/FX60

in or near environments where corrosive substances

or vapor could be present. Exposure of the

FX20/FX60 to corrosive environments may damage

the device’s internal components, and will void the

warranty.

IMPORTANT: Use this FX20/FX60 only as an

operating control. Where failure or malfunction of the

FX20/FX60 could lead to personal injury or property

damage to the controlled equipment or other

property, additional precautions must be designed in

the control system. Incorporate and maintain other

devices, such as supervisory or alarm systems or

safety or limit controls, intended to warn of or protect

against failure or malfunction of the FX20/FX60.

FX Supervisory Controller Installation Instructions 3

Static Discharge Precautions

Static charges produce voltages high enough to

damage electronic components. The microprocessors

and associated circuitry within a FX20/FX60 are

sensitive to static discharge.

IMPORTANT: Work in a static-free area. Discharge

any static electricity you may have accumulated.

Discharge static electricity by touching a known,

securely grounded object. Do not handle the Printed

Circuit Board (PCB) without proper protection

against static discharge. Use a wrist strap when

handling PCBs. Secure the wrist strap clamp to

earth ground.

Accessories

The FX20/FX60 has a 20-pin, right-angle, Euro-DIN

connector that accepts accessory modules. The

connector provides power and signal lines to any

connected modules. The connector is located on the

end of the FX20/FX60 opposite the option cards.

IMPORTANT: Turn off power to the FX20/FX60

before inserting or unplugging accessory modules.

Wait for the LED activity to stop (all LEDs off).

CAUTION: Risk of Property Damage.

Do not apply power to the system before checking

all wiring connections. Short circuited or improperly

connected wires may result in permanent damage to

the equipment.

MISE EN GARDE: Risque dégâts matériels.

Ne pas mettre le système sous tension avant d'avoir

vérifié tous les raccords de câblage. Des fils formant

un court-circuit ou connectés de façon incorrecte

risquent d'endommager irrémédiablement

l'équipement.

Each accessory module has a DIN-mount base, and

typically provides two 20-pin connectors that allow you

to chain multiple accessories (see DIN Rail Mounting

Instructions). Table 1 lists the currently available

modules.

4FX20/60 Supervisory Controllers Installation Instructions

Table 1: Accessory Module Details

Model Description Notes

LP-FXPM24-0 Power module for FX20/FX60

24 VAC/DC, DIN rail mountable Install only one power module per FX20/FX60, regardless

of type.

LP-FXPM263-0 Power module for FX20/FX60

90-263 VAC, DIN rail mountable Install only one power module per FX20/FX60, regardless

of type.

LP-FXNDIO16-0 16 channel input/output module for

FX20/FX60, DIN rail mountable Provides the following I/O points:

8 Universal Inputs (UIs)

4 Digital Outputs (DOs), Single Poll Single Throw

(SPST) relay type

4 Analog Outputs (AOs) (0-10 VDC)

Up to four (maximum) NDIO16 accessory modules are

supported.

LP-FXNDIO34-0 34 channel input/output module for

FX20/FX60, DIN rail mountable. In

addition, the NDIO34 provides power to

the attached FX20/FX60, using an

externally supplied 24 VAC transformer or

24 VDC power supply.

Provides the following I/O points:

16 Universal Inputs (UIs)

10 Digital Outputs (DOs), SPST relay type

8 Analog Outputs (AOs) (0-10 VDC)

One NDIO34 plus up to 2 additional NDIO16 modules are

supported. Do not power the NDIO34 if using a separate

wall plug power module.

LP-FXRIO16-0 16 channel remote input/output Provides the following I/O points:

8 Universal Inputs (UIs)

4 Form A Relay Outputs

4 1-10 VDC Analog Outputs

Up to 4 FXRIO10 modules supported on FX20

Up to 16 FXRIO16 modules supported on FX60

FX Supervisory Controller Installation Instructions 5

Mounting

Mount the FX20/FX60 in a location that allows

clearance for wiring, servicing, and module removal.

For mounting details, see Figure 2 through Figure 5.

Follow these recommendations and precautions

when mounting and installing the unit.

Use this controller for indoor use only. Do not

expose the unit to ambient conditions outside

the range of 0 to 50ºC (32 to 122ºF) and relative

humidity outside the range of non-condensing

5 to 95% (Pollution Degree 1).

For a controller mounted inside an enclosure,

ensure that the enclosure is designed to keep

the unit within its required operating range

(considering a 20-watt dissipation by the

controller). This is especially important if the

controller is mounted inside an enclosure with

other heat producing equipment.

Do not mount the unit:

in an area where excessive moisture,

corrosive fumes, or explosive vapors are

present

where vibration or shock is likely to occur

in a location subject to electrical noise. This

includes the proximity of large electrical

contactors, electrical machinery, welding

equipment, and spark igniters.

Physical Mounting

The following information applies to the physical

mounting of the FX20/FX60.

You do not need to remove the cover before

mounting.

Mount the FX20/FX60 in any orientation.

Mount the unit on a 35-mm wide DIN rail

(recommended). The FX20/FX60 unit base and

its accessories have molded DIN rail slots and

locking clips. Mounting these components on a

DIN rail ensures accurate alignment of

connectors between all modules.

If DIN rail mounting is impractical, use screws in

mounting tabs on the FX20/FX60 and in any

end-connected accessory (power module, NDIO

module). See Figure 2 for tab dimensions.

DIN Rail Mounting Instructions

To mount on DIN rail:

1. Securely install the DIN rail using at least 2

screws near both ends of the rail.

2. Position the FX20/FX60 on the rail, then tilt it to

hook the DIN rail tabs over one edge of the DIN

rail (see Figure 3).

3. Use a screwdriver to pry down the plastic

locking clip, and push the FX20/FX60 down and

in, which forces the locking clip to snap over the

edge of the DIN rail.

4. Mount the accessory modules (NDIO modules

and power module) onto the DIN rail in the

same manner (see Figure 5). See Table 1 for

quantities allowed.

5. Slide the accessory along the DIN rail to

connect its 20-position plug into the

FX20/FX60.

6. Repeat these instructions for all accessories,

until all are mounted on the DIN rail and firmly

connected to each other. For an example, see

Figure 4.

To keep the final assembly together, secure at both

ends with DIN rail end-clips. This also prevents the

assembly from sliding on the DIN rail. See Figure 4.

6FX20/60 Supervisory Controllers Installation Instructions

0.170 in. Diameter

(4.32 mm)

FX-20/60

Electronicand printed versionsofthisdocumentmay notshow

the dimensionsto scale.Verify allmeasurementsbeforedrilling.

Note:

DIN mounting is recommended over tab mounting.

2.50 in.

(63.50 mm)

3.75 in. (95.25 mm)

6.719 in. (170.66 mm)

4.00 in.

(101.6 mm)

2.50 in.

(63.50 mm)

2.50 in.

(63.50 mm)

6.719 in.

(170.66 mm) 3.25 in.

(82.55 mm) 3.25 in.

(82.55 mm)

Distance between center of tabs

from one unit to another unit.

TIP: If mounting accessory modules, future removal

orreplacementofthe FX-20/60 is simplified ifyou

do not install screws in theaccessory module side

tabsof the controller (see above).

FX-20/60 NDIO-16 NDIO-16 or

LP-FXPM

Accessory

module

side tabs

NDIO-16

Figure 2: Tab Mounting Dimensions, in. (mm)

7FX Supervisory Controller Installation Instructions

Figure 3: DIN Rail Mounting

Figure 4: Using End Clips to Secure Modules

Figure 5: Mounting Accessories

8FX20/60 Supervisory Controllers Installation Instructions

Removing and Replacing the Cover

The FX20/FX60 cover is removable. You must remove

the FX20/FX60 cover to connect the battery on a new

unit, to replace the battery on an existing unit or to

install any optional communication cards. The cover

snaps onto the base with four plastic tabs (two on

each end). To remove the cover, press in the four tabs

on both ends of the unit and lift off the cover.

Note: If accessory modules are plugged into the

FX20/FX60, you may need to slide them away from

the unit to get to the cover tabs.

To replace the cover, position it so the cutout area for

the communication ports is correct, then push inward

to snap in place.

Board Layout

See Figure 6 for the location of Light-Emitting Diodes

(LEDs), option slots, and other features of the

FX20/FX60. See Figure 9 for a side view of

communication ports and other features.

FIG :BrdLyt

Option Slot 2 Serial port LEDs on bottom

board; remove cover to see.

COM1 COM2 LAN1

LAN2 Beat

Status Mode Jumper (for

serial shell access)

20-pin

connector

(I/O and

power

modules)

Earth ground

spade lug

Barrel power

connector for

wall mounted

power module.

RS-485 (3-position)

COM2 (bottom board)

Primary Ethernet (RJ-45)

LAN1 (top board)

RS-232 (D-9)

COM1

Secondary Ethernet (RJ-45)

LAN2 (top board)

Option Slot 1

Battery Bracket

(on top of option

cards, if any)

Battery

Connector

Option Slot

Connectors

Figure 6: FX20/FX60 Board Layout Details

FX Supervisory Controller Installation Instructions 9

Expansion Options

The FX20/FX60 provides for field-installable expansion

with two options:

Option Cards: these are installed on connectors

inside the FX20/FX60 base unit. See Option

Cards.

Accessory Modules: these are chained onto the

FX20/FX60’s 20-pin connector. See Accessories.

Option Cards

The FX20/FX60 has 2 options slots for custom option

cards designed for use with the

FX20/FX60. Each slot has a 20-pin connector on the

FX20/FX60 base unit.

CAUTION: Risk of Property Damage.

Do not apply power to the system before checking

all wiring connections. Short circuited or improperly

connected wires may result in permanent damage to

the equipment.

MISE EN GARDE: Risque dégâts matériels.

Ne pas mettre le système sous tension avant d'avoir

vérifié tous les raccords de câblage. Des fils formant

un court-circuit ou connectés de façon incorrecte

risquent d'endommager irrémédiablement

l'équipement.

IMPORTANT: Be careful to plug an option card into

the connector properly with its pins properly aligned.

Option cards typically provide additional

communication capabilities, such as those listed in

Table 2. For a list of supported COM port and slot

assignments for the option cards, see Table 3.

Table 2: Option Card Details

Model Description Number of Option Cards Allowed per Controller

LP-FXLONFTT-1 LONWORKS FTT-10A adapter with a

2-position removable screw terminal

plug

One or two

LP-FXRS485-0 Dual, optically isolated, RS-485 adapter

with two 3-position removable screw

terminal connector plugs

One or two

LP-FXMDM-0 56 Kbps auto-dial/auto-answer modem

with one RJ-11 connector for phone line One*

LP-FXRS232-0 Single port RS-232 adapter, with a

DB-9M connector One or two

LP-FXWTC-0 Wireless TEC Card (WTC) with direct

mount antenna One

LP-FXSED-0 Sedona Framework™ option card One

LP-FXGPRS-0 GPRS Modem card One

LP-FXGPRSW-0 GPRS Modem option card with

Wyless™ SIM card One

* If a modem card is installed, and the mode jumper is put in Serial Shell position (see Figure 6), then the FX20/FX60 base

RS-232 port becomes active immediately following a reboot. This allows an RS-232 connection to the serial shell for

debugging purposes. To re-enable the modem, you must put the mode jumper back in the Normal position and reboot.

10 FX20/60 Supervisory Controllers Installation Instructions

Table 3: COM Port and Option Slot Assignments for FX20/FX60 Option Cards

Option Slot 1 Option Slot 2 Onboard RS232 Onboard RS485

None None COM1 COM2

RS-232 = COM3 None COM1 COM2

RS-232 = COM3 RS-232 = COM4 COM1 COM2

RS-232 = COM3 RS-485 = COM4, COM5 COM1 COM2

RS-232 = COM3 LON = LON1 COM1 COM2

RS-232 = COM3 Sedona = COM4 COM1 COM2

RS-232 = COM3 GPRS = COM4,COM5 COM1 COM2

RS-485 = COM3, COM4 None COM1 COM2

RS-485 = COM3, COM4 RS-232 = COM5 COM1 COM2

RS-485 = COM3, COM4 RS-485 = COM5, COM6 COM1 COM2

RS-485 = COM3, COM4 LON = LON1 COM1 COM2

RS-485 = COM3, COM4 Sedona = COM5 COM1 COM2

RS-485 = COM3, COM4 GPRS = COM5, COM6 COM1 COM2

LON = LON1 None COM1 COM2

LON = LON1 RS-232 = COM3 COM1 COM2

LON = LON1 RS-485 = COM3, COM4 COM1 COM2

LON = LON1 LON = LON2 COM1 COM2

LON = LON1 Sedona = COM3 COM1 COM2

LON = LON1 GPRS = COM3, COM4 COM1 COM2

Wireless TEC = COM1 None Disabled COM2

Wireless TEC = COM1 RS-232 = COM3 Disabled COM2

Wireless TEC = COM1 RS-485 = COM3, COM4 Disabled COM2

Wireless TEC = COM1 LON = LON1 Disabled COM2

Wireless TEC = COM1 Sedona = COM3 Disabled COM2

Wireless TEC = COM1 GPRS = COM3, COM4 Disabled COM2

Sedona = COM3 None COM1 COM2

Sedona = COM3 RS-232 = COM4 COM1 COM2

Sedona = COM3 RS-485 = COM4, COM5 COM1 COM2

Sedona = COM3 LON = LON1 COM1 COM2

Sedona = COM3 GPRS = COM4,COM5 COM1 COM2

Modem = COM1 None Disabled COM2

Modem = COM1 RS-232 = COM3 Disabled COM2

Modem = COM1 RS-485 = COM3, COM4 Disabled COM2

Modem = COM1 LON = LON1 Disabled COM2

Modem = COM1 Sedona = COM3 Disabled COM2

Modem = COM1 GPRS = COM3, COM4 Disabled COM2

GPRS = COM3, COM4 None COM1 COM2

GPRS = COM3, COM4 RS-232 = COM5 COM1 COM2

GPRS = COM3, COM4 RS-485 = COM5, COM6 COM1 COM2

GPRS = COM3, COM4 LON = LON1 COM1 COM2

GPRS = COM3, COM4 SEDONA = COM5 COM1 COM2

Otros manuales para Facility Explorer FX20

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Controladores de Johnson Controls

Johnson Controls

Johnson Controls VAV1717 Manual de usuario

Johnson Controls

Johnson Controls Metasys FAC4911 Manual de usuario

Johnson Controls

Johnson Controls METASYS VAV110 Manual de usuario

Johnson Controls

Johnson Controls M9204-GG 2 Series Manual de usuario

Johnson Controls

Johnson Controls M9308-A Z Series Manual de usuario

Johnson Controls

Johnson Controls FX-PCA4911 Manual de usuario

Johnson Controls

Johnson Controls MR4PMUHV Manual de usuario

Johnson Controls

Johnson Controls M9204-B 2Z Series Manual de usuario

Johnson Controls

Johnson Controls LN Series Manual de usuario

Johnson Controls

Johnson Controls tyco Power Pro Series Manual de usuario

Johnson Controls

Johnson Controls FW-08 Manual de usuario

Johnson Controls

Johnson Controls M9310-HGA-3 Manual de usuario

Johnson Controls

Johnson Controls VA9204-GG-2Z Series Manual de usuario

Johnson Controls

Johnson Controls LP-NRM653-000C Manual de usuario

Johnson Controls

Johnson Controls VA9208-AG Series Manual de usuario

Johnson Controls

Johnson Controls VMA1200 Series Instrucciones de funcionamiento

Johnson Controls

Johnson Controls TEC3000 Series Manual de usuario

Johnson Controls

Johnson Controls G961DAJ Manual de usuario

Johnson Controls

Johnson Controls CVM03050 Manual de usuario

Johnson Controls

Johnson Controls FX-PCV1615 Manual de usuario

Johnson Controls

Johnson Controls Metasys DX-9100 Manual de servicio

Johnson Controls

Johnson Controls Metasys FEC Series Manual de usuario

Johnson Controls

Johnson Controls FMS-2000C Manual de usuario

Johnson Controls

Johnson Controls FX-PCV1656 Manual de usuario

Manuales populares de Controladores de otras marcas

Digiplex

Digiplex DGP-848 Instrucciones de funcionamiento

YASKAWA

YASKAWA SGM series Manual de usuario

Sinope

Sinope Calypso RM3500ZB Manual de usuario

Isimet

Isimet DLA Series Style 2 Manual de instalación

LSIS

LSIS sv-ip5a Manual de usuario

Rockwell Automation

Rockwell Automation 1769-L31 Manual de usuario

Airflow

Airflow Uno hab Manual de usuario

ABB

ABB ACS580-01 drives Manual de usuario

Panasonic

Panasonic GM1 Series Manual de usuario

Emerson

Emerson SW93 Manual de usuario

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manual de usuario

Panasonic

Panasonic FP? Positioning Unit RTEX Manual de usuario

Samson

Samson Type 5824 Manual de servicio

Alpha IP

Alpha IP MIOB 21001 Manual de usuario

Siemens

Siemens OpenAir GMA 1 Series Manual de usuario

Surecom

Surecom SR-629 Manual de usuario

Fishman

Fishman TriplePlay Manual de usuario

Regulus

Regulus SRS1 T Manual de usuario
