Jbc MVE-A Manual de usuario

Pneumatic Desoldering Module

Ref. MVE-A

English

www.jbctools.com

2 3

Packing List

The following items should be included:

Pneumatic Desoldering Module......... 1 unit

Ref. MVE-A

Module Cable ............................................ 1 unit

Ref. 0014874

Manual ...........................................................1 unit

Ref. 0014691

Pneumatic Desoldering Module

Ref. MVE-A

Suction Filter ............................................. 1 unit

Ref. 0821830

Cotton Filter .................. 1 unit

Ref. 0781046

It contains 10 filters

Filter Box ........................ 1 unit

Ref. 0005966

It contains 50 filters

Escape Filter ..................1 unit

Ref. 0008446

www.jbctools.com

ww w. jb ct oo ls .c om

Peripherals Port 2-DR

17:14

Pedal None

Module None

Module

MV_a

None

17:14 ?

Install

MODULE

Air pump

Postpone

4 5

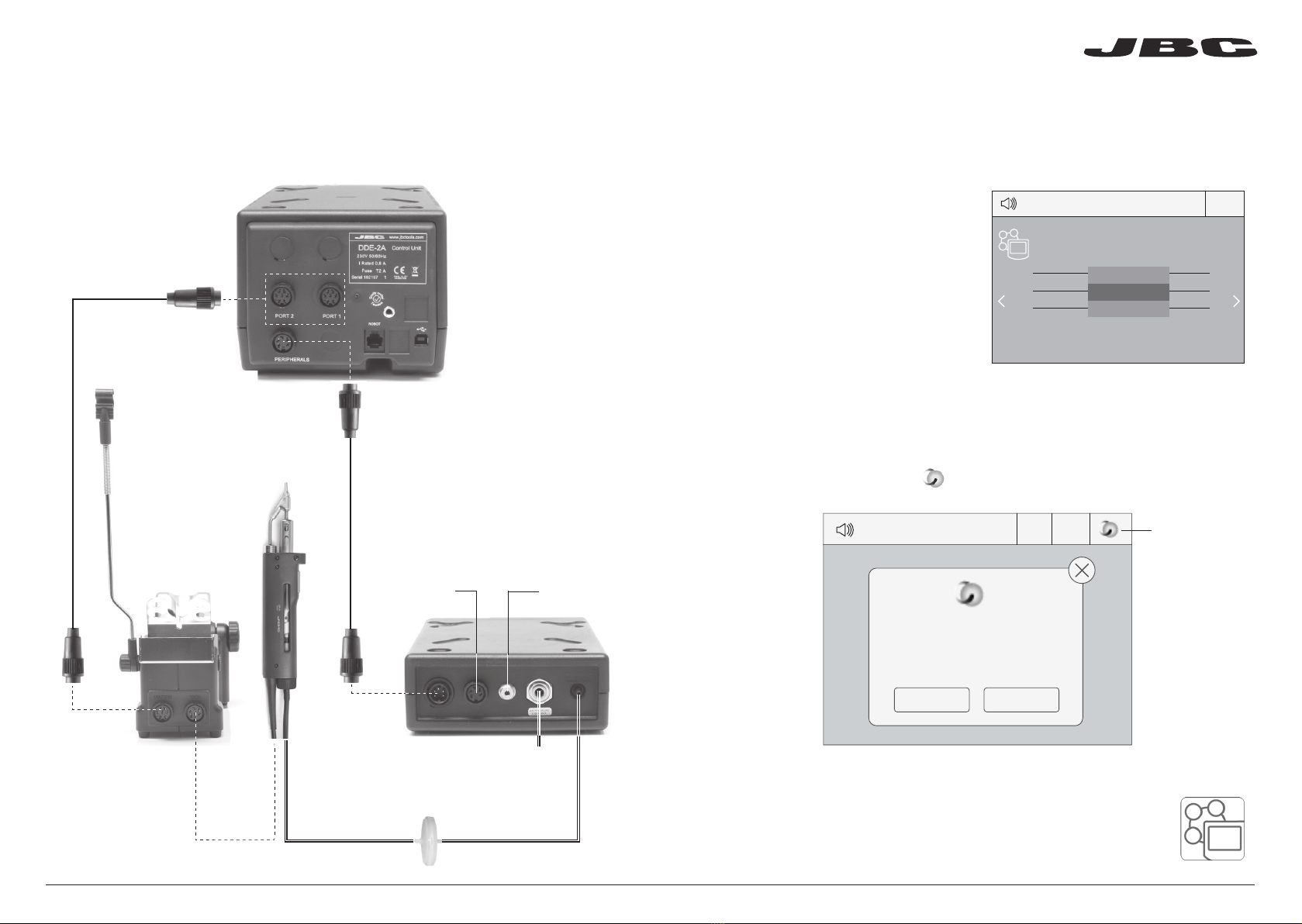

Control Unit

Ref. DDE-A

DME-A

Module cable

Ref. 0014874

Pneumatic Desoldering Module

Ref. MVE-A

To another

module

To Pedal

Ref. P-005

Suction Filter

Ref. 0821830

Ref. DR560-A

DS360-A

Stand

Ref. DR-SD

DS-SD

Tool

1. After connecting the module, enter the

Peripherals Menu and select the port which

you want to join with the module.

2. Select the module from the list of peripheral

connections. Remember your first connection

is denoted as “a”, the second being “b”, etc.

(e.g. MV_a, MV_b,...)

3. Press Menu or Back to save changes.

Initial Set upFeatures

When a new module is detected, a pop-up screen appears and proceed as indicated.

If no screen is shown, click on the icon on the main bar and follow the steps.

Once set up, you can change the module settings by entering the Peripherals Menu.

For DDE Control Unit

For DME Control Unit

For DME and DDE Control Units

Appears only

when the

installation is

postponed

Air pressure

(4-6 bar)

Tubing Ø4 x Ø6 mm

(Not supplied)

ww w.jbctools.com

6 7

Maintenance

Spare filters

Ref. 0005966

Cotton filters

Ref. 0781046

Suction filter

Ref. 0821830

O Ring

Ref. 0007717

Filter cover

Ref. 0004710

Important: Do not use sharp pointed objects to open the suction filter.

Before carrying out maintenance, always unplug the equipment.

- Use a damp cloth to keep the casing clean.

- Periodically check all cable and tube connections.

- Keep filters clean to ensure proper solder suction and replace them when necessary.

Escape filter

Ref. 0008446

- Use original JBC spare parts only.

- Do not work with defective or damaged pieces.

- Repairs should only be performed by a JBC authorized technical service.

- Maintenance must not be carried out by children unless supervised.

Exploded View

Removing the pneumatic tubing

Push the release ring to remove

the pneumatic tubing.

Release

ring

ww w.jbctools.com

- Weight: 1,2 Kg (2.6lb)

- Dimensions: 145 x 55 x 225 mm

- Air Pressure supply range: 4-6 Bar

- Vacuum at 6 Bar: 90% / 680 mmHg / 26.8 inHg

- Flow rate: 15 SLPM

- Pneumatic tubing (not supplied): Ø4 x Ø6 mm

Complies with CE standards

ESD protected housing “skin effect”

Specifications

www.jbctools.com

0014691-0815

Warranty

JBC’s 2 year warranty covers this equipment

against all manufacturing defects, including the

replacement of defective parts and labour.

Warranty does not cover product wear due to use

or mis-use.

In order for the warranty to be valid, equipment

must be returned, postage paid, to the dealer

where it was purchased.

This product should not be thrown in the garbage.

In accordance with the European directive 2002/96/EC, electronic equipment at the end of their life

must be collected and returned to an authorized recycling facility.
