Jbc CF-2B Manual de usuario

www.jbctools.com

SOLDER FEED STATION

CONTROL UNIT SOLDER FEED IRON

AP130-A

MANUAL

0002801 Reel 0006559

Feeding tube

MANUALPOWER CORD

CL6210 Brass Wool S0331 Sponge

CF / SOLDER FEED STATION

www.j b c to o ls . co m

SOLDER FEED STATION

INSTALLATION

PART NAMES

Main switch

Equipotential connection

CONTROL UNIT

AP130-A

SOLDER FEED IRON

Power Cord Socket

Cable collector

Cartridge extractor

Tip cleanning system

Friendly display control

Smart stand

ADJUSTABLE STAND

CABLE COLLECTOR

CLEANNING OPTIONS

Tap smoothly the cartridge on the wiper proﬁle to

remove the excess of solder

Provides a deeper cleaning on the tip.

CL6205 Inox Wool

TAPPING WIPING

Full set of clean option: sponge, metal wool and brush

S0331 Sponge S0354 Sponge

Use the slots to wipe any posible particle sticked

on the tip

More agressive on the tip than the wool.

CL6220 Brushes

The smoothest cleaning method. The sponge has to be kept wet (not soaked) using distilled water.

Expected life

(hours)*

Sleep

Temp

Working

Temp

Temperature (ºC)

700

600

500

400

300

200

200 225 250 275 300 325 350 375 400 425 450

100

HEAT MANAGEMENT

JBC stations intelligently manage the tool temperature

and it helps to extended the tip life:

Work mode: Lift tool from the stand and the tool tip

heats up to the selected temperature.

Sleep mode: When the tool is in the stand, the

temperature reduces (preset sleep temperature is

180ºC / 360ºF).

Hibernation mode: After longer periods of inactivity

(pre-set to 30 minutes), the power is cut off and the

tool cools down to room temperature.

Heat management increase tip life which reduces cost of ownership.

Selected temp.

350

Power 10%

350

Decrease & move down Increase & move up

Tip temperature

% Instant power supplied to the tool

Access Menu

& Conrm Selection

Main menu

Counters

Tool settings

Exit

1 Reset settings

Station settings

Tool settings

Plugged hours 0

Working hours 0

Sleep hours 0

Fix one temp -----

Temp levels set OFF

Sleep delay 0 min

4 Counters

Program version

Hibernation hours 0

No tool hours 0

6 Sleep cycles

Sleep temp 180

Hibernation delay

0 min

Temp adjust + O

Tool AP

Back

ORIGINAL PIN: 0105

Station settings

1 Temp unit

Celsius

Maximum temp 400

Minimum temp 200

Help text OFF

5 Beep ON

6 Power limit 130W

Change PIN

Back

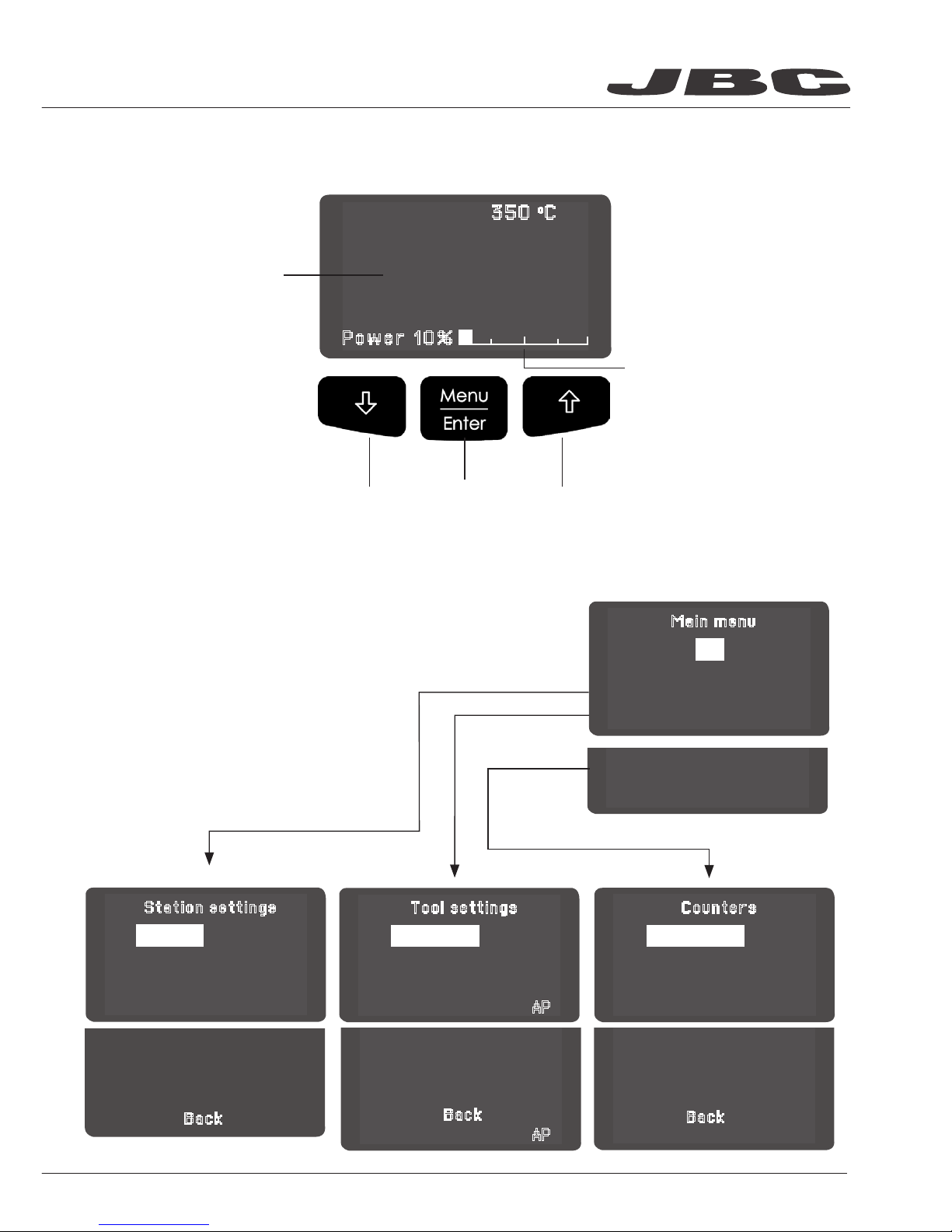

CONTROL SCREEN

SETTINGS MENU

WARRANTY

JBC’s 2 years warranty guarantees this equipment against all manu-

facturing defects, covering the replacement of defective parts and

all necessary labour.

Warranty does not cover product wear due to use or mis-use.

In order for the warranty to be valid, equipment must be returned,

postage paid, to the dealer where it was purchased enclosing this

fully ﬁlled in, sheet.

www.jbctools.com

SERIAL Nº

STAMP OF DEALER

DATE OF PURCHASE

0010334-0612

TECHNICAL SPECIFICATIONS

- Temperature selection from 90 to 450°C (±5%).

- Output Peak Power: 130W.

- Safety transformer, mains separator and double isolation.

- CF-2B 230V 50/60Hz. Input fuse: 1A. Output: 23.5V

- CF-1B 120V 50/60Hz. Input fuse: 2A. Output: 23.5V

- CF-9B 100V 50/60Hz. Input fuse: 2A. Output: 23.5V

- Total weight of unit: 2,8 Kg. (6.2 lb)

- Complies with CE standards on electrical safety, electromagnetic compatibility

and ESD protected housing “skin effect”.

- RoHS compliant.

- Equipotential connector and the tool tip are connected to station mains ground supply for ESD protection.

This product should not be

thrown in the garbage.
