J-Tech Digital JTD-2987 Manual de usuario
J-TECH DIGITAL INC.
9807 EMILY LANE
STAFFORD, TX 77477
TEL: 1-888-610-2818
E-MAIL: [email protected]
USER MANUAL
4K60 Wall Plate Extender with HDMI/Type-C Inputs
JTD-2987 I JTECH-EXW30
Table of Contents
1. Introduction.....................................................................................................................
2. Features...........................................................................................................................
3. Package Contents.........................................................................................................
4. Specifications.................................................................................................................
5. Product Dimensions.....................................................................................................
6. Operation Controls and Functions..........................................................................
6.1 Transmitter Panel....................................................................................................
6.2 Receiver Panel.........................................................................................................
7. Application Example.....................................................................................................
8. Maintenance...................................................................................................................
9. Warranty...........................................................................................................................
10. Mail-In Service..............................................................................................................
11. Limited Warranty Limits and Exclusions................................................................
3
3
3
4
5
6
6
7
8
9
9
9
10
2
1. Introduction
2. Features
3. Package Contents
1× 18Gbps CAT 50M with USB-C/HDMI Wall Plate Transmitter
1× User Manual
The wall plate is a 2x1 switcher and CAT transmitter with HDMI and USB-C
inputs. It features a US one-gang enclosure for Decora-style wall plate
openings with interchangeable black and white wall plates and faceplates.
Support video resolution up to 4K2K@50/60Hz 4:4:4. CAT6 output can
extend video transmission distance up to 164ft / 50m.
The product is remotely powered by the receiver or other CAT-equipped
devices via POC.
Compliant with HDMI 2.0b, HDCP 2.2 and Display Port 1.2a
HDMI input supports 18Gbps video bandwidth;
USB-C input supports 5.4Gbps video bandwidth
Video resolution up to 4K2K@50/60Hz 4:4:4
CAT6 output can extend video transmission distance up to 164ft / 50m
for 4K@24 or 115ft / 35m for 4K@60 444 via a single CAT5e/6 cable
Support 3D, HDR10 and Dolby Vision
HDMI audio formats support LPCM, Dolby Digital/Plus/EX, Dolby True
HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Support HDMI and USB-C input
With USB-C charging port
US one-gang enclosure for Decora-style wall plate openings
Input signal selection supports automatic mode and manual mode
Support POC function (only from Receiver to Transmitter)
Available in white or black coating
3
4. Specifications
Human body model — ±8kV (Air-gap discharge) &
±4kV (Contact discharge)
ESD Protection
Technical
HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2
HDMI: 18 Gbps
Video Resolution 480i~1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz
Color Space RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
Color Depth
LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS,
DTS-EX, DTS-96/24, DTS High Res, DTS-HD
Master Audio, DSD
8/10/12-bit (1080P@60Hz)
8-bit (4K@60Hz)
HDMI Audio Formats
Connection
Transmitter
Receiver
Inputs: 1 x HDMI Type A [19-pin female]
1 x USB-C
Outputs: 1 x CAT6 OUT [RJ45, 8-pin female]
1x USB-C (only for charging)
Control: 1x FW [Micro USB, Update port]
Input:1x CAT IN [RJ45, 8-pin female]
Output: 1x HDMI OUT [Type A, 19-pin female]
Controls: 1x IR IN [3.5mm Stereo Mini-jack]
1x SERVICE [Micro USB, Update port]
Support
Transmission
Distance
Max distance (4K@24) : 164ft / 50m over CAT5e/6
Max distance (4K@60) : 115ft / 35m over CAT5e/6
HDR
DP Compliance
Video Bandwidth USB-C: 5.4 Gbps
Display Port 1.2a
4
5. Product Dimensions
Front Back
Side
Unit: mm
Power Supply
Dimensions
White / Black
Color
POC (only from Receiver to Transmitter)
Operating
Temperature
Storage Temperature
32 - 104°F / 0 - 40°C
Relative Humidity
-4 - 140°F / -20 - 60°C
20 - 90% RH (no condensation)
Mechanical
Metal EnclosureHousing
Weight Wall plate: 195g, Receiver: 155g
Wall plate:
33.3mm [W] x 65.7mm [D] x 68.7mm [H]
Faceplate:
69.9mm [W] x 3mm [D] x 114.3mm [H]
Receiver:
88mm (W) × 61mm (D) × 18mm (H)
Power Consumption Wall plate: 3W (Max), Receiver: 3.72W (Max)
69.9
114.3
60.9
68.7
33.3
5
6. Operation Controls and Functions
6.1 Transmitter Panel
No. Name Function Description
3
1
2
5
4
6
7
8
9
1 Power LED
The power LED indicator will illuminate in green
when the product is powered on, and red when
the product is on standby.
2 HDMI LED When the HDMI input port is active and the HDMI
signal is detected, the green LED will be on.
3 USB-C LED When the USB-C input port is active and USB-C
signal is detected, the green LED will be on.
4 HDMI port HDMI input port, connect to HDMI source device.
5 USB-C port (1) USB-C signal input port.
(2) Charging port for devices with USB-C port.
6
7
CHARGE port Connect this port to power supply, then the
USB-C port will power the connected device.
8
9
SOURCE button Used to switch HDMI / USB-C input signal.
CAT6 OUT Connect to the CAT IN port of Receiver with a
CAT5e/6 cable.
FW port Firmware update port.
HDMI
USB-CSOURCE
HDMI
USB-CCHARGE
FW
CAT6 OUT
6
6.2 Receiver Panel
Note:
This transmitter supports automatic/manual mode for source signal input.
In manual switching mode, press the SOURCE button to select HDMI/
USB-C input source.
In automatic switching mode, the last connected or the currentlly connected
source signal will be selected automatically; When both HDMI and USB-C
ports are connected to active signal, HDMI signal input is preferred.
HDMI OUT DC 12VIR INSERVICECAT IN
12
345 6 7
No. Name Function Description
CAT IN Connect to the CAT6 OUT port on the transmitter
with a CAT cable.
HDMI OUT HDMI output port, connect to HDMI display device
such as TV or Projector with an HDMI cable.
1
2
3
Data signal
Indicator Lamp
(Orange)
When there is signal transmission between the
transmitter and the receiver, the lamp will be on.
Power Indicator
Lamp (Green)
When the receiver is powered on, the power
indicator lamp will be on.
4
SERVICE port Used for firmware update.
IR IN IR signal input port. Connect to the IR Receiver
cable.
5
6
7 DC 12V
Plug DC 12V/1A power supply into the unit and
connect the adapter to an AC outlet.
(Note: The CAT receiver provides power for the
transmitter via a CAT cable. )
7

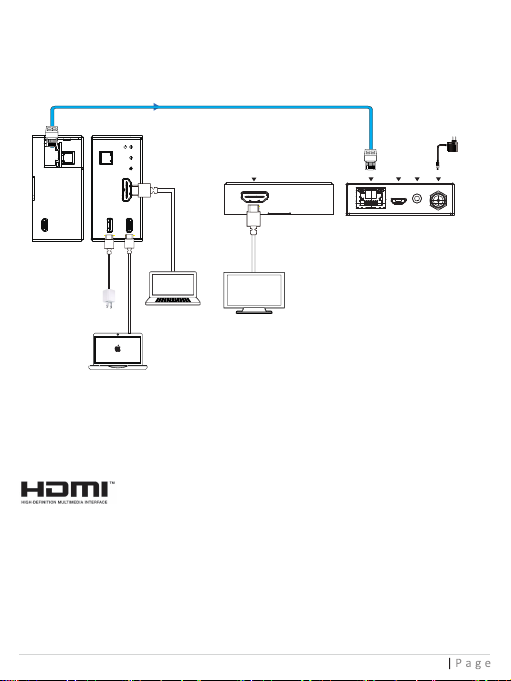

7. Application Example
CAT5e/6 Cable
Notebook TV or Monitor
Power Adapter
Mac
Apple
Transmitter
Receiver
The terms HDMI and HDMI High-Definition Multimedia interface, and the
HDMI Logo are trademarks or registered trademarks of HDMI Licensing
LLC in the United States and other countries.
HDMI
USB-CSOURCE
HDMI
USB-CCHARGE
FW
CAT6 OUT HDMI OUT DC 12VIR INSERVICECAT IN
Apple Power
Adapter
8
8. Maintenance
9
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner, or
benzine to clean.
9. Warranty
If your product does not work properly because of a defect in materials of
workmanship, our company (referred to as “the warrantor”) will, for the
length of the period indicated as below, “Parts and Labor (18) Months”, which
starts with the date of original purchase (“Limited Warranty period”), at its
option either (a) repair your product with new or refurbished parts, or (b)
replace it with a new or a refurbished product. The decision to repair or
replace will be made by the warrantor.
During the “Labor” limited warranty period, there will be no charge for labor.
During the “Parts” warranty period, there will be no charge for parts. You
must mail-in your product during the warranty period. This Limited Warranty
is extended only to the original purchaser and only covers products
purchased as new. A purchase receipt or other proof of original purchase
date is required for Limited Warranty service.
10. Mail-In Service
When shipping the unit, carefully pack and send it prepaid, adequately
insured, and preferably in the original carton. Include a letter detailing the
complaint and provide a day time phone and/or email address where you
can be reached.
11. Limited Warranty Limits and Exclusions
10
This Limited Warranty ONLY COVERS failures due to defects in material or
workmanship, and DOES NOT COVER normal wear and tear or cosmetic
damage. The Limited Warranty ALSO DOES NOT COVER damages which
occurred in shipment, or failures which are caused by products not supplied
by warrantor, or failures which result from accidents, misuse, abuse, neglect,
mishandling, misapplication, alteration, faulty installation, set-up adjustments,
mis-adjustment of consumer controls, improper maintenance, power line
surge, lightning damage, modification, or service by anyone other than a
Factory Service center or other Authorized Servicer, or damage that is
attributed to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED
WARRANTY COVERAGE”. THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL
OR CONSEQUENTAIL DAMAGES RESULTING FROM THE USE OF THIS
PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As
examples, this excludes damages for lost time, cost of having someone
remove or re-install an installed unit if applicable, travel to and from the
service, loss of or damage to media or images, data or other recorded
content. The items listed are not exclusive, but are for illustration only.) PARTS
AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE
YOUR RESPONSIBILITY.
