Ipf electronic PRQ80376 Manual de usuario

MANUAL • Subject to alteration! Version: February 2022

ipf electronic gmbh

│

Rosmarter Allee 14 • 58762 Altena • Germany

│

Tel +49 2351 9365-0 • info@ipf-electronic.com •www.ipf-electronic.com 1

068-15017

PRQ80376

Laser retro-reflective sensors

Plastic housing, compact design

Setting by teach-in

LED display with setting guide

M8-connector 4-pole

Technical data

Range 100 … 3,000mm

Operating voltage 10 … 30V DC

Current consumption (without load) ≤ 12mA

Output current (max. load) ≤ 50mA

Output signal PNP, no/nc

Response / release time ≤ 0.5 ms

Switching frequency 1kHz

Transmitting element (clocked) Laser diode, red light, pulsed

Light spot size see diagram

Wavelength 655nm

short-circuit proof +

reverse polarity protected +

Display (operation) LED green (LED 1)

Display (signal) LED yellow (LED 2)

Material (housing) Plastic (PUR)

Material (front panel) PMMA

Protection class (EN60529) IP 67

Ambient temperature -20 … +50°C

Connection M8-connector 4-pole

Connection accessories e.g. VK200375

Mounting accessories (universal holder) AY000116

Electrical connection Notes on the connection of the white line (PIN 2)

Connection with L+: Teach-in analog to the respective specifica-

tions for the keystroke

Connection with L-: Teach button locked

No connection: Normal operation

It is recommended to connect the line to a

free terminal during normal operation

Laser protection class 1

Polarizing filter integrated

brown

white

black

blue

MANUAL • Subject to alteration! Version: February 2022

ipf electronic gmbh

│

Rosmarter Allee 14 • 58762 Altena • Germany

│

Tel +49 2351 9365-0 • info@ipf-electronic.com •www.ipf-electronic.com

Dimensional drawing Light spot size

Safety instructions

Read the operating instructions before commissioning.

Connection, installation, adjustment and commissioning may only be performed by qualified personnel.

The device must not be used outdoors. Laserschutzklasse 1; Wellenlänge: 655nm; Frequenz; 5kHz, Pulsbreite: 3,2µs;

Grenzwert Puls: ≤ 2,3mW (IEC 60825-1)

Complies with 21 CFR 1040.10 and 1040.11 except for deviations as specified in Laser Notice No. 56, May 2019.

Attention! Use of controls or adjustments or performance of procedures other than those specified herein may

result in hazardous radiation exposure

Before commissioning, please make sure that all safety instructions in the product documentation, if applicable, have

been observed!

Not a safety component according to the EU Machinery Directive. The use of these products is prohibited if they have

a direct impact on personal safety.

Intended use

The sensor is used for optical non-contact detection.

Connection

Plug the connector onto a suitable cable socket in a voltage-free manner and screw it tight.

Connect the cable according to the connection diagram on page 1.

As soon as the operating voltage is applied, the green LED (LED 1) lights up.

Mounting

Mount the sensor on a suitable holder (e.g. universal holder AY000116)

MANUAL • Subject to alteration! Version: February 2022

ipf electronic gmbh

│

Rosmarter Allee 14 • 58762 Altena • Germany

│

Tel +49 2351 9365-0 • info@ipf-electronic.com •www.ipf-electronic.com 3

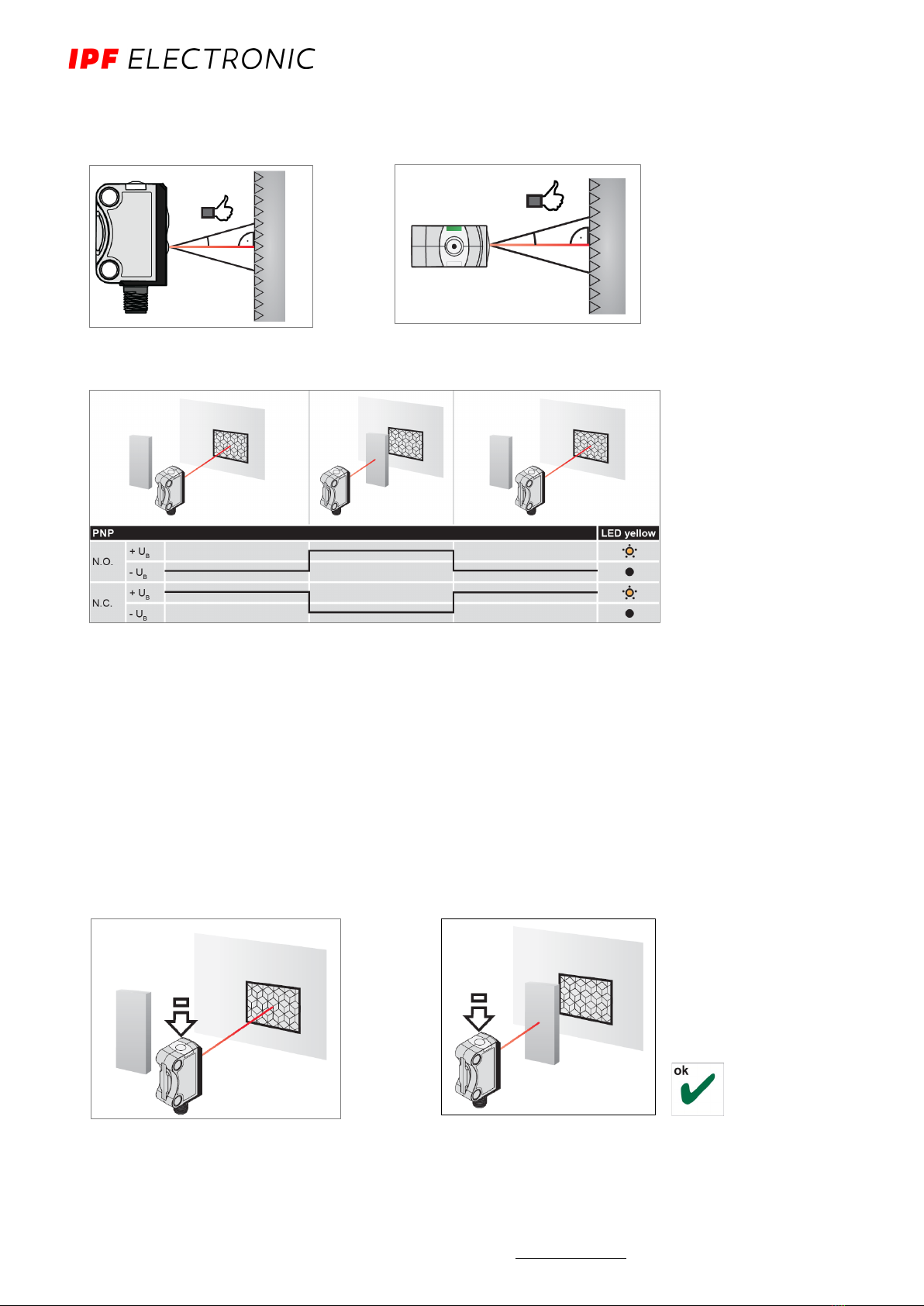

Adjustment

Align the sensor with the reflector so that the light beam impinges at right angles to the reflection plane.

Switching mode

N.O. = normally open

N.C. = normally closed

Setting

The sensor is set via teach-in. You can teach-in via the key or by connecting the white line to L+ instead of pressing the

key.

Standard teach in:

Is suitable for almost any application. The adjustment is made to the reflector and the object.

Step 1: Teach in reflector Step 2: Teach in object

Press the key > 3s until the green and the Press key > 1s

yellow LED flash simultaneously. Release

the key, the LEDs flash alternately.

MANUAL • Subject to alteration! Version: February 2022

ipf electronic gmbh

│

Rosmarter Allee 14 • 58762 Altena • Germany

│

Tel +49 2351 9365-0 • info@ipf-electronic.com •www.ipf-electronic.com

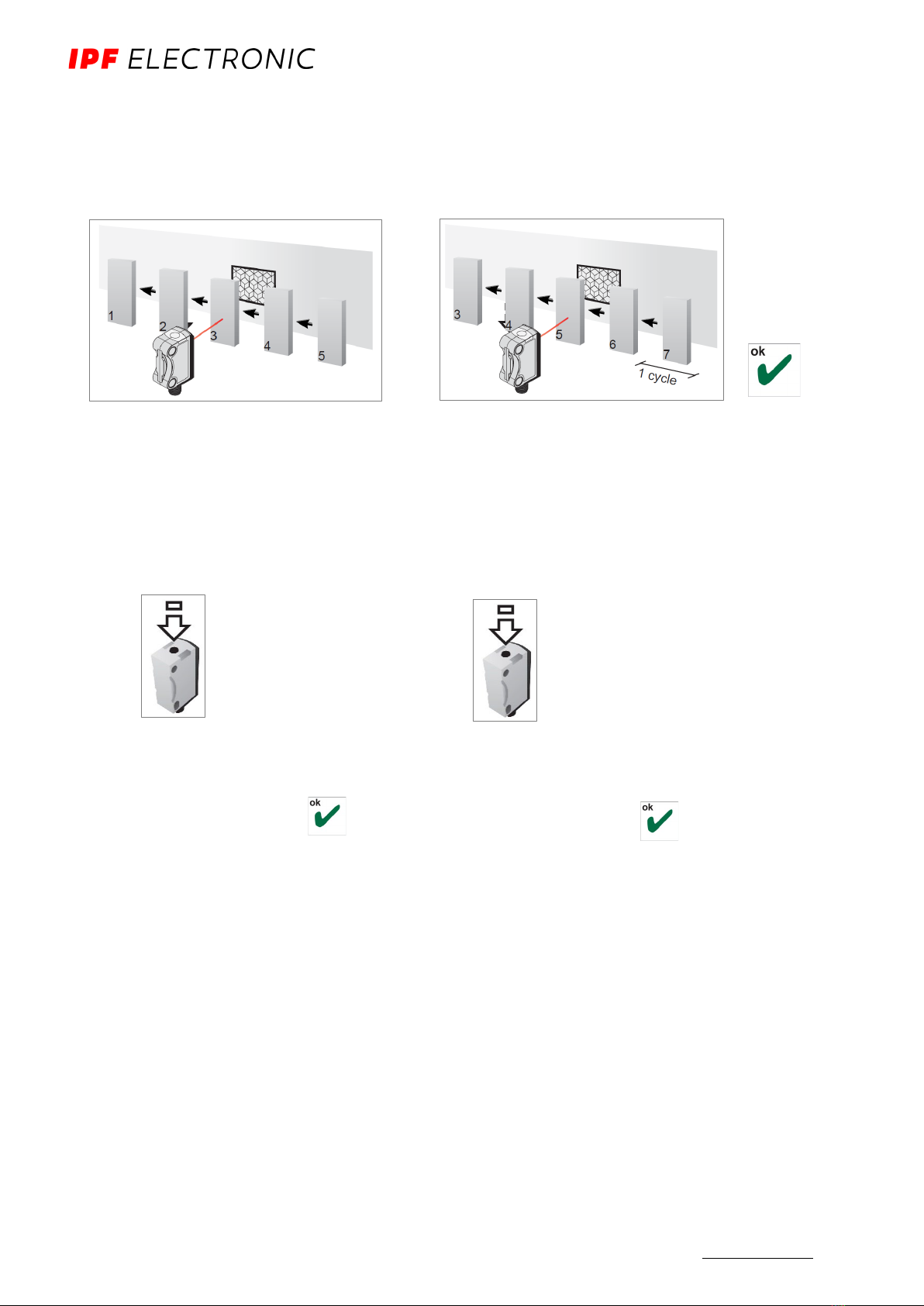

Dynamic teach in:

Is suitable to adjust the sensor in the running process, especially for small objects.

Step 1: Step 2:

Press the key > 3s until the green and the Press the key for the duration of one cycle

yellow LED flash simultaneously. Release

the key, the LEDs flash alternately.

Switching N.O. / N.C.

→N.O. →→N.C. →…

Press the key > 13s

until the green and

yellow LEDs flash rap-

idly alternately

Green LED flashes

Yellow LED lights up

↓

wait 10s

↓

Press key shortly

Green LED flashes

Yellow LED is off

↓

wait 10s

↓
