Interlogix UVD-IP-XP4DNR-VA2 Manual de usuario

UltraView IP XP4 Dome

Day/Night Range Camera

Quick Start Guide

P/N 1072567B-EN • REV 1.0 • ISS 23JUL12

EN 2 UltraView IP XP4 Dome Day/Night Range Camera

Introduction

The UVD-IP-XP4DNR(-P) color video camera uses a digital signal

processor (DSP) to process video signals. The video camera includes

a microcontroller to provide high-quality images in changing lighting

environments with high-color reproduction and sharp pictures.

Product codes:

• UVD-IP-XP4DNR-VA2(-P)

• UVD-IP-XP4DNR-VA9(-P)

Package contents

The UVD-IP-XP4DNR(-P) camera is shipped with the following items:

• The camera assembly

• 1 channel passive video transceiver

• AC power wiring harness

• Mounting screws, wall anchors, and hex key

• 150 mm DC jack to terminal adapter

Installation environment

To install the camera you will need to prepare the mounting surface,

make cable connections, and mount the camera.

Cable requirements

Cable type Requirements

Video 75 ohm RS-59 coaxial cable with BNC ends

Power 24 VAC cable

Network RJ45 Ethernet cable

UltraView IP XP4 Dome Day/Night Range Camera 3 EN

Camera description

Figure 1: Camera assembly

Camera body

RJ45 Ethernet/PoE input

24 VAC / 12 VDC input

Video output (BNC)

Plenum-compliant cabling

The cable connections must be enclosed in a suitable metallic, or other

fire-resistant, low-smoke producing enclosure. The cabling used within

the air space must be specifically marked for that purpose or enclosed

in a conduit.

Re-route the leads from the camera so they exit from the threaded

knockout on the side of the camera (see Figure 2 on page 4). Move

the plug from the side threaded knockout and place it on the knockout

on the base of the camera.

EN 4 UltraView IP XP4 Dome Day/Night Range Camera

Figure 2: Plenum-compliant cabling

1. Plenum-rated conduit

2. Box for connections

3. Threaded knockouts

4. Ceiling

5. Camera body

6. Trim ring

Installation

Viewing the camera via an IP connection

You can connect the IP camera to a network and view the images

through a browser. To view via a Network Video Recorder or similar

digital video system, please refer to the documentation associated with

that system.

Software requirements

The UVD-IP-XP4DNR(-P) camera requires:

Microsoft Internet Explorer

A VLC player ActiveX plug-in is required to play video when

Internet Explorer is used to monitor the camera.

UltraView IP XP4 Dome Day/Night Range Camera 5 EN

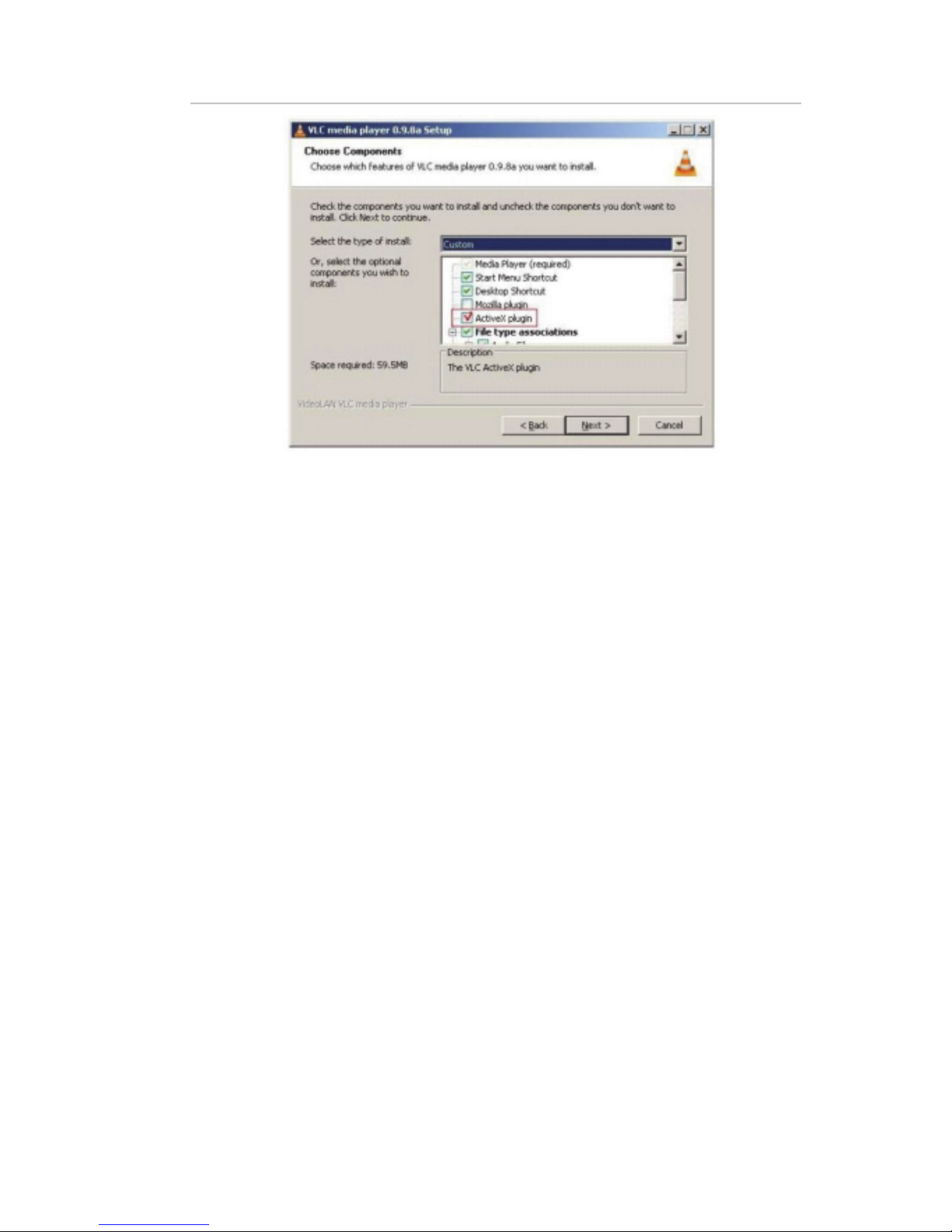

Figure 3: ActiveX plug-in option

To configure the camera:

1. Configure the UVD-IP camera with a default IP address: 10.1.2.11

2. Configure your host PC/laptop within the same subnet, ex:

10.1.2.10

3. Connect the URL http://10.1.2.11 with Internet Explorer.

4. Select the “Live” menu to view live video.

5. Enter the following username and password to access the

Maintenance menu.

Password: admin

The IP address of the camera can be changed from the

Maintenance menu.

6. Reboot the camera for the changes to take effect.

EN 6 UltraView IP XP4 Dome Day/Night Range Camera

Connecting analog cables

To connect the cables:

1. Connect a coaxial cable from the camera’s BNC connector to a

CCTV monitor or video recording device.

2. Connect Ethernet cable from the camera RJ45 port to switch

3. Connect a PoE switch, a 12 VDC or 24 VAC power supply to the

power input. Do not connect both the PoE connection and DC or

AC connection at the same time. The label on the camera gives

the following information:

Red cable. Power in.

Black cable. Power in.

White cable. Video out.

Black cable. Video ground.

Note: For 24 VAC or 12 VDC, Black or Red may be used for ground.

Installing the camera

To mount the camera, attach the camera to the mounting surface using

the appropriate fasteners.

Angle adjustment

See Figure 4 on page 7 and do the following:

To adjust the horizontal angle of the platform up to 180 degrees, turn

the platform.

To adjust the horizontal angle of the rotor up to 350 degrees, turn the

rotor on the platform.

To adjust the vertical angle of the platform up to 90 degrees, turn the

platform.

UltraView IP XP4 Dome Day/Night Range Camera 7 EN

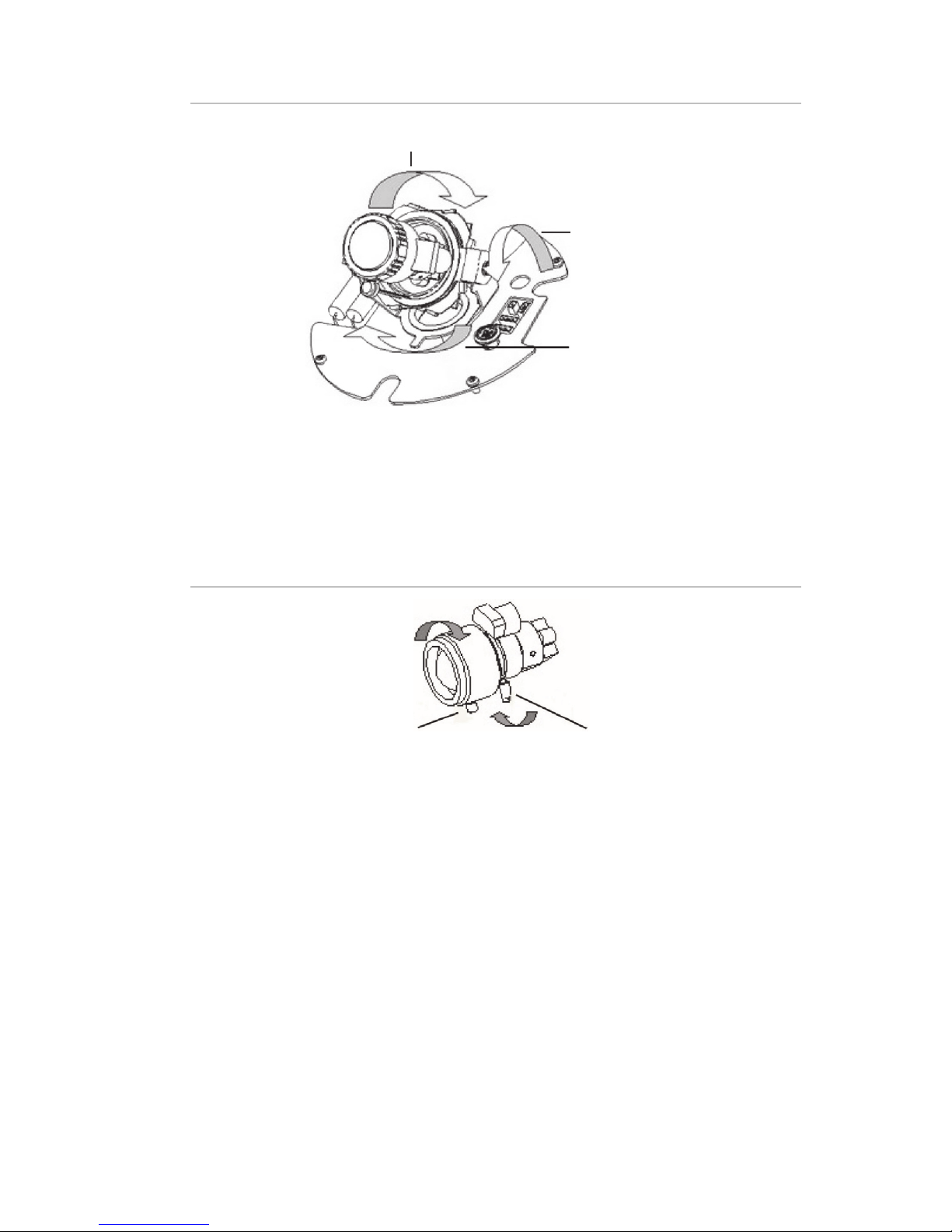

Figure 4: Camera adjustment

Platform horizontal adjustment

Platform vertical adjustment

Rotor horizontal adjustment

Zoom and focus adjustment

See Figure 5 below for the location of the zoom and focus ring

thumbscrews.

Figure 5: Zoom and focus adjustment

Zoom ring thumbscrew for

VA2 and focus ring for

VA9 lens

Focus ring thumbscrew for

VA2 and zooming ring for

VA9 lens

To adjust the camera zoom and focus:

1. Loosen the zoom ring thumbscrew.

2. Turn the zoom ring to set the desired zoom.

3. Tighten the zoom ring thumbscrew.

4. Loosen the focus ring thumbscrew.

5. Turn the focus ring to set the desired focus.

6. Tighten the focus ring thumbscrew.

EN 8 UltraView IP XP4 Dome Day/Night Range Camera

Figure 6: DIP switch layout (back of camera)

Table 1: DIP switch functions (Default in bold)

Switch Description

1. White Balance

ON: ATW mode; OFF: PTL mode

2. Backlight Compensation

ON: BLC on; OFF: BLC off

3. Exposure AI/AE

ON: Auto Exposure (AE) mode; OFF: Auto Iris (AI) mode

4. Day/Night Setting

ON: Black and white mode; OFF: Auto Day/Night mode

5. High/Normal Resolution

ON: High resolution; OFF: Normal resolution

6. Flickerless Control

ON: Flickerless enabled; OFF: Normal

Reset to factory default settings

Use the reset button to reset the camera to factory defaults including

camera and network settings. With the camera powered up, press the

red reset button for 10 to 15 seconds. The red LED indicator light

flashes when the reset signal is accepted.

Contact information

For contact information see our Web site: www.interlogix.com
