Installation Instructions

Inductive sensor

with optical setting aid

701228 / 03 11 / 2007

UK

UK

2

Function and features

This inductive sensor detects metals without contact and indicates their presence by

providing a switched signal.

The nominal sensing range (Sn) can be seen in the type designation on the type

label on the unit; operating distance (Sa) 0 ... 0,81 x Sn; (values based on standard

measurement with mild steel; a shorter sensing range for other metals).

Electrical connection

Disconnect power before connecting the sensor. Connection strictly to the indications

on the type label. The unit can be used as normally open ( ) or as normally

closed ( ).

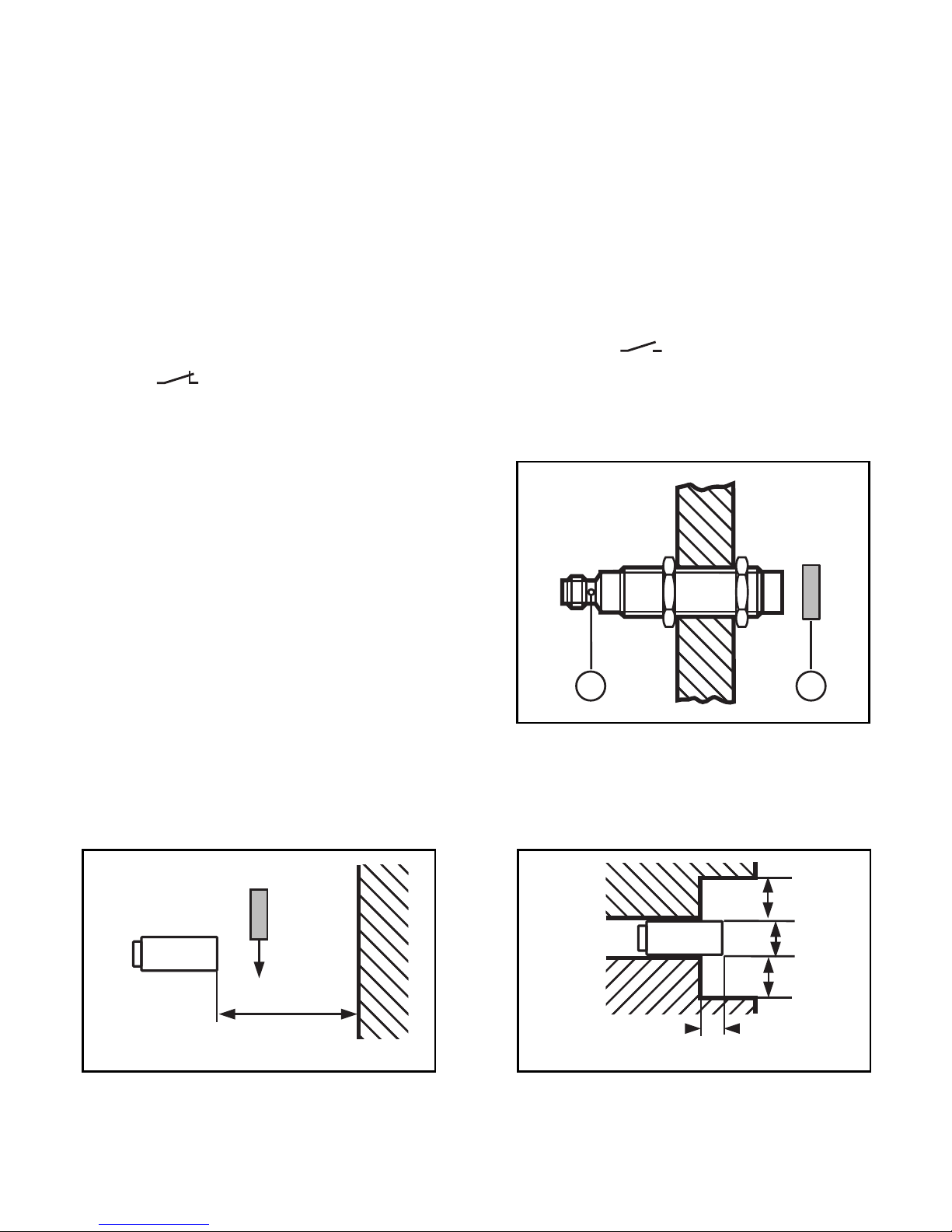

Installation

Mounting by means of a mounting device.

Adjust the unit. Adjustment is correct

when the red LED does not light. Secure

by means of the nuts provided so that it

cannot work loose.

Non-flush installation.

21

c

LED yellow / red

d

Target

Open space around the sensing face when mounted in metal:

3xS

n

D

D

D

2xS

n

3

UK

Minimum distance when several sensors of the same type are mounted:

2xDDD

8xS

n

Operation

Check the safe functioning of the sensor. Display by LEDs:

The yellow LED is lit when the output is switched.

The red LED is lit in case of faulty adjustment.

output function

LED yellow No object in the detection range.

LED red

LED yellow Safe detection of the object.

LED red

LED yellow Unsafe detection of the object

(readjust the unit).

LED red

LED yellow Uncertain function: predamping of the

unit by metal deposits or insufficient

open space around the active face;

(clean the active face or readjust the unit).

LED red

The operation of the sensor is maintenance-free.

For perfect functioning make sure that:

the sensing face and the open space are kept free of metal deposits and foreign

bodies, particularly for installation with the sensing face facing upwards;

EMC: The unit conforms to the requirements of EN 60947-5-2.

•

•

•

•
